An efficient flutter hybrid stack management scheme with zero intrusion, you deserve it!

In the actual work scenario , It's hard for us to start from scratch with pure Flutter To build a project , That's why ,Native+Flutter The jump management of hybrid stack is the first problem we have to consider in hybrid development , Because it's hard to guarantee that we won't encounter the following situations .

So how to do technical selection puzzles many students who want to be mixed , After all Flutter Our ecology is not very mature , There are not many ready-made solutions and wheels , And it's not necessarily easy to use , Or the resource occupation is too high , Or it's too invasive . Fortunately, after these days of exploration , Summed up a set of plans , For your reference , Communicate with each other .

---

According to international practice , Let me first introduce some solutions and existing problems in the current market .

This article is based on Flutter edition ：2.2 & Platform：Android

1.Google official （ Multi engine solutions ）

That is, one new... At a time FlutterEngine To render Widget Trees . although Flutter 2.0 Later creation FlutterEngine The cost of is greatly reduced , But it still hasn't solved every problem FlutterEngine It's a single isolate, if necessary Flutter① and Flutter② If you interact with data , It will be very troublesome . We also cannot guarantee that there will be no data interaction between them , therefore Pass.

2. The famous idle fish flutter_boost（ Single engine solution ）

flutter_boost Recently released 3.0 Of bate edition , Abandoned 2.0 Version intrusion into the engine （ Fabulous ！）, But there are still many problems ：

①： High up, not closed issues The contradiction between not responding in time （ You can understand , There's still work to do ）.

②： Complex design , In case of use problems , By changing flutter_boost The cost of source code solution is very high .

③：flutter The coupling degree is high , I have to use flutter_boost A series of Route Related tools and Widget To achieve the effect of mixed stack jump , If I want to change the frame later , The changes to the code will be massive .

So he succeeded in persuading me to retreat .

3. Hello, bike team flutter_thrio（ Single engine solution ）

The advantages and disadvantages of the library have been described in detail by the author , No more details here , Interested friends can go into the portal and check it in person .

4. It's the team's Isolate Reuse scheme and Tencent Xinyue team TRouter programme

It is a pity that , At present, these two schemes are not open source , But it is likely that the byte team's solution is quite intrusive .

---

Since there is no ready-made plan , Then roll up your sleeves and make one , Let's start with a demonstration of the effect of hybrid stack jump ：

Project address ：​ ​github.com/wangkunhui/…​​

Now let's implement the above functions .

First , To determine the ultimate goal , Then step by step towards the goal to improve ：

Goal one ： Reuse FlutterEngine, Avoid additional resource overhead and FlutterEngine Communication costs between .

Goal two ：Flutter Widget The jump between does not need to pass Native Layer control （flutter_boost need ）.

Goal three ： Every open Flutter Can and can only manage their own internal stack , At present Flutter Of Widget After all out of the stack , Quit current Flutter.

Goal four ： Support Flutter Open with parameters Native page （ The return value can also support , But it hasn't been added yet ）.

The model diagram designed according to these objectives is as follows ：

The above figure is opened cross in turn 5 individual Activity Schematic diagram of stack information , It can be divided into three columns , The specific explanation is as follows ：

On the left is Activity Stack information of , The second and fourth of them are mounted Flutter, And opened several Flutter Of Widget.

In the middle is FlutterEngine Medium Widget Stack diagram , Because reuse FlutterEngine Why ,Widget A To Widget P All exist in a stack , At the bottom is a blank HostWidget, Not responsible for any business logic , Its purpose is to ensure that the business above it is related to Widget Can be normally Pop Out of the stack （ because Flutter Navigator The last Widget It can't be Pop Of ）.

On the right is the middle FlutterEngine in Widget Pipeline information description of stack , Those are those. Widget It's related to those HostActivity Example of , In order to be able to control my Widget When performing a stack withdrawal operation , Know where to retreat Widget The need when finish Drop the associated Activity.

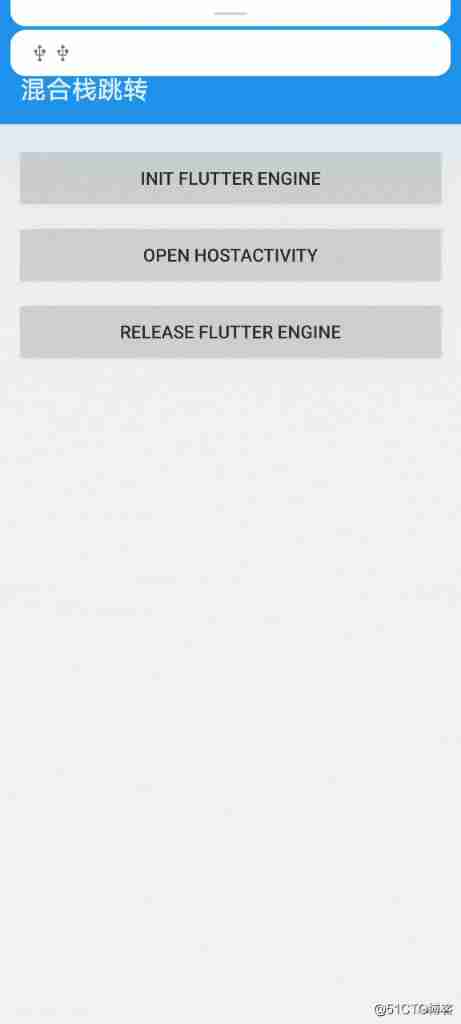

If the above description is not very intuitive , Let me give you a chestnut to illustrate , I am here HostActivity example 2 Open two Flutter page ,Widget O and Widget P, When these two Widget After you finish your task , You have to exit , When I quit Widget P when , The interface becomes Widget O, That's fine , Then I continue to quit WIdget O, If there is no special treatment ,FlutterEngine Will show Widget N, That's clearly not what we want . Our expected result is to finish fall HostActivity example 2, Exhibition NativeOneActivity, I want to do that , You need to think of FlutterEngine The stack is different HostActivity The... Shown in the example Widget Make a special distinction .

Okay , The theoretical work has been done , Then there's a happy Coding time , The list of tasks we face is as follows ：

One 、 How to FlutterEngine Reuse ？

Two 、FlutterActivity、FlutterFragment still FlutterView？

3、 ... and 、 How to listen FlutterEngine Stack change information ？

Four 、 How to synchronize the monitored stack information to the host Activity example ？

5、 ... and 、 How to deal with the host Activity and Flutter Page synchronization ？

---

The first question is , Instantiate first FlutterEngine：

Log in and copy



        /**

 *  initialization FlutterEngine

 * @param context  Context

 * @param block  Initialization status callback  0  No initialization required  1  Start initializing  2  Initialization done

 */

@Synchronized

fun initFlutterEngine(context: Context, block: (status: Int) -> Unit) {

    // Determine that the cache already exists

    if (!FlutterEngineCache.getInstance().contains(FLUTTER_ENGINE)) {



        block(1)

        // initialization FlutterEngine

        var engine = FlutterEngine(context.applicationContext)

        // initialization BasicMessageChannel

        messageChannel = BasicMessageChannel(

             engine.dartExecutor,

             FLUTTER_MIX_STACK_CHANNEL,

             StringCodec.INSTANCE

        )

        // Add message listening

        messageChannel?.setMessageHandler(messageHandler)



        this.initCallback = block

        // Began to run dart Code

        engine.dartExecutor.executeDartEntrypoint(

               DartExecutor.DartEntrypoint.createDefault()

        )

        // cache FlutterEngine

        FlutterEngineCache.getInstance().put(FLUTTER_ENGINE, engine)

    } else {

        block(0)

    }

}




1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.


FlutterEngineCache It's sealed for us FlutterEngine Cache function of , But how to use this cache ？

Official FlutterActivity There is one in the class withCachedEngine Static method of , It can help us get the information using cache Intent example , Can also inherit FlutterActivity rewrite getCachedEngineId Method , achieve FlutterEngine The effect of reuse , Direct start FlutterActivity It can be loaded Flutter page , Very simple and convenient , But if there are some slightly complex scenes ,FlutterActivity Some are not enough .

The second question is ,Flutter 2.0 It provides us with three Flutter Containers , Namely FlutterActivity（FlutterFragmentActivity）、FlutterFragment and FlutterView, To meet our use in different scenarios , From the richness of these three class annotation documents , It is highly recommended that we directly use FlutterActivity Of . Simply look at the source code and you'll find , Whether it's FlutterActivity still FLutterFragment, It's all based on FlutterView Realized . If the project has a specified base class, it needs to inherit or implement native UI+Flutter UI The situation of , Or want to warm up earlier Flutter Of Widget,FlutterView It will undoubtedly be more flexible , So here I choose to use the ordinary Activity+FlutterView, The pseudocode is as follows ：

Log in and copy



        class HostActivity : AppCompatActivity(){



  var flutterEngine // From the cache FlutterEngine

  var flutterChannel // BasicMessageChannel  There will be a special introduction below

  var flutterView

  onCreate(){

    // stay onCreate At the beginning of the method call , Just preheat in advance FlutterEngine, You can make Widget Load more smoothly

    flutterEngine.lifecycleChannel.appIsResumed()

    // Also in onCreate Send a message to FluuterEngine, Replace what we want to load in advance Widget, The method has a transition effect

    flutterChannel.sendMessage(routePath)

    super.onCreate()

    setContentView(flutterView = createFlutterView())

  }



  onResume(){

    super()

    flutterEngine.lifecycleChannel.appIsResumed()

  }



  onPause(){

    super()

    flutterEngine.lifecycleChannel.appIsPaused()

  }



  onDestroy(){

    super()

    flutterView.detachFromFlutterEngine()

  }

}




1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.


Third question , monitor FlutterEngine in Widget Changes in stack information , stay MaterialApp When initializing , There is one navigatorObservers Parameters of , Support us to add navigator Change information for （Navigator yes Flutter Page switching class provided ）.

Log in and copy



        void main() {

  // It's used here Get Framework to demonstrate , But it's not necessary

  var getApp = GetMaterialApp(

    initialRoute: RouterMapper.ROUTER_HOME,

    getPages: [

      GetPage(

          name: RouterMapper.ROUTER_HOST, // blank HostView

          page: () => Host(),

          transition: Transition.rightToLeft),

      ...

    ],

    navigatorObservers: [RouteNavigatorObserver()],

  );

  runApp(getApp);

  RouterHelper.registerApp(); // Register message listener here

}



class RouteNavigatorObserver extends NavigatorObserver {

  @override

  void didPush(Route<dynamic> route, Route<dynamic>? previousRoute) {

    //  Yes Widget Push   It can be downloaded from route In order to get name Information and sync to Native

  }



  @override

  void didPop(Route<dynamic> route, Route<dynamic>? previousRoute) {

    //  Yes Widget Out of the stack   It can be downloaded from route In order to get name Information and sync to Native

  }



  @override

  void didReplace({Route<dynamic>? newRoute, Route<dynamic>? oldRoute}) {

    //  new Widget Replaced the previous Widget  It can be downloaded from newRoute&oldRoute In order to get name Information and sync to Native

  }



  @override

  void didRemove(Route<dynamic> route, Route<dynamic>? previousRoute) {

    //  One Widget By remove 了 , This is generally not recommended

  }

}




1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.


By inheritance NavigatorObserver Class and register to navigatorObservers in , We have achieved the right FlutterEngine The middle road is monitored by information changes , So let's move on to the next question , How do we synchronize messages to Native？

** Fourth question ,**Flutter There are three ways to communicate with Native Interactive data , Namely BasicMessageChannel,MethodChannel and EventChannel, The first two can transfer data in both directions ,EventChannel Only support Native to Flutter To transfer data , A notification of a system message .MethodChannel Used to pass method calls ,BasicMessageChannel Used to transfer binary data , More suitable for our trial scenario , And then we need to Flutter and Native Stratified BasicMessageChannel For data interaction .

Then let's separate in Flutter and Native Layer creation BasicMessageChannel：

Log in and copy



        //Flutter

class RouterHelper {

  // Register message channel

  static final _routerMessageChannel =

      BasicMessageChannel<String?>("flutter_router_channel", StringCodec());



  static registerApp() {

    // Prevent the following empty exception

    WidgetsFlutterBinding.ensureInitialized();

    // Register message monitor

    _routerMessageChannel.setMessageHandler((String? message) async {

      if (message != null) {

        //native Message from layer

      }

    });

  }

}




1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.


Log in and copy



        //Kotlin

fun initMessageChannel(){

  var messageChannel = BasicMessageChannel(

      engine.dartExecutor,

      "flutter_router_channel",

      StringCodec.INSTANCE)



  messageChannel.setMessageHandler{ message, reply ->

      // Handle Flutter Message sent

  }

}




1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.


The message is sent by BasicMessageChannel Provided send Method realization , In the above question , We've been listening Navigator To judge Flutter Page change information in , Next, in the monitoring method , Send the corresponding information to Native Layer for processing , stay Native Layer, we can abstract out an interface , Give Way HostActivity Implement this interface , Through interface oriented programming , Distribute messages to currently active HostActivity in . and HostActivity A stack is maintained to record Flutter Changes in stack information .

Log in and copy



        /**

 * flutter Route change callback

 */

interface RouteCallback {

        //flutter route Stack message

    fun onPush(route: String)

        //flutter route Out of stack message

    fun onPop(route: String)

        //flutter route Stack replacement message

    fun onReplace(newRoute: String, oldRoute: String)

        //flutter route Removed messages

    fun onRemove(route: String)

        //flutter Apply to open Native Message for page

    fun routeNative(nativeRoute: String, params: HashMap<String, Any>? = null)

        //flutter route Out of stack message

    fun getLifecycleOwner(): LifecycleOwner

}



class HostActivity : AppCompatActivity(), RouteCallback {

      // Record flutter Routing stack information

    private val routeStack: Stack<String> by lazy {

        Stack()

    }



    //TODO RouteCallback How to implement the interface , In the method routeStack Perform stack in and stack out operations

}




1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.


Last question , When we need the user to return ,Widget The page should be similar to HostActivity Keep in sync , For example HostActivity Only one... Was opened Widget, So this Widget When you quit ,HostActivity We have to synchronize finish fall , Even if FlutterEngine There are other Widget. We can go through HostActivity Maintained in routeStack To achieve .

Log in and copy



        override fun onBackPressed() {

        // Judge the length of the current stack , If at present HostActivity The length of the stack is less than or equal to 1, that Activity Will be finsih

    if (routeStack.size <= 1) {

      super.onBackPressed()

      flutterEngine.navigationChannel.popRoute()

    }

    // Normal execution Navigator Of pop operation

    else {

      flutterEngine.navigationChannel.popRoute()

    }

}




1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.


Of course, there is another problem to pay attention to , There are some Widget The return of is not handled by the return key , Then we need to onPop Methods for some special treatment ：

Log in and copy



        override fun onPop(route: String) {

    // Normally handle out of stack logic

    if (routeStack.isEmpty() && !isFinishing) {

        // If it's all out of the stack , Is the current HostActivity Your business has been completed

        finish()

    }

}




1.

2.

3.

4.

5.

6.

7.


such , Can handle HostActivity And open in the host Widget Association , To advance and retreat together , The main logic is not responsible for the implementation , There is no need to use any third-party framework , This gives you a lot of flexibility , Especially for Flutter Come on ,Flutter Our ecology is not very mature , Avoid using overly intrusive frameworks , It also leaves enough space for future technical iterations .

---

Shortcomings and shortcomings

Although through to Flutter Monitoring and passing of information changes in the inner stack BasicMessageChannel Message synchronization to do a good job in hybrid stack management , But there are still some problems to be solved .

1：Flutter and Native The return value of the page ,OneActivity Opened a HostActivity And want to be in HostActivity Give... When you quit OneActivity A return value , This function has not been implemented in the example code , Continue to improve the framework when you have time .

2： Cross domain return The problem of , This “ Cross domain ” It's a name I defined myself , If I open two HostActivity, the second HostActivity adopt Navigator Of remove Method wants to close the first HostActivity Open in Widget, This can be done , Because these two HostActivity Use the same FlutterEngine, If this happens , That will make the first HostActivity There is a problem with the display of the page . Actually, I was thinking , The ideal hybrid management framework should be to open each HostActivity As a WebView To look at , Want to be in the second WebView Close the first... In WebView The page opened in , This is obviously not appropriate . Whether this cross domain return needs to be supported , It is also a problem worth considering .
