HCIA experiment (10) nat

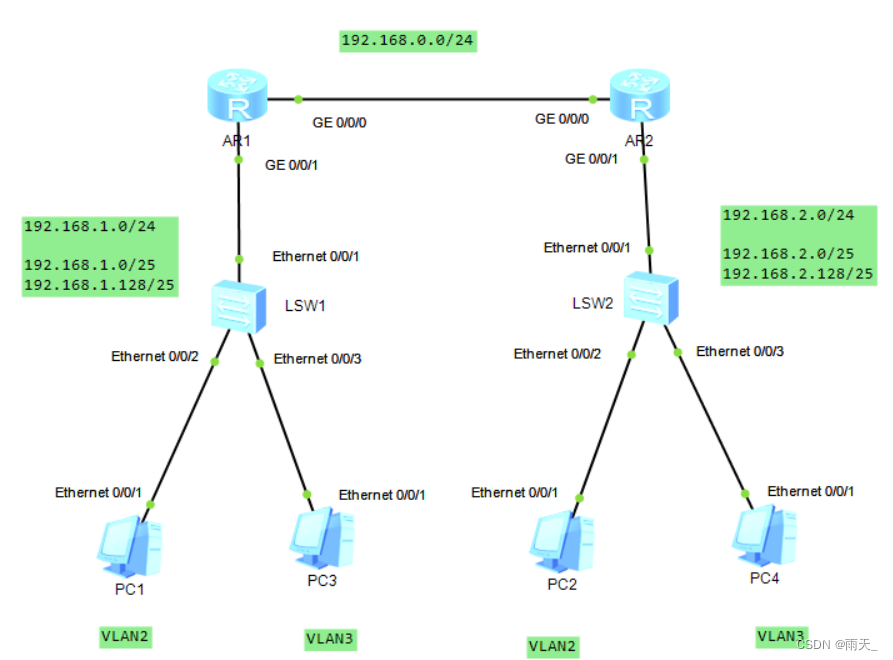

【1】 The first stage

1. Create... On the switch VLAN

[sw1]int e0/0/2
[sw1-Ethernet0/0/2]port link-type access
[sw1-Ethernet0/0/2]port default vlan 2
[sw1]int e0/0/3
[sw1-Ethernet0/0/3]port link-type access
[sw1-Ethernet0/0/3]port default vlan 3
[sw1]int e0/0/1
[sw1-Ethernet0/0/1]port link-type trunk
[sw1-Ethernet0/0/1]port trunk allow-pass vlan all
[sw2]int e0/0/2
[sw2-Ethernet0/0/2]port link-type access
[sw2-Ethernet0/0/2]port default vlan 2
[sw2]int e0/0/3
[sw2-Ethernet0/0/2]port link-type access
[sw2-Ethernet0/0/2]port default vlan 3
[sw2]int e0/0/1
[sw2-Ethernet0/0/1]port link-type trunk
[sw2-Ethernet0/0/1]port trunk allow-pass vlan all

2. Configure router , Turn on ARP function

[r1]int g0/0/1.1
[r1-GigabitEthernet0/0/1.1]dot1q termination vid 2
[r1-GigabitEthernet0/0/1.1]ip add 192.168.1.1 25
[r1-GigabitEthernet0/0/1.1]arp broadcast enable
[r1]int g0/0/1.2
[r1-GigabitEthernet0/0/1.2]dot1q termination vid 3
[r1-GigabitEthernet0/0/1.2]ip add 192.168.1.129 25
[r1-GigabitEthernet0/0/1.2]arp broadcast enable
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ip add 192.168.0.1 30
[r2]int g0/0/1.1
[r2-GigabitEthernet0/0/1.1]dot1q termination vid 2
[r2-GigabitEthernet0/0/1.1]ip add 192.168.2.1 25
[r2-GigabitEthernet0/0/1.1]arp broadcast enable
[r2]int g0/0/1.2
[r2-GigabitEthernet0/0/1.2]dot1q termination vid 3
[r2-GigabitEthernet0/0/1.2]ip add 192.168.2.129 25
[r2-GigabitEthernet0/0/1.2]arp broadcast enable
[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]ip add 192.168.0.2 30

3. Turn on DHCP service

[r1]dhcp enable
[r1]ip pool 01
[r1-ip-pool-01]network 192.168.1.0 mask 25
[r1-ip-pool-01]gateway-list 192.168.1.1
[r1-ip-pool-01]dns-list 114.114.114.114
[r1]ip pool 02
[r1-ip-pool-02]network 192.168.1.128 mask 25
[r1-ip-pool-02]gateway-list 192.168.1.129
[r1-ip-pool-02]dns-list 114.114.114.114
[r1]int g0/0/1.1
[r1-GigabitEthernet0/0/1.1]dhcp select global
[r1]int g0/0/1.2
[r1-GigabitEthernet0/0/1.2]dhcp select global
[r2]dhcp enable
[r2]ip pool 01
[r2-ip-pool-01]network 192.168.2.0 mask 25
[r2-ip-pool-01]gateway-list 192.168.2.1
[r2-ip-pool-01]dns-list 114.114.114.114
[r2]ip pool 02
[r2-ip-pool-02]network 192.168.2.128 mask 25
[r2-ip-pool-02]gateway-list 192.168.2.129
[r2-ip-pool-02]dns-list 114.114.114.114
[r2]int g0/0/1.1
[r2-GigabitEthernet0/0/1.1]dhcp select global
[r2]int g0/0/1.2
[r2-GigabitEthernet0/0/1.2]dhcp select global

4. stay PC End open DHCP service

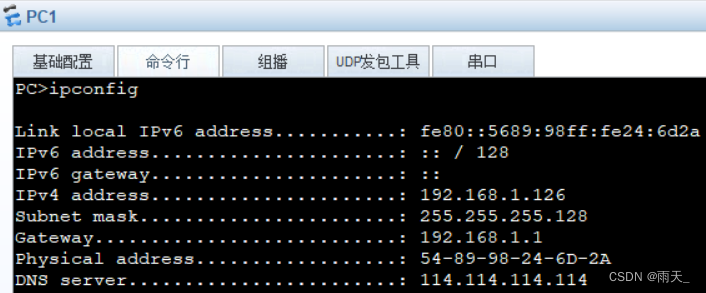

verification

5. Declare

[r1]rip 1
[r1-rip-1]ver 2
[r1-rip-1]network 192.168.1.0
[r1-rip-1]network 192.168.0.0
[r2]rip 1
[r2-rip-1]ver 2
[r2-rip-1]network 192.168.2.0
[r2-rip-1]network 192.168.0.0

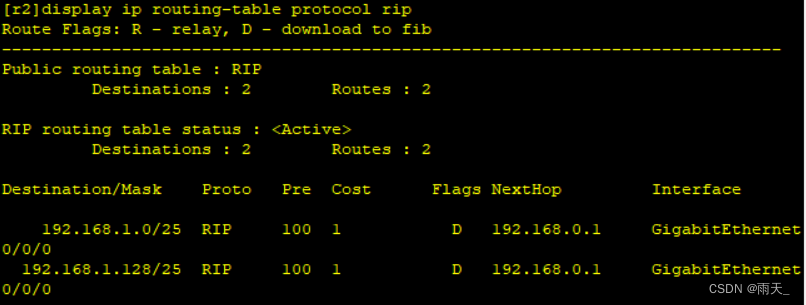

see

（ Route summary ）

[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]rip summary-address 192.168.1.0 255.255.255.0
[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]rip summary-address 192.168.2.0 255.255.255.0

testing

6. Silent interface

[r1]rip 1
[r1-rip-1]silent-interface g0/0/1.1
[r1-rip-1]silent-interface g0/0/1.2
[r2]rip 2
[r2-rip-2]silent-interface g0/0/1.1
[r2-rip-2]silent-interface g0/0/1.2

7. test

【2】 The second stage （ LAN access Wan ）

1. Supplementary configuration of router interface

[r2]int g0/0/2
[r2-GigabitEthernet0/0/2]ip add 12.1.1.1 24
[isp]int g0/0/0
[isp-GigabitEthernet0/0/0]ip add 12.1.1.2 24
[isp]int g0/0/1
[isp-GigabitEthernet0/0/1]ip add 1.1.1.1 24

2. visit ISP, Configure the default route

[r1]rip 1
[r1-rip-1]default-route originate
[r2]ip route-static 0.0.0.0 0 12.1.1.2

3. Define private that can be converted IP Address range

[r2]acl 2000
[r2-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
（ The interface of the public network , Source IP The address is changed to be public IP）
[r2]int g0/0/2
[r2-GigabitEthernet0/0/2]nat outbound 2000

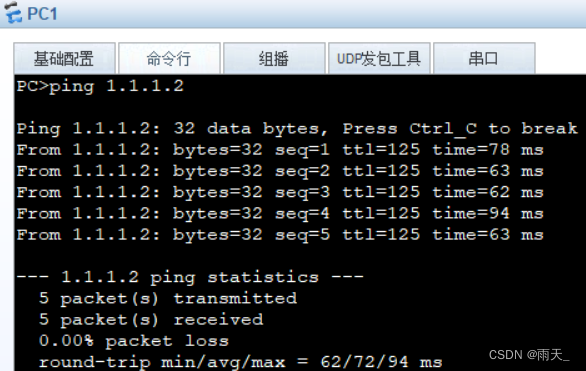

4. test
