Data extraction 1

Data extraction Overview

In a nutshell , Data extraction is the process of getting the data we want from the response

1. Classification of response content

After sending a request for a response , There may be many different types of response content ; And a lot of times , We only need to respond to part of the data in the content

• Structured response content

  • json character string

    • have access to re、json And other modules to extract specific data
    • json An example of a string is shown below



  • xml character string

    • have access to re、lxml And other modules to extract specific data

    • xml Examples of strings are as follows

      <bookstore>
      <book category="COOKING">
        <title lang="en">Everyday Italian</title>
        <author>Giada De Laurentiis</author>
        <year>2005</year>
        <price>30.00</price>
      </book>
      <book category="CHILDREN">
        <title lang="en">Harry Potter</title>
        <author>J K. Rowling</author>
        <year>2005</year>
        <price>29.99</price>
      </book>
      <book category="WEB">
        <title lang="en">Learning XML</title>
        <author>Erik T. Ray</author>
        <year>2003</year>
        <price>39.95</price>
      </book>
      </bookstore>


• Unstructured response content

  • html character string

    • have access to re、lxml And other modules to extract specific data
    • html An example of a string is shown below



2. know xml And the html The difference between

Make it clear html and xml The difference between , First of all, we need to know xml

know xml

xml It's an extensible markup language , Look and feel html It's like , The function is more focused on the transmission and storage of data

<bookstore>
<book category="COOKING">
  <title lang="en">Everyday Italian</title>
  <author>Giada De Laurentiis</author>
  <year>2005</year>
  <price>30.00</price>
</book>
<book category="CHILDREN">
  <title lang="en">Harry Potter</title>
  <author>J K. Rowling</author>
  <year>2005</year>
  <price>29.99</price>
</book>
<book category="WEB">
  <title lang="en">Learning XML</title>
  <author>Erik T. Ray</author>
  <year>2003</year>
  <price>39.95</price>
</book>
</bookstore>

above xml The content can be represented as the following tree structure :

xml and html The difference between

The difference between the two is shown in the figure below

• html：
  • Hypertext markup language
  • In order to better display the data , The focus is to show
• xml：
  • Extensible markup language
  • In order to transmit and store data , The focus is on the data content itself

Common data analysis methods

Data extraction json

The goal is ： understand json The concept of

​ Learn about reptiles ,json Position of appearance

​ master json Related methods

---

1. What is? json, Where can I find json

json Is a lightweight data exchange format , It makes it easy for people to read and write , Colleagues also facilitate the machine to parse and generate , It is suitable for data interaction scenarios , such as web Data interaction between foreground and background

As for where to find and return json Data url, Take Douban movie for example , The next one url Is to return to json Data url

https://movie.douban.com/j/search_subjects?type=movie&tag=%E7%83%AD%E9%97%A8&page_limit=50&page_start=0

stay url Search for keywords in the response corresponding to the address

But notice :url Address response , Chinese is often the encoded content , So I recommend you to search English and numbers ; Another way is to perview Mid search , The class content is transcoded

There's another way , Is to switch the browser to the mobile version to find json

2. json Formatting Data

stay preview To observe

among ：

​ A square box indicates json Health in

​ The oval box represents the value corresponding to the key , It's a list , After the list expands , The numbers below represent the corresponding values in the list

Online parsing tool for parsing

​ json.cn( On-line json Data analysis , Make the data intuitive and readable )

pycharm Conduct reformat code

​ stay pycharm Create a new one in json file , After saving the data , Click on code Below reformat code, But Chinese often shows unicode Format

json Other sources of data ：

​ Grab the bag app,app The way of capturing bags will be learned later , But a lot of times app The data in is encrypted , But it's still worth trying

3. json Learning methods in modules

json.dumps

dump Its function is to Python object encode by json object , A coding process . Be careful json The module provides json.dumps and json.dump Method , The difference is that dump Go directly to the file , and dumps To a string , there s It can be understood as string.

import json
data = [ {
     'a':'A', 'b':(2, 4), 'c':3.0 } ]
print('DATA:', repr(data))

data_string = json.dumps(data)
print('JSON:', data_string)
# give the result as follows
DATA: [{
    'a': 'A', 'c': 3.0, 'b': (2, 4)}]
JSON: [{
    "a": "A", "c": 3.0, "b": [2, 4]}]
print type(data)
print type(data_string)
<type 'list'>
<type 'str'>

json.dump

Not only can you put Python Object code is string, You can also write to files . Because we can't put Python Object is written directly to the file , This will give you an error TypeError: expected a string or other character buffer object, We need to serialize it before

import json
data = [ {
     'a':'A', 'b':(2, 4), 'c':3.0 } ]
with open('output.json','w') as fp:
    json.dump(data,fp)
#  result
[{
    “a”: “A”, “c”: 3.0, “b”: [2, 4]}]

json.loads

from Python Built-in objects dump by json Object we know how to operate , Then how to json object decode Decoding for Python Recognizable objects ？ Yes, it does json.loads Method , Of course, this is based on string Of , If it's a file , We can use json.load Method .

decoded_json = json.loads(data_string)
#  Same as before , still list
print type(decoded_json)
<type 'list'>
#  Like visiting  data = [ { 'a':'A', 'b':(2, 4), 'c':3.0 } ] equally
print decoded_json[0]['a']
# give the result as follows
A

json.load

Can directly load file

with open('output.json') as fp:
    print type(fp)
    loaded_json = json.load(fp)

<type 'file'>
#  Same as before , still list
print type(decoded_json)
<type 'list'>
#  Like visiting  data = [ { 'a':'A', 'b':(2, 4), 'c':3.0 } ] equally
print decoded_json[0]['a']

# give the result as follows
A

4. json.dumps Common parameters

Some of the parameters , It allows us to better control the output . Common examples are sort_keys,indent,separators,skipkeys etc. .

sort_keys The name is very clear , When outputting, the dictionary is sorted by key values , Not random .

import json
data = [ {
     'a':'A',  'c':3.0 ,'b':(2, 4)} ]
print('DATA:', repr(data))

unsorted = json.dumps(data)
print('JSON:', json.dumps(data))
print('SORT:', json.dumps(data, sort_keys=True))
# give the result as follows
DATA: [{
    'a': 'A', 'c': 3.0, 'b': (2, 4)}]
JSON: [{
    "a": "A", "c": 3.0, "b": [2, 4]}]
SORT: [{
    "a": "A", "b": [2, 4], "c": 3.0}]1234567891011

indent Just an indentation , Let's see the structure better .

import json
data = [ {
     'a':'A', 'b':(2, 4), 'c':3.0 } ]
print('DATA:', repr(data))

print('NORMAL:', json.dumps(data, sort_keys=True))
print('INDENT:', json.dumps(data, sort_keys=True, indent=2))

# give the result as follows
DATA: [{
    'a': 'A', 'b': (2, 4), 'c': 3.0}]
NORMAL: [{
    "a": "A", "b": [2, 4], "c": 3.0}]
INDENT: [
  {

    "a": "A",
    "b": [
      2,
      4
    ],
    "c": 3.0
  }
1234567891011121314151617181920

separators Is to provide separator , You can go out in white space , More compact output , Smaller data . The default separator is (‘, ‘, ‘: ‘), With white space . Different dumps Parameters , The corresponding file size is clear at a glance .

import json
data = [ {
     'a':'A', 'b':(2, 4), 'c':3.0 } ]
print('DATA:', repr(data))
print('repr(data) :', len(repr(data)))
print('dumps(data) :', len(json.dumps(data)))
print('dumps(data, indent=2) :', len(json.dumps(data, indent=2)))
print('dumps(data, separators):', len(json.dumps(data, separators=(',',':'))))

# give the result as follows
DATA: [{
    'a': 'A', 'c': 3.0, 'b': (2, 4)}]
repr(data)             : 35
dumps(data)            : 35
dumps(data, indent=2)  : 76
dumps(data, separators): 291234567891011121314

json The key that needs a dictionary is a string , Otherwise it will throw ValueError.

import json
data = [ {
     'a':'A', 'b':(2, 4), 'c':3.0, ('d',):'D tuple' } ]

print('First attempt')
try:
    print(json.dumps(data))
except (TypeError, ValueError) as err:
    print('ERROR:', err)

print()
print('Second attempt')
print(json.dumps(data, skipkeys=True))

# give the result as follows
First attempt
ERROR: keys must be a string

Second attempt
[{
    "a": "A", "c": 3.0, "b": [2, 4]}]

5. Case study

Crawl the data of English and American dramas of Douban TV series , And classification , Address ：https://m.douban.com/tv/

class Douban(object):
    def __init__(self, tv_name):
        self.start_url = 'https://movie.douban.com/j/search_subjects?type=tv&tag={}&sort=recommend&page_limit=20&page_start={}'
        self.referer = 'https://m.douban.com/movie/subject/{}/'
        self.tv_msg = 'https://m.douban.com/rexxar/api/v2/tv/{}?ck=&for_mobile=1'
        self.tv_name = tv_name

    def run(self):
        """  Splicing url, Get page turning information  :return: """
        for i in range(5):
            #  Splicing url, Get page turning information
            url = self.start_url.format(self.tv_name, i)
            #  obtain url Responsive json data , And convert it into a dictionary
            tv_list_json = json.loads(session.get(url).content.decode())
            self.parse_json_data(tv_list_json)

    def parse_json_data(self, json_data):
        """ json Data analysis  :param json_data: json_data :return: """
        #  Ergodic dictionary , Get the data you need
        for tv in json_data['subjects']:
            #  TV Series Title
            tv_title = tv['title']
            #  TV series url
            tv_url = tv['url']
            #  The picture address of the TV series
            tv_img = tv['cover']
            #  TV series id
            tv_id = tv['id']
            self.parse_tv(tv_id, tv_title, tv_url, tv_img)

    def parse_tv(self, tv_id, tv_title, tv_url, tv_img):
        """ :param tv_id: :return: """
        #  Splicing TV series details url
        url = self.tv_msg.format(tv_id)
        #  Anti creep , Splicing referer
        headers = {
    "User-Agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) Appl\
                            eWebKit/537.36 (KHTML, like Gecko) Chrome/83.0.4103.116 Safari/537.36",
                   'referer': self.referer.format(tv_id)}
        #  obtain json data , Turn it into a dictionary
        tv_json_data = json.loads(session.get(url, headers=headers).content.decode('utf-8'))
        #  Get TV series introduction
        intro = tv_json_data['intro']
        self.actor_msg(tv_json_data, tv_title, tv_url, tv_img, intro)

    def actor_msg(self, tv_json_data, tv_title, tv_url, tv_img, intro):
        name = []
        #  Actors are in the dictionary , Loop out the actor's name
        for actor in tv_json_data['actors']:
            name.append(actor)
        self.save(name, tv_title, tv_url, tv_img, intro)

    def save(self, name, tv_title, tv_url, tv_img, intro):
        with open('tv.txt', 'a+', encoding='utf-8')as f:
            #  Construction context
            content = {

                ' Category ': self.tv_name,
                ' title ': tv_title,
                ' Play link ': tv_url,
                ' Cover link ': tv_img,
                ' Content abstract ': intro,
                ' actor ': name
            }
            f.write(str(content) + '\r\n')
        print('{}{} Save complete '.format(self.tv_name, tv_title))


if __name__ == '__main__':
    print("1: ' American TV Series ', 2: ' English Drama '")
    while True:
        num = input(' Please enter the corresponding number ,  Press enter to finish ')
        if num == '1' or num == '2':
            data = {
    1: ' American TV Series ', 2: ' English Drama '}
            douban = Douban(data[int(num)])
            douban.run()
            continue
        if num == '0':
            break
        else:
            print(' Incorrect input ')

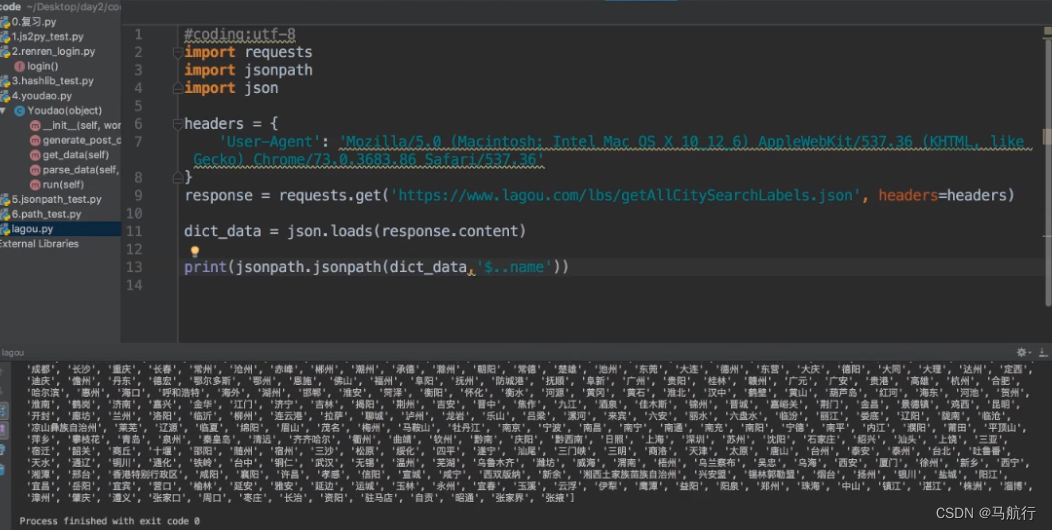

Data extraction jsonpath modular ( I haven't used it yet )

pip install jsonpath

Use scenarios ： Multi nested complex dictionary , Extracting data directly

Method :

ret = jsonpath(a, ‘jsonpath Syntax rule string ’) #a It is the target dictionary that needs to extract data

Common node ：

$ The root node （ The outermost brace ）

. Byte point （）

… Any position inside , Descendants node

Example 1：

Example 2：
