Google Earth engine -- null value problem in image statistics
2022-07-23 16:01:00 【This star is bright】
Here's a question , Is there only one image , But here we need to look at the code , The function used in the code is raw data filtering , then This function is equal to , Equal to the value of a single image id
filterMetadata(name, operator, value)
deleted . Use filter() And ee.Filter.eq(), ee.Filter.gte() etc. .
A shortcut to filter a collection through metadata . This is equivalent to this.filter(ee.Filter.metadata(..)).
Return filtered collection .
Parameters .
this:collection( aggregate ).
Collection instance .
name( character string ).
Name of the attribute to be filtered .
operator (String):
The name of the comparison operator . The possible value is ."equals", "less_than", "greater_than",
"not_equals", "not_less_than", "not_greater_than", "start_with",
"end_with", "not_starts_with", "not_ends_with", " contains",
" It doesn't contain ".
value( object ).
- The value to compare .
return . aggregate
So here is the first question to explain why there are only single scene images


The second problem here is that when we count the function of single scene image here, we return the statistical value to an empty vector , Therefore, the statistical value is not given here , And here we choose first, That is, the first choice shp The vector itself here is a null value
| SCL | Scene Classification Map (The "No Data" value of 0 is masked out) | 1 | 11 | 20 meters | 0 |
Class Table: SCL Here is the specific classification information
| Value | Color | Color Value | Description |
|---|---|---|---|
| 1 | #ff0004 | Saturated or defective | |
| 2 | #868686 | Dark Area Pixels | |
| 3 | #774b0a | Cloud Shadows | |
| 4 | #10d22c | Vegetation | |
| 5 | #ffff52 | Bare Soils | |
| 6 | #0000ff | Water | |
| 7 | #818181 | Clouds Low Probability / Unclassified | |
| 8 | #c0c0c0 | Clouds Medium Probability | |
| 9 | #f1f1f1 | Clouds High Probability | |
| 10 | #bac5eb | Cirrus | |
| 11 | #52fff9 | Snow / Ice |
SLC Band will be removed 0 The data of
Code :
// Image filtering here is the filtering of single scene images
var S2 = ee.ImageCollection('COPERNICUS/S2_SR')
.filterMetadata("system:index", 'equals', '20210705T165901_20210705T165855_T20XNN')
// Define a cloud masking function .
var maskcloud1 = function(image) {
var QA60 = image.select(['QA60']);
return image.updateMask(QA60.lt(1))
};
// Define a vegetation masking function . You need to see the image information of this band
var masklandcover = function(image){
var SCL = image.select(['SCL']);
return image.updateMask(SCL.eq(4).or(SCL.eq(5)).or(SCL.eq(6)).or(SCL.eq(11)))
}
// The choice is greater than 0 Of
var maskpstv = function(image){
var RE = image.select(['AbsError']);
return image.updateMask(RE.gte(0))
}
// Choose less than 0 Of
var maskngtv = function(image){
var RE = image.select(['AbsError']);
return image.updateMask(RE.lt(0))
}
var AbsoluteError_oldc_f = function(image) {
return image.expression(
'((2.5 * (NIR - RED) / (NIR + (6-7.5/2.08)*RED + 1))-(2.5 * (NIR - RED) / (NIR + 6*RED-7.5*BLUE + 1)))',
{
'NIR': image.select('B8').multiply(0.0001),
'RED': image.select('B4').multiply(0.0001),
'BLUE': image.select('B2').multiply(0.0001),
}).rename('AbsError').copyProperties(image, image.propertyNames());
};
// Use the image to do the above map Work
var ImgsMasked = S2.map(maskcloud1).map(masklandcover).map(AbsoluteError_oldc_f);
// Then filter for greater than and less than
var ImgsMasked_pstv = ImgsMasked.map(maskpstv)
var ImgsMasked_ngtv = ImgsMasked.map(maskngtv)
// Find the average value of the image
var BecomeTs = function(image){
var date = image.get("DATE_ACQUIRED")//.format("Y-M-D");
var mean = image.reduceRegion({
reducer: ee.Reducer.mean(),
geometry: image.geometry(),
scale: 10,
bestEffort: true
});
//
// And return a with "null " Characteristics of geometry , With attributes ( Dictionaries ).
return ee.Feature(null, {'mean': mean.get('AbsError'), 'date': date,'geometry':image.geometry().coordinates()})
}
print('ImgsMasked_ngtv',ImgsMasked_ngtv)

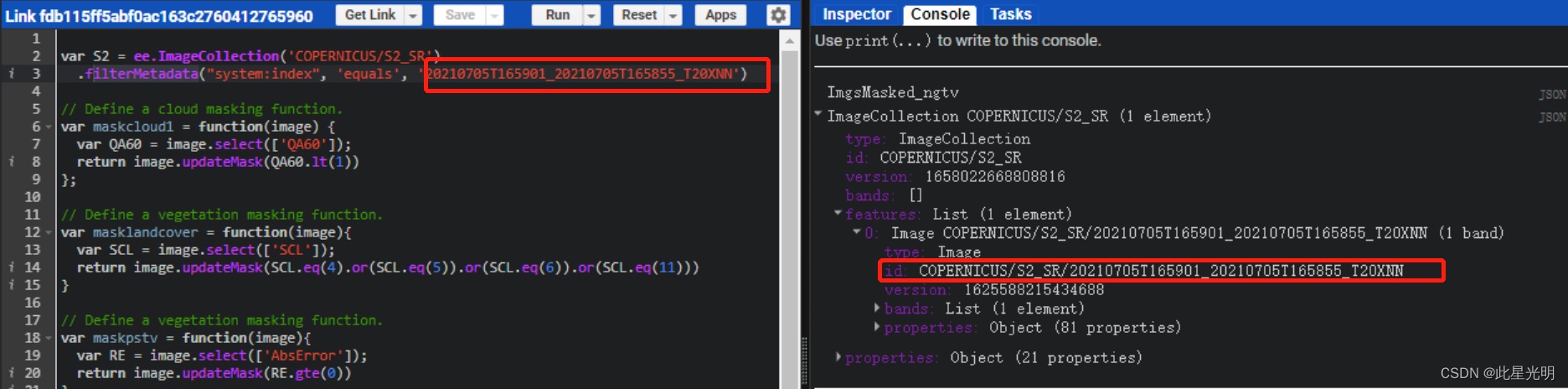

// There is only one image with name 20210705T165901_20210705T165855_T20XNN
print('Result using map() function', ImgsMasked_ngtv.map(BecomeTs))
// get the mean value -119345390125318.16

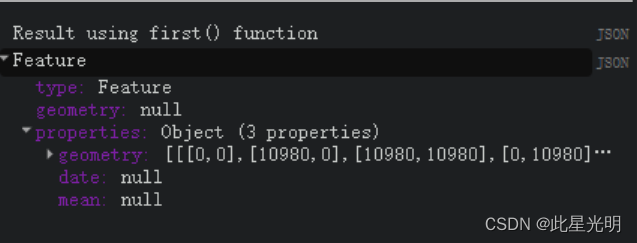

print('Result using first() function',BecomeTs(ImgsMasked_ngtv.first()))
// get the mean value null
