Explain left value, right value, left value reference and right value reference in detail

One 、 Left and right

1. The left value

An lvalue is an expression that represents data , such as ： Variable name 、 Dereferenced pointer variable . In a general way , We can Get its address and Assign a value to it , But being const Modified lvalue , You can't assign a value to it , But you can still get its address .

Overall speaking , The object that can take the address is the lvalue .

//  Following a、p、*p、b It's all l-values
int a = 3;
int* p = &a;
*p;
const int b = 2;

2. Right value

The right value is also an expression that represents data , such as ： Literal constants 、 The expression returns the value , Return value of the value passing function （ Is to pass the value and return , Instead of passing references back ）, The right value cannot appear on the left of the assignment symbol and cannot take the address .

Overall speaking , The object that cannot get the address is the right value .

double x = 1.3, y = 3.8;
//  The following are common right values
10;                 //  Literal constants
x + y;             //  The expression returns the value
fmin(x, y);        //  Return value of the value passing function

None of the following can be compiled ：

1. 10 = 4;、x + y = 4;、fmin(x, y) = 4;,VS2015 Compiler error ：error C2106: “=”: Left operand must be an lvalue . reason ： The right value cannot appear to the left of the assignment symbol .
2. &10;、&(x + y);、&fmin(x, y);,VS2015 Compiler error ：error C2102: “&” Lvalue required . reason ： Right value cannot take address .

3. summary

Distinguish between left and right values , After all, it depends on whether you can get the address .

Two 、 L-value reference and right value reference

Conventional C++ There is reference grammar in grammar , and C++11 The syntax feature of right value reference is added in the standard , So in order to distinguish the two , take C++11 References before the emergence of the standard are called lvalue references .

Whether l-value reference or R-value reference , It's all about aliasing objects .

1. lvalue reference

An lvalue reference is a reference to an lvalue , Alias the lvalue .

//  The following are lvalue references to the above lvalue
int& ra = a;
int*& rp = p;
int& r = *p;
const int& rb = b;

2. Right quoting

An R-value reference is a reference to an R-value , Alias the right value .

The expression of right value reference is to add two after the specific variable type name &, such as ：int&& rr = 4;.

//  The following are right value references to the above right value
int&& rr1 = 10;
double&& rr2 = x + y;
double&& rr3 = fmin(x, y);

Be careful ：
Right quoting quote Right value , Will cause the right value to be stored in a specific location .
in other words , An R-value reference variable is actually an l-value , It can be addressed and assigned （const The right value reference variable can take an address but cannot be assigned , because const It's working ）.
Of course , Taking the address refers to taking the address of the variable space （ The right value cannot take the address ）.

such as ：

1. double&& rr2 = x + y;
&rr2;
rr2 = 9.4;
   Right quoting rr2 Reference right value x + y after , The return value of this expression is stored in a specific location , Cannot get the return value of the expression x + y The address of , But you can take rr2 The address of , You can also modify rr2 .
2. const double&& rr4 = x + y;
&rr4;
   It can be done to rr4 Address fetch , But it can't be modified rr4, It's written as rr4 = 5.3; Compile and report errors .

Now we know that lvalue references can reference lvalues , An R-value reference can refer to an R-value .
Then whether the left value reference can reference the right value ？ Can an R-value reference refer to an l-value ？
The following comparison and summary give the answer .

3. Comparison and summary

Lvalue reference summary ：

1. Lvalue references can only refer to lvalues , You cannot directly reference the right value .
2. however const lvalue reference You can reference lvalues , You can also reference the right value .

// 1. Lvalue references can only refer to lvalues
int t = 8;
int& rt1 = t;

//int& rt2 = 8; //  Compiler error , because 10 It's right value , You cannot directly reference the right value


// 2. however const Lvalue references can refer to lvalues
const int& rt3 = t;

const int& rt4 = 8;  //  You can also reference the right value
const double& r1 = x + y;
const double& r2 = fmin(x, y);

ask ： Why? const lvalue reference You can also reference the right value ？
answer ： stay C++11 Before the standard came into being , There is no right value to refer to this concept , At that time, if you want a type that can receive both left and right values , Need to use const lvalue reference , For example, standard containers push_back Interface ：void push_back (const T& val).
in other words , If const lvalue reference You cannot quote the right value , Some interfaces are not easy to support .

The following is C++98 Relevant interfaces in the standard const lvalue reference An example of quoting an R-value ：

vector<int> v;
v.push_back(1);
v.push_back(2);
v.push_back(3);

R-value reference summary ：

1. The right value reference can only refer to the right value , You cannot directly reference an lvalue .
2. But right value references can be referenced by move Left value of .

move, This article refers to std::move（C++11）, The function is to forcibly convert an left value to an right value , To achieve mobile semantics .
The lvalue is move Then it becomes the right value , So the right value reference can reference .

// 1. The right value reference can only refer to the right value
int&& rr1 = 10;
double&& rr2 = x + y;
const double&& rr3 = x + y;

int t = 10;
//int&& rrt = t; //  Compiler error , You cannot directly reference an lvalue


// 2. But right value references can be referenced by move Left value of
int&& rrt = std::move(t);
int*&& rr4 = std::move(p);
int&& rr5 = std::move(*p);
const int&& rr6 = std::move(b);

3、 ... and 、 Usage scenario and practical significance of lvalue reference

1. Use scenarios

// 1. Lvalue reference as parameter
void func1(string s)
{
    ...}

void func2(const string& s)
{
    ...}


int main()
{

	string s1("Hello World!");
	func1(s1);  //  Because it is value transfer and parameter transfer, and it is a deep copy , It costs a lot
	func2(s1);  //  Lvalue reference as parameter reduces copy , Improved efficiency

	return 0;
}

// 2. An lvalue reference is used as the return value （ Only when the object is out of the scope of the function ）
string s2("hello");
// string operator+=(char ch)  Pass the value to return that there is a copy and it is a deep copy
// string& operator+=(char ch)  There is no copy of the return value of the lvalue reference , Improved efficiency
s2 += '!';

2. Practical significance

Copy will be generated by value transfer, parameter transfer and value return , Some are even deep copies , The price is very big . The practical significance of lvalue reference is that making parameters and return values can reduce the copy , To improve efficiency .

3. Short board

Lvalue quotation solves most problems perfectly , But some problems still can't be solved well .

When the object still exists after it is out of the function scope , You can use an lvalue reference to return , That's fine .

string& operator+=(char ch)
{

	push_back(ch);
	return *this;
}

But when the object （ An object is a local object within a function ） When there is no function scope , You can't use lvalue reference to return .

string operator+(const string& s, char ch)
{

	string ret(s);
	ret.push_back(ch);
	return ret;
}

//  Take this function as an example ：ret Is a local object in a function , After the function scope is out, it will be destructed , It was destroyed
//  If its alias is returned at this time （ lvalue reference ）, That is to use this object again , There will be problems

therefore , For the second case , Lvalue references can do nothing , You can only pass values and return .

Four 、 Right quoting

therefore , In order to solve the copy problem of the above value transfer return ,C++11 The standard is increased Right quoting and Mobile semantics .

1. Mobile semantics （Move semantics）

Put the resources in an object Move To another object （ Transfer of resource control ）.

（1） Mobile construction

① Concept

Transfer Parameter right value Resources to construct yourself .

//  This is a simulation string Mobile construction of class implementation
string(string&& s)
	:_str(nullptr)
	, _size(0)
	, _capacity(0)
{

	swap(s);
}

Copy constructor and move constructor are overloaded functions of constructor , The difference is ：

1. The parameters of the copy constructor are const lvalue reference , Receive left or right values ;
2. The argument of the mobile constructor is the right value reference , Receive the right value or be move Left value of .

notes ： When the parameter passed is a right value , Although the copy constructor can receive , But the compiler will think that the mobile constructor is more matched , The move constructor is called .

in general , If both functions are defined in the class , When constructing objects ：

1. If the left value is used as a parameter , Then the copy constructor is called , Make a copy （ If it is like string Such classes with resources in heap space , Then every time the copy structure is called, a deep copy will be made ）.
2. If the right value is used as a parameter , Then the mobile construct will be called , Calling the mobile construct will reduce the copy （ If it is like string Such classes with resources in heap space , Then every time you call the mobile structure, you will make a deep copy less ）.

For example, execute the following lines of code ：

string s("Hello World11111111111111111");
string s1 = s;  // s It's left , So call the copy constructor
string s2 = move(s);  // s By move Then it becomes the right value , So call the move constructor ,s Resources will be transferred to construct s2
//  It should be noted that ,move Generally, it is not used like this , because s Our resources have been diverted

perform string s1 = s; front ：
perform string s1 = s; after （ It's also execution string s2 = move(s); front ）：

perform string s2 = move(s); after ：

② Comparison of mobile structures

For example, execute statements cout << MyLib::to_string(1234) << endl;

Only copy structure, no move structure ：

stay to_string Before the function stack frame is destroyed , Use local objects str Copy the temporary object constructed and return to the function call .

There are both copy structures and mobile structures ：

stay to_string Before the function stack frame is destroyed , Use local objects str （ Anyway str To destroy , take str As an R-value , Direct transfer str Resources for ） Move to construct a temporary object and return to the function call .

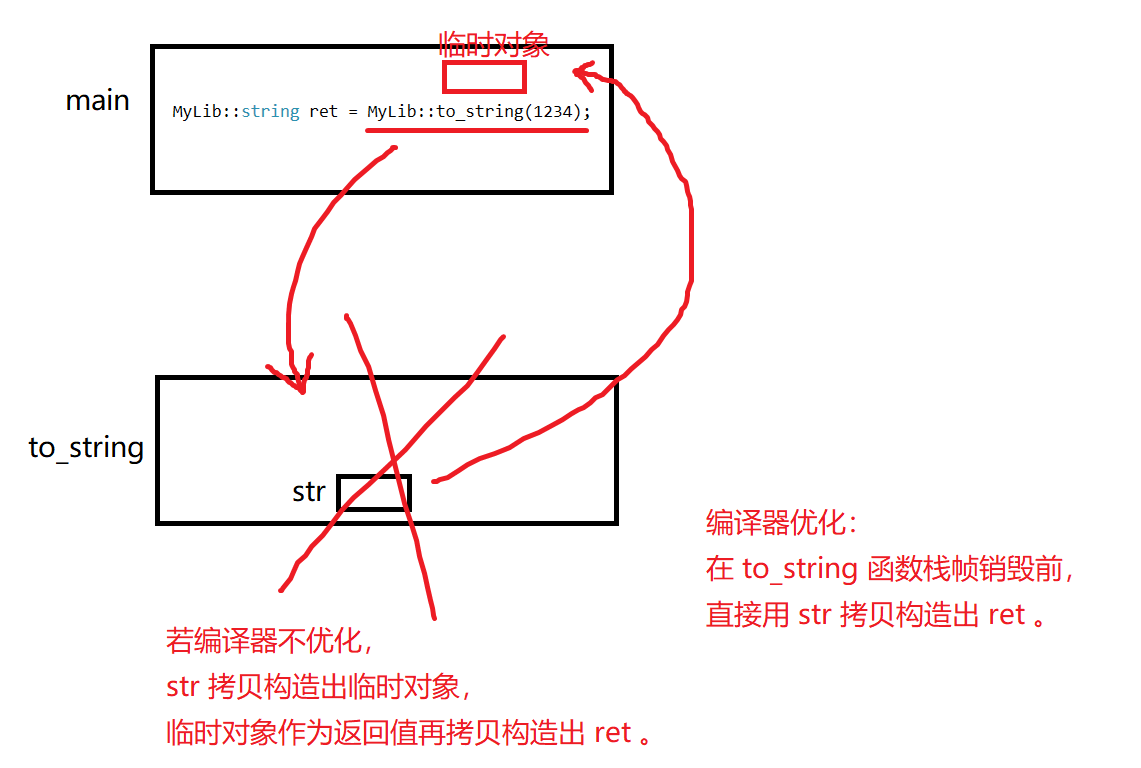

For example, execute statements MyLib::string ret = MyLib::to_string(1234);

Only copy structure, no move structure ：
stay to_string Before the function stack frame is destroyed , First use local objects str Copy the temporary object constructed and return to the function call ,to_string After the function stack frame is destroyed , Then use the temporary object copy to construct ret .
But today's compilers generally optimize ： Because temporary objects have ret To receive , In this case, the creation and destruction of temporary objects are redundant , Why not omit this step , Direct use str Copy to construct ret .

There are both copy structures and mobile structures ：
stay to_string Before the function stack frame is destroyed , Due to local objects str It's left （ You can address it ）, So use str Copy the temporary object constructed and return to the function call ,to_string After the function stack frame is destroyed , Because the temporary object is an R-value , So use temporary object movement to construct ret .
But today's compilers generally optimize ： Because temporary objects have ret To receive , First copy and construct a temporary object, and then move it to construct ret , Temporary objects seem unnecessary , It's better to omit . since str yes to_string Local object of function stack frame , Finally, we should destroy , It's better to str As an R-value , Direct transfer str Resources are used to construct ret , That is to say, directly use str Move to construct ret .

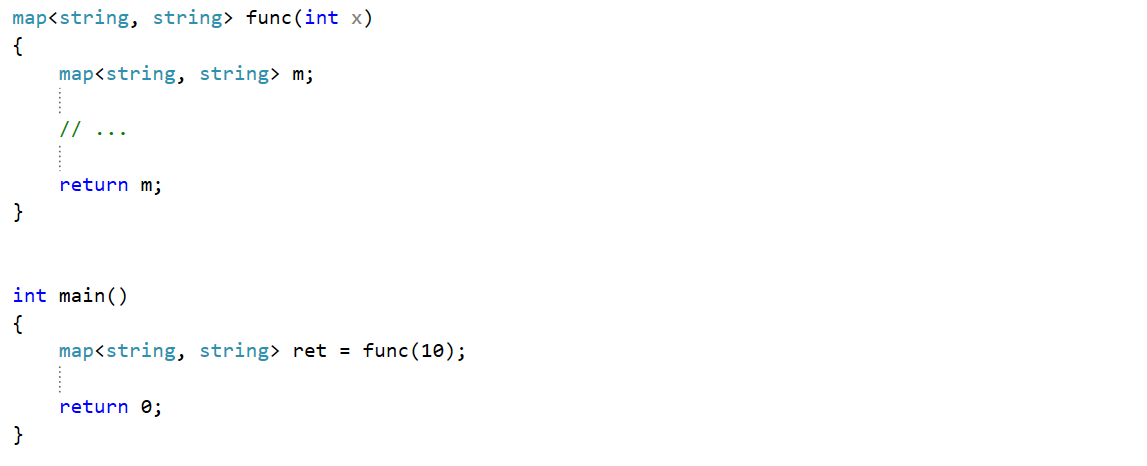

Another example is to execute the following code ：

After calling this function , You need to pass values to return this user-defined type that takes up a lot of resources ,
stay C++98 in , There is no mobile structure , Copy structure to make deep copy , It costs a lot ;
stay C++11 in , Direct mobile structure , Transfer m Resources to ret , Improved efficiency .

（2） Move assignment

① Concept

Transfer Parameter right value Resources to give themselves .

//  This is a simulation string The mobile assignment of the implementation of class
string& operator=(string&& s)
{

	swap(s);

	return *this;
}

Copy assignment function and move assignment function are overloaded functions of assignment operator overloaded functions , The difference is ：

1. The parameters of the copy assignment function are const lvalue reference , Receive left or right values ;
2. The parameter of the mobile assignment function is the right value reference , Receive the right value or be move Left value of .

notes ： When the parameter passed is a right value , Although the copy assignment function can receive , But the compiler will think that the mobile assignment function is more matched , Will call the move assignment function .

in general , If both functions are defined in the class , When assigning values to objects ：

1. If the left value is used as a parameter , Then copy assignment will be called , Make a copy （ If it is like string Such classes with resources in heap space , Then every time the copy assignment is called, a deep copy will be made ）.
2. If the right value is used as a parameter , Then the move assignment will be called , And calling the move assignment will reduce the copy （ If it is like string Such classes with resources in heap space , Then every time you call the move assignment, you will make one less deep copy ）.

For example, the following lines of code ：

string s("11111111111111111");
string s1("22222222222222222");
s1 = s;  // s It's left , So call the copy assignment function

string s2("333333333333333333");
s2 = std::move(s);  // s By move Then it becomes the right value , So call the move assignment function ,s Resources will be transferred to s2
//  It should be noted that ,move Generally, it is not used like this , because s Our resources have been diverted

② Comparison of mobile assignment with and without

For example, execute the following statement ：
MyLib::string ret("111111111111111111111111");
ret = MyLib::to_string(12345);

No move assignment （ There are mobile construction and copy assignment ）：

use str（ Compiler view str Is the right value ） Move and construct a temporary object as the return value , Then copy and assign the temporary object to ret .

There is mobile assignment ：

use str（ Compiler view str Is the right value ） Move and construct a temporary object as the return value , Because the temporary object is an R-value , Then the temporary object is moved and assigned to ret .

2. Usage scenario of right value reference

In addition to the above scenarios ,C++11 The standard STL The relevant interface functions of the container have also added the right value reference version .

such as ：

3. Perfect forwarding （Perfect forwarding）

（1） The reason for introducing

Before that, we need to know what universal quotation is ：

Determine the type Of && Indicates the right quotation （ such as ：int&& ,string&&）,
But in the function template && It does not mean the right value reference , It's a universal reference , The template type must be determined by inference , The receiving The left value It will be deduced as lvalue reference , receive Right value It will be deduced as Right quoting .

Pay attention to distinguish between right value reference and universal reference ： Of the following functions T&& Not universal quotation , because T The type of has been determined when the template is instantiated .

template<typename T>
class A
{

	void func(T&& t);  //  When instantiating a template T The type of , When you call a function T Is a definite type , So here is the right value reference
};

Let's understand universal quotation through the following program ：

template<typename T>
void f(T&& t)  //  Omnipotent quotation
{

	//...
}

int main()
{

	int a = 5;  //  The left value
	f(a);  //  After passing parameters, the universal reference is deduced as an lvalue reference

	const string s("hello");  // const The left value
	f(s);  //  After passing the parameters, the universal reference is deduced as const lvalue reference

	f(to_string(1234));  // to_string The function returns one string Temporary objects , It's right value , After the parameter is passed, the universal reference is deduced as the right value reference

	const double d = 1.1;
	f(std::move(d));  // const The lvalue is move Later into const Right value , After passing the parameters, the universal reference is deduced as const Right quoting

	return 0;
}

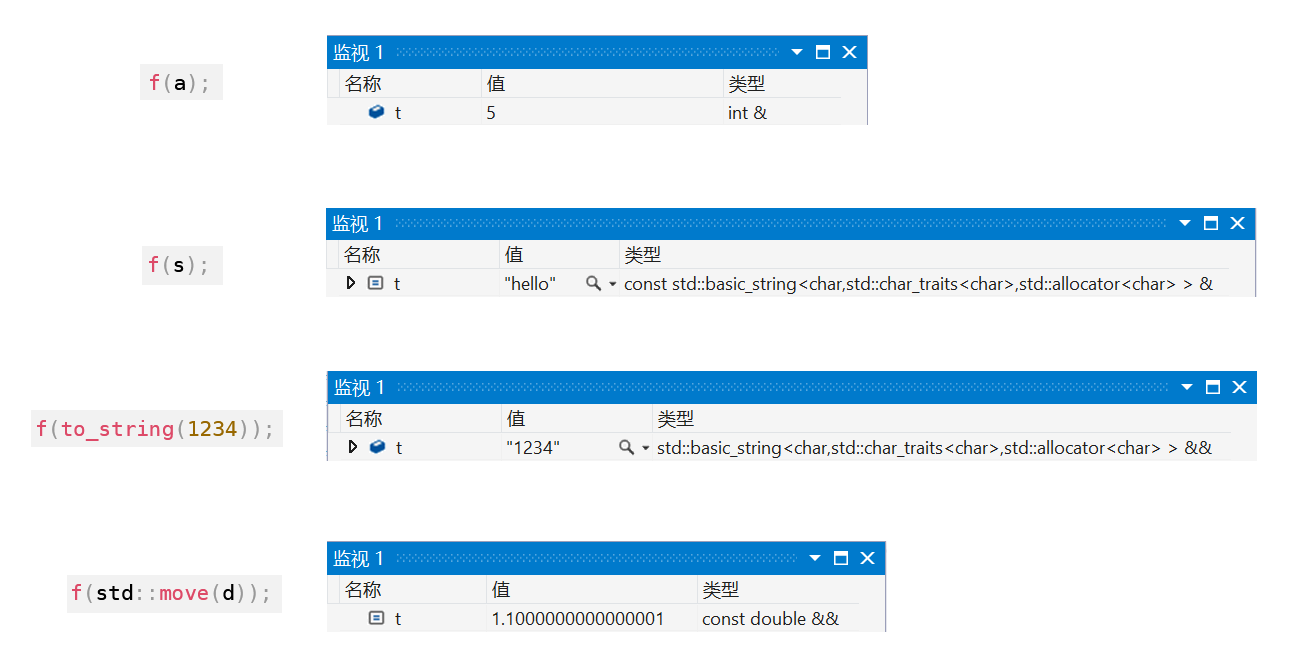

Open the monitoring window under debugging to see the parameters after parameter transmission t The type of ：

So we will use universal quotation to do something meaningful , Consider the following code ：

void Func(int& x) {
    	cout << " lvalue reference " << endl; }

void Func(const int& x) {
     cout << "const lvalue reference " << endl; }

void Func(int&& x) {
     cout << " Right quoting " << endl; }

void Func(const int&& x) {
     cout << "const Right quoting " << endl; }


template<typename T>
void f(T&& t)  //  Omnipotent quotation
{

	Func(t);  //  According to the parameters t Type to match the appropriate overloaded function
}

int main()
{

	int a = 4;  //  The left value
	f(a);

	const int b = 8;  // const The left value
	f(b);

	f(10); // 10 It's right value

	const int c = 13;
	f(std::move(c));  // const The lvalue is move Later into const Right value

	return 0;
}

After running the program , We thought the result of printing was ：
lvalue reference
const lvalue reference
Right quoting
const Right quoting

But the actual result is ：

The results of the last two lines are different from what we expected .

So what's the matter ？
In fact, I have talked about it before in this article , An R-value reference variable is actually an l-value , So we have the above running results .

Specific explanation ：

1. f(10);
   10 It's right value , After the parameter is passed, the universal reference is deduced as the right value reference , But the R-value reference variable is actually an l-value , So the function actually called is void Func(int& x).
2. f(std::move(c));
   const The lvalue is move Later into const Right value , After passing the parameters, the universal reference is deduced as const Right quoting , But it's time to const The right value reference variable is actually const The left value , So the function actually called is void Func(const int& x).

in other words , The right value reference has lost the right value attribute .

But what we want is , In the process of transmission, it can maintain its original l-value or R-value attribute , therefore C++11 The standard proposes perfect forwarding .

（2） Concept

Perfect forwarding is in function templates , Exactly according to the parameter type of the template , Pass the parameter to another function in the current function template .

therefore , In order to achieve perfect forwarding , In addition to using universal references , We need to use std::forward（C++11）, it Retain the native type attribute of the object during parameter passing .

In this way, the right value reference can maintain the right value attribute in the transmission process .

void Func(int& x) {
     cout << " lvalue reference " << endl; }

void Func(const int& x) {
     cout << "const lvalue reference " << endl; }

void Func(int&& x) {
     cout << " Right quoting " << endl; }

void Func(const int&& x) {
     cout << "const Right quoting " << endl; }


template<typename T>
void PerfectForward(T&& t)  //  Omnipotent quotation
{

	Func(std::forward<T>(t));  //  According to the parameters t Type to match the appropriate overloaded function
}

int main()
{

	int a = 4;  //  The left value
	PerfectForward(a);

	const int b = 8;  // const The left value
	PerfectForward(b);

	PerfectForward(10); // 10 It's right value

	const int c = 13;
	PerfectForward(std::move(c));  // const The lvalue is move Later into const Right value

	return 0;
}

The operation results are as follows ：

To achieve perfect forwarding requires universal reference and std::forward .

（3） Use scenarios

In addition to the above scenarios ,C++11 The standard STL The relevant interface functions of the container also realize perfect forwarding , In this way, we can really realize the value of right value reference .

such as STL Containers in the Library list ：

The above four interface functions call _Insert function ,_Insert Function template realizes perfect forwarding .

Another example is the self Simulated Implementation list（ Only the main part is written here ）：

template<class T>
struct ListNode
{

	ListNode* _next = nullptr;
	ListNode* _prev = nullptr;
	T _data;
};


template<class T>
class List
{

	typedef ListNode<T> Node;
public:
	List()
	{

		_head = new Node;
		_head->_next = _head;
		_head->_prev = _head;
	}

	void PushBack(const T& x)  //  lvalue reference
	{

		Insert(_head, x);
	}

	void PushFront(const T& x)  //  lvalue reference
	{

		Insert(_head->_next, x);
	}

	void PushBack(T&& x)  //  Right quoting
	{

		Insert(_head, std::forward<T>(x));  //  Key points ： Keep the native type properties of the object
	}

	void PushFront(T&& x)  //  Right quoting
	{

		Insert(_head->_next, std::forward<T>(x));  //  Key points ： Keep the native type properties of the object
	}

	template<class TPL>    //  This function template realizes perfect forwarding
	void Insert(Node* pos, TPL&& x)  //  Omnipotent quotation
	{

		Node* prev = pos->_prev;
		Node* newnode = new Node;
		newnode->_data = std::forward<TPL>(x);  //  Key points ： Keep the native type properties of the object

		// prev newnode pos
		prev->_next = newnode;
		newnode->_prev = prev;
		newnode->_next = pos;
		pos->_prev = newnode;
	}

private:
	Node* _head;
};

As long as it is an R-value reference , Pass the current function to other function calls , Keep the right value attribute , Must achieve perfect forwarding .

4. Great significance

Right quoting （ It supports mobile semantics and perfect forwarding ） yes C++11 One of the most important new features added to , It makes the C++ The program runs more efficiently .
