How to use xUnit framework to maintain test cases?

2022-06-30 19:22:00 【Hua Weiyun】

This is an excellent student of Hogwarts testing college Junit Learning notes . Advanced test development skills , Add group at the end of the text .

1、xUnit What is it?

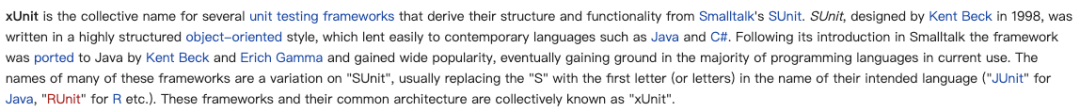

First look at Wikipedia Explanation above ：

xUnit It is the general name of a series of test frameworks , It started with a called Smalltalk Of SUnit frame , Now various object-oriented languages , Such as Java、Python Our ancestors were Smalltalk, Later, these languages used Sunit The idea of framework , There are many general specifications and features , It is also collectively referred to as xUnit.

1.1 xUnit Framework system

Java : JUnit、TestNG
Python : UnitTest、PyTest

1.2 xUnit Common characteristics of

Test Runner ： Test runner
Test Case ： The test case
Test Fixtures : Test fixture / Fixture , Used to manage the execution of test cases
Test Suites ： test suite , Used to orchestrate test cases
Test Execution： The test execution , In what order
Test Result Formatter： test result , Have the same format , Can be integrated
Assertions： Assertion

2、 from Junit4 Turn on xUnit The journey to the framework

2.1 Why from Junit4 Start

Junit4 Still 99% The preferred framework for R & D engineers , Facilitate the communication between test engineers and R & D engineers （ Pull the strings ~~）;
TestNG It is mostly used by test engineers ;
Junit5 It has not been popularized on a large scale （ The most recommended framework , mature 、 To use 、 R & D test general purpose ）;
Many frameworks are based on Junit4 customized ;

2.2 The core elements of a test case

The name of the test case ： Property method name
Test case description and label ： annotation
Container for test cases ： Class or suite
Testing process

unit testing
Web automated testing Selenium
App automated testing Appium
Interface automation testing RestAssured

Test assertion

2.3 basic demo function

1） establish maven engineering XUnit,pom.xml Add Junit rely on ;

<dependency>    <groupId>junit</groupId>    <artifactId>junit</artifactId>    <version>4.12</version>    <scope>test</scope></dependency>

2）src/test/java Create a test class Junit4DemoTest

Be careful

The test class should be Test Beginning or end
maven auto-import
src/main/java Store application implementation code
src/test/java Storage unit test
One of the principles of unit testing ： Use cases can run independently

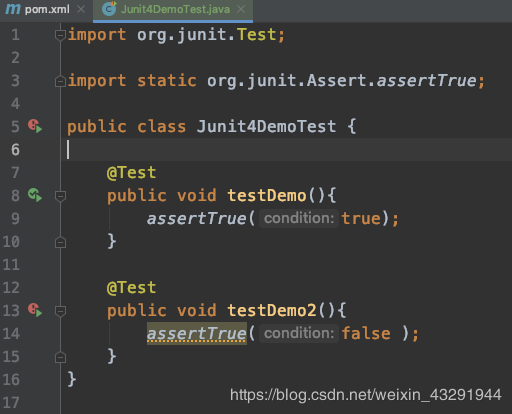

Basic test demo function ：

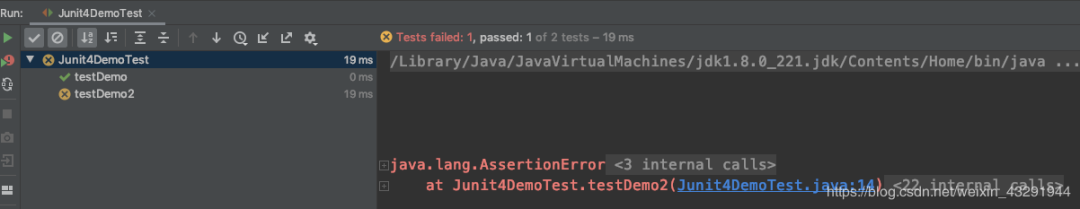

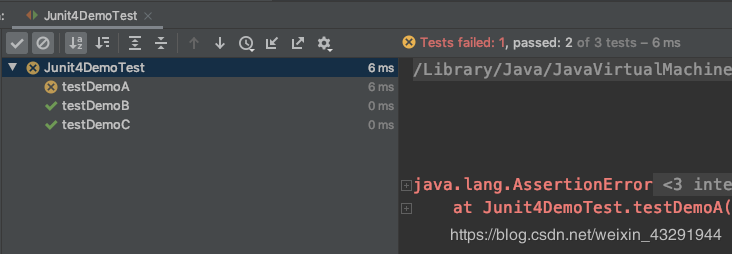

Running results ：

2.4 The order of execution between use cases

Junit4：

Default Depending on the list obtained by the reflection method , The order is fixed （ No insurance ）
@FixMethodOrder(MethodSorters.JVM) The order may change
@FixMethodOrder(MethodSorters.NAME_ASCENDING) By name ASCII The order （ Stable common , It is recommended to use ）

TestNG、Junit5:

You can set the order through annotations Order

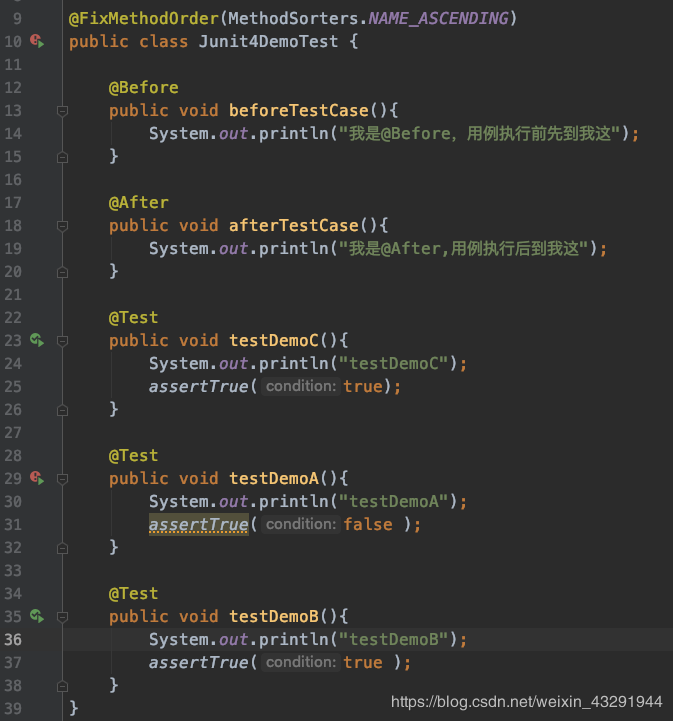

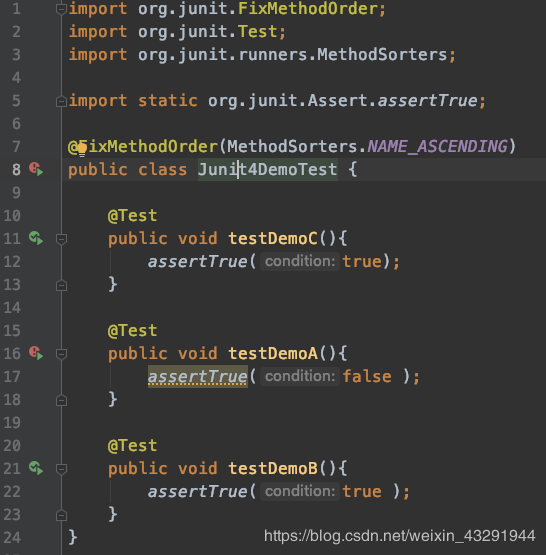

Sequential presentation

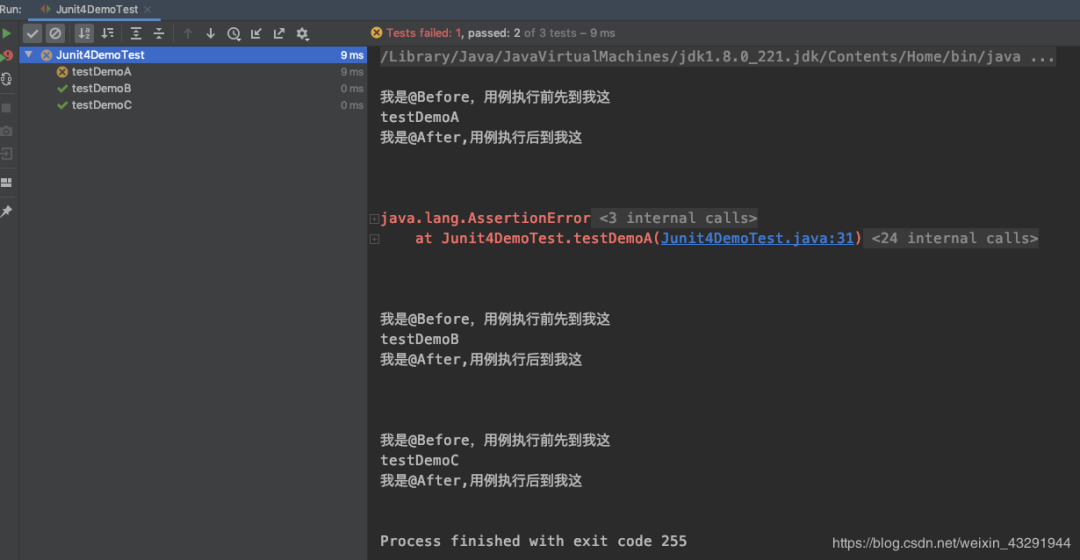

Running results ：

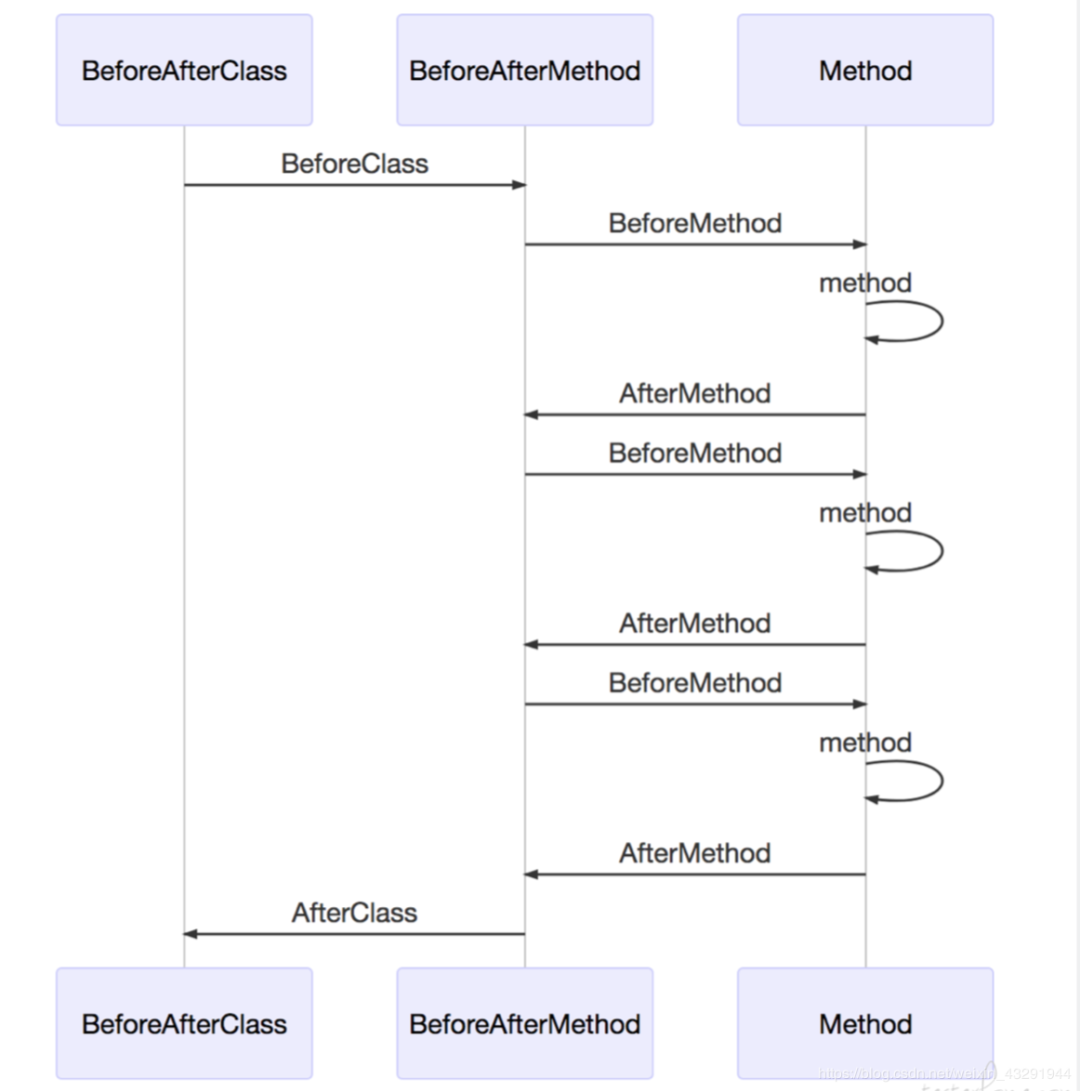

2.5 The execution sequence of the test suite supports

Junit4:

@BeforeClass、@AfterClass
@Before、@After

TestNG:

@BeforeClass
@BeforeMethod
BeforeGroup、@BeforeSuite

Junit5:

@BeforeClass
@BeforeEach

Demonstration of practical operation 1

Add... Before and after use case execution @Before and @After：

Running results ：

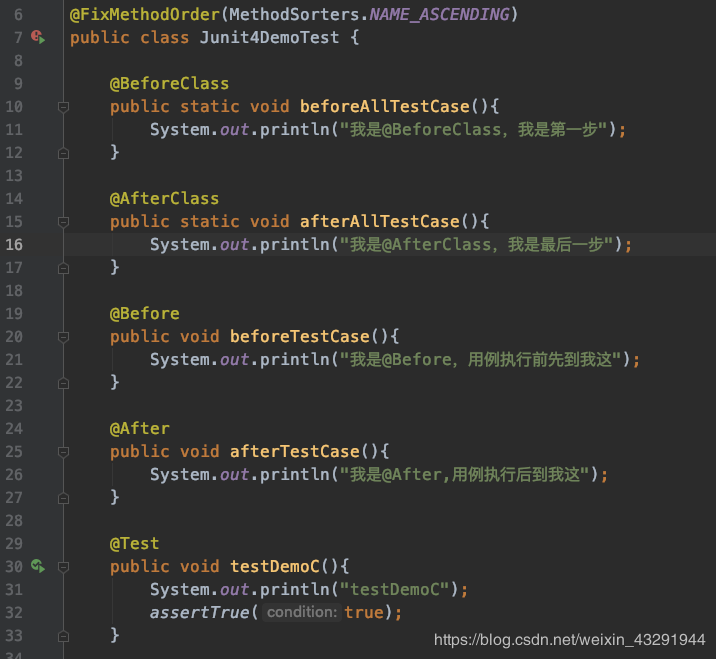

Demonstration of practical operation 2

add @BeforeClass and @AfterClass

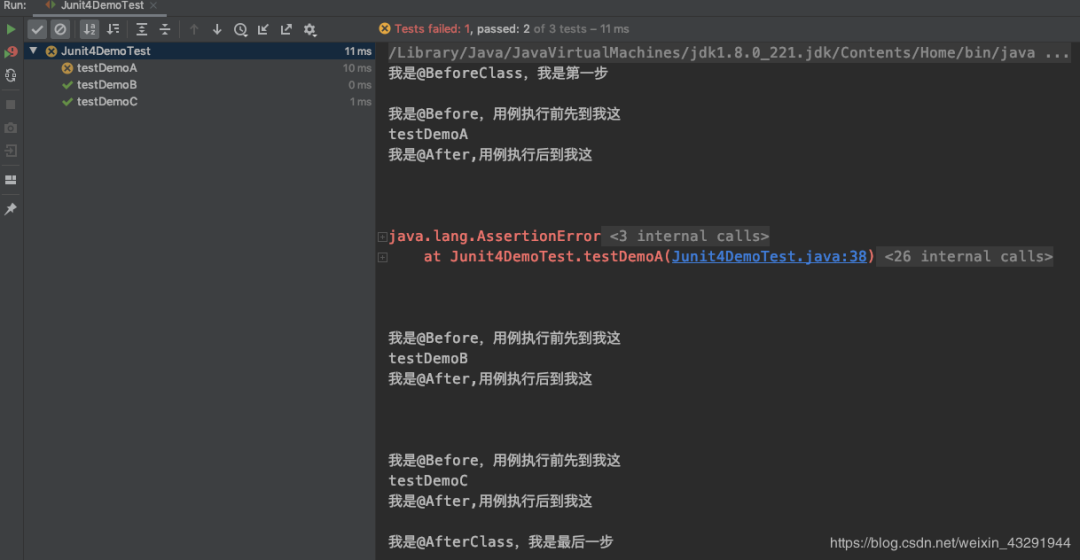

Running results ：

2.5 Examples of practical application of use case management ——App Automated test case management

The base class @BeforeClass：

Configure read 、 To configure Capability、 initialization driver、 install App,PageObject initialization

Integrated subclass execution process

@Before： Start and enter specific interface
@Test： Test case execution
@After： Back to the entrance
@BeforeClass： Enter a specific tab Sub function page
@AfterClass： close app

The base class @AfterClass

driver.quit

2.6 Test flow under inheritance relationship

Process sequence ：

Parent class @BeforeClass
Subclass @BeforeClass
Parent class @Before
Subclass @Before
Subclass @Test
Parent class @Test
Subclass @After
Parent class @After
Subclass @AfterClass
Parent class @AfterClass

Demonstration of practical operation 1

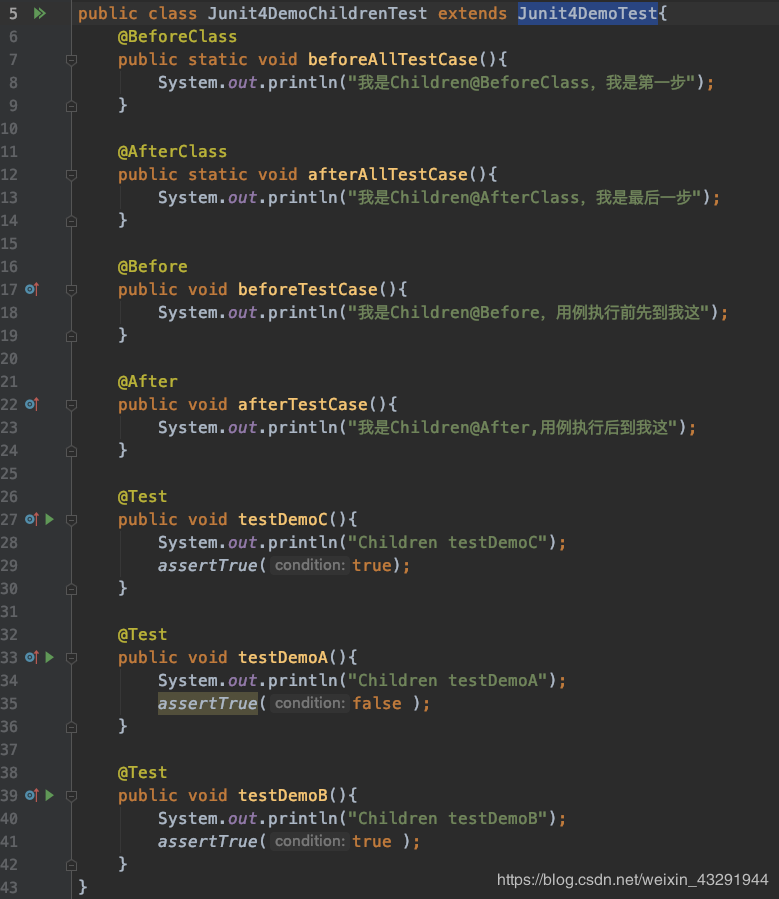

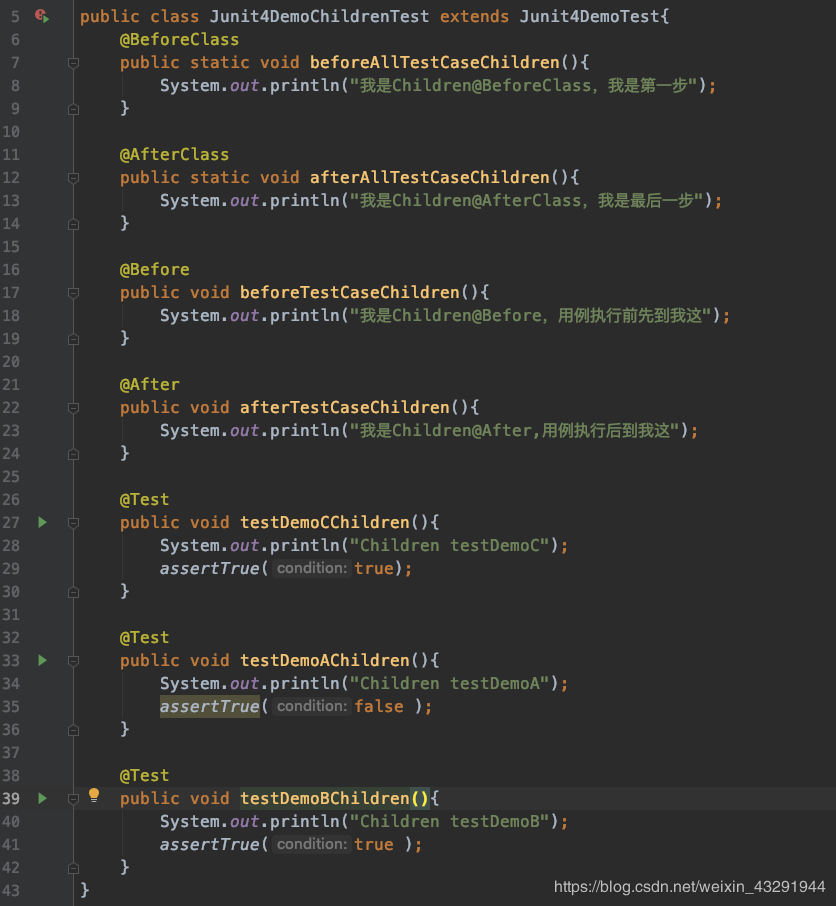

Now create a subclass Junit4DemoChildrenTest, Inherit Junit4DemoTest, Then implement the same method as the parent class and run the child class ：

Running results ：

From the running results, we can see that , The subclass will override the same methods as those in the parent class , Only execute methods in subclasses

Demonstration of practical operation 2

Now change the method name in the subclass , Make it different from the parent method name , Then run the subclass ：

Running results ：

 I am a  @BeforeClass, I am the first step I am  [email protected], I am the first step I am  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution Children testDemoB I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, I come to me as  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution Children testDemoA I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, it comes to me java.lang.AssertionError    at org.junit.Assert.fail(Assert.java:86)    at org.junit.Assert.assertTrue(Assert.java:41)    at org.junit.Assert.assertTrue(Assert.java:52)    ...    at com.intellij.rt.execution.junit.IdeaTestRunner$Repeater.startRunnerWithArgs(IdeaTestRunner.java:47)    at com.intellij.rt.execution.junit.JUnitStarter.prepareStreamsAndStart(JUnitStarter.java:242)    at com.intellij.rt.execution.junit.JUnitStarter.main(JUnitStarter.java:70) I am a  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution Children testDemoC I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, I come to me as  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution testDemoA I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, it comes to me java.lang.AssertionError    at org.junit.Assert.fail(Assert.java:86)    at org.junit.Assert.assertTrue(Assert.java:41)    at org.junit.Assert.assertTrue(Assert.java:52)    ...    at com.intellij.rt.execution.junit.JUnitStarter.prepareStreamsAndStart(JUnitStarter.java:242)    at com.intellij.rt.execution.junit.JUnitStarter.main(JUnitStarter.java:70) I am a  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution testDemoB I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, I come to me as  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution testDemoC I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, I come to me as  [email protected], I am the last step I am  @AfterClass, I am the last step

2.7 test suite

RunWith
SuiteClasses
class

Demonstration of practical operation

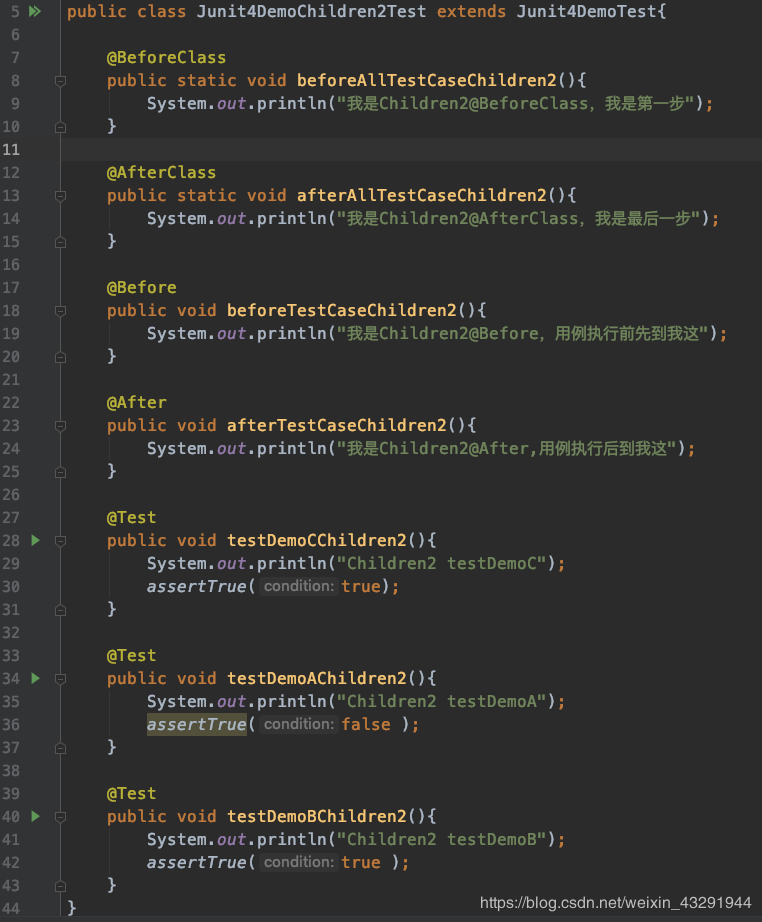

Create a new subclass Junit4DemoChildren2Test, Inherit Junit4DemoTest

Build another test class SuitesTest, Write notes @RunWith(Suite.class), It shows that this is a test suite , Is a collection of multiple test classes , A container ;
Then use annotations @Suite.SuiteClasses To set the test class collection , Set the order of test class execution

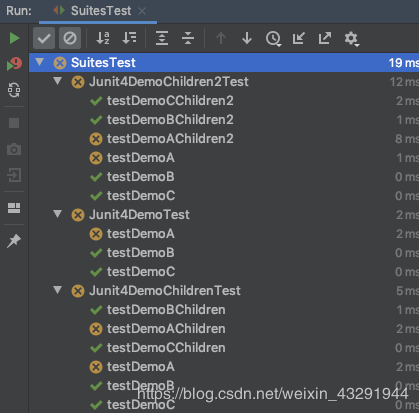

Running results ：

 I am a  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution Children2 testDemoC I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, I come to me as  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution Children2 testDemoB I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, I come to me as  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution Children2 testDemoA I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, it comes to me java.lang.AssertionError    at org.junit.Assert.fail(Assert.java:86)    at org.junit.Assert.assertTrue(Assert.java:41)    ...    at com.intellij.rt.execution.junit.JUnitStarter.prepareStreamsAndStart(JUnitStarter.java:242)    at com.intellij.rt.execution.junit.JUnitStarter.main(JUnitStarter.java:70) I am a  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution testDemoA I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, it comes to me java.lang.AssertionError    at org.junit.Assert.fail(Assert.java:86)    at org.junit.Assert.assertTrue(Assert.java:41)    ...    at com.intellij.rt.execution.junit.JUnitStarter.prepareStreamsAndStart(JUnitStarter.java:242)    at com.intellij.rt.execution.junit.JUnitStarter.main(JUnitStarter.java:70) I am a  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution testDemoB I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, I come to me as  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution testDemoC I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, I come to me as  [email protected], I am the last step I am  @AfterClass, I am the last step I am  @BeforeClass, I am the first step I am  @Before, Come to me before use case execution testDemoA I am a  @After,  After the use case is executed, it comes to me java.lang.AssertionError    at org.junit.Assert.fail(Assert.java:86)    at org.junit.Assert.assertTrue(Assert.java:41)    ...    at com.intellij.rt.execution.junit.JUnitStarter.main(JUnitStarter.java:70) I am a  @Before, Come to me before use case execution testDemoB I am a  @After,  After the use case is executed, I come to me as  @Before, Come to me before use case execution testDemoC I am a  @After,  After the use case is executed, I come to me as  @AfterClass, I am the last step I am  @BeforeClass, I am the first step I am  [email protected], I am the first step I am  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution Children testDemoB I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, I come to me as  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution Children testDemoA I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, it comes to me java.lang.AssertionError    at org.junit.Assert.fail(Assert.java:86)    at org.junit.Assert.assertTrue(Assert.java:41)    at org.junit.Assert.assertTrue(Assert.java:52)    ...    at com.intellij.rt.execution.junit.JUnitStarter.main(JUnitStarter.java:70) I am a  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution Children testDemoC I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, I come to me as  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution testDemoA I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, it comes to me java.lang.AssertionError    at org.junit.Assert.fail(Assert.java:86)    at org.junit.Assert.assertTrue(Assert.java:41)    ...    at com.intellij.rt.execution.junit.JUnitStarter.main(JUnitStarter.java:70) I am a  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution testDemoB I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, I come to me as  @Before, Come to me before use case execution. I am  [email protected], Come to me before use case execution testDemoC I am a  [email protected],  After the use case is executed, I come to me as  @After,  After the use case is executed, I come to me as  [email protected], I am the last step I am  @AfterClass, I am the last step I am  @BeforeClass, I am the first step I am  [email protected], I am the first step

From the test results, we can see that after using the suite , The test process is Junit4DemoChildren2Test、Junit4DemoTest、Junit4DemoChildrenTest Sequential execution

2.8 Group test [email protected]

Sometimes we need to group test some specific use cases , It can be used at this time @Category To achieve

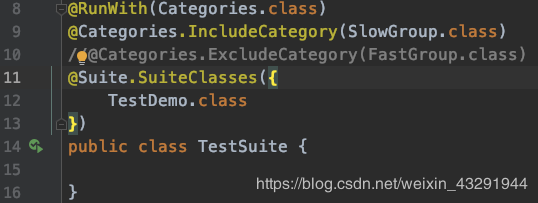

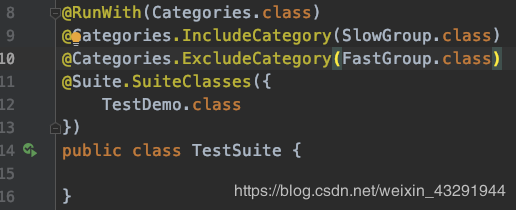

In addition, use annotations on the suite execution class ：

@RunWith(Categories.class)  :   Fixed writing , Specify with  Category  Mode grouping @Categories.IncludeCategory(SlowGroup.class) ：  Indicate which test groups to execute contain @Categories.ExcludeCategory(FastGroup.class) ：  Indicate which test groups to execute do not contain @Suite.SuiteClasses({ ：  Indicate the test class to be executed     TestDemo.class})

@Category Grouping needs to be given a label , As a class or interface , Create an interface here SlowGroup and FastGroup
```
public interface FastGroup {}public interface SlowGroup {}
```

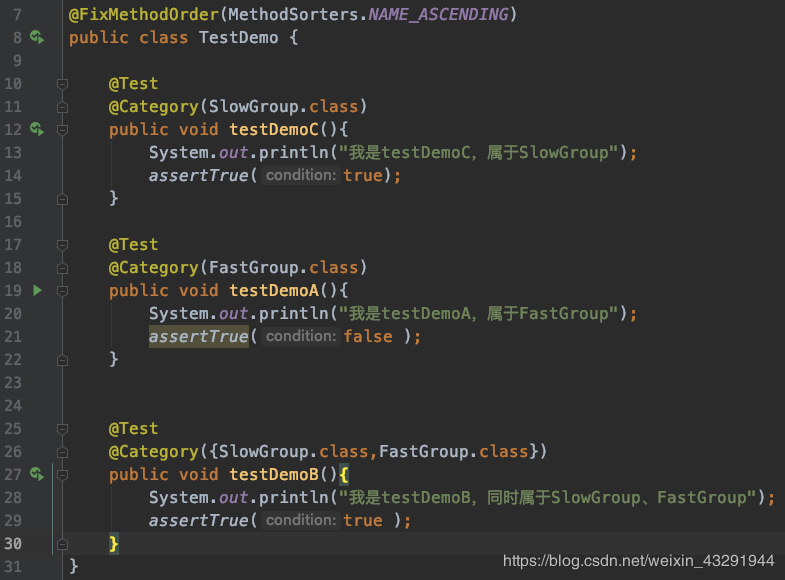

The use cases are grouped into SlowGroup、FastGroup and SlowGroup+FastGroup

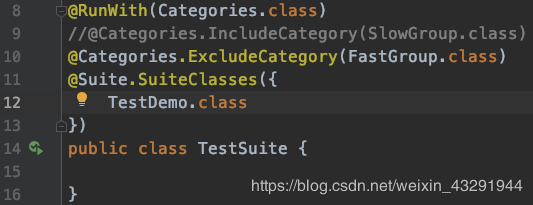

To specify SlowGroup Group test execution ,FastGroup Group tests are not performed ：

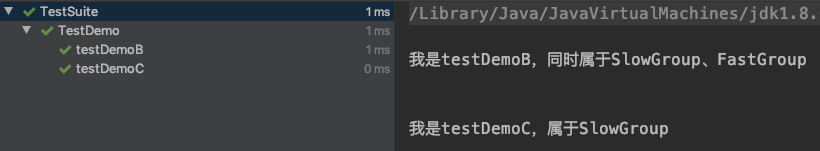

test result ：

Indicate only SlowGroup Group test execution

test result ：

Only indicate that the group not executed is FastGroup

test result ：

2.9 A parameterized @Paramterized

Sometimes we need to pass in test data , And the data may be multiple groups , At this time, you need to use parameterization to pass in multiple sets of data for testing
Junit4 Parameterization of is a little troublesome ：

1） First add comments to the class name @RunWith(Parameterized.class) Indicates that you want to run with parameterization

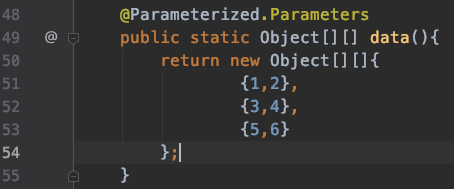

2） With notes @Parameterized.Parameters To set the data source

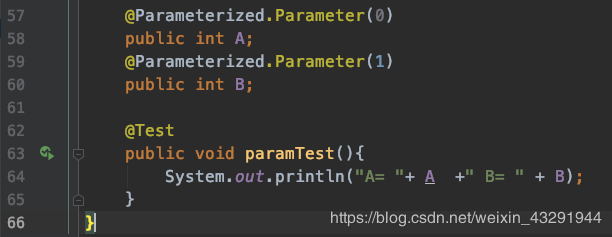

3） Finally, use notes @Parameterized.Parameter To specify the parameters corresponding to the data source data

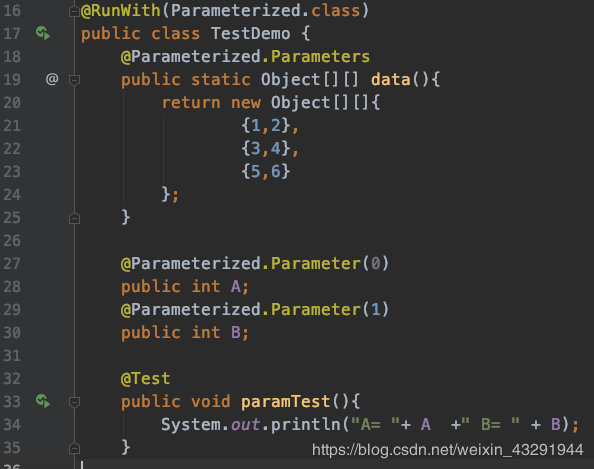

4） The overview

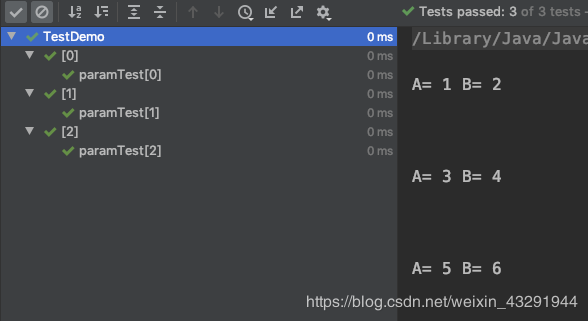

test result ：

As you can see from the test results 3 Group parameters are passed into the method respectively , Methods are executed once each , Complete parametric testing
