Preface

Be careful ： The project environment is ubuntu16.04, Source kernel version 4.15.x, Compile the kernel version 4.13.10.
in addition , Before the experiment starts, you need to download 4.13.10 Source code ！！

Project architecture

Project implementation

First step , Add system calls 、 Intercept

modify /usr/src/linux-4.13.10/arch/x86/entry/syscalls/syscall_64.tbl, Add the system call number .

In the catalog /usr/src/linux-4.13.10/arch/x86/kernel/ Next add a file myaudit_sys.c, Where is the added system call , And we should export several variable symbols .

#include <linux/uaccess.h>
#include <linux/proc_fs.h>
#include <linux/init.h>
#include <linux/types.h>
#include <asm/current.h>
#include <linux/sched.h>

/*  Add a system call , Used for logging program calls , from buf Get log information from ;  Export two function pointers at the same time , be used for LKM Method defines the function body and calls outside the file . */

/* u8 -> unsigned byte (8 bits) u16 -> unsigned byte (16 bits) */

void (*audit_to_buf) (int, int) = NULL;
int (*audit_from_buf)(u8, u8*, u16) = NULL;

asmlinkage long sys_myaudit(u8 type, u8* us_buf, u16 us_buf_size)
{

    if (audit_from_buf) {

        printk("oh~ audit_from_buf() found !!\n");
        return (*audit_from_buf)(type, us_buf, us_buf_size);    // perform audit_from_buf() function
    } else
        printk("oh~ audit_from_buf() not found !!\n");
    return 1;
}

EXPORT_SYMBOL(audit_to_buf);
EXPORT_SYMBOL(audit_from_buf);

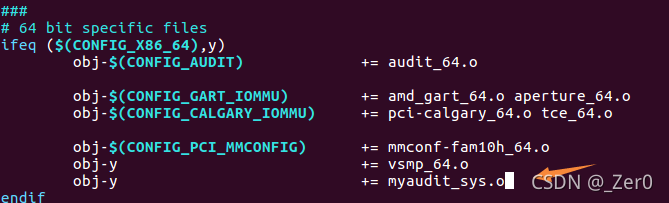

modify /usr/src/linux-4.13.10/arch/x86/kernel/Makefile file , add to myaudit_sys.c Compilation of .

Add function declaration , edit /usr/src/linux-4.13.10/include/linux/syscalls.h file , Add... At the bottom

Intercept system calls
modify /usr/src/linux-4.13.10/arch/x86/entry/common.c Medium do_syscall_64(struct pt_regs *regs) function .
[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-9XBw7R9B-1658646740076)(images/a5625a1009a947eda0bdb8f3eaaba006.png)]

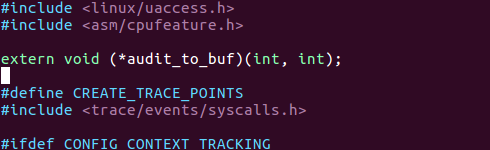

Reference external variables

Configure compile options

 First delete the files and configuration files generated by the previous compilation
sudo make mrproper
sudo make clean

 To configure --> Generate .config file
sudo make menuconfig

sudo cp /boot/config-xxx -r .config		 These two lines of commands use the existing configuration compilation settings ,
sudo make oldconfig						 It's OK not to add , If an error is reported, execute again

Compilation and installation

sudo make -j5	5 Threads are faster

sudo make modules_install

sudo make install

Press on restart esc key , choice ubuntu senior , Then select the kernel just compiled to enter .
Through the command dmesg perhaps syscall( System call number ) To check for success .

#include <stdio.h>
#include <sys/syscall.h>
#include <unistd.h>

int main(){

	long int res = syscall(334);	333 It is the system call number just added
	printf("res = %d\n", res);
}

---

The second step , Add a kernel module

Writing module myaudit_module.c

#include <linux/module.h>
#include <linux/init.h>
#include <linux/kernel.h>
#include <linux/types.h>
#include <linux/time.h>
#include <linux/cred.h>
#include <asm/current.h>
#include <linux/sched.h>
#include <linux/uaccess.h>


/* pid_t -> int uid_t -> int u8 -> unsigned byte (8 bits) u32 -> unsigned byte (32 bits) */
#define COMM_LENGTH 16 // Each command has a maximum of 16 Bytes
struct Audit_buf {

    u32 serial;     // Record the number of logs
    u32 syscall;    // System call number
    u32 status;     // The return value of the system call
    pid_t pid;      // process id
    uid_t uid;      // user id
    u8 comm[COMM_LENGTH];   // command
};

// Create a waiting queue header
DECLARE_WAIT_QUEUE_HEAD(buffer_wait);

//audit Information buffer definition
#define AUDIT_BUF_SIZE 20
static struct Audit_buf audit_buf[AUDIT_BUF_SIZE];    //audit Information buffer
static int current_pos = 0;
static u32 serial = 0;  // The number of data recorded

// Introduce system call function pointer
extern void (*audit_to_buf)(int, int);
extern int (*audit_from_buf)(unsigned char, unsigned char *, unsigned short);


void audit_to_buf_body(int syscall, int return_status)
{

    struct Audit_buf * ppb_temp;  // Traverse audit_buf Pointer to array

    if(current_pos < AUDIT_BUF_SIZE) {

        ppb_temp = &audit_buf[current_pos];
        ppb_temp->serial = serial++;
        ppb_temp->syscall = syscall;
        ppb_temp->status = return_status;
        ppb_temp->pid = current->pid;
        ppb_temp->uid = current_uid().val;
        memcpy(ppb_temp->comm, current->comm, COMM_LENGTH);
        if(current_pos++ == AUDIT_BUF_SIZE*8/10) {
          // The queue is almost full , Activate the waiting that is blocking
            printk("oh~ audit_buf is nearly full !!\n");
            wake_up_interruptible(&buffer_wait);
        }
    }
}

int audit_from_buf_body(u8 type, u8 * usr_buf, u16 usr_buf_size)
{

    int ret = 0;
    if(!type) {

        if(__clear_user(usr_buf, usr_buf_size)) {
             // Empty user space memory , Return cannot be cleared 0 Bytes of
            printk("oh~ Error: can not zero all buf !!\n");
            return 0;
        }
        printk("oh~ in kernel module audit_from_buf_body starting !!\n");
        ret = wait_event_interruptible(buffer_wait, current_pos >= AUDIT_BUF_SIZE*8/10);    // Blocking
        //printk("oh~ in kernel module current_pos is %d !!\n", current_pos);
        if(__copy_to_user(usr_buf, audit_buf, (current_pos)*sizeof(struct Audit_buf))) {
       // from audit_buf Take out all at once
            printk("oh~ Error: copy error !!\n");
            return 0;
        }
        ret = current_pos - 1;
        current_pos = 0;
    }
    return ret;
}
static int __init audit_init(void)
{

    audit_from_buf = audit_from_buf_body;
    audit_to_buf = audit_to_buf_body;
    printk("oh~ Starting System Call Auditing !!\n");
    return 0;
}
static void __exit audit_exit(void)
{

    audit_to_buf = NULL;
    audit_from_buf = NULL;
    printk("oh~ Exiting System Call Auditing !!\n");
    return;
}

MODULE_LICENSE("Dual BSD/GPL");
module_init(audit_init);
module_exit(audit_exit);

Makefile file

obj-m += myaudit_module.o
CONFIG_MODULE_SIG=n
LINUX_KERNEL_PATH := /lib/modules/$(shell uname -r)/build

all:
	make -C $(LINUX_KERNEL_PATH) M=$(CURDIR) modules
clean:
	make -C $(LINUX_KERNEL_PATH) M=$(CURDIR) clean

Compile and load modules

sudo make
sudo insmod hello.ko
lsmod | grep hello   View information about adding modules

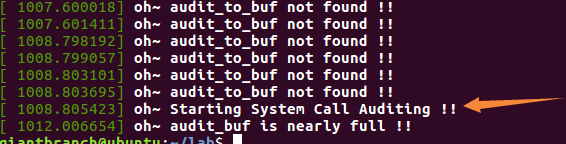

dmesg   Get kernel information

The third step , Write a log collector

#include <stdlib.h>
#include <stdio.h>
#include <errno.h>
#include <signal.h>
#include <sys/resource.h>
#include <sys/syscall.h>
#include <sys/types.h>
#include <unistd.h>
#include <stdbool.h>

typedef unsigned char u8;
typedef unsigned int u32;

#define COMM_LENGTH 16
struct Audit_buf {

    u32 serial;
    u32 syscall;
    u32 status;
    pid_t pid;
    uid_t uid;
    u8 comm[COMM_LENGTH];
};

#define AUDIT_BUF_SIZE 20
#define USR_AUDIT_BUF_SIZE AUDIT_BUF_SIZE*sizeof(struct Audit_buf)

int main(int argc, char *argv[])
{

    u8 my_audit_buf[USR_AUDIT_BUF_SIZE];
    struct Audit_buf *p;
    while(true) {

        //334 Is the call number of the customized system call
        int log_cnt = syscall(334, 0, my_audit_buf, USR_AUDIT_BUF_SIZE);
        p = (struct Audit_buf *)my_audit_buf;
        int i;
        for(i=0; i<log_cnt; i++) {

            printf("serial:%d, ", p[i].serial);
            printf("syscall_number:%d, ", p[i].syscall);
            printf("ret_status:%d, ", p[i].status);
            printf("pid:%d, ", p[i].pid);
            printf("uid:%d, ", p[i].uid);
            printf("commond:%s.\n", p[i].comm);
        }
    }
    return 0;
}

gcc -o myaudit_program myaudit_program.c
./myaudit_program
