[advanced C language] - Advanced pointer [i]

1️⃣ Pointer concept

1. The pointer is a Variable , It's used to store the address , A memory space uniquely identified by an address .
2. Pointer size Is constant 4/8 Bytes (32 Bit platform /64 platform ).
3. Pointer is There are types Of , The type of pointer determines the type of pointer + - The range of integers and the permissions of pointer dereference operation .
4. The operation of the pointer .

1. Character pointer

Among the types of pointers, one pointer type is Character pointer char* ;

In general use ：

#include <stdio.h>
int main()
{

	char ch = 'w';
	char* pc = &ch;// take ch Put the address in pc in
	*pc = 'c';
	// adopt pc De quote ch The stored data is changed to 'c'
	return 0;
}

There's another way to use it ：

int main()
{

    const char* pstr = "hello bit.";
    // Here is to put a string into pstr Is it in the pointer variable ？
    printf("%s\n", pstr);// Obviously not ！ Output  h
    return 0;
}

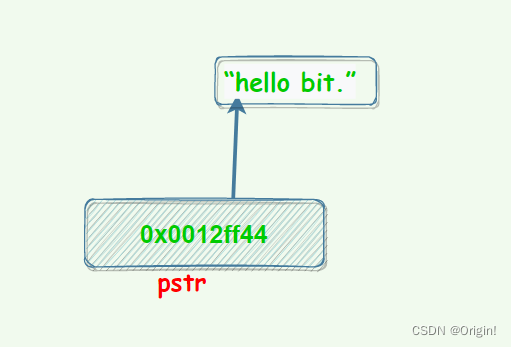

Code ：const char* pstr = "hello bit." It's especially easy to think of string hello bit Put it in the character pointer pstr In the , But in essence, the string hello bit. The address of the first character is put in pstr in .

The above code means that the first character of a constant string h The address of is stored in the pointer variable pstr in .

So there is such an interview question :

int main()
{

	char str1[] = "hello bit.";
	char str2[] = "hello bit.";
	const char* str3 = "hello bit.";
	const char* str4 = "hello bit.";
	if (str1 == str2)
		printf("str1 and str2 are same\n");
	else
		printf("str1 and str2 are not same\n");
	if (str3 == str4)
		printf("str3 and str4 are same\n");
	else
		printf("str3 and str4 are not same\n");
	return 0;
}

The final output here is ：

there str3 and str4 Points to the same constant string .C/C++ The constant string is stored in a separate memory area , When a few pointers , To point to the same string , They actually point to the same block of memory , But when initializing different arrays with the same constant string , Different arrays will open up different memory blocks , therefore str1 and str2 Different ,str3 and str3 identical .

2.️ Pointer array

Pointer array is an array of pointers

int* arr1[10];// An array of integer pointers
char* arr2[4];// First level character pointer array
char** arr3[4];// Second level character pointer array
 give an example ：
int a = 1;
int* pa = &a;
int* arr1[3] = {
    pa};
//arr1[0] visit pa The address of

-* ——————————————————*

3.️ Array pointer

3.1 Definition of array pointer

Array pointers are pointers
Shaping the pointer int* pa A pointer that can point to shaped data , The array pointer should be ： A pointer to an array .

int (*p)[10];

explain ：p The first and * combination , explain p Is a pointer variable , Then the pointer points to a size of 10 An integer array . therefore p It's a pointer , Point to an array , It's called array pointer .
Pay attention here ：[] Priority is higher than * The no. , So we have to add () To guarantee p The first and * combination .

3.2 & Array name Array name

For the following array ：

int arr[10];

arr It's an array name , The array name indicates the address of the first element of the array .
that &arr What is it? ？ Let's look at a piece of code ：

#include <stdio.h>
int main()
{

    int arr[10] = {
    0};
    printf("%p\n", arr);
    printf("%p\n", &arr);
    return 0;
}

thus it can be seen Array name and & The address printed by the array name is the same .

Are the two really the same ？

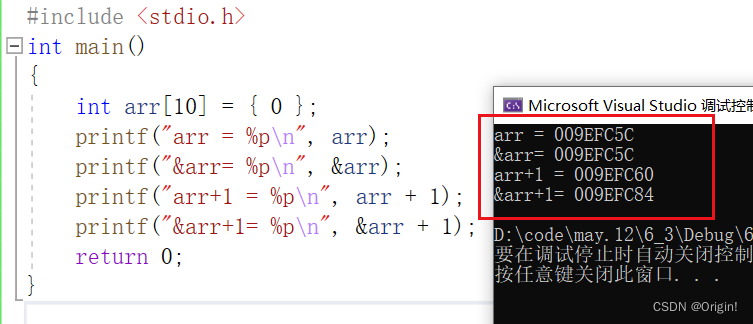

Let's look at a piece of code ：

#include <stdio.h>
int main()
{

 int arr[10] = {
     0 };
 printf("arr = %p\n", arr);
 printf("&arr= %p\n", &arr);
 printf("arr+1 = %p\n", arr+1);
 printf("&arr+1= %p\n", &arr+1);
 return 0;
}

According to the above running results, we find ： Actually Array name and & Array name , Although the values are the same , But the meaning should be different .

actually ：&arr It means The address of the entire array , Instead of the address of the first element of the array .（ Have a taste of ）
In this case &arr The type is ：int(*)[10], It's a kind of Array pointer type .
Address of array +1, Skip the entire array size , therefore &arr+1 amount to &arr The difference is 40.

Why? &arr+1 skip 40 Bytes ？
because ：arr The type is int [10]10 individual int amount to 40 Bytes .
Array of type To determine the +1/ -1 Skip a few bytes .

3.3 The use of array pointers

#include <stdio.h>
int main()
{

    int arr[10] = {
    1,2,3,4,5,6,7,8,9,0};
    int (*p)[10] = &arr;
    // Put the array arr To an array pointer variable p
    // But we seldom write code like this
    return 0;
}

The use of an array pointer ： Generally used on two-dimensional arrays

void print1(int (*pa)[5], int r, int c)
//int (*pa)[5] One dimensional array pointer receiving
{

	int i = 0;
	for (i = 0; i < r; i++)
	{
    //pa+0 Point to 1 That's ok , + 1 Point to 2 That's ok ...
	//+0 Find the first 1 Dimension group ,+1 Find No 2 One dimensional array
		int j = 0;
		for (j = 0; j < c; j++)
		{

			//printf("%d ", pa[i][j]);

			// Equivalent to the following

			printf("%d ", *(*(pa+i)+j));
	   // (pa+i)——>&arr+i Find No i Line address
	  //*(pa+i)——>arr[i]
     // Find No i Row array name , Equivalent to the first element address
	//*(*(pa+i)+j)——>arr[i][j]
	// Then, find No i Xing di j Elements
		}
		printf("\n");
	}
}
int main()
{

	int arr[3][5] = {
     1,2,3,4,5,2,3,4,5,6,3,4,5,6,7 };
	print1(arr, 3, 5);
	// The address of the first element of the two-dimensional array is the first line
	// So the transmission parameter here is
	// It is equivalent to passing the address of a one-dimensional array
	return 0;
}

You need to know ：int (*p) [5]
p The type is ：int(*)[5] , Point to an integer array , Array has 5 Elements
p+1 skip 5 individual int Array of elements

After learning pointer array and array pointer, let's review and see what the following code means :

int arr[5];//arr Is an array , Array has 5 Elements , Each element is int type
int *parr1[10];//parr It's an array , Array has 10 Elements , Each element is int* type
int (*parr2)[10];//parr2 It's a pointer , Point to one with 10 Array of elements , Each element is int type , therefore parr2 It's an array pointer
int (*parr3[10])[5];//parr3 Is an array , Array has 10 Elements , Each element is int(*)[5],
// The pointer points to a containing 10 Array of elements , therefore parr3 Is an array pointer array

Yes int (*parr3[10])[5]; incomprehension , See the following supplements ：

4. Array parameters 、 Pointer parameter

When writing code, it is inevitable to 【 Array 】 perhaps 【 The pointer 】 Pass to function , How to design the parameters of the function ？

4.1 A stack of array parameters

#include <stdio.h>
void test(int arr[])//ok, The size of the array can not be written
{
    }
void test(int arr[10])//ok
{
    }
void test(int *arr)//ok, Put the shaping address into the shaping pointer
{
    }
void test2(int *arr[20])//ok, Array parameters , Formal parameters can be arrays or pointers ,20 You can omit it
{
    }
void test2(int **arr)//ok, The secondary pointer receives the primary pointer address
// The array name is equivalent to the address of the first element ,arr2 yes int* Type of address
{
    }
int main()
{

 int arr[10] = {
    0};
 int *arr2[20] = {
    0};
 //20 Elements , Every element int*..
 // The array name is equivalent to the address of the first element ,arr2 yes int* Type of address
 test(arr);// The array name is equivalent to the address of the first element

 test2(arr2);
}

4.2 Two dimensional array parameters

void test(int arr[3][5])//ok, Two dimensional array receiving
{
    }
void test(int arr[][])//NO, Two dimensional array of formal parameters , What can be saved , I can't
{
    }
void test(int arr[][5])//ok, Save it , Don't save
{
    }
void test(int *arr)//NO,arr Is a two-dimensional array ,
// The address of the first element now represents the address of the first line , It is equivalent to a one-dimensional array
// A one-dimensional array cannot be put into a first-order pointer
{
    }
void test(int* arr[5])//NO
{
    }
void test(int (*arr)[5])//ok, Pointer to 5 Elements , Each element is int
{
    }
void test(int **arr)//NO, The secondary pointer can only receive the address of the variable of the primary pointer
{
    }
int main()
{

 int arr[3][5] = {
    0};
 test(arr);
 // Array parameters are generally written as -- Array name
 // Unless you pass an element ,——>&arr[1],arr[1]
}

summary ：
1 . Two dimensional array parameters , Function parameter design can only omit the first [ ] The number of .
Because for a two-dimensional array , I don't know how many lines there are , But you have to know how many elements in a row .
So it's easy to calculate .
2 . Array name of two-dimensional array , Represents the address of the first element , It's actually the address on the first line , The first line is a one-dimensional array
3. The secondary pointer can only receive the address of the primary pointer variable

4.3 First level pointer parameter transfer

#include <stdio.h>
void print(int *p, int sz)
{

 int i = 0;
 for(i=0; i<sz; i++)
 {

 printf("%d\n", *(p+i));//*(p+i)==p[i]
 //(p+i), If i=1,
 //+i Skip an integer address , And then I'll explain the quotation ,
 // You find the corresponding element
 }

}
int main()
{

 int arr[10] = {
    1,2,3,4,5,6,7,8,9};
 int *p = arr;//1 Address assigned to p
 int sz = sizeof(arr)/sizeof(arr[0]);
 // First level pointer p, Pass to function
 print(p, sz);
 return 0;
}

reflection ： When the parameter part of a function is a first-order pointer , What parameters can a function take ？

void test1(int *p)
{
    }
//test1 What parameters can a function take ？

int main()
{

	int a =10;
	test1(&a);//ok

	int* pa = &a;
	test1(pa);//ok

	int arr[5];
	test1(arr);//ok
}

As long as it is passed to the function, it is essentially a pointer , Argument and formal parameter types can match , Is no problem .

4.4 The secondary pointer transmits parameters

#include <stdio.h>
void test(int** ptr)
{

 printf("num = %d\n", **ptr);
}
int main()
{

 int n = 10;
 int*p = &n;
 int **pp = &p;
 test(pp);//ok, Itself is a secondary pointer , Transmit parameters to the secondary pointer to receive
 test(&p);//ok, The secondary pointer receives the address of the primary pointer variable
 return 0;
}

reflection ： When the parameter of the function is a secondary pointer , What parameters can be received ？

void test(char **p)
{


}
int main()
{

 char c = 'b';
 char*pc = &c;
 char**ppc = &pc;
 char* arr[10];
 test(&pc);//ok, The secondary pointer receives the address of the primary pointer variable
 test(ppc);//ok, Itself is a secondary pointer , Transmit parameters to the secondary pointer to receive
 test(arr);//Ok?
 //ok, Each element is int*, The first element address is int*
 return 0;
}
// Third level pointer dereference can also .... Level Four .... Level five ....

If you think the article is good , Remember the praise. + Share ~ If something is wrong , Feel free to comment and point out ~
