I Regular expression to finite state automata: regular expression to NFA

original text :https://study.163.com/course/courseMain.htm?courseId=1002830012

One . Classification of finite state automata
Finite state automata , In fact, it can be divided into two categories . The first category is the one we gave above , It is called deterministic finite state automata : Deterministic finite automaton abbreviation DFA. A deterministic state machine has one feature , Given the current status and input characters , Then the next state can be uniquely determined . For example, based on the above figure , In state 1 when , Received character 0-9, The next state must be 1, If a character is received . , Then the next state , It must be 2. More seriously , DFA It is such an automaton , Every edge out of a given state corresponds to a certain character , meanwhile , Two sides out of one state , Their corresponding characters must be different .
Corresponding to DFA, Another state machine is called non deterministic finite state machine : Nondeterministic finite automaton, namely NFA. In practice , To successfully convert regular expressions to automata , need NFA With the help of the .NFA Is characterized by , Two sides out of one state , Can have the same corresponding characters . Or its edge can correspond to a special character called ” empty ” character , The symbol corresponding to this character is : ℇ. This edge representation , No input required , You can move from the current state to the next state .
for instance , expression (and | any) , Its corresponding DFA as follows :

From the beginning , Split into two sides , The characters corresponding to the two sides are the same

perhaps :

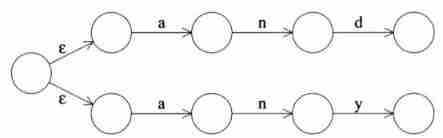

From the initial state, divide two edges corresponding to empty characters , Then enter two corresponding state machines respectively .

The second kind NFA It is easy to realize in program design , therefore , In the next section of the code , We will use the second NFA Implementation pattern .
NFA One obvious weakness is , In code design , It's hard to represent it in a data structure . especially , When corresponding to an input character ,NFA You can jump to multiple states , that , If you want to make use of NFA It is difficult to recognize the input string . generally speaking , Use NFA All procedures need to go through the next two steps ： Convert a regular expression to NFA, take NFA Convert to DFA. In the following discussion , We will show these two transformations in code .

Thompson Construction :
Convert a regular expression to NFA The algorithm was developed by Bell Laboratories Ken Thompson Given , This guy and Dennis . Richie co developed Unix, And he developed C The forerunner of language B Language .
Algorithm is as follows ：
The simplest regular expression is single character matching , for example a Match input characters ”a”, Then the expression's NFA The structure is as follows :

that , A join expression composed of two such regular expressions ab It can be expressed as follows ：

actually , It constructs two expressions respectively NFA, Then pass a ℇ edge , Put two NFA End to end .
So let's see , Two expressions do OR During operation | ,NFA How to construct , The structure diagram is as follows ：

To construct the or operation of two expressions : exp1 | exp2, According to the diagram , First, construct two expressions respectively exp1 , exp2 Respective NFA: NFA1（ Top dashed box ）, NFA2( Dotted box at the bottom ), Then construct two states , The initial state （ Beginning circle node ）, And end status （ End circle node ）, There are two lines where the initial state is extended ℇ edge , Point to respectively NFA1 and NFA2 The beginning of , then NFA1 and NFA2 At the end of each of them ℇ edge , They all point to the end state .

Let's see a | b Of NFA chart ：

The principle is the same as that described above . The dashed box above is the expression a Of NFA, The lower dashed box is the expression b Of NFA. Two NFA The connection of is exactly the same as that described above
If the expression is ( (a|b) | cd) Well , The same goes for algorithms , First construct a | b Of NFA chart , And then construct cd Of NFA chart . Finally, according to the method mentioned above , Two more NFA Connect ：
The big dashed box above is (a|d) Of NFA, The dotted line of the long plaque at the bottom is cd Of NFA. Then, two state nodes and ε The edges are connected .

You can see , Thompson Constructing an algorithm is actually a self recursive process
Let's take a look at the construction process of the corresponding closure operation :

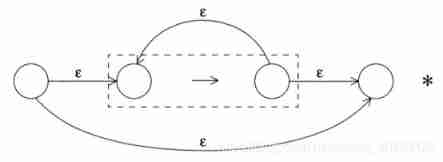

exp* Of NFA:
If it is self - Recovery 0 Time , Then go directly from the lower side to the end node .

exp+（ Repeat at least once ） Of NFA:

exp? ( repeat 0 or 1 Time ) Of NFA:

Any complex regular expression has its NFA The structure of is a combination of the above structures , For example, an expression
(D*.D | D.D*)
The construction algorithm is as follows ：
1. structure D Of NFA:

2. structure D*（ It corresponds to the figure on the left ）:

3. structure D*.D ( because . Special characters in regular expressions , If you just want to express its symbolic content , To escape, add a backslash to the front ):
. The first part of the number is D*, The latter part is D Of NFA.

4. structure D.D*, Of the expression NFA In fact, the above figure . Move the back part to the beginning .
5. according to OR The construction of , Construct the entire expression (D*.D | D.D*) Of NFA:
Above is D*.D Of NFA, Below is D.D* Of NFA

No matter how complex the expression is NFA Construction , It is a repeated combination of several basic structures .
