VMware virtual machine changes static IP and reports an error unit network Service entered failed state solution

The problem background

VMware Virtual machine change static IP Report errors ：

● network.service - LSB: Bring up/down networking
   Loaded: loaded (/etc/rc.d/init.d/network; bad; vendor preset: disabled)
   Active: failed (Result: exit-code) since  3、 ... and  2022-07-20 06:01:18 PDT; 1h 27min ago
     Docs: man:systemd-sysv-generator(8)
  Process: 899 ExecStart=/etc/rc.d/init.d/network start (code=exited, status=1/FAILURE)

7 month  20 06:01:18 localhost.localdomain systemd[1]: Starting LSB: Bring up/down networking...
7 month  20 06:01:18 localhost.localdomain network[899]: Bringing up loopback interface:  [  OK  ]
7 month  20 06:01:18 localhost.localdomain network[899]: Bringing up interface eno16777736:  Error: Conn...)).
7 month  20 06:01:18 localhost.localdomain network[899]: [FAILED]
7 month  20 06:01:18 localhost.localdomain systemd[1]: network.service: control process exited, code=exi...s=1
7 month  20 06:01:18 localhost.localdomain systemd[1]: Failed to start LSB: Bring up/down networking.
7 month  20 06:01:18 localhost.localdomain systemd[1]: Unit network.service entered failed state.
7 month  20 06:01:18 localhost.localdomain systemd[1]: network.service failed.
Hint: Some lines were ellipsized, use -l to show in full.

There may be different reasons for this problem , Here are two possible causes and solutions

Solution 1

1 There may be more than one network configuration file , Cause failure
First of all to enter network Configure the folder to view the network configuration file , There can only be one ifcfg-exxx

cd /etc/sysconfig/network-scripts

ll

Multiple network profiles , You need to remove , There is only one configuration file left

Solution 2

1 see ifconfig

ifconfig

You can see the actual dynamic allocation 192.168.207.130 Of IP, And you can see that the configuration file is ens33, It's not in my configuration file 192.168.207.137 This IP, And my profile is eno16777736, Therefore, the file name cannot be changed

2 Change my profile name

cd /etc/sysconfig/network-scripts

ll

3 Change the network profile name

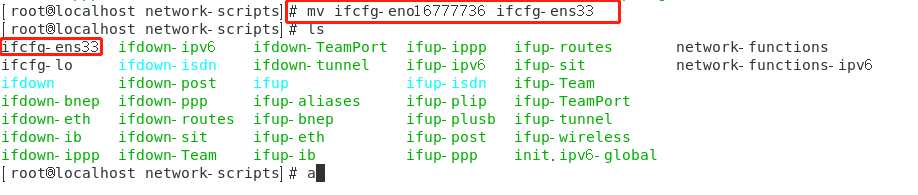

mv ifcfg-eno16777736 ifcfg-ens33

4 Edit file contents

vim ifcfg-ens33

5 Restart network settings two , It must be twice

systemctl restart network
