Alibaba microservice component Sentinel

Catalog

Possible problems in distributed environment

Common fault tolerance mechanisms

Sentinel Console deployment （docker install ）

Sentinel Integrate springAlibaba

sentinel— Integrate openfeign Downgrade

Hotspot resource flow control

---

Possible problems in distributed environment

Service not available ：

In a distributed environment , There are many factors that cause service unavailability , For example, the traffic surge leads to the system cpu Biao Gao is unable to process normal requests 、 Message delivery is too fast, resulting in a squeeze of unprocessed messages 、sql Too slow jam connection pool 、 Business call exception , A large number of side effects may result in service unavailability

Service avalanche effect ：

The unavailability of the service provider results in the unavailability of the service caller , And will not be available for gradual amplification of the process , It's called the service avalanche effect

When the service provider is unavailable , There will be a lot of retries ： User retries 、 Code logic retries , These retries eventually lead to ： Further increase request traffic . So in the final analysis, the most fundamental reason for the avalanche effect is ： Resource exhaustion caused by a large number of request threads waiting synchronously . When the service caller uses synchronous invocation , It will generate a large number of waiting threads and occupy system resources . Once thread resources are exhausted , Services provided by service callers will also be unavailable , So the avalanche of services came into being .

Common fault tolerance mechanisms

Timeout mechanism

Without any treatment , The unavailability of the service provider will cause the consumer request thread to force a wait , And cause system resource depletion . Add a timeout mechanism , Once timeout , Just release the resources . Due to the faster release of resources , To some extent, it can restrain the problem of resource depletion .

Service restriction

When the flow reaches a certain level , You can restrict access to the server , Achieve the purpose of flow relief

Thread pool isolation

principle ： The user's request will no longer directly access the service , Instead, the service is accessed through idle threads in the thread pool , If the thread pool is full , It will be degraded , The user's request will not be blocked , You can see at least one execution result （ For example, return friendly prompts ）, Instead of waiting endlessly or seeing the system crash .

Semaphore isolation

Signal isolation can also be used to limit concurrent access , To prevent obstruction from spreading , The biggest difference from thread isolation is that the thread executing dependent code is still the request thread （ The thread needs to apply through signals ,  If the client is trusted and can return quickly , You can use signal isolation instead of thread isolation , Reduce overhead . The size of semaphore can be adjusted dynamically , Thread pool size cannot .

Service failure

Temporarily shut down when the remote service is unstable or the network jitters , Just call service .

service degradation

Service fuse , There must be service degradation . So called demotion , It's when a service melts , The service will no longer be called , At this point the client can prepare a local one itself fallback（ Back off ） Callback , Returns a default value . for example ：( Spare interface / cache /mock data ) . To do so , Although the level of service has declined , But somehow it can be used , Better than just hanging up , Of course, it also depends on the appropriate business scenario .

Sentinel Console deployment （docker install ）

Pull Sentinel-dashboard Mirror image

 docker pull bladex/sentinel-dashboard

see Sentinel-dashboard Is the image download complete

 docker images

start-up Sentinel-dashboard

docker run --name sentinel -d -p 8858:8858 -d bladex/sentinel-dashboard

visit Sentinel-dashboard page
The username and password are both ： sentinel


Sentinel Integrate springAlibaba

One 、 Introduce coordinates

 <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
</dependency>

Two 、 Set up sentinel Of ip port

  cloud:
    sentinel:
      transport:
        dashboard: 127.0.0.1:8080

3、 ... and 、 Create an accessible interface

@RestController
@RequestMapping("/order")
public class OrderController {
    @RequestMapping("/flow")
    public String flow() throws InterruptedException {
        return " Normal visit ";
    }
}

Four 、 Access interface , Then you can sentinel The console sees relevant information

  5、 ... and 、 Open the cluster link to view all links , And add flow control rules





  Threshold type ：

• QPS: Throughput per second
• Number of threads ： Number of threads accessible per second

Stand alone threshold ： Use with threshold type , for example QPS, Allow access twice per second

Flow control mode ：

direct ： For example, the resources of flow control are /order/flow, Then when the flow control is triggered , What limits is its own resources

relation ： Such as below , When associating resources /order/flowThread Is accessed more than twice per second , Will be on the resources /order/flow Flow control .

  link ： Throughout the call link , You can add the following configuration to the configuration file , Give Way sentinel Help us maintain a call link tree

server:
  port: 8861
spring:
  application:
    name: order-sentinel
  cloud:
    sentinel:
      transport:
        dashboard: 127.0.0.1:8080
      web-context-unify: false  #  Link convergence will be invoked by default ,  The link flow control effect is invalid

here getUser Method is registered as sentinel Resources for ( Be careful , Used sentinelResource You can't use the same exception management , You have to use sentinelResource Of blockHandler Indicate the fallback method ）

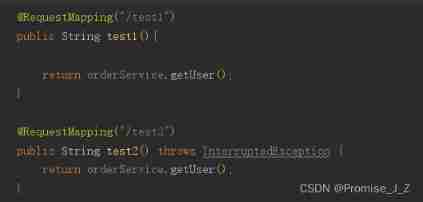

  Then both interfaces call the change method

  Then a call link tree will be formed here .

  At this time, you can limit the current of a link by selecting the link mode , Otherwise, both links will be current limited

  Flow control effect ：

Fast failure ： When the threshold is reached , The following request fails directly

Warm UP（ Suitable for surge traffic ）： Can play a preheating effect , A default cold load factor is 3, That is, from the threshold /3 Start , then QPS Gradually increase until the threshold is reached , The threshold here is set to 10, So in the first second , The number of requests allowed to access is 10/3=3, The second second second increments , Direct increment reaches the threshold 10. But the request that is not allowed limits the current directly

  Waiting in line （ Suitable for pulse flow ）： When QPS When the threshold is reached , The request will not be rejected immediately , It's just waiting in line , Set if you pass within the timeout , Then visit normally , If I run out of time , Then it returns failure

6、 ... and 、 Add downgrade rule

Slow call ratio ： The largest of the following RT Set to 1000 millisecond , When a request exceeds 1000 Milliseconds are slow calls , Combine the proportional threshold with the minimum number of requests . When the number of requests is greater than 5 And the requests that are called slowly account for one tenth 、 Then open the fuse , Fusing time is five seconds , After five seconds , It will enter the half open state , For new requests, if the first one is a slow call request , Then it will fuse again immediately , Instead of judging by proportion , If the first is a normal request , Then only when the proportional threshold is reached will the fuse be blown

  Abnormal proportion ： When the ratio of abnormal times to the total times reaches the threshold, the fuse will be opened

Number of abnormal ： When the number of exceptions in the request reaches the threshold, the fuse is turned on

sentinel— Integrate openfeign Downgrade

One 、 Introduce dependencies

<!--nacos- Service registration found -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>

        <!--1.  add to openfeign rely on  -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>


        <!--sentinel rely on -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>

Two 、 Turn on openfeign Integrate sentinel

server:
  port: 8041
  #  apply name  （nacos This name will be used as the service name ）
spring:
  application:
    name: order-service
  cloud:
    nacos:
      server-addr: 120.79.10.137:8849
      discovery:
        username: nacos
        password: nacos
        namespace: public
feign:
  sentinel:
    # openfeign Integrate sentinel
    enabled: true

3、 ... and 、 To write feign Call interface , And in feignclient Medium fallback Attribute indication fallback Class bytecode of method

@FeignClient(value="stock-nacos",path = "/stock",fallback = StockFeignServiceFallback.class)
public interface StockFeignService {

    @RequestMapping("/reduct")
    public String reduct2();
}

Four 、 establish fallback Class bytecode of method , Realization feign Called interface

@Component
public class StockFeignServiceFallback implements StockFeignService {
    @Override
    public String reduct2() {
        return " Degraded ！！！";
    }
}

Hotspot resource flow control

The first thing to emphasize is sentinel For hotspot rules , You have to use @SentinelResource Use , If you only control the flow of hotspot resources for the interface, it will not work

 /**
     *  Hot spot rules , You have to use @SentinelResource
     * @param id
     * @return
     * @throws InterruptedException
     */
    @RequestMapping("/get/{id}")
    @SentinelResource(value = "getById",blockHandler = "HotBlockHandler")
    public String getById(@PathVariable("id") Integer id) throws InterruptedException {

        System.out.println(" Normal visit ");
        return " Normal visit ";
    }

    public String HotBlockHandler(@PathVariable("id") Integer id,BlockException e) throws InterruptedException {

        return " Hot spot exception handling ";
    }

As shown in the figure below , New hotspot rules , Current limiting mode can only be passed through QPS Carry out current limiting

Parameter index ： It indicates the number of parameters to control current limiting , The following figure means ,1 The maximum request throughput of the first parameter in seconds is 10, Over current limit

  Click Add , You can edit the current limit of the advanced part



This means that when the value of the first parameter is 1 When , Only two requests can be passed per second  , But there may be some problems when saving bug, Save back failed . In this case, you need to add two parameter exceptions , Save and then delete the unused one .
