Visitor model -- generation gap between young and middle-aged people

Introduction

Xiaoshuai 25 year , Lao Wang 35 year , One day Xiaoshuai and Lao Wang discussed the increasingly obvious difference between young and middle-aged people .

Xiao Shuai listed several scenarios , At the same time, Xiaoshuai is the representative of young people , Lao Wang, as a representative of the middle-aged people, answered respectively .

1. When something goes wrong at work , It can't be solved immediately , For example, what if the leader is biased against you or the work task is too heavy ？

Xiaoshuai ： Don't stay here , I have my own place , Change jobs immediately .
Lao Wang ： Bear it first , Endure again , Maybe sometimes it comes to a running day , After all, there are so many mortgage payments to be made every month .

2. The year-end bonus was given , How to arrange ？

Xiaoshuai ： Buy the latest mobile phone or other electronic products , Have a good time , Today's wine is today's wine .
Lao Wang ： Take it all to repay the mortgage .

3. How to spend the weekend ？

Xiaoshuai ： Two things , sleep , Play the game .
Lao Wang ： Two things , Do housework , Bring baby .

No wonder young people and middle-aged people can't play together , This is the generation gap .

Lao Wang said ： We said so much , Can you write the above dialogue in code ？

Xiaoshuai ： I really flatter you , Everything can be related to code , That's ok , I'm in a good mood today , Let me show you .

Human abstract class ：

/** *  Human abstract class  */
public abstract class Person {

    /** *  scene  */
    protected String scene;

    public Person(String scene) {

        this.scene = scene;
    }

    /** *  answer  */
    public abstract void answer();
}

Young people ：

/** *  Young people  */
public class Young extends Person{


    public Young(String scene) {

        super(scene);
    }

    @Override
    public void answer() {

        if(" The work is not going well ".equals(scene)) {

            System.out.println(" Young people ： Don't stay here , I have my own place , Change jobs immediately .");
        } else if(" Annual bonus ".equals(scene)) {

            System.out.println(" Young people ： Buy the latest mobile phone or other electronic products , Have a good time , Today's wine is today's wine .");
        } else if(" Over the weekend ".equals(scene)) {

            System.out.println(" Young people ： Two things , sleep , Play the game .");
        }
    }
}

Middle aged humans ：

/** *  middle-aged person  */
public class MiddleAged extends Person{


    public MiddleAged(String scene) {

        super(scene);
    }

    @Override
    public void answer() {

        if(" The work is not going well ".equals(scene)) {

            System.out.println(" middle-aged person ： Bear it first , Endure again , Maybe sometimes it comes to a running day , After all, there are so many mortgage payments to be made every month .");
        } else if(" Annual bonus ".equals(scene)) {

            System.out.println(" middle-aged person ： Take it all to repay the mortgage .");
        } else if(" Over the weekend ".equals(scene)) {

            System.out.println(" middle-aged person ： Two things , Do housework , Bring baby .");
        }
    }
}

Client class ：

/** *  client  */
public class Client {


    public static void main(String[] args) {

        List<Person> personList = new ArrayList<>();
        personList.add(new Young(" The work is not going well "));
        personList.add(new MiddleAged(" The work is not going well "));
        personList.add(new Young(" Annual bonus "));
        personList.add(new MiddleAged(" Annual bonus "));
        personList.add(new Young(" Over the weekend "));
        personList.add(new MiddleAged(" Over the weekend "));

        personList.stream().forEach(f -> f.answer());
    }
}

Output ：

 Young people ： Don't stay here , I have my own place , Change jobs immediately .
 middle-aged person ： Bear it first , Endure again , Maybe sometimes it comes to a running day , After all, there are so many mortgage payments to be made every month .
 Young people ： Buy the latest mobile phone or other electronic products , Have a good time , Today's wine is today's wine .
 middle-aged person ： Take it all to repay the mortgage .
 Young people ： Two things , sleep , Play the game .
 middle-aged person ： Two things , Do housework , Bring baby .

Lao Wang, take a look , Say ： Well written , But there are still some problems , If I want to add a few more problem scenarios , such as ： What books do you usually read 、 What kind of sports do you like 、 What about sleeping at night ？

Xiaoshuai ： It's not easy , Directly in Young and MiddleAged Class and if…else The conditions are OK ！

Lao Wang shook his head and said ： It's against Opening and closing principle ： Turn off for changes , Open to expansion . If this is a class provided by a third party , You can't modify them , But add new behaviors , How do you do that ？

“ Without modifying the existing code , Add a new behavior to an existing class ？ How could it be ？” Xiaoshuai doubted .

Lao Wang laughed ： How impossible , There is a design pattern that does this .

Visitor mode

Visitor mode ： Provides an operation that acts on elements in an object structure , You can do this without changing the element class , Define new actions that act on elements .

Visitor pattern is a behavior design pattern , Allows you to add new behaviors to the existing class hierarchy without modifying the existing code .

• Visitor（ The visitor , Such as Scene）
  Abstract class or interface , Declare which elements visitors can access . To be specific to the procedure is getYoungAnswer Method can access young object ;getMiddleAgedAnswer Method can access middleAged object .
• ConcreteVisitor（ Specific visitors , Such as WorkNotWell,YearEndAwards,Weekend）
  Implementation class of visitor interface , Realize the concrete operation .
• Element（ Elements , Such as Person）
  Interface or abstract class , Define a accept operation , Take a visitor as a parameter .
• ConcreteElement（ Specific elements , Such as Young and MiddleAged）
  Realization accept operation , Usually visitor.visit(this) Pattern .
• ObjectStructure（ Object structure ）
  A collection of storage objects , It is convenient to traverse the elements .

Scene class ：

/** *  scene  */
public interface Scene {


    /** *  The young man's answer  * @param young */
    public void getYoungAnswer(Young young);

    /** *  The answer of the middle-aged man  * @param middleAged */
    public void getMiddleAgedAnswer(MiddleAged middleAged);
}

Work is not going well ：

/** *  Bad work  */
public class WorkNotWell implements Scene{


    @Override
    public void getYoungAnswer(Young young) {

        System.out.println(young.name + "： Don't stay here , I have my own place , Change jobs immediately .");
    }

    @Override
    public void getMiddleAgedAnswer(MiddleAged middleAged) {

        System.out.println(middleAged.name + "： Bear it first , Endure again , Maybe sometimes it comes to a running day , After all, there are so many mortgage payments to be made every month .");
    }
}

Year end bonus scenario ：

/** *  Annual bonus  */
public class YearEndAwards implements Scene{


    @Override
    public void getYoungAnswer(Young young) {

        System.out.println(young.name + "： Buy the latest mobile phone or other electronic products , Have a good time , Today's wine is today's wine .");
    }

    @Override
    public void getMiddleAgedAnswer(MiddleAged middleAged) {

        System.out.println(middleAged.name + "： Take it all to repay the mortgage .");
    }
}

Weekend scene ：

/** *  Over the weekend  */
public class Weekend implements Scene{


    @Override
    public void getYoungAnswer(Young young) {

        System.out.println(young.name + "： Two things , sleep , Play the game .");
    }

    @Override
    public void getMiddleAgedAnswer(MiddleAged middleAged) {

        System.out.println(middleAged.name + "： Two things , Do housework , Bring baby .");
    }
}

Human interface ：

/** *  Human interface  */
public interface Person {


    /** *  Accept  */
    public void accept(Scene scene);
}

Young people ：

/** *  Young people  */
public class Young implements Person{


    protected String name;

    public Young(String name) {

        this.name = name;
    }

    @Override
    public void accept(Scene scene) {

        scene.getYoungAnswer(this);
    }
}

Middle aged humans ：

/** *  middle-aged person  */
public class MiddleAged implements Person{


    protected String name;

    public MiddleAged(String name) {

        this.name = name;
    }

    @Override
    public void accept(Scene scene) {

        scene.getMiddleAgedAnswer(this);
    }
}

Object structure class ：

/** *  Object structure  */
public class ObjectStructure {


    private List<Person> personList = new ArrayList<>();

    /** *  newly added  * @param person */
    public void add(Person person) {

        personList.add(person);
    }

    /** *  Delete  * @param person */
    public void delete(Person person) {

        personList.remove(person);
    }

    /** *  Traversal shows  * @param scene */
    public void display(Scene scene) {

        personList.stream().forEach(f -> f.accept(scene));
    }
}

Client class ：

/** *  client  */
public class Client {

    public static void main(String[] args) {

        ObjectStructure objectStructure = new ObjectStructure();
        objectStructure.add(new Young(" Xiaoshuai "));
        objectStructure.add(new MiddleAged(" Lao Wang "));

        //  A scenario where work is not going well
        WorkNotWell workNotWell = new WorkNotWell();
        objectStructure.display(workNotWell);

        //  The scene of year-end bonus
        YearEndAwards yearEndAwards = new YearEndAwards();
        objectStructure.display(yearEndAwards);

        //  Weekend scene
        Weekend weekend = new Weekend();
        objectStructure.display(weekend);
    }
}

Output ：

 Xiaoshuai ： Don't stay here , I have my own place , Change jobs immediately .
 Lao Wang ： Bear it first , Endure again , Maybe sometimes it comes to a running day , After all, there are so many mortgage payments to be made every month .
 Xiaoshuai ： Buy the latest mobile phone or other electronic products , Have a good time , Today's wine is today's wine .
 Lao Wang ： Take it all to repay the mortgage .
 Xiaoshuai ： Two things , sleep , Play the game .
 Lao Wang ： Two things , Do housework , Bring baby .

Lao Wang said to Xiao Shuai ： The visitor pattern can be applied to achieve , Without modifying the existing code , Add a new behavior to an existing class .

You see, for example, I want to add ” What time do you go to bed at night “ Scene , Just add one Sleep Class implementation Scene Interface is fine .

/** *  sleep  */
public class Sleep implements Scene{

    @Override
    public void getYoungAnswer(Young young) {

        System.out.println(young.name + "： I didn't go to bed until 12:30 , verdure .");
    }

    @Override
    public void getMiddleAgedAnswer(MiddleAged middleAged) {

        System.out.println(middleAged.name + "： Go to bed at halfpastten , Early to bed and early to rise makes a man healthy,wealthy and wise. .");
    }
}

And then in Client Add relevant calling code to the class , This scenario can be realized ：

//  Sleeping scene
Sleep sleep = new Sleep();
objectStructure.display(sleep);

 Xiaoshuai ： I didn't go to bed until 12:30 , verdure .
 Lao Wang ： Go to bed at halfpastten , Early to bed and early to rise makes a man healthy,wealthy and wise. .

You see , There is no need to modify Young and MiddleAged Class to add new operations , Isn't that amazing ？

Xiaoshuai is a little confused ： It's interesting , But this code looks a little strange ,accept Method why should scene The object came in , And then put their own objects this Pass it in ？

This is not equivalent to calling other people's methods by myself , Put yourself in ？

@Override
public void accept(Scene scene) {

    scene.getYoungAnswer(this);
}

Single dispatch and double dispatch

Lao Wang laughed and said ：“ Take yourself in ”, Xiao Shuai, your statement is quite funny , Let me tell you something about it .

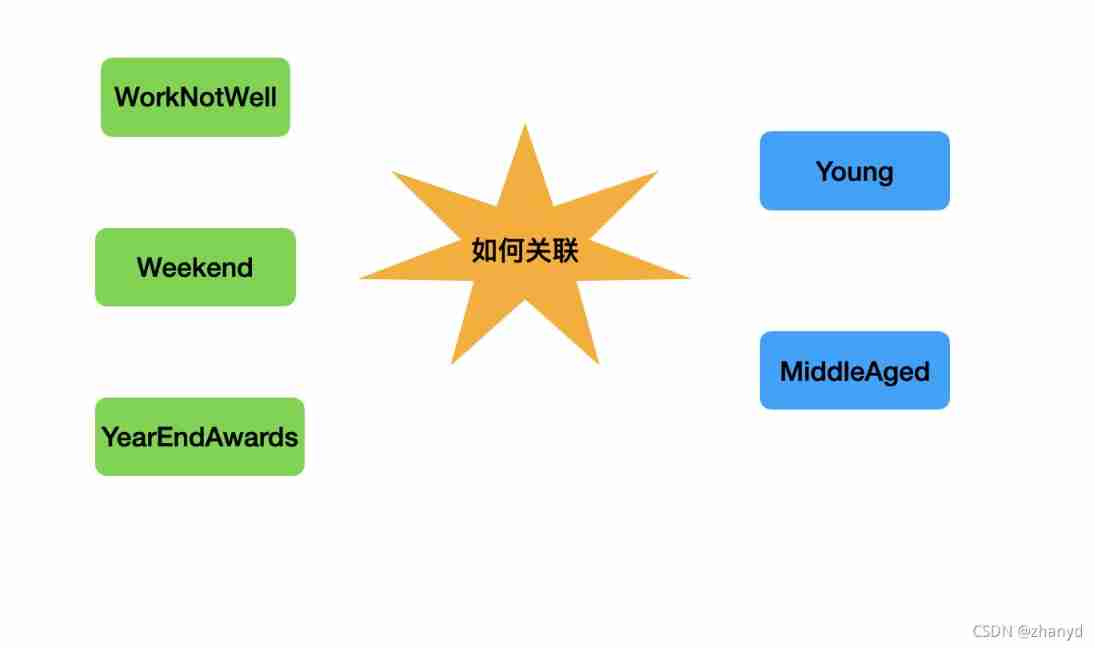

Three scenes WorkNotWell,Weekend,YearEndAwards How and Young,MiddleAged Related ？

In fact, there are two steps in the middle ：

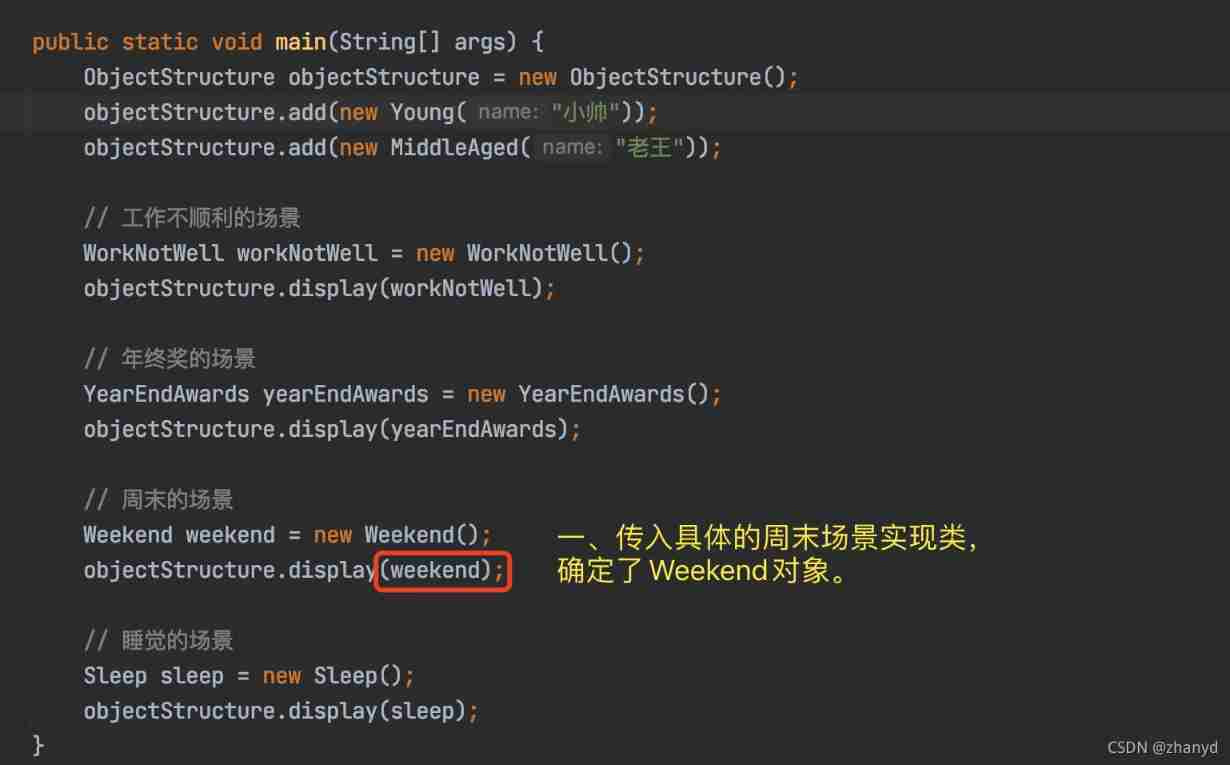

First of all , Calling display Method time , The specific scenario implementation class is passed in , Specific scenarios are identified .

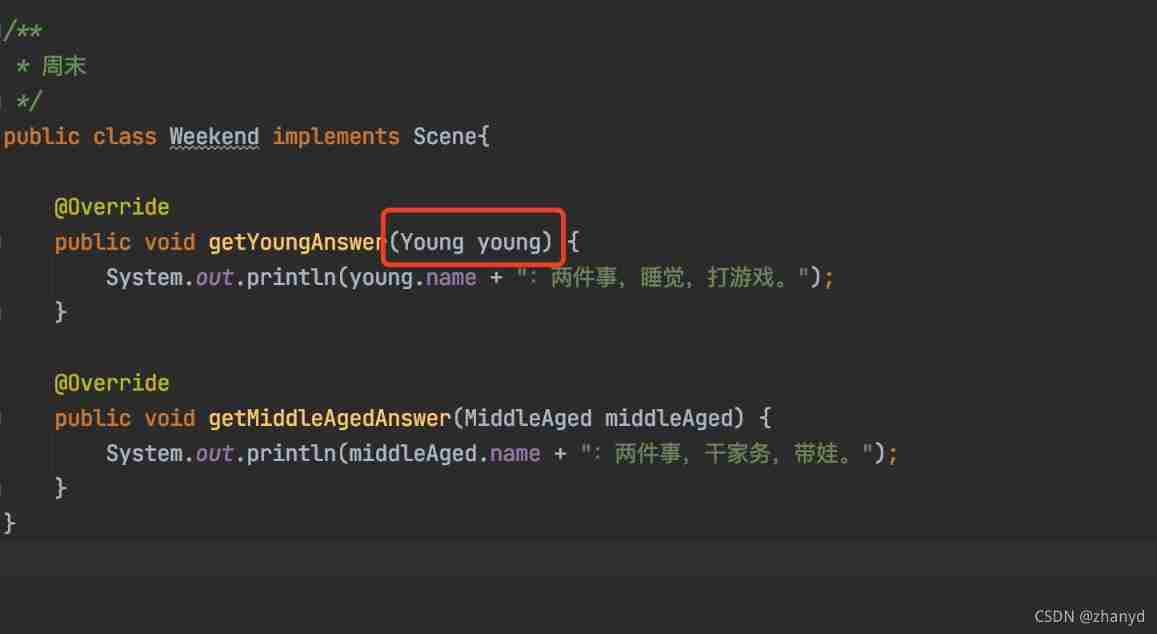

second 、 stay accept Method this object , Concrete element objects （Young） It's also certain that , Then both objects are determined .

here , I also want to talk to you about order dispatch （Single Dispatch） And double dispatch （Double Dispatch） The concept of , Old Wang went on .

The so-called single dispatch , refer to Execute the method of which object , Based on the Run time type ; Which method of the execution object , According to the method parameters Compile time type .

So called double dispatch , refer to Execute the method of which object , Based on the Run time type ; Which method of the execution object , According to the method parameters Run time type .

Let's start with a piece of code ：

public class Parent {

    public void f() {

        System.out.println(" I'm the method of the parent class f()");
    }
}
public class Child extends Parent{

    @Override
    public void f() {

        System.out.println(" I'm a subclass method f()");
    }
}

/** *  Single distribution  */
public class SingleDispatch {

    public void show(Parent p) {

        p.f();
    }
    public void overloadFunction(Parent p) {

        System.out.println(" I am a superclass parameter overloaded method ：overloadFunction(Parent p)");
    }
    public void overloadFunction(Child c) {

        System.out.println(" I am a subclass parameter overloaded method ：overloadFunction(Child c)");
    }
}

public class Test {

    public static void main(String[] args){

        SingleDispatch singleDispatch = new SingleDispatch();
        Parent p = new Child();
        singleDispatch.show(p);
        singleDispatch.overloadFunction(p);
    }
}

Output ：

 I'm a subclass method f()
 I am a superclass parameter overloaded method ：overloadFunction(Parent p)

Diagram of single dispatch ：

because Java Is a single dispatch language , therefore Execute the method of which object , Based on the Run time type ,p.f() there p Running Child The object of , So the execution is Child Methods in class .

because Which method of the execution object , According to the method parameters Compile time type , The compile time type here is Parent.

So the call is public void overloadFunction(Parent p) Method .

because Java Language only supports single dispatch , So use the visitor pattern to implement double dispatch , Is that why ConcreteVisitor Class ConcreteElement Implementation class of , But can't use Element Interface .

And then through the accept Method passed in this object , To determine which method to call .

@Override
public void accept(Scene scene) {

    scene.getYoungAnswer(this);
}

summary

If an object structure is complex , At the same time, the elements are stable and not easy to change , namely ConcreteElement Class is relatively stable , It will not increase at will , However, new operations need to be defined on this structure frequently , So it's very appropriate to use the visitor pattern .

advantage

• Comply with opening and closing principle , Without modifying the existing code , Add a new behavior to an existing class .
• Centralize relevant behaviors into a visitor object , Simplified element classes .

shortcoming

• Add new ConcreteElement Class is troublesome , Each new one is added ConcreteElement class , In all the Visitor Class .

If there's always something new ConcreteElement Class is added ,Vistor Class and its subclasses will become difficult to maintain , In this case, the visitor mode is appropriate .

Visitor mode makes it easier for us to add access operations , But adding elements is difficult , So the visitor pattern is suitable for structures with relatively stable elements .

Code link
