Visitor mode

2022-07-25 22:12:00 【At the beginning of dawn】

1. Introduction

To move the brick N year , It's not easy to gather hundreds of thousands , Opened a marinated meat shop （ Forgive the author for being a glutton ）
To attract customers , The introduction of the membership system ： Ordinary original price , Silver members 8.8 fold , Platinum members 8 fold
The ancestral secret recipe in the store , Just make stewed duck 、 Chicken feet 、 Stewed pork head
Born with bricks , I'm sorry if I don't write a cashier program myself

2. The original cashier program

2.1 Membership level

According to the demand , Define an enumeration class MembershipLevel To record membership grades

public enum MembershipLevel {

    NORMAL,
    SILVER,
    PLATINUM
}

2.2 All kinds of marinated meat in the store

There are three kinds of marinated meat in the shop , Each kind of marinated meat has two properties ： Name and unit price , Two operations ： Get the name 、 Return the discounted unit price according to the member level

Abstract out Meat Interface ：

public interface Meat {

    double getPrice(MembershipLevel level);

    String getName();
}

Realize three kinds of marinated meat ： Stewed duck 、 Chicken feet 、 Stewed pig head

public class CookedDark implements Meat {

    private final double price;

    public CookedDark(double price) {

        this.price = price;
    }

    @Override
    public double getPrice(MembershipLevel level) {

        if (MembershipLevel.NORMAL == level) {

            return price;
        } else if (MembershipLevel.SILVER == level) {

            return price * 0.88;
        } else {

            return price * 0.8;
        }
    }

    @Override
    public String getName() {

        return " Stewed duck ";
    }
}

public class CookedChickenFeet implements Meat {

    private final double price;

    public CookedChickenFeet(double price) {

        this.price = price;
    }

    @Override
    public double getPrice(MembershipLevel level) {

        if (MembershipLevel.NORMAL == level) {

            return price;
        } else if (MembershipLevel.SILVER == level) {

            return price * 0.88;
        } else {

            return price * 0.8;
        }
    }

    @Override
    public String getName() {

        return " bittern chicken claws ";
    }
}

public class CookedPigHead implements Meat {

    private final double price;

    public CookedPigHead(double price) {

        this.price = price;
    }

    @Override
    public double getPrice(MembershipLevel level) {

        if (MembershipLevel.NORMAL == level) {

            return price;
        } else if (MembershipLevel.SILVER == level) {

            return price * 0.88;
        } else {

            return price * 0.8;
        }
    }

    @Override
    public String getName() {

        return " Stewed pig head ";
    }
}

2.2 Marinated meat shop

There are all kinds of marinated meat in the marinated meat shop , Calculate the price according to the customer's purchase and membership level

public class CookedFoodShop {

    private Map<String, Meat> meatMap;

    public CookedFoodShop() {

        meatMap = new HashMap<>();
    }

    public CookedFoodShop addMeat(Meat meat) {

        meatMap.put(meat.getName(), meat);
        return this;
    }

    public void calculatePrice(Map<String, Double> weight, MembershipLevel level) {

        double total = 0;
        System.out.println("Membership level: " + level);
        System.out.println("Meat Price Weight Cost");
        for (Map.Entry<String, Double> item : weight.entrySet()) {

            Meat meat = meatMap.get(item.getKey());
            double cost = item.getValue() * meat.getPrice(level);
            total += cost;
            System.out.printf("%s %.2f %.2f %.2f\n", meat.getName(), meat.getPrice(level), item.getValue(), cost);
        }
        System.out.printf("Total cost: %.2f\n", total, total * 0.88);
    }
}

2.3 The marinated meat shop opened

Create your own marinated meat shop , After setting the price of different marinated meat , You can open the door , Use your own program to calculate the price

public class CalculatePrice {

    public static void main(String[] args) {

        //  Create your own marinated meat shop
        CookedFoodShop shop = new CookedFoodShop()
                .addMeat(new CookedDark(38))
                .addMeat(new CookedChickenFeet(42))
                .addMeat(new CookedPigHead(35));

        //  Input the weight of all kinds of marinated meat
        Map<String, Double> weight = new HashMap<>();
        weight.put(" bittern chicken claws ", 2.4);
        weight.put(" Stewed pig head ", 1.5);
        //  Calculate the price
        shop.calculatePrice(weight, MembershipLevel.SILVER);
    }
}

Final , The consumption of a silver member is as follows ：

3. Membership levels have been enriched

3.1 An awkward situation

Because of the ancestral craft , Attracted a lot of customers , At this time, the membership level is getting richer and richer
Big customers like the company canteen , direct 75 fold ; Franchisee , direct 7 fold
Now I have to change the code again
- First , Need to be rich MembershipLevel Member level in
- secondly , Modify the marinated meat , Enrich getPrice() Support for various member levels in the method ： Or enrich if - else Branch , Or use switch sentence
It's really troublesome ： The addition of new member level , Need to modify all the marinated meat getPrice() Method , Violated the famous Opening and closing principle （ Open to expansion , Turn off for changes ）.

3.2 introduce visitor Pattern

Observe carefully , It's not hard to see ： In the whole demand , The type of marinated meat remains unchanged , What changes is the membership level , And member price calculation logic getPrice() Method
If you can separate the logic of member price calculation from the marinated meat , When the membership level changes , The existing marinated meat can be modified

First , Create a Visitor Interface , It contains different kinds of marinated meat , Get the original price of marinated meat and calculate the member price visit() Method

public interface Visitor {

    double visit(CookedDark dark);

    double visit(CookedChickenFeet feet);

    double visit(CookedPigHead pigHead);
	//  Get membership level , Help print tickets
    MembershipLevel getLevel();
}

next , to update Meat Interface getPrice() Method , Remove the calculation logic of different member prices , Return the original price directly

//  take Meat Interface getPrice() The method changes as follows ：
double getPrice();
//  In all kinds of marinated meat , Realization getPrice() Method , Return the original price directly
@Override
public double getPrice() {

    return this.price;
}

then , be based on Visitor Interface , Realize the corresponding of different member levels Visitor class

public class NormalVisitor implements Visitor {

    private static final MembershipLevel level = MembershipLevel.NORMAL;

    @Override
    public double visit(CookedDark dark) {

        return dark.getPrice();
    }

    @Override
    public double visit(CookedChickenFeet feet) {

        return feet.getPrice();
    }

    @Override
    public double visit(CookedPigHead pigHead) {

        return pigHead.getPrice();
    }

    @Override
    public MembershipLevel getLevel() {

        return level;
    }
}

public class SilverVisitor implements Visitor {

    private static final MembershipLevel level = MembershipLevel.SILVER;

    @Override
    public double visit(CookedDark dark) {

        return dark.getPrice() * 0.88;
    }

    @Override
    public double visit(CookedChickenFeet feet) {

        return feet.getPrice() * 0.88;
    }

    @Override
    public double visit(CookedPigHead pigHead) {

        return pigHead.getPrice() * 0.88;
    }

    @Override
    public MembershipLevel getLevel() {

        return level;
    }
}

public class PlatinumVisitor implements Visitor {

    public static final MembershipLevel level = MembershipLevel.PLATINUM;

    @Override
    public double visit(CookedDark dark) {

        return dark.getPrice() * 0.8;
    }

    @Override
    public double visit(CookedChickenFeet feet) {

        return feet.getPrice() * 0.8;
    }

    @Override
    public double visit(CookedPigHead pigHead) {

        return pigHead.getPrice() * 0.8;
    }

    @Override
    public MembershipLevel getLevel() {

        return level;
    }
}

Now? , Whole visitor Here comes the key point of the pattern ： How to combine marinated meat with Visitor Class is associated with ？

by Meat Add an interface double accept(Visitor visitor) Method
Marinated meat is realized accept() When the method is used , Pass yourself to visitor Of visit() Method

public class CookedDark implements Meat {

    ... //  Other code omissions
    @Override
    public double accept(Visitor visitor) {

        return visitor.visit(this);
    }
}

public class CookedChickenFeet implements Meat {

	... //  Other code omissions
    @Override
    public double accept(Visitor visitor) {

        return visitor.visit(this);
    }
}

public class CookedPigHead implements Meat {

    ... //  Other code omissions
    @Override
    public double accept(Visitor visitor) {

        return visitor.visit(this);
    }
}

here , Stewed duck + Take silver members for example , Formed such a relationship chain ：

modify CookedFoodShop.calculatePrice() Method

public void calculatePrice(Map<String, Double> weight, Visitor visitor) {

    double total = 0;
    System.out.println("Membership level: " + visitor.getLevel());
    System.out.println("Meat Price Weight Cost");
    for (Map.Entry<String, Double> item : weight.entrySet()) {

        Meat meat = meatMap.get(item.getKey());
        double cost = item.getValue() * meat.accept(visitor);
        total += cost;
        System.out.printf("%s %.2f %.2f %.2f\n", meat.getName(), meat.accept(visitor), item.getValue(), cost);
    }
    System.out.printf("Total cost: %.2f\n", total, total * 0.88);
}

Calculate the fees to be paid by Platinum members

public class CalculatePrice {

    public static void main(String[] args) {

        //  Create your own marinated meat shop
        CookedFoodShop shop = new CookedFoodShop()
                .addMeat(new CookedDark(38))
                .addMeat(new CookedChickenFeet(42))
                .addMeat(new CookedPigHead(35));

        //  Input the weight of all kinds of marinated meat
        Map<String, Double> weight = new HashMap<>();
        weight.put(" bittern chicken claws ", 2.4);
        weight.put(" Stewed pig head ", 1.5);
        //  Calculate the price
        shop.calculatePrice(weight, new PlatinumVisitor());
    }
}

The contents of the ticket are as follows ：

4. visitor Pattern

4.1 Concept

In code development , We often encounter such scenes ：
- A composite object , Contains a set of similar and fixed Element
- If necessary for this group Element Introduce new operations , You need to modify all Element（ The new method ） And composite objects （ quote Element New method of ）
This is the code design , Obviously violates the opening and closing principle （ Open to expansion , Turn off for changes ）
At this time , Consider using visitors （visitor） Pattern , To define a new operation without modifying the existing object structure
visitor The pattern belongs to Behavioral design patterns , There are two important ways ：
- Element Medium accept(visitor) Method ： Can receive different types of visitors （visitor）, And execute in the method visitor.visit(this)
- Visitor Medium visit(concreteElement) Method ： Visit specific Element, Realize to Element Operation logic of ; When you need to Element When a new operation is introduced , Just add specific Visitor class
- stay accept() Method execution visitor.visit(this), Cleverly put Visitor And Element Connect , Realized double dispatch
From the above description, it is not difficult to find ：visitor The mode meets the opening and closing principle , It realizes the separation of operation logic and the operated object

I'm right double dispatch ：
- dispatch 1： adopt element.accept(visitor), take visitor dispatch to element
- dispatch 2： through visitor.visit(this), take element dispatch to visitor, To achieve the right element Some kind of operation
- Compared to direct call element.operation(), Such call logic can be called double dispatch

4.2 UML chart

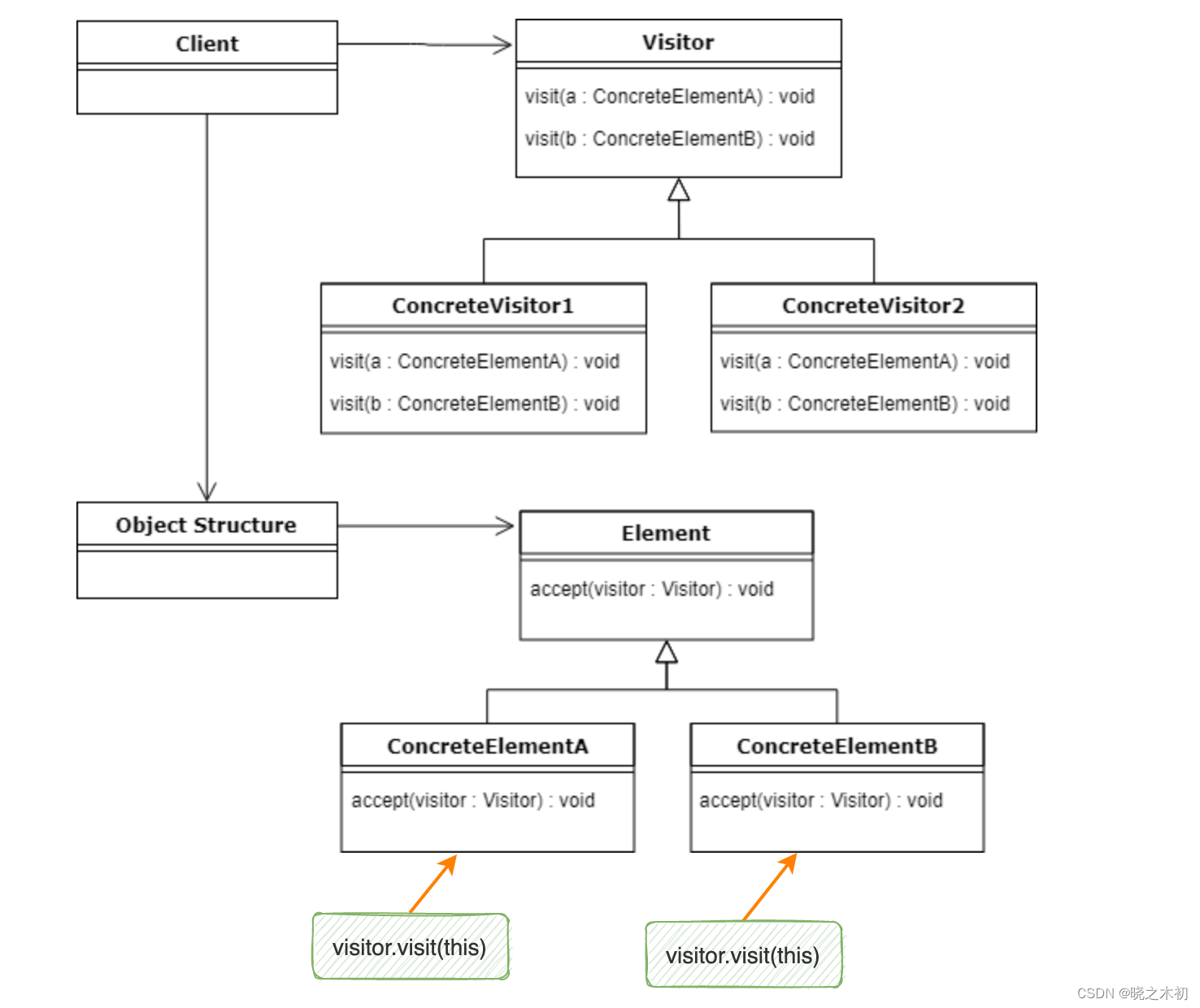

visitor Mode UML The graph is as follows ：
Client：client yes visitor Consumers of classes in the pattern , It will be responsible for visitor Object injection into composite objects （Object Structure） in
Object Structure： Traverse the contained Element object , By calling Element Object's accept() Method , take visitor Objects act on each Element
- Their own implementation of the marinated meat shop cashier program code , It does not clearly reflect the right Element Traversal of objects
- About visitor In the sample code of the pattern , This is very obvious
```
public void accept(Visitor v) {

    for (Element e : this.elements) {

        e.accept(v);
    }
}
```
Visitor： Interface or abstract class , For each of the compound objects Element Defines the corresponding visit(element) Method
ConcreteVisitor : For different types of visitor, Must be realized Visitor Medium visit() Method , stay visit() Method is defined for Element Object operation logic
Element： Interface or abstract class , There is an acceptance visitor Of accept(visitor) Method , yes visitor visit Element The entrance to the object
ConcreteElement： Concrete Element, Must be realized Element Medium accept() Method , adopt this keyword （visitor.visit(this)） Pass yourself to visitor Of visit() Method , So as to achieve double dispatch

4.3 Advantages and disadvantages

4.3.1 advantage

Combine the operation logic with the operated object （Element） Separate , So that the new operation does not need to modify the existing Element, accord with Opening and closing principle
Yes Element When introducing a new operation , Just add the corresponding Visitor class , It has good expansibility

4.3.2 shortcoming

When adding Element when , Code maintenance becomes difficult , It also violates the opening and closing principle
- Modify the existing Visitor class , To add new Element Of visit() Method
- If there are many Visitor class , This will be a very heavy work
Visitor Direct access Element, bring Element The relevant business logic is exposed to all visitor, Contrary to The Demeter principle
In order to achieve different Element Of Differential treatment , Direct access to specific classes , Not interfaces or abstract classes , A violation of the The principle of Dependence Inversion
