One 、 Data binding

Data binding in iVX Means that the property value of a component is bound to other components , For example, in the following example , Click on this text , You will see a chain button in its property panel ：

This chain indicates that the current corresponding attribute value can be bound with other values .

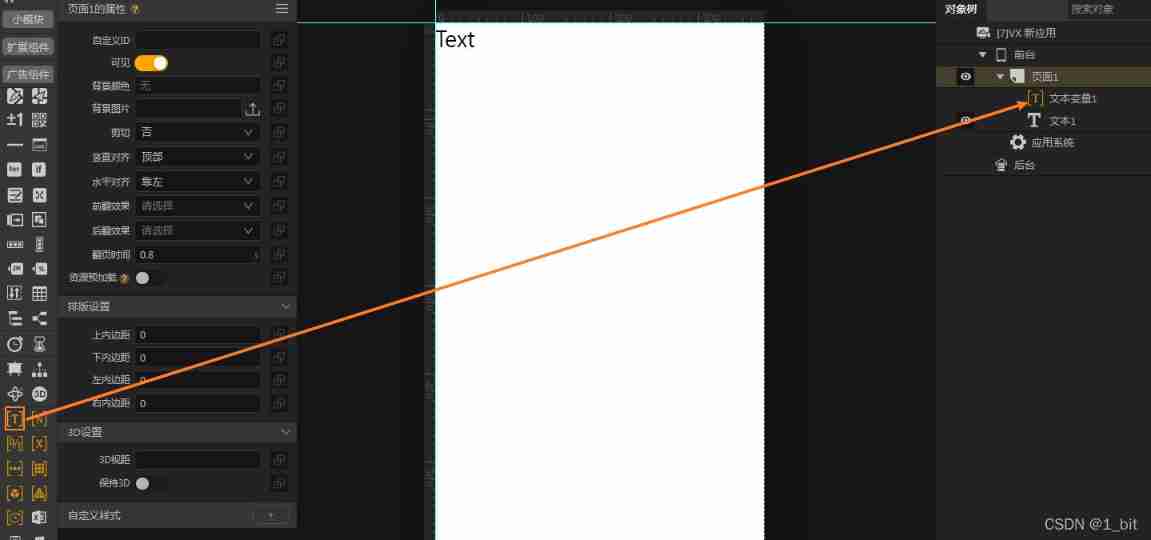

First , We can click on the text variable component , Create a variable to store text ：

next , Click on the text variable , You can set the value of the current text variable in its properties , Of course, this text variable can also be bound to other values ：

next , Let's click on the text , Click its data binding button ：

We found that , There is an arrow in front of the value , The arrow can select the value of a component from the object tree ：

After selecting a value , We can click the preview to find that the value of the text is automatically switched to the value of the text variable ：

Two 、 Relative positioning

In the demonstration just now , The items we use are Relative positioning application , We can find , In absolute positioning, the color of the left component bar is blue , In the application of relative positioning, the color of our component bar is white , This is a visual highlight of different projects IDE Interface differences .

Relative positioning is based on the relative position of elements , We add components in relative positioning without drawing in the interface , Just select a component in the object tree （ page 、 The ranks of ）, Then select the components to be added , Then you can directly click the component to be added to add .

Next we need to make a PC End-to-end adaptable website , At this time, you need to change the page size in the screen size area above the object tree ：

2.1 The ranks of

next , Before making an adaptive website , We need to understand the concepts of rows and columns , In a website , Elements are either arranged vertically , Or it's arranged horizontally , The elements in the red box shown in the following picture are rows , Blue is vertical ：

stay iVX The position layout of corresponding content elements can be carried out through rows and columns . Let's add a line to the project , Then click on the line to add some components inside it , Such as text component , The horizontal text will be found automatically , And when the text is larger than one line , The text will wrap automatically ：

If you add content to the column , Then the elements in this column will be displayed vertically ：

And here we need to pay attention to , Rows and columns are containers , They can nest with each other , be ： A row can contain multiple rows , Multiple columns can be included in , And rows and columns can be included in each other .

3、 ... and 、 Simple site production

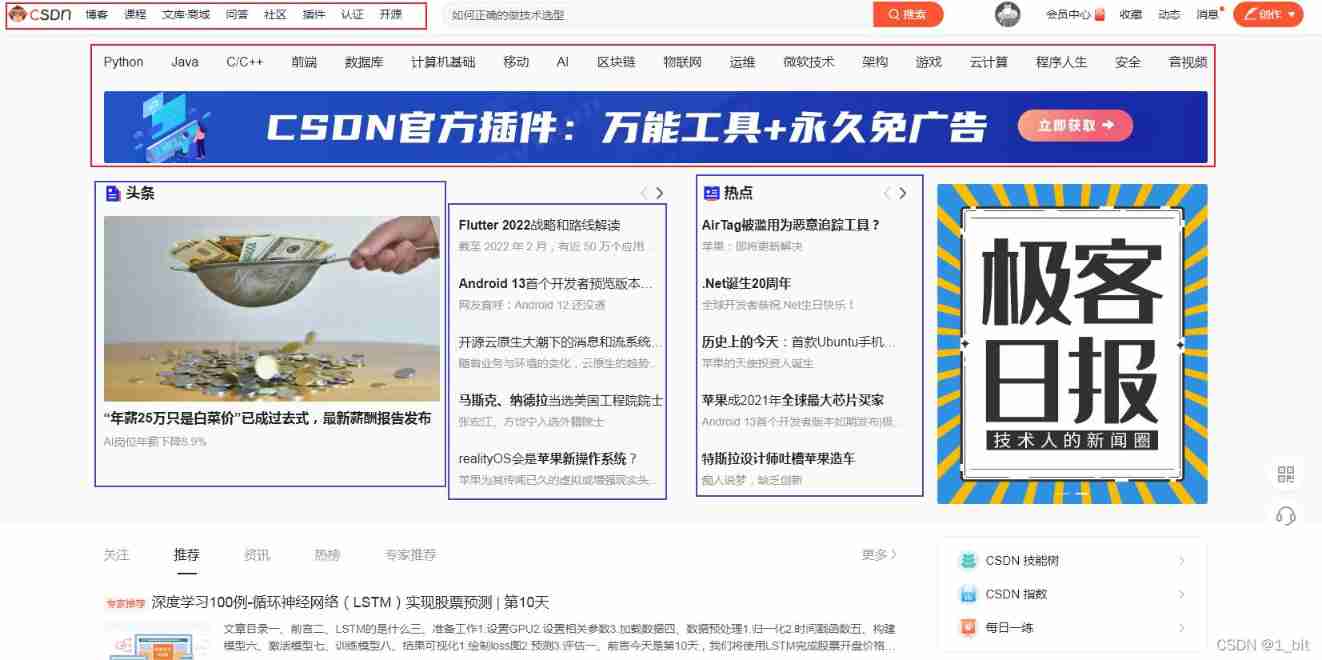

Now use iVX Imitation CSDN home page , And make its home page adaptive to the screen size .

First, let's add a line to the page , And set the height of the row to package ：

The package is expressed as the height of the element in the current row , Then how high is the row , If there is no element , Then the line cannot be presented visually .

Then set the background color in the row to transparent , Set the horizontal alignment of rows to center ：

Then I'm good at 1 Add a line to , Set the width to 80%,80% Indicates that the current row occupies the width of the parent container 80%：

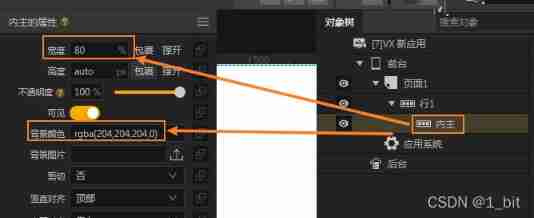

Also set the height of this row to package , And set its background color to transparent （ I rename the line here to “ Inner master ” Easy to identify ）：

Then create a row in the inner main row , Name it the title , And set the height to package 、 The background color is transparent , This line will be used as the production of the title ：

next , Add a text to the title , And set its text content to “ home page ”：

We can find that the text is automatically a distance to the left , This is because the width of the parent container row is only 80%, The outermost row is horizontally centered , Naturally, the rows inside will change in position with the parent container . We found this text too close to the top in this line , At this point, we only need to set the inner and outer margins of the title line ; The outer margin can be divided into upper and outer margins 、 The lower outer margin 、 Left outer margin 、 Right outer margin , These outer margins represent the distance between the current component and the element in the corresponding direction , Set to 10 Indicates the distance from the direction element 10 A unit of ; The outer margin is easy to cause the display disorder of the layout , Let's use the inner margin to realize the distance between the text and the top , Just click on the title line , Set the upper and inner margins of the title line , Then this line will have a transparent thickness , Then the text is naturally at a distance from the top ：

Because the font is too large, it is not very beautiful , After setting the font size, the display results are as follows ：

Then copy this text in this line , And paste it in the title line ：

At this point, the two texts will be next to each other , In order to leave a certain gap , Let's set the left margin of the blog text to 6：

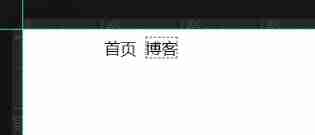

At this point, the page will be more beautiful ：

Then copy multiple text into the title line and change the text content , You will see the following effect ：

Then let's create a line named advertising , And add a picture component inside it , To upload pictures ：

We found that this picture is beyond the screen area , This is because the picture has no properties set , We need to set the property width of this picture to 100%, Then it will temporarily wrap the maximum width of its parent container ：

After setting up, the page will look much better ：

Let's go on to create 1 The first row is named content , And create... In this content line 3 Columns , And the background colors of these rows and columns are set to transparent , Set the height of the package to , Inside 3 Set the width of each content column to 33%, send 3 A column can occupy a row ：

At this point, I created multiple text in the page ：

Displayed on the page as follows ：

The specific beauty is not beautiful. There are no requirements here , We can see that these texts wrap automatically , Is there any way to prevent them from automatic line feed ？ The answer is yes , You also need to close the line feed in the text attribute ：

However, when viewing the content after closing, it is found that the text content exceeds the maximum width ：

At this point, you only need to give the text a width of 100% that will do ：

After setting, the excess content will be automatically omitted ：

Four 、for Loop components

Through the content arrangement just now , We find that copying text directly is too cumbersome. Is there any function that can quickly complete the display of content ？

We can use for Recycle container , But in the use of for Before recycling containers, we have to learn a variable component —— Array component .

4.1 Array component

Click on the page , Create... In the page 3 An array container , And rename ：

Array containers can add multiple values , You can create many types of content in it ：

We add multiple values for each content array ：

4.2 for Loop generated content

Next, just use for The loop component can generate multiple contents .

Each content column only needs to leave one text at this time , Delete other text ：

next , Add a... To these columns for Loop components , And put the text in for Within the cycle assembly ：

Then click on any for Loop components , You can see for There is a data source in the loop component properties , Click on the arrow , Select corresponding The value of the array As its data source ：

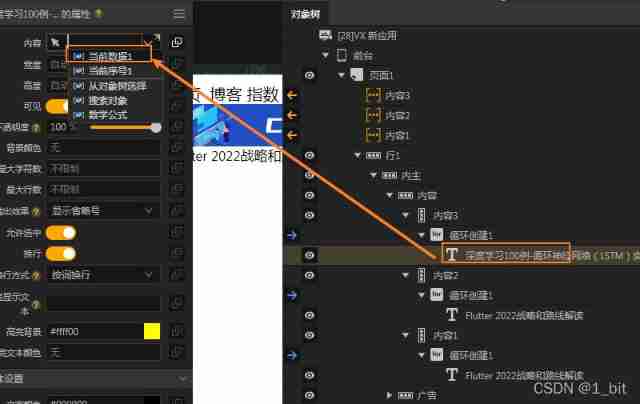

In turn 3 individual for Loop creation for operation , Then click the data binding button in the text ：

At this time, it is found that there is a current data value in the binding values of these texts , This value refers to the value of automatically traversing the array elements when the loop is created , The loop will start with the first value of the array , Keep repeating , If the value of the text is set to the current value , Then the loop creation will automatically create a text and bind the corresponding value to the text , At this time, all contents will be displayed in text .

After setting the text data as the current data , After preview, the text value appears automatically ：

5、 ... and 、 Adaptive website production

Then proceed to the last step , Add adaptive features to this page .

We first determine which area of the page needs to be adaptive , We can learn that , Namely 3 A content column , When the page changes to a small screen, you only need to change the width of its parent container to 100% Adaptive control can be completed .

It's easy to implement , Let's choose... At the same time 3 An adaptive column , Find the environment width in the properties ：

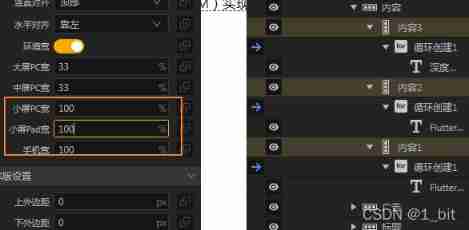

Set different widths under different screens , For example, set the small screen PC Wide for 100%, It means that changing the column on the small screen will directly occupy 100% Size, width , I set up here at the same time 3 A screen width that needs to be adaptive ：

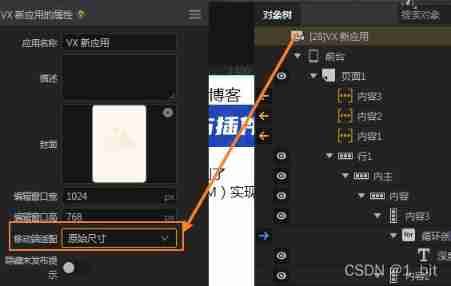

Finally, if you want the mobile phone screen, you can also realize this width adaptation , You also need to set the mobile end adaptation to the original size under the root node of the object tree ：

Finally preview , Drag the browser size to see different changes in the screen
