3、 Midway interface security certification

Before reading this article , You need to read the pre content in advance ：

One 、Midway Additions and deletions
Two 、Midway Add, delete, modify and check the packaging and tool classes
3、 ... and 、Midway Interface security authentication
Four 、Midway Integrate Swagger And support JWT bearer
5、 ... and 、Midway Use of environment variables in

Sample source code
DEMO LIVE

A lot of times , The back-end interface can only be accessed after login , Even some interfaces need to have corresponding permissions to access .
Realize here bearer Verification mode （bearerFormat by JWT）.

install JWT Components

>npm i @midwayjs/[email protected] --save
>npm i @types/jsonwebtoken --save-dev

After the installation package.json The following configurations will appear in the file

{

  "dependencies": {

    "@midwayjs/jwt": "^3.3.11"
  },
  "devDependencies": {

    "@types/jsonwebtoken": "^8.5.8"
  }
}

add to JWT To configure

• modify src/config/config.default.ts, Add the following ;

// src/config/config.default.ts
jwt: {

  secret: 'setscrew',
  expiresIn: 60 * 60 * 24,
}

• register JWT Components ;

// src/configuration.ts
import * as jwt from '@midwayjs/jwt';

@Configuration({

  imports: [
    jwt,
    //...
  ],
})
export class ContainerLifeCycle {

    //...
}

About JWT Detailed use documents of , see ：http://www.midwayjs.org/docs/extensions/jwt

install Redis Components

>npm i @midwayjs/[email protected] --save
>npm i @types/ioredis --save-dev

After the installation package.json The following configurations will appear in the file

{

  "dependencies": {

    "@midwayjs/redis": "^3.0.0"
  },
  "devDependencies": {

    "@types/ioredis": "^4.28.7"
  }
}

register Redis Components

// src/configuration.ts
import * as redis from '@midwayjs/redis';

@Configuration({

  imports: [
    redis,
    // ...
  ],
})
export class ContainerLifeCycle {

    // ...
}

Add the configuration

modify src/config/config.default.ts, Add the following ：

add to Redis To configure

// src/config/config.default.ts
redis: {

  client: {

    host: 127.0.0.1,
    port: 6379,
    db: 0,
  },
}

About Redis Detailed use documents of , see ：http://www.midwayjs.org/docs/extensions/redis

Add security interception configuration

// src/config/config.default.ts
app: {

  security: {

    prefix: '/api',         #  Specified /api The initial interface address needs to be intercepted
    ignore: ['/api/login'], #  Specify the interface address , No interception required
  },
}

Add interface security interception middleware

Add constant definition

// src/common/Constant.ts
export class Constant {

  //  When logging in to verify , Cache user login status KEY The prefix of
  static TOKEM = 'TOKEN';
}

Add user access context class

// src/common/UserContext.ts
/** *  Store the status data of the access context after login , There will also be redis In cache  */
export class UserContext {

  userId: number;
  username: string;
  phoneNum: string;
  constructor(userId: number, username: string, phoneNum: string) {

    this.userId = userId;
    this.username = username;
    this.phoneNum = phoneNum;
  }
}

Add or edit src/interface.ts, take UserContext Sign up to ApplecationContext in

// src/interface.ts
import '@midwayjs/core';
import {
     UserContext } from './common/UserContext';

declare module '@midwayjs/core' {

  interface Context {

    userContext: UserContext;
  }
}

New Middleware src/middleware/security.middleware.ts

// src/middleware/security.middleware.ts
import {
     Config, Inject, Middleware } from '@midwayjs/decorator';
import {
     Context, NextFunction } from '@midwayjs/koa';
import {
     httpError } from '@midwayjs/core';
import {
     JwtService } from '@midwayjs/jwt';
import {
     UserContext } from '../common/UserContext';
import {
     RedisService } from '@midwayjs/redis';
import {
     Constant } from '../common/Constant';

/** *  Security verification  */
@Middleware()
export class SecurityMiddleware {


  @Inject()
  jwtUtil: JwtService;

  @Inject()
  cacheUtil: RedisService;

  @Config('app.security')
  securityConfig;

  resolve() {

    return async (ctx: Context, next: NextFunction) => {

      if (!ctx.headers['authorization']) {

        throw new httpError.UnauthorizedError(' Lack of credentials ');
      }
      const parts = ctx.get('authorization').trim().split(' ');
      if (parts.length !== 2) {

        throw new httpError.UnauthorizedError(' Invalid credentials ');
      }
      const [scheme, token] = parts;
      if (!/^Bearer$/i.test(scheme)) {

        throw new httpError.UnauthorizedError(' The lack of Bearer');
      }
      //  verification token, The expiration will throw an exception
      const jwt = await this.jwtUtil.verify(token, {
     complete: true });
      // jwt Stored in the user Information
      const payload = jwt['payload'];
      const key = Constant.TOKEM + ':' + payload.userId + ':' + token;
      const ucStr = await this.cacheUtil.get(key);
      //  Stored in the server-side cache user Information
      const uc: UserContext = JSON.parse(ucStr);
      if (payload.username !== uc.username) {

        throw new httpError.UnauthorizedError(' Invalid credentials ');
      }
      //  Stored in the access context
      ctx.userContext = uc;
      return next();
    };
  }

  public match(ctx: Context): boolean {

    const {
     path } = ctx;
    const {
     prefix, ignore } = this.securityConfig;
    const exist = ignore.find((item) => {

      return item.match(path);
    });
    return path.indexOf(prefix) === 0 && !exist;
  }

  public static getName(): string {

    return 'SECURITY';
  }

}

• @Config('app.security') Decoration , Specify load profile src/config/config.**.ts The corresponding configuration information in ;
• Use JwtService Conduct JWT Code check ;

jwt token Encode the user information in token in , After decoding, the corresponding user data can be obtained , Usually , No need to store in redis in ;
But one drawback is , You can't artificially control the distribution token invalid . therefore , Sometimes people use user information in the cache ;
It's used here JWT+Redis The way , To demonstrate two approaches ;

Register middleware

// src/configuration.ts
this.app.useMiddleware([SecurityMiddleware, FormatMiddleware, ReportMiddleware]);

Add login interface

• add to DTO;

// src/api/dto/CommonDTO.ts
export class LoginDTO {

  username: string;
  password: string;
}

• add to VO;

// src/api/vo/CommonVO.ts
export class LoginVO {

  accessToken: string;
  expiresIn: number;
}

• modify src/service/user.service.ts, Add find user interface by user name ;

import {
     Provide } from '@midwayjs/decorator';
import {
     User } from '../eneity/user';
import {
     InjectEntityModel } from '@midwayjs/orm';
import {
     Repository } from 'typeorm';
import {
     BaseService } from '../common/BaseService';

@Provide()
export class UserService extends BaseService<User> {


  @InjectEntityModel(User)
  model: Repository<User>;

  getModel(): Repository<User> {

    return this.model;
  }

  async findByUsername(username: string): Promise<User> {

    return this.model.findOne({
     where: {
     username } });
  }

}

• add to Controllersrc/controller/common.controller.ts;

// src/controller/common.controller.ts
import {
     Body, Config, Controller, Inject, Post } from '@midwayjs/decorator';
import {
     Context } from '@midwayjs/koa';
import {
     UserService } from '../service/user.service';
import {
     RedisService } from '@midwayjs/redis';
import {
     LoginDTO } from '../api/dto/CommonDTO';
import {
     LoginVO } from '../api/vo/CommonVO';
import {
     SnowflakeIdGenerate } from '../utils/Snowflake';
import {
     JwtService } from '@midwayjs/jwt';
import {
     Assert } from '../common/Assert';
import {
     ErrorCode } from '../common/ErrorCode';
import {
     UserContext } from '../common/UserContext';
import {
     Constant } from '../common/Constant';
import {
     ILogger } from '@midwayjs/core';
import {
     decrypt } from '../utils/PasswordEncoder';
import {
     Validate } from '@midwayjs/validate';
import {
     ApiResponse, ApiTags } from '@midwayjs/swagger';

@ApiTags(['common'])
@Controller('/api')
export class CommonController {


  @Inject()
  logger: ILogger;

  @Inject()
  ctx: Context;

  @Inject()
  userService: UserService;

  @Inject()
  cacheUtil: RedisService;

  @Inject()
  jwtUtil: JwtService;

  @Inject()
  idGenerate: SnowflakeIdGenerate;

  @Config('jwt')
  jwtConfig;

  @ApiResponse({
     type: LoginVO })
  @Validate()
  @Post('/login', {
     description: ' land ' })
  async login(@Body() body: LoginDTO): Promise<LoginVO> {

    const user = await this.userService.findByUsername(body.username);
    Assert.notNull(user, ErrorCode.UN_ERROR, ' Wrong username or password ');
    const flag = decrypt(body.password, user.password);
    Assert.isTrue(flag, ErrorCode.UN_ERROR, ' Wrong username or password ');
    const uc: UserContext = new UserContext(user.id, user.username, user.phoneNum);
    const at = await this.jwtUtil.sign({
     ...uc });
    const key = Constant.TOKEM + ':' + user.id + ':' + at;
    const expiresIn = this.jwtConfig.expiresIn;
    this.cacheUtil.set(key, JSON.stringify(uc), 'EX', expiresIn);
    const vo = new LoginVO();
    vo.accessToken = at;
    vo.expiresIn = expiresIn;
    return vo;
  }

}

Use Postman verification

• Call interface （ Voucher is not set ）;

• Use the login interface to get token;

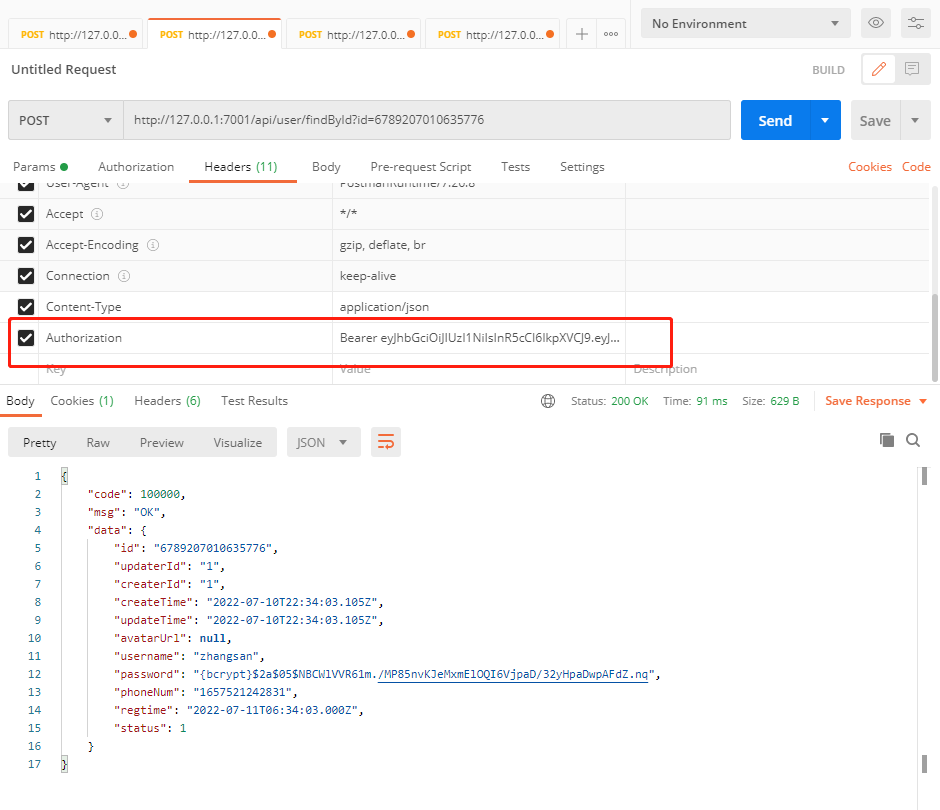

• Call interface （ Using credentials ）;


copyright , Reprint please indicate the source [ Code track success ]
