Do scientific research projects , Especially with linear optimization , Items related to principal component analysis , It is necessary to use matrix calculation and related optimization tools . Many students will use matlab Complete the project requirements , This is certainly a good choice . however , Projects with certain requirements for the platform , Especially those based on C++ Engineering projects developed , Use matlab It will bring some inconvenience . We hope to have a convenient matrix open source tool , Can be integrated into a project , To simplify the difficulty of program deployment and use . Here we have to mention the famous matrix open source library ,Eigen. Today's blog , Let me introduce to you Eigen Basic knowledge of deployment and use , It's convenient for novice friends to quickly master based on Eigen The matrix calculation and optimization function .

---

1. To configure

First, we download it on the official website Eigen The latest version (V3.4)

3.4.0 · libeigen / eigen · GitLab

Here we use VS2022 As a development platform . The configuration is very simple , As long as VC++ The directory include add to Eigen The path can be .

  Here is a test code ：

#include <iostream>
#include <Eigen/Dense>
using namespace Eigen;
using namespace std;
typedef Eigen::Matrix<int, 3, 3> Matrix3i;

int main()
{
    Matrix3i m1;
    m1 << 1, 2, 3, 4, 5, 6, 7, 8, 9;
    cout << "m1 = \n" << m1 << endl;
    Matrix3i m2;
    m2 << 2, 0, 0, 0, 2, 0, 0, 0, 2;
    cout << "m2 = \n" << m2 << endl;
    cout << "m1 * m2 = \n" << (m1 * m2) << endl;
    return 0;
}

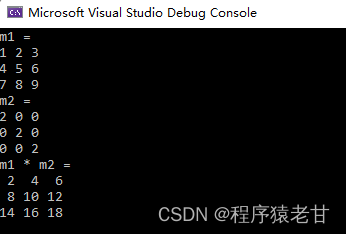

Print the results ：

---

2. initialization

Finish in the configuration Eigen after , Next we want to know how to initialize vectors and matrices .Eigen Many initialization methods are supported ,  Reference blog Eigen Summary of library usage ,Eigen Library usage ,Eigen initialization , We list several for reference ：

2.1 Array class

Direct assignment

Eigen::Array<int, 3, 1> arr_1(1, 2, 3);

Stream input assignment

Eigen::Array<int, 3, 3> arr_2;
    arr_2 <<
        1, 2, 3,
        4, 5, 6,
        7, 8, 9;

Pointer assignment

std::vector<int> vec_int{ 1,2,3,4,5,6,7,8,9 };
    Eigen::Array<int, 3, 3> arr_3(vec_int.data());

2.2 Vector class

Vector The assignment method of is the same as Array Basically the same .Vector Can be seen as a special Matrix.

Eigen::Vector3f v1 = Eigen::Vector3f::Zero();

Eigen::Vector3d v2(1.0, 2.0, 3.0);

Eigen::VectorXf v3(20); // Dimension for 20 Vector , uninitialized .
v3 << 1.0 , 2.0 , 3.0;

2.3 Matrix class

And Array The initialization method of is basically the same

Eigen::Matrix<double,2,2> m;
m << 1,2,3,4;

Eigen::MatrixXf m1(2,3);
m1 << 1,2,3,
	  4,5,6;

Eigen::Matrix3d m2 = Eigen::Matrix3d::Identity();//Eigen::Matrix3d::Zero();

Eigen::Matrix3d m3 = Eigen::Matrix3d::Random(); // Random initialization

2.4 Vector assignment

sometimes , We will store the data in C++ Data structure of vector in . here , We hope that vector The data is converted into a matrix , And make corresponding calculation . In addition to using pointers , We can also directly vector The data is copied into the matrix .

std::vector<std::vector<double>> LX;
MatrixXd m_Lx(LX.size(), 3);
for (int i = 0; i < LX.size(); i++) {
	m_Lx(i, 0) = LX[i][0];
	m_Lx(i, 1) = LX[i][1];
	m_Lx(i, 2) = LX[i][2];
}

hypothesis LX It is a point cloud data , Each point is a three-dimensional vector . Corresponding to the established MatrixXd m_LX I.e LX Have the same dimension , the C++ Of vector Convert to eigen Of matrix.

2.5 Advanced initialization

Reference resources matlab,eigen It also provides some advanced data initialization methods with rich functions , Including independent assignment of row and column vectors , Block assignment, etc . Here are some sample code , For reference .

Column vector assignment

RowVectorXd rv1(1,2,3);

Block assignment

Yes m4 Calculate , And assign values to m5, Output m5：

MatrixXf m4(2,2);
m4 << 1,2,3,4;
MatrixXf m5(4,4);
m5 << m4, m4 / 10, m4 * 10, m4;// take m5 It is divided into four parts for assignment

More accurate assignment , First enter the first line : 1, 2, 3; And then according to block Information about , In the second row of the matrix , Insert a... In the first column 2*2 The submatrix of ,4, 5, 6, 7; Last , In the third column , The last two positions tail(2), Insert 6, 9. You can see , The above operation realizes the accurate assignment of a matrix block .

Matrix3f m;
m.row(0) << 1,2,3;
m.block(1,0,2,2) << 4,5,6,7;
m.col(2).tail(2) << 6,9;

---

3. Matrix computing

Based on the assigned matrix , We hope to pass Eigen Realize the calculation of the matrix . Here we divide the matrix calculation into three parts , Including basic matrix calculation , Linear solution , Eigenvalue calculation and singular value decomposition .

3.1 Matrix basic calculation

The basic calculation of matrix is relatively simple , Including plus , reduce , Cross riding , Point multiplication , Transposition , Inverse, etc .

MatrixXf m = MatrixXf::Random(3,3);
MatrixXf m2 = MatrixXf::Random(3,3);
m.row(i);// Matrix No i That's ok
m.col(j);// Matrix No j Column
m.transpose();// Transposition
m.conjugate();// conjugate
m.adjoint(); // Conjugate transpose
m.minCoeff();// The smallest of all elements
m.maxCoeff();// The largest of all elements
m.trace();// trace , Sum of diagonal elements
m.sum(); // Sum all the elements
m.prod(); // Quadrature of all elements
m.mean(); // Average all elements
m.dot(m2); // Point multiplication
m.cross(m2);// Cross riding

3.2 Linear solution

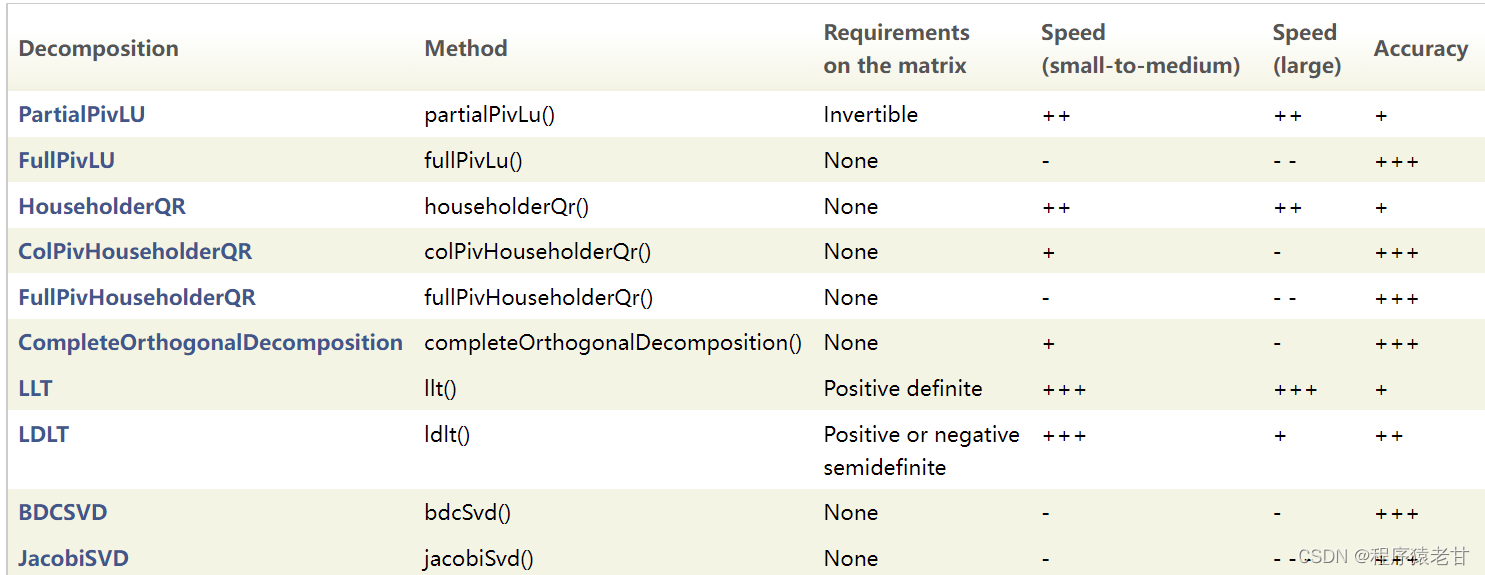

solve Ax=b,eigen Several tools are provided , Include ：

  Generally, people will choose LLT and LDLT

 Eigen::Matrix2f A, b;
 A << 2, -1, -1, 3;
 b << 1, 2, 3, 1;
 std::cout << "Here is the matrix A:\n" << A << std::endl;
 std::cout << "Here is the right hand side b:\n" << b << std::endl;
 Eigen::Matrix2f x = A.ldlt().solve(b);//or A.llt().solve(B);
 std::cout << "The solution is:\n" << x << std::endl;

3.3 Eigenvalue calculation

Eigenvalue and corresponding eigenvector calculation , It plays an important role in matrix analysis . be based on Eigen The eigenvalues of are calculated as follows ：

Eigen::MatrixXd m = Eigen::MatrixXd::Random(3,3);
Eigen::MatrixXd mTm = m.transpose() * m;// Constitute the covariance matrix of the center

// Calculation
Eigen::SelfAdjointEigenSolver<Eigen::MatrixXd> eigen_solver(mTm);

// Extract eigenvalues and eigenvectors
Eigen::VectorXd eigenvalues = eigen_solver.eigenvalues();
Eigen::MatrixXd eigenvectors = eigen_solver.eigenvectors();

Eigen::VectorXd v0 = eigenvectors.col(0);//  Because the eigenvalues are generally arranged from small to large , therefore col(0) Is the eigenvector corresponding to the minimum eigenvalue

3.4 Singular value decomposition

Reference blog ： Introduction to matrix singular value decomposition

Singular value decomposition (singular value decomposition, SVD)： Decompose a matrix into singular vectors (singular vector) And singular value (singular value). Through singular value decomposition , We will get some information of the same type as feature decomposition . However , Singular value decomposition has a wider range of applications . Every real matrix has a singular value decomposition , But not all of them have eigendecomposition . for example , The matrix of a non square matrix has no characteristic decomposition , We can only use singular value decomposition .

The matrix A Decomposing into the product of three matrices ：A=UDV^T.

Each of these matrices has a special structure after being defined . matrix U and V Are defined as orthogonal matrices , And matrix D Is defined as a diagonal matrix . Be careful , matrix D It doesn't have to be a square . Diagonal matrix D Elements on the diagonal are called matrices A The singular value of (singular value). matrix U The column vector of is called the left singular vector (left singular vector), matrix V The column vector of is called the right singular vector (right singular vector).A The left singular vector of is AA^T Eigenvector of .A The right singular vector of is A^TA Eigenvector of .A The nonzero singular value of is A^TA Square root of eigenvalue , It's also AA^T Square root of eigenvalue .

JacobiSVD<MatrixXd> svd(J, ComputeThinU | ComputeThinV);
U = svd.matrixU();
V = svd.matrixV();
D_t = svd.singularValues();

---

summary

Based on C++ Matrix operation library ,Eigen Simple deployment , High execution efficiency , It integrates matrix operation functions with rich functions . master Eigen, It can significantly improve the efficiency of solving matrix optimization problems .
