In addition to statistical charts ,seaborn You can also draw a heat map , And support the drawing of cluster tree , There are two functions for plotting heat maps

1. heatmap, Draw a normal heat map

2. clustermap, Draw the heat map with cluster number

1. heatmap

comparison matplotlib Of imshow function , This function provides a more concise interface , You can easily add text notes and other functions , The basic usage is as follows




       >>> import numpy as np


>>> data = np.random.rand(10, 10)


>>> sns.heatmap(data)


>>> plt.show()





       1.

       2.

       3.

       4.

The output is as follows

Use seaborn Draw a heat map _ Split line

stay imshow Some of the parameters in can also be used in this function , such as vmin, vmax,cmap Equal parameter . In addition to general parameters , This function has two features , The first is that you can easily add split lines , Make the picture more beautiful , Use linescolor and linewidth Parameter specifies the color and width of the split line , Usage is as follows




       >>> sns.heatmap(data, linewidth=1)


>>> plt.show()





       1.

       2.

The output is as follows

Use seaborn Draw a heat map _ Split line _02

The second feature is the addition of numeric annotations , Display the corresponding value on the cell , Usage is as follows




       >>> sns.heatmap(data, linewidth=1, annot=True)


>>> plt.show()





       1.

       2.

The output is as follows

Use seaborn Draw a heat map _ Data analysis _03

2. clustermap

clustermap Draw the heat map with cluster number , The basic usage is as follows




       >>> data = np.random.rand(10,5)


>>> df = pd.DataFrame(data)


>>> df.columns = ['sampleA', 'sampleB', 'sampleC', 'sampleD', 'sampleE']


>>> sns.clustermap(df)


>>> plt.show()





       1.

       2.

       3.

       4.

       5.

The output is as follows

Use seaborn Draw a heat map _ Split line _04

The clustering tree in the figure is through scipy The distance matrix and clustering algorithm provided in the module , adopt method and metrix Parameters can specify clustering algorithm and distance matrix algorithm respectively .

For visualization , The following parameters are commonly used 3 individual , first standard_scale, Standardize the data , For example, standardize by line , Usage is as follows




       >>> sns.clustermap(df, standard_scale=0)


>>> plt.show()





       1.

       2.

The output is as follows

Use seaborn Draw a heat map _ Split line _05

The second parameter is z_score, zscore It is also a means of data standardization , Calculated by row and column zscore Can be used as follows




       >>> sns.clustermap(df, z_score=0)


>>> plt.show()





       1.

       2.

The output is as follows

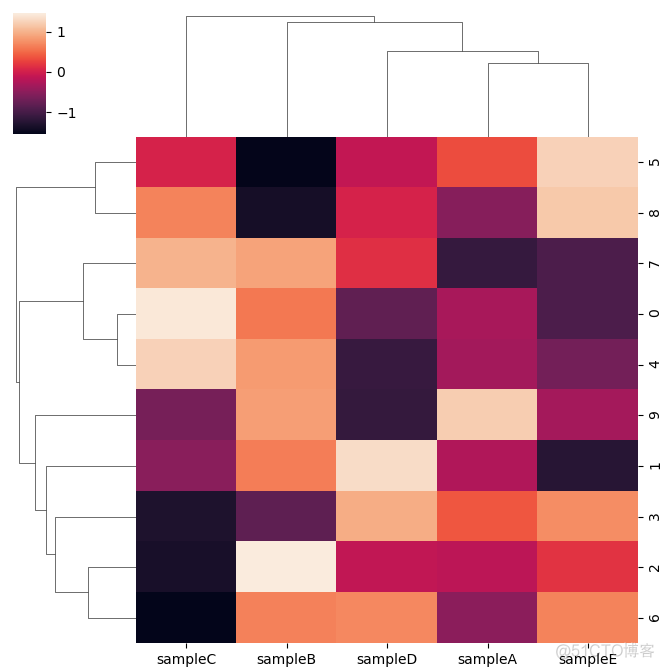

Use seaborn Draw a heat map _ clustering _06

The third parameter is zero row_color/col_color. Used to annotate row labels and column labels , Usage is as follows




       >>> sns.clustermap(df, col_colors=['r','g','b','b','b'])


>>> plt.show()





       1.

       2.

The output is as follows

Use seaborn Draw a heat map _ clustering _07

The above just introduces the basic usage and common parameters of the two functions , In fact, there are many specific parameters , You can use the on the official website API Documentation to learn the usage of each parameter in detail .
