In depth understanding of line-height and vertical-align

1. What is row height （line-height）？

line-height Used to set the minimum line height of text , It can be simply understood as the height occupied by one line of text . But the strict definition of row height is ： Two line text baseline （baseline） Distance between .

So what is a baseline （baseline） Well ？

• Baseline is the same as Lowercase letters x The bottom aligned line , Refer to the following figure for details .

Pay attention to distinguish between height and line-height The difference between ：

• height： The overall height of the element ;
• line-height： The height of a line of text in an element ;
• If you want the text to center vertically inside the element , Give Way line-height Equal to the element height that will do ;

2.vertical-align attribute

Refer to the official document for explanation ,vertical-align It will affect In line elements In a ** Row box （line boxes）** The vertical position in the . Simply speaking vertical-align You can set the alignment of inline elements on a line .

2.1. What is a line box （line boxes）?

Learn more about line boxes through these questions .

First think about , One div When the height is not set , Will there be height ？

• If div There's nothing in , There is no height ;
• If div There's something in , The content can hold up div Height ;

The content can hold up div What is the essence of height ？

• According to the explanation of line height above , Content has row height （line-height）, The essence is that the height of the line is raised div Height ;

Here is another question , Why can row height hold up div Height ？

• This is because there is a row box , And the line box has a feature , It wraps the inline elements of each row ;
• And the text is a line high , The row box must cover the whole row height , The height of multiple row boxes is added together to form div Height ;

If this div There are pictures in 、 written words 、inline-block And so on , How do they align ？

• The default is baseline alignment ;

2.2. Learn more about baseline alignment

Inline level element baseline alignment , The following situations may occur ：

（1） Situation 1 ： Only words .

• The line height of the whole text wrapped in the line box ;

（2） Situation two ： Existing words , And there are pictures .

• Align the bottom of the picture with the baseline of the text , That's why a few pixels are left at the bottom of the picture ;
• The row box wraps the entire row level element , Larger pictures will also be wrapped ;

（3） Situation three ： Existing words , And there are pictures , also inline-block.

• inline-block And the bottom of the picture are aligned with the baseline of the text ;
• The row box wraps the entire row level element , The height is determined by the higher one ;

（4） Situation four ： Existing words , And there are pictures , also inline-block, And give inline-block Set bottom margin .

• The row box will wrap the set bottom margin together ;

（5） Situation five ： Existing words , And there are pictures , also inline-block, And give inline-block Add text inside .

• At this time inline-block Not bottom aligned , Instead, use the baseline of the last line of text inside to align ;
• although inline-block The box moves down as a whole , But the box must be wrapped in , So the height of the row box naturally becomes larger ;

summary ：

• The line box must contain all the contents of the current line ;

• For the usual strange alignment , The principle is baseline （baseline） alignment ;

• vertical-align The default value of is baseline;



• Of different inline level elements baseline Where exactly ？

  • Textual baseline It's the letters x The bottom of ;
  • inline-block default baseline yes margin-bottom The bottom of （ If there is no bottom margin , It's the bottom of the box ）;
  • When inline-block When it contains text ,baseline Is the last line of text letters x Bottom ;
  • The image baseline It's the bottom ;

2.3.vertical-align The attribute value

• baseline： The default value is 、 Baseline alignment ;

• top： Align the top of the inner row box with the top of the row box ;



• middle： The center point of the inner level box and the lower case letters in the parent box x Line alignment of the center point of ;



• bottom： The bottom of the bar inner level box is aligned with the bottom of the line box ;



3. Realize the vertical centering of inline elements

3.1. Use vertical-align: middle

• Set the height of the parent element to 300px, And the child element's line-height It's also set to 300px.

  • Sample code ：

    .box {

      background-color: skyblue;
      height: 300px;
      line-height: 300px;
    }

    img {

      vertical-align: middle;
    }


    <div class="box">
      <img src="../img/eqq.webp" width="200" alt="">
      div The text content of the element xxxxxx
    </div>


  • Running results ： You can find the picture setting vertical-align: middle; after , Not vertically centered in the parent box , It is obvious that the distance from the upper edge is greater than that from the lower edge ;



  • Why is it that the upper part cannot be aligned vertically and centrally ？

    • The reason is that most words will sink , therefore x The center point of is not on the centerline of the height of the parent element , The position should be slightly lower , So it leads to the phenomenon that the picture is aligned to the bottom ;

  • How to solve the above problems ？

    • The reason is that the picture is set vertical-align: middle; after , Must be written in small letters with the text x Align the center point of , So set the text size to 0 that will do ;
    • No font size , The words will not sink naturally , And no more text can appear in the line box , Once there is text, it will be found x Align with center point ;



3.2. Use relative+transform

Use vertical-align: middle Setting the vertical center is obviously troublesome , Therefore, this attribute is generally not used to set the vertical center of the element . In general use relative+transform.

Sample code ：

.box {

  background-color: skyblue;
  height: 300px;
  font-size: 80px;
}

img {

  position: relative;
  top: 50%; /*  First move the height of the parent element down by half  */
  transform: translateY(-50%); /*  Move up half your height  */
}

<div class="box">
  <img src="../img/eqq.webp" width="200" alt="">
  div The text content of the element xxxxxx
</div>

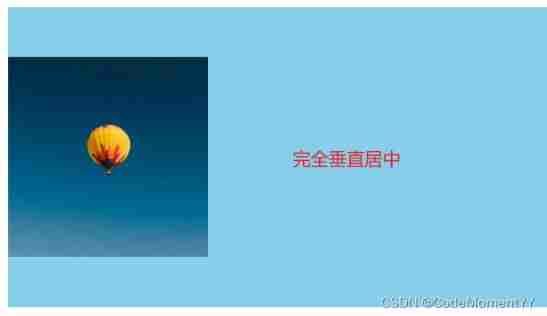

Running results ： Perfectly centered .
