clickhouse 21. X cluster four piece one copy deployment

2022-06-22 17:18:00 【51CTO】

label （ Test case space separation for air test ）：clickhouse series

One ： Introduction to system environment deployment

1.1： System initialization

 System ：
   centos7.9x64

  Host name :
   cat /etc/hosts

   -----

172.16.10.11    flyfishsrvs01
172.16.10.12    flyfishsrvs02
172.16.10.13    flyfishsrvs03
172.16.10.14    flyfishsrvs04
172.16.10.15    flyfishsrvs05
172.16.10.16    flyfishsrvs06
172.16.10.17    flyfishsrvs07

   ------
   The first four servers are deployed this time


      1.
      2.
      3.
      4.
      5.
      6.
      7.
      8.
      9.
      10.
      11.
      12.
      13.
      14.
      15.
      16.
      17.
      18.

1.2 System deployment jdk

 stay flyfishsrvs02,flyfishsrvs03,flyfishsrvs04  Deployment above

tar -zxvf jdk-8u301-linux-x64.tar.gz
mv jdk1.8.0_301/ /usr/local/jdk
vim /etc/profile
----

### jdk
export JAVA_HOME=/usr/local/jdk
export CLASSPATH=.:$JAVA_HOME/jre/lib:$JAVA_HOME/lib:$JAVA_HOME/lib/tools.jar
PATH=$PATH:$HOME/bin:$JAVA_HOME/bin
----

source /etc/profile

java -version


      1.
      2.
      3.
      4.
      5.
      6.
      7.
      8.
      9.
      10.
      11.
      12.
      13.
      14.
      15.
      16.

clickhouse 21.x The cluster is deployed in four pieces and one copy _clickhouse

clickhouse 21.x The cluster is deployed in four pieces and one copy _clickhouse_02

clickhouse 21.x The cluster is deployed in four pieces and one copy _clickhouse21.x Cluster deployment _03

1.3 To configure zookeeper colony

 stay flyfishsrvs02,flyfishsrvs03,flyfishsrvs04  Deployment above
tar -zxvf apache-zookeeper-3.7.0-bin.tar.gz
mv apache-zookeeper-3.7.0-bin /usr/local/zookeeper

mkdir -p /usr/local/zookeeper/data
mkdir -p /usr/local/zookeeper/log

cd /usr/local/zookeeper/data/

echo 1 > myid
----
cd /usr/local/zookeeper/conf

cp zoo_sample.cfg zoo.cfg

vim zoo.cfg

----
#  Heartbeat time
tickTime=2000
# follow Connect leader The initial connection time of , Express tickTime Multiple
initLimit=10
# syncLimit Configuration representation leader And follower Sending messages between , Length of request and reply time . If followe Cannot communicate with... Within the set time leader communicate , Then this follower Will be discarded ,tickTime Multiple
syncLimit=5
#  Client connection port
clientPort=2181
#  Node data storage directory , It needs to be created in advance , Be careful myid add to , Used to identify the server node
dataDir=/usr/local/zookeeper/data
dataLogDir=/usr/local/zookeeper/log
server.1=172.16.10.12:2888:3888
server.2=172.16.10.13:2888:3888
server.3=172.16.10.14:2888:3888
---
-----

scp -r zookeeper [email protected]:/usr/local/
scp -r zookeeper [email protected]:/usr/local/
 modify 172.16.10.13  node  myid
cd /usr/local/zookeeper/data/
echo 2 > myid
 modify 172.16.10.14  node  myid
cd /usr/local/zookeeper/data/
echo 3 > myid




      1.
      2.
      3.
      4.
      5.
      6.
      7.
      8.
      9.
      10.
      11.
      12.
      13.
      14.
      15.
      16.
      17.
      18.
      19.
      20.
      21.
      22.
      23.
      24.
      25.
      26.
      27.
      28.
      29.
      30.
      31.
      32.
      33.
      34.
      35.
      36.
      37.
      38.
      39.
      40.
      41.
      42.
      43.
      44.
      45.

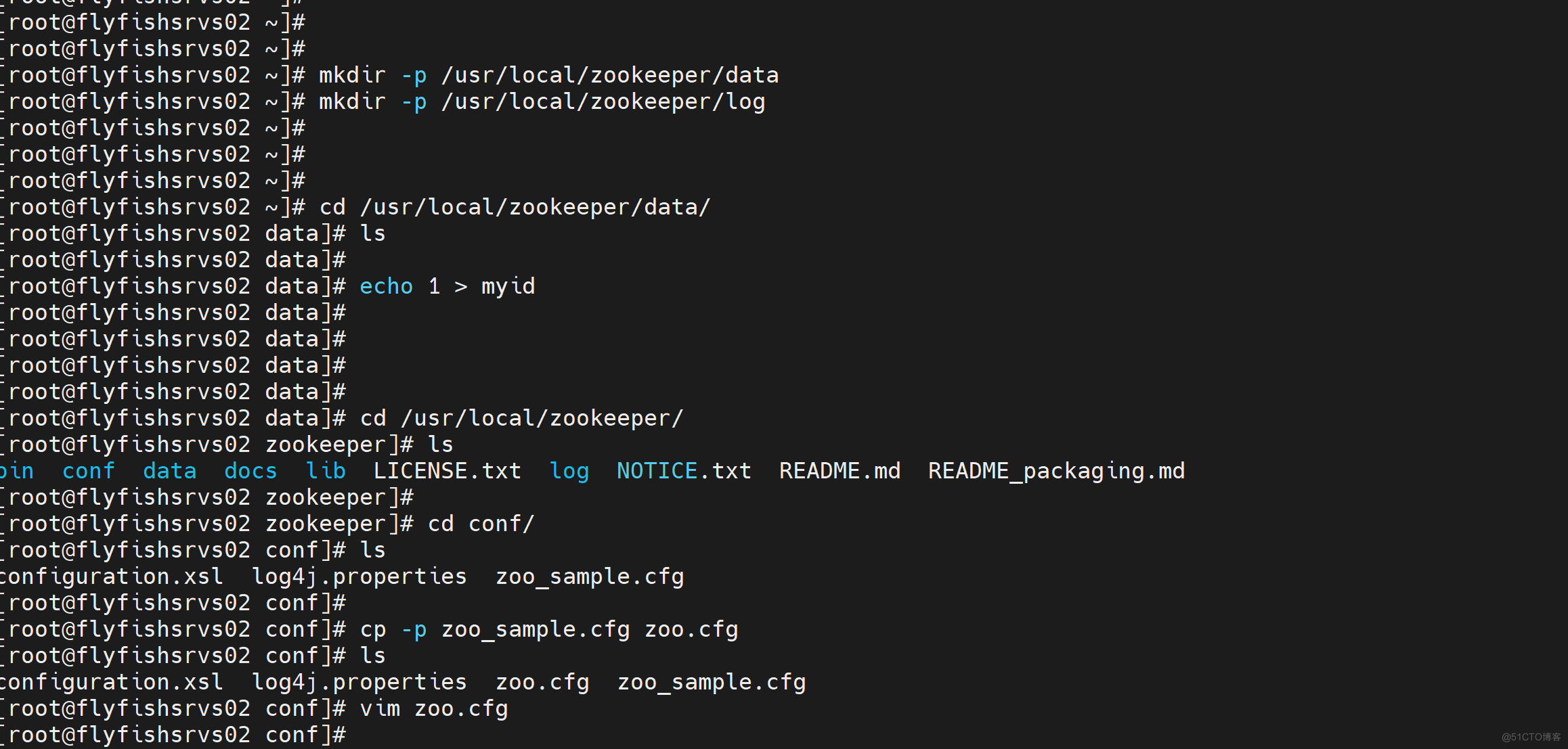

clickhouse 21.x The cluster is deployed in four pieces and one copy _clickhouse21.x_04

clickhouse 21.x The cluster is deployed in four pieces and one copy _clickhouse21.x Cluster deployment _06

Two ： Deploy clickhouse 21.x

2.1 install clickhouse 21.x

clickhouse 21.x The cluster is deployed in four pieces and one copy _clickhouse21.x Cluster deployment _09

 modify listen_host

vim +164 /etc/clickhouse-server/config.xml

----
<listen_host>::1</listen_host>
<listen_host>flyfishsrvs01</listen_host>  ###  Other nodes modify the host name
-----


      1.
      2.
      3.
      4.
      5.
      6.
      7.
      8.

clickhouse 21.x The cluster is deployed in four pieces and one copy _clickhouse_10

2.2 Configure the cluster file

 Configure the cluster connection file
cd /etc/clickhouse-server/config.d
vim metrika.xml
-----
<yandex>
    <remote_servers>
        <clickhouse_cluster_4shards_1replicas>
           <shard>
               <internal_replication>true</internal_replication>
                  <replica>
                     <host>flyfishsrvs01</host>
                     <port>9000</port>
                  </replica>
           </shard>
           <shard>
               <internal_replication>true</internal_replication>
                  <replica>
                     <host>flyfishsrvs02</host>
                     <port>9000</port>
                  </replica>
           </shard>
           <shard>
               <internal_replication>true</internal_replication>
                  <replica>
                     <host>flyfishsrvs03</host>
                     <port>9000</port>
                  </replica>
           </shard>
           <shard>
               <internal_replication>true</internal_replication>
                  <replica>
                     <host>flyfishsrvs04</host>
                     <port>9000</port>
                  </replica>
           </shard>
           </clickhouse_cluster_4shards_1replicas>
    </remote_servers>
    <zookeeper>
       <node index="1">
           <host>flyfishsrvs02</host>
           <port>2181</port>
        </node>
       <node index="2">
          <host>flyfishsrvs03</host>
          <port>2181</port>
       </node>
       <node index="3">
          <host>flyfishsrvs04</host>
          <port>2181</port>
       </node>
     </zookeeper>

     <macros>
        <shard>01</shard>
        <replica>flyfishsrvs01</replica>
     </macros>
     <networks>
         <ip>::/0</ip>
     </networks>
     <clickhouse_compression>
         <case>
            <min_part_size>10000000000</min_part_size>
            <min_part_size_ratio>0.01</min_part_size_ratio>
            <method>lz4</method>
         </case>
     </clickhouse_compression>
</yandex>

---------------
scp metrika.xml [email protected]:/etc/clickhouse-server/config.d/
scp metrika.xml [email protected]:/etc/clickhouse-server/config.d/
scp metrika.xml [email protected]:/etc/clickhouse-server/config.d/


      1.
      2.
      3.
      4.
      5.
      6.
      7.
      8.
      9.
      10.
      11.
      12.
      13.
      14.
      15.
      16.
      17.
      18.
      19.
      20.
      21.
      22.
      23.
      24.
      25.
      26.
      27.
      28.
      29.
      30.
      31.
      32.
      33.
      34.
      35.
      36.
      37.
      38.
      39.
      40.
      41.
      42.
      43.
      44.
      45.
      46.
      47.
      48.
      49.
      50.
      51.
      52.
      53.
      54.
      55.
      56.
      57.
      58.
      59.
      60.
      61.
      62.
      63.
      64.
      65.
      66.
      67.
      68.
      69.
      70.
      71.
      72.

clickhouse 21.x The cluster is deployed in four pieces and one copy _clickhouse_14

clickhouse 21.x The cluster is deployed in four pieces and one copy _clickhouse21.x Cluster deployment _15

2.3 Cluster startup and verification

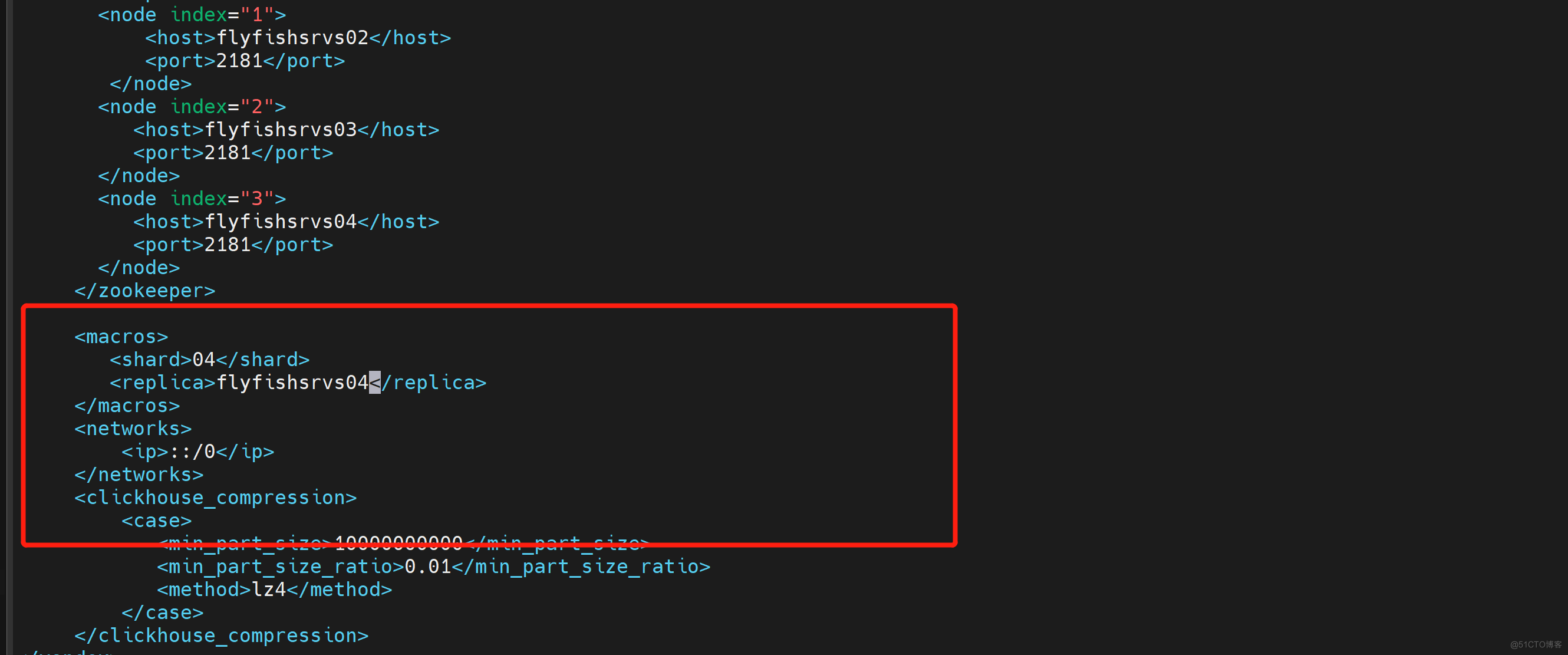

 Modify the replica hostname of the corresponding node
vim
#flyfishsrvs02 Node modification metrika.xml The macro variables in are as follows ：
<macros>
<shard>02</replica>
<replica>flyfishsrvs02</replica>
</macros>
#flyfishsrvs03 Node modification metrika.xml The macro variables in are as follows :
<macros>
<shard>03</replica>
<replica>flyfishsrvs03</replica>
</macros>

#flyfishsrvs04 Node modification metrika.xml The macro variables in are as follows :
<macros>
<shard>04</replica>
<replica>flyfishsrvs04</replica>
</macros>




      1.
      2.
      3.
      4.
      5.
      6.
      7.
      8.
      9.
      10.
      11.
      12.
      13.
      14.
      15.
      16.
      17.
      18.
      19.
      20.

clickhouse 21.x The cluster is deployed in four pieces and one copy _clickhouse_17

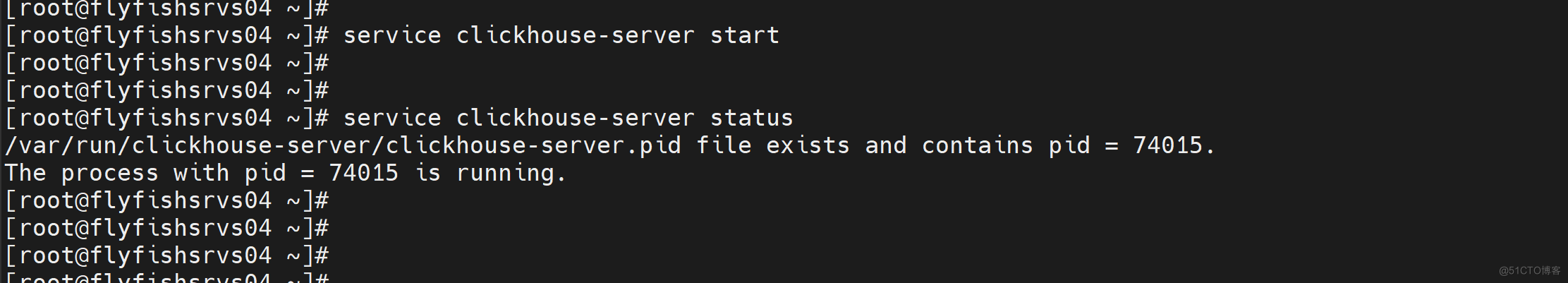

# Start of each node Clickchouse service
service clickhouse-server start
# View each node clickhouse Service status
service clickhouse-server status
# Restart each node clickhouse service
service clickhouse-server restart
# Each node is shut down Clikchouse service
service clickhouse-server stop


      1.
      2.
      3.
      4.
      5.
      6.
      7.
      8.

clickhouse 21.x The cluster is deployed in four pieces and one copy _clickhouse_20

 verification ：
clickhouse-client -h flyfishsrvs01
 View cluster ：
select * from system.clusters;
select cluster,host_name from system.clusters;



      1.
      2.
      3.
      4.
      5.
      6.

clickhouse 21.x The cluster is deployed in four pieces and one copy _clickhouse21.x_24
