FRP reverse proxy deployment

1. Software preparation

Linux CentOS7 7.6_1810

link ：https://pan.baidu.com/s/1NV4MjfORIj290Q3scy6iYQ?pwd=pzse
Extraction code ：pzse

In this paper frp The server is on the public network ip A server in a local area network （ Need to connect to the Internet ）,frp The client is openvpn Server side server （ Need to connect to the Internet ）

Internet port address

frp_0.38.0_linux_386.tar.gz Frp Deployment package

link ：https://pan.baidu.com/s/1EsGnGCT0G99g578RJ1tO-w?pwd=1234
Extraction code ：1234

2. Installation steps

Frp Match the reverse proxy software openvpn Can achieve intranet penetration

Server deployment

Upload the deployment package to yunwei Folder

Unzip the file ：tar -xvf frp_0.38.0_linux_386.tar.gz

Delete two files on the client ：

rm -rf frpc

rm -rf frpc.ini

modify frps.ini file ：vim frps.ini

bind_port Server port

dashboard_port server Service port （web Monitoring the page ）

token The client needs to point to this token value

dashboard_user web Monitor page users

dashboard_pwd web Monitor the page to verify the password

[common]

tcp_mux = false

bind_port = 7000

dashboard_port = 7500

token = Customize

dashboard_user = admin

dashboard_pwd = Customize

Save to exit

Start server frp：nohup ./frps -c frps.ini &

Check the log ：cat nohup.out

client frp Deploy

Upload the deployment package to yunwei Folder

Unzip the file ：tar -xvf frp_0.38.0_linux_386.tar.gz

Delete two files on the server ：

rm -rf frps

rm -rf frps.ini

modify frps.ini file ：vim frpc.ini

server_addr Public address

server_port Server port

token Customize token value

tcp_mux false

type = tcp Protocol type

local_ip This machine IP Address

local_port 1194 This machine frp The port number of the service

remote_port = 7001 （ The port number of this machine on the server ）

bandwidth_limit Transmission rate /MB（100MB）

use_encryption true

use_compression true



Save to exit

start-up frp service ：nohup ./frpc -c frpc.ini &

Check the log ：cat nohup.out

Public network routing needs to be open ：7000 7001 7500 port

openvpn IP The address needs to point to Internet port address 7001（ Public network ip And port ）

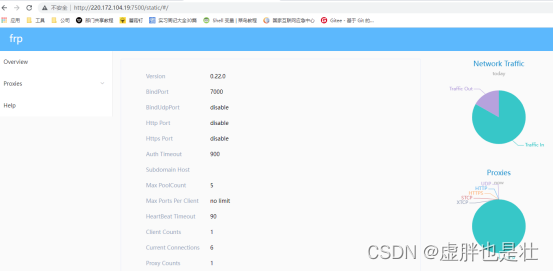

Frpweb Manage Pages ： Internet port address :7500
