Drawing cubes with Visio

---

step 1： The cube looks like

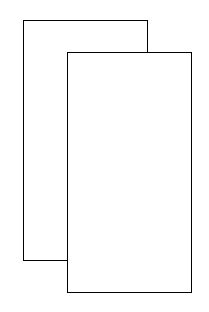

Draw a cube with two rectangles ：

Connecting edge ：

Complete other lines , Remove the original two auxiliary rectangles ：

Be careful , Avoid the following ：

step 2： The cube looks like

confirm visio Open up the developer mode , without , Please open in the following order ： file → Options → Custom ribbon → development tool , Check and confirm .


Select the drawing you drew before , Open development tools , First click Combine , Now he is a whole ; And then click Connect ; And then there was Split ; A cube is done , You can color different sides , And then click Combine ; If you don't need separate coloring, you can directly re select the cube , Click on Combine You can apply colors uniformly .

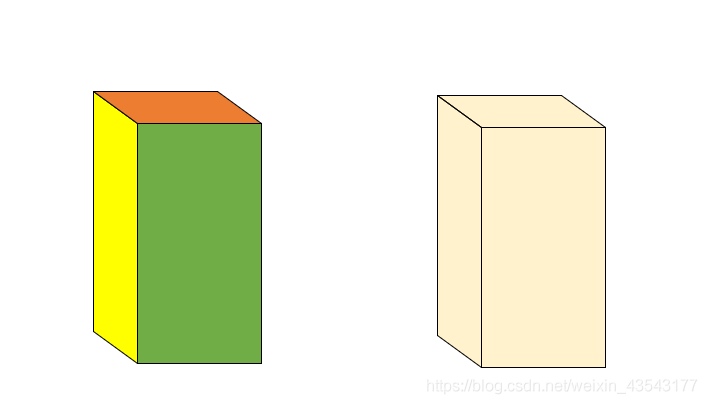

Finished product display ：

Be careful

1. Use Visio Do cube drawing , Start with simple lines , During splicing , It is best to cross the lines , Avoid appearing at breakpoints “ be neither friendly nor aloof ” The state of , Otherwise combination 、 Connection and other operations will cause problems .
2. You can save the drawn model as a template , Then use it directly . The simple thing to do is to save it here ： left shape Click on the More shapes -> My shape ..., Directly drag to favorites or customized templates .

---

Reference link ：

1. visio Draw a cube
