Kotlin data flow - flow

One .Flow The characteristics and use of

1. Use Flow Return multiple values

1. be known as flow Of Flow Type builder function .
2.flow{…} The code in the building block can be suspended .
3. function simpleFlow No longer marked suspend Modifier .
4. Use emit Function emission value .
5. Use collect Function to collect values .

 // adopt flow Return multiple values      flow Functions can be suspended
    fun simpleFlow() = flow<Int> {
        for (i in 1..3) {
            delay(1000)// Hang up
            emit(i)// Emission produces an element
        }
    }

    // Here we write an asynchronism with a coroutine
    fun testMultipleValue3() = runBlocking {
        simpleFlow().collect { value ->
            print(value)
        }
    }

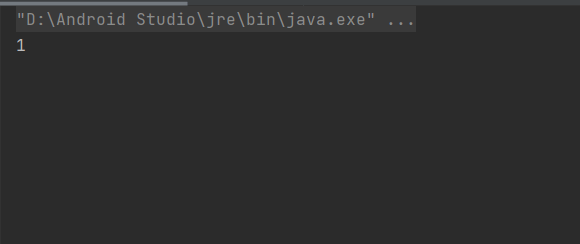

Result demonstration ：

2.Flow Cold flow

 flow Is a kind of similar to sequence Cold flow ,flow The code in the builder does not run until the stream is sent to the phone .

 fun simpleFlow02() = flow<Int> {
        println("Flow started")
        for (i in 1..3) {
            delay(1000)
            emit(i)
        }
    }

    // Cold flow     Only a call collect When Flow To collect elements
    fun testFlowIsCold() = runBlocking {
        val simpleFlow02 = simpleFlow02()
        println("Calling collect...")
        simpleFlow02.collect { value ->
            println(value)
        }
        println("Calling collect again...")
        simpleFlow02.collect { value ->
            println(value)
        }
    }

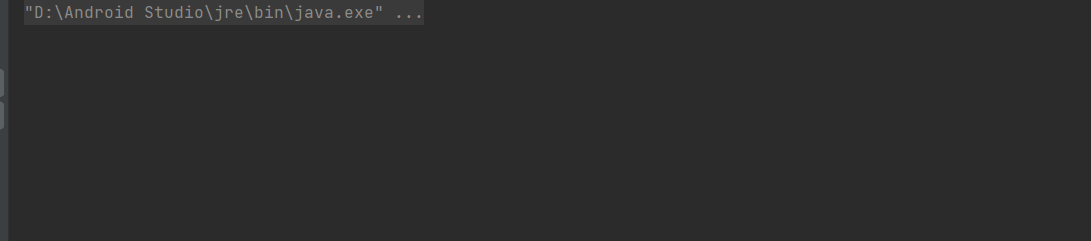

Print the results ：

3.Flow The continuity of

1. Each individual collection of streams is performed sequentially , Unless you use a special operator .
2. Each transition operator from upstream to downstream processes each emitted value , Then give it to the end operator .

 //Flow The continuity of （ call chaining ）
    fun testFlowContinuation() = runBlocking {
        //Flow Builder for
        (1..5).asFlow().filter {
            it % 2 == 0
        }.map {
            "string  $it"  // Transformation type
        }.collect {
            println("Collect $it")
        }
    }

Result demonstration ：

4.Flow Builder for

1.fIowOf The builder defines a stream that emits a fixed set of values .
2. Use .asFlow() spread function , Various sets and sequences can be converted into streams .

    //Flow Builder for  flowOf  asFlow
    fun testFlowBuilder() = runBlocking {
        flowOf("one", "two")
    //onEach  Back to a stream , The flow invokes the given operation before each value of the upstream flow is issued downstream .
            .onEach {
                delay(1000)
            }.collect {
                println(it)
            }
        listOf(1,2,3).asFlow().collect { value -> println(value) }
    }

5.flow The context of

1. The collection of flows always takes place in the context of calling a coroutine , This property of the stream is called context saving .
2.flow{...} The code in the builder must follow the context to save properties , And emission from other contexts is not allowed (emit).
3.fIowOn The operator , This function is used to change the context of stream emission .

 // change flow The context of
    fun simpleFlow05() = flow<Int> {

        println("Flow started ${Thread.currentThread().name}")
        for (i in 1..5) {
            emit(i)
        }
    }.flowOn(Dispatchers.Default)


    fun testFlowChangeContext() = runBlocking {
        simpleFlow05().collect { value ->
            println(
                "Collected $value ${
                    Thread.currentThread().name
                }"
            )
        }
        println("")
    }

Print the results :

Flow started DefaultDispatcher-worker-1
Collected 1 main
Collected 2 main
Collected 3 main
Collected 4 main
Collected 5 main

6.Flow The coordination process uses

Use launchIn Replace collect We can start the collection of flows in a separate process

 //flow event
    fun events() = (1..3).asFlow().onEach {
        delay(100)
    }

    //flow The flow is used in conjunction with the process
    fun testFlowLaunch() = runBlocking {
        var job = events().onEach { event ->
            println("Event:  $event ${Thread.currentThread().name}")
        }.launchIn(
            CoroutineScope(Dispatchers.IO)
        )
        delay(1000)
        job.cancelAndJoin()
    }

Print the results ：

Event:  1 DefaultDispatcher-worker-1
Event:  2 DefaultDispatcher-worker-1
Event:  3 DefaultDispatcher-worker-1

7.Flow Cancel

The flow adopts the same cooperative cancellation as the collaboration process . As usual , The collection of streams can be when the stream is in a cancelable suspend function （ for example delay) Cancel when suspended in .

1. Time out cancellation

 fun simpleFlow06() = flow<Int> {
        for (i in 1..5) {
            emit(i)
            delay(1000)
            println("Emitting $i")
        }
    }
    // Time out cancellation
    fun testCancelFlow() = runBlocking {
        withTimeoutOrNull(2500) {
            simpleFlow06().collect { value ->
                println(value)
            }
            println("Done")
        }
    }

Result demonstration ：

  This stream is in 2.5 Seconds was canceled

2. Judge whether the condition is cancelled

 fun simpleFlow06() = flow<Int> {
        for (i in 1..5) {
            emit(i)
            delay(1000)
            println("Emitting $i")
        }
    }

 fun testCancelFlowCheck() = runBlocking {
        // This is the case because the elements all pass through emit Function can be used cancel Cancel
        /*  simpleFlow06().collect {
            value ->
            print(value)
            if (value==3) cancel()
        }
    }*/
       // Another situation
        //cancellable Definitely want to cancel , Each element collected will determine whether the cancellation condition is met
        (1..5).asFlow().cancellable().collect { value ->
            println(value)
            if (value == 3) cancel()
        }

    }

Effect demonstration ：

8. Handle Flow Back pressure

1.buffer(), Code that emits elements in a concurrent run stream .
2.conflate(), Merge launch items , Do not process each value .
3.collectLatest(), Cancel and retransmit the last value .
4. When you have to change CoroutineDispatcher when , To flowOn The operator uses the same buffering mechanism , however buffer The function explicitly requests a buffer and Do not change the execution context .

fun simpleFlow07() = flow<Int> {
        for (i in 1..5) {
            delay(100)
            emit(i)
            println("Emitting $i")
        }
    }
        fun testBackPressure()= runBlocking {
            // Because the time of occurrence here is faster than that of collection , But only after collection can it be considered as the end , So the time required for launch and collection adds up
            val measureTimeMillis = measureTimeMillis {
                simpleFlow07()
                    // Switch threads due to this method and simpleFlow07 Functions are not in the same thread , Therefore, the launch can be carried out in parallel, and because of its own buffer , Here, the main thread will collect the emitted elements in order
                    //.flowOn(Dispatchers.Default)
                    //.buffer(50)// The cache can run the code in the stream concurrently
                    //.conflate()// Emit element merge , Note that this will lack elements
                    //.collectLatest {}// This will collect the last one
                    .collect { value ->
                    delay(300)
                    println(value)
                }
            }
            println(measureTimeMillis)
        }

Two .Flow The operator

1. Conversion operators

 suspend fun performRequest(request: Int):String{
        delay(1000)
        return "response $request"
    }
    // Modify the type operator
    fun testTransformFlowOperator()= runBlocking {
        // Every time you change the type
       /* (1..3).asFlow()
            .map { value ->
                performRequest(value)
            }.collect {
                println(it)
            }*/

        (1..3).asFlow()
        //transform() Each element is modified multiple times
            .transform { value ->
              emit("Making request $value")
              emit(performRequest(value))
            }.collect {
                println(it)
            }
    }

Print the results ：

Making request 1
response 1
Making request 2
response 2
Making request 3
response 3

2. The length limit operator

 fun numbers()= flow<Int> {
            try {
                emit(1)
                emit(2)
                println("This line will not execute")
                emit(3)
            }finally {
                println("Finally in numbers")
            }
        }

        fun testLimitLengthOperator()= runBlocking {
                    // The length limit operator  take():  Limit output length
            numbers().take(2).collect {value ->  println(value) }
        }

Print the results ：

1
2
Finally in numbers

3. End operator

    fun testTerminalOperator()= runBlocking {
        //map  Returns the result of a function operation
        //reduce  Accumulate values from the first element , And apply the operation... To the current accumulator value and to each element
        val sum=(1..5).asFlow().map { it*it }.reduce{
            // Here is the 1 To 5 Sum of squares
            a,b->a+b
        }
        // When there is only one element single
        val single = flowOf(1).single()
        // Get first element
        val first = flowOf(1..6).first()
        // First set the elements of the operation , And finally with fold Parameter operation of
        val sum1=(1..5).asFlow().fold(3){
            a,b->a+b
        }

        println(sum)
        println(sum1)
    }

Print the results ：

55
1
1..6
18

4. Combination operator

   //zip() Merge operators
    fun testZip()= runBlocking {
        val asFlow = (1..3).asFlow().onEach { delay(300) }
        val flowOf = flowOf("one", "Two", "Three").onEach { delay(400) }
        val currentTimeMillis = System.currentTimeMillis()
       // The time required for merging is printed out here , Prove that the whole process is asynchronous （400m）
        asFlow.zip(flowOf){a,b->"$a   $b"}.collect { value -> println("$value at ${System.currentTimeMillis()-currentTimeMillis}") }
    }
    fun requestFlow(i:Int)= flow<String> {
        emit("$i: First")
        delay(500)
        emit("$i: Second")
    }

Results the print ：

1   one at 435
2   Two at 844
3   Three at 1255

5. Advection flow

A stream represents a sequence of values received asynchronously , So it's easy to encounter such a situation ： Each value triggers a request for another sequence of values , However , Because of the asynchronous nature of flow , Therefore, different flattening modes are required , So , There are a series of flow flattening operators ：

1.flatMapConcat Connection mode .

2.flatMapMerge Merge mode

3.flatMapLatest Latest flattening mode

// When one flow It's wrapped in another flow such as flow<flow<String>>, I need to use advection to turn into a flow
    fun estFlatMapConcat()= runBlocking {
        val  startTime=System.currentTimeMillis()
        (1..3).asFlow().onEach { delay(100) }

            //flatMapLatest{}
            //flatMapMerge The previous effect is similar to flatMapConcat The same order is different
           // .flatMapMerge {  }
            .flatMapConcat{
            // This call map Words requestFlow The return value is flow<flow<String>>, So call flatMapConcat I will untie one layer by myself   Print the results
            requestFlow(it)
        }.collect {
            value ->  println("$value at ${System.currentTimeMillis()-startTime}")
        }
    }

flatMapLatest Print the results ：

1: First at 149
2: First at 266
3: First at 370
3: Second at 882

flatMapMerge Print the results ：

//1: First at 143
//2: First at 240
//3: First at 347
//1: Second at 655
//2: Second at 748
//3: Second at 860

flatMapConcat Print the results ：

1: First at 129
1: Second at 641
2: First at 749
2: Second at 1257
3: First at 1367
3: Second at 1874

3、 ... and .Flow abnormal

1.Flow Handling exceptions

1. An exception occurred while receiving

 fun simpleFlow08()= flow<Int> {
        for (i in 1..4){
            println("Emitting $i")
            emit(i)
        }
    }

    fun testFlowException()= runBlocking {
        try {
            simpleFlow08().collect {value ->
                println(value)
                check(value <=1 ){
                    "Collected $value"
                }
            }
        }catch (e:Throwable){
            println("Caught $e")
        }
    }

Print the results ：

Emitting 1
1
Emitting 2
2

2. An exception occurred during the launch

fun testFlowException2()= runBlocking<Unit> {
        flow {
            emit(1)
            throw ArithmeticException("Div 0")
            // There is an abnormality in the upstream , Under the guarantee of not breaking flow Where principles are involved, it is recommended to use catch function
        }.catch { e:Throwable-> println("Caught $e")
        emit(10) // You can write like this
        }
            .flowOn(Dispatchers.IO)
            .collect {
                println(it)
            }
    }

Print the results ：

Caught java.lang.ArithmeticException: Div 0
1
10

2.Flow Handling of exceptions

1. Normal completion

 fun testCompleteInFinally()= runBlocking {
        try {
            simpleFlow().collect { println(it) }
        }finally {
            println("Done")
        }
    }

     fun simpleFlow() =flow<Int> {
        emit(3)
        delay(100)
         throw  ActivityNotFoundException()
    }

2. Abnormal death

 fun simpleFlow() = flow<Int> {
        emit(3)
        delay(100)
        throw  ActivityNotFoundException()
    }

    fun testCompleteInCompletion() = runBlocking {
         /*  simpleFlow().onCompletion { exception -> println("Flow completed $exception") }
            .catch { e -> println(e) }
            .collect {
                println(it)
                /*  check(
                      it<=1){"Collected $it"}*/
            }*/
        // When he dies abnormally, he will get abnormal information    It will also be executed after normal completion
        simpleFlow().onCompletion { println("Done") }.collect { println(it) }
    }

Print information ：
