Application of wireless charging receiving chip xs016 coffee mixing cup

Wireless charging receiver chip XS016- Application of coffee mixing cup

Recently our company has done a project , It's a coffee mixing cup , At the beginning of the project, it feels worthless , But after X Baoyisou , Good sales , Think about it carefully , It really needs automatic mixing , Because you need a spoon to drink coffee , It's really troublesome , Read the product description , What black Technology , So let's see How big is this technology , How dark , Let's analyze what our company does for our customers principle



The control part uses one LW311 To realize the rotation of the motor , Detection of battery voltage

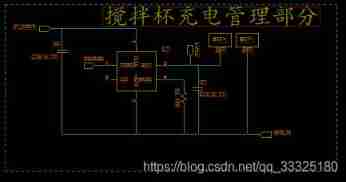

The charging management part realizes the safe charging of the battery , Guaranteed to pass through trickle 、 constant current 、 Constant voltage charging

The cup switch is controlled by a touch switch , Because it is a water cup that needs to be drained .

Let's discuss how the charging is waterproof , ordinary USB It must be unsafe , The circuit board may be easily damaged , So the product must be sealed , Wireless charging is required to charge , This is also an innovation .

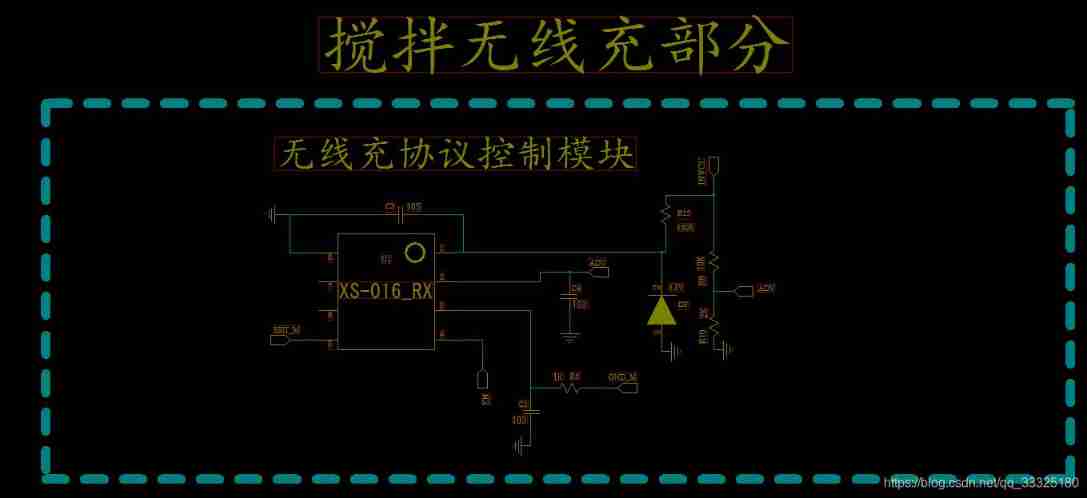

The wireless charging part adopts XS-016_RX, It seems that there is only 8 A foot

The drive part adopts  SND09 SNSNC08  XS1001

Such a simple principle , Compared with a hardware engineer , It may not be too difficult , But it may be a little difficult for software engineers . Of course, it is not difficult to control the mixing cup , But wireless charging is a little difficult , There are too many compatible wireless charging and transmitting boards .

                                                 author ： Round egg mountain
