Nacos registry cluster

Preface : This article will introduce nacos Cluster deployment of , I look forward to your review and help

nacos colony

SpringBoot Integrate Spring Cloud Alibaba Nacos Registry Center . In most cases, an application system has only one registry , However, due to the distributed deployment of micro service architecture system across regions, there may be network delay problems , Therefore, we need to consider the multi registry scheme .

Due to the existence of the old based on Spring Cloud The migration of the microservice system to the new registry , Similar to grayscale publishing , Need new and old Nacos Registration Center coexists , It can be through some SpringBoot The project configures multiple registries at the same time to solve .
First configuration yml file
modify user-service Of application.yml file , Add cluster configuration ：

spring:
  cloud:
    nacos:
      server-addr: localhost:8848
      discovery:
        cluster-name: HZ

Restart both user-service After the instance , We can do it in nacos The console sees the following results ：

Copy one again user-service A launch configuration , Add attribute ：

-Dserver.port=8083 -Dspring.cloud.nacos.discovery.cluster-name=SH

spring:
  application:
    name: userservice
  profiles:
    active: dev
  cloud:
    nacos:
      server-addr: nacos:8848
      config:
        file-extension: yaml

start-up UserApplication3 Check again later nacos Console ：

Load balancing

default ZoneAvoidanceRule It is not possible to achieve load balancing according to the same cluster priority .

therefore Nacos One is provided in NacosRule The implementation of the , You can preferentially select instances from the same cluster .

First of all order-service Configure cluster information

modify order-service Of application.yml file , Add cluster configuration ：

spring:
  cloud:
    nacos:
      server-addr: localhost:8848
      discovery:
        cluster-name: HZ

modify order-service Of application.yml file , Modify load balancing rules ：

userservice:
  ribbon:
    NFLoadBalancerRuleClassName: com.alibaba.cloud.nacos.ribbon.NacosRule

Weight configuration

This scenario will appear in the actual deployment ：

There are differences in the performance of server devices , The machine where some examples are located has good performance , Others are poor , We want better machines to take on more user requests .

But by default NacosRule It is randomly selected in the same cluster , The performance of the machine will not be considered .

therefore ,Nacos Weight configuration is provided to control access frequency , The greater the weight, the higher the access frequency .

stay nacos Console , find user-service List of instances of , Click edit , You can modify the weight ：

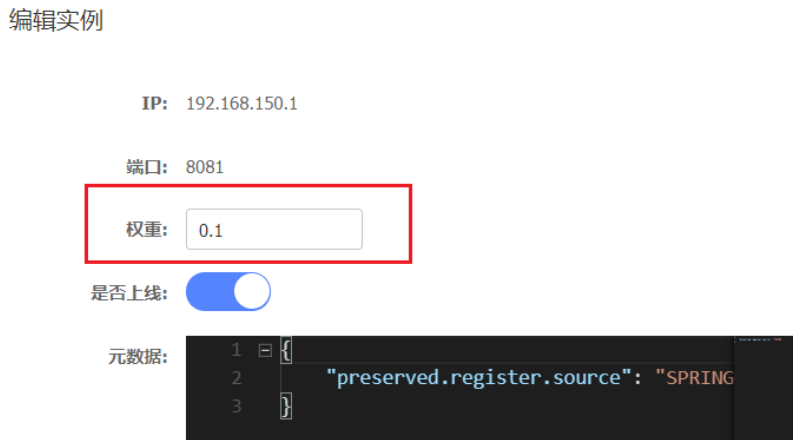

In the pop-up edit window , Modify the weight ：

Be careful ： If the weight is changed to 0, Then the instance will never be accessed

This article introduces here , Thank you for your support 🤩🤩🤩
