An idea of solving div adapting to screen

Preface

A small component that simply wrote a verification code because of work needs before vue Add canvas Generate verification code , Pictured

At the beginning, the screen is 1920 * 1080 The developers did not consider adaptation , So there are a lot of problems .

1、 When dragging the browser , The browser is not full screen

2、 The computer display is not 100%, Instead, the recommended size , Generally, the default size is the recommended size , Cause the computer is not 100%

3、 Computers are not at all 1920 * 1080 Of , For example, some old computers are 1366 * 768 , I remember that little broken computer I bought in college is like this .

solve

There are many ways online 、, But there is no solution for big factories , Later, I came across an article using zoom To solve the

Basic knowledge of

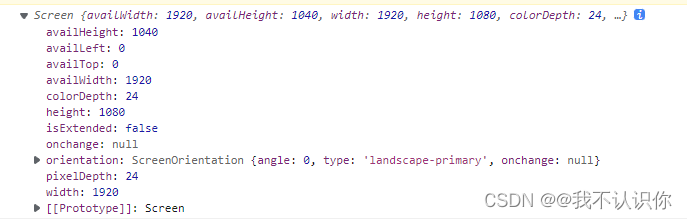

window.screen
Get information about the user screen , You can get some content

width、height、 Is the size of the current display at the current resolution ,availWidth、availHeight Is the usable size （ Generally, the size of the toolbar is removed ）

next

window.outerHeight;// The outer frame width of the browser
window.outerWidth;// The browser frame is high
window.innerWidth;// The inner frame width of the browser （ It is usually consistent with the outer frame width , Turn on F12 When , Remove the space occupied by developer tools ）
window.innerHeight;// The inner frame of the browser is high （ Remove label bar , Address bar , Favorites bar, etc ）

Solve the problem of resolution and scaling size

Take a look at different resolutions and zoom sizes window.screen Will your information change
The following is done when only one variable changes .

Screen press 125% Show

You can see that the information has changed ,1920/1520 be equal to 1.25, It just corresponds to the magnification .1520/1920 be equal to 0.8, This is what we need to use scale Function to enlarge the scale

The screen resolution is 1600 * 900

Solve the problem of browser size change

browser 125% Show
window.screen The value of will not change , We can go through window.outerWidth and window.innerWidth To get

window.outerWidth/window.innerWidth=1.25,window.innerWidth/window.outerWidth=0.8

adopt resize To determine whether the browser window has changed , The browser will execute when zooming or dragging .

window.addEventListener('resize', () => {

    console.log(" Changed the ")
})

Code

adjustWindow (dom) {

      //  Get screen parameters
      let screen = window.screen;
      //  Screen scale
      let screenZoom = screen.width / 1920;
      //  Window scale
      let windowZoom = window.innerWidth / window.outerWidth;
      //  Here we need to consider whether the browser is full screen
      if(screen.width > window.outerWidth) {

          //  At this time, the browser is not full
          windowZoom = window.outerWidth / screen.width;
      }
      //  Retain 3 Decimal place
      let zoom = parseFloat((screenZoom * windowZoom).toFixed(3));
      //  change dom Of style
      dom.style.zoom = zoom;


      //  Listen for changes in the window
      window.addEventListener('resize', () => {

          //  Screen scale
          screenZoom = screen.width / 1920;
          //  Window scale
          windowZoom = window.innerWidth / window.outerWidth;
          //  Here we need to consider whether the browser is full screen
          if(screen.width > window.outerWidth) {

              //  At this time, the browser is not full
              windowZoom = window.outerWidth / screen.width;
          }
          //  Keep three decimal places
          zoom = parseFloat((screenZoom * windowZoom).toFixed(3));
          //  change dom Of style
          dom.style.zoom = zoom;
      });
  }

problem ：
In full screen mode ： The scale is in 50~150 It can be displayed normally
In the non full screen state ：100 It can be displayed normally

Basically, it can meet the normal use , If you randomly change the zoom ratio, it is not a display problem , But you are deliberately finding fault .

CSS Medium zoom Properties and scale Usage and differences of attributes

zoom attribute

grammar ：

• The default value is ：normal
• Apply to ： All the elements
• inheritance ： Yes

Value ：

• normal： Use the actual size of the object .
• Use floating point numbers to define scaling . Negative value not allowed
• Use percentage to define the scale . Negative value not allowed

explain ：
Set or retrieve the scaling of an object . The corresponding script feature is zoom.

Scale attribute

scale(x,y) Scaling elements

• X Represents a multiple of horizontal scaling Y Represents the scaling factor in the vertical direction
• Y Is an optional parameter , If it's not set up , said X,Y The scaling times are the same in both directions . And X Subject to .

scaleX() The element is only in the X Axis ( horizontal direction ) Zoom elements

• The default value is 1, The base point is usually at the center of the element . Can pass transform-origin To change the base point

scaleY() The element is only in the Y Axis ( vertical direction ) Zoom elements

The base point is at the center of the element . Can pass transform-origin To change the base point .

zoom and scale Of . difference

zoom and scale Both of these things are used to scale elements , But there are some differences between the two in addition to compatibility .zoom Scaling keeps the element in the upper left corner , and scale The default is the middle position , Can pass transform-origin To set up . In addition, the rendering order they perform is also different zoom It may affect the calculation of the box .
