LwIP development | realize TCP server through socket

LWIP To improve compatibility, you can also use Scoket Realization , It is mainly the code function in the file #include <lwip/sockets.h> in , The following are the main relevant codes

/** @ingroup socket */
#define accept(s,addr,addrlen) lwip_accept(s,addr,addrlen)
/** @ingroup socket */
#define bind(s,name,namelen) lwip_bind(s,name,namelen)
/** @ingroup socket */
#define shutdown(s,how) lwip_shutdown(s,how)
/** @ingroup socket */
#define getpeername(s,name,namelen) lwip_getpeername(s,name,namelen)
/** @ingroup socket */
#define getsockname(s,name,namelen) lwip_getsockname(s,name,namelen)
/** @ingroup socket */
#define setsockopt(s,level,optname,opval,optlen) lwip_setsockopt(s,level,optname,opval,optlen)
/** @ingroup socket */
#define getsockopt(s,level,optname,opval,optlen) lwip_getsockopt(s,level,optname,opval,optlen)
/** @ingroup socket */
#define closesocket(s) lwip_close(s)
/** @ingroup socket */
#define connect(s,name,namelen) lwip_connect(s,name,namelen)
/** @ingroup socket */
#define listen(s,backlog) lwip_listen(s,backlog)
/** @ingroup socket */
#define recv(s,mem,len,flags) lwip_recv(s,mem,len,flags)
/** @ingroup socket */
#define recvfrom(s,mem,len,flags,from,fromlen) lwip_recvfrom(s,mem,len,flags,from,fromlen)
/** @ingroup socket */
#define send(s,dataptr,size,flags) lwip_send(s,dataptr,size,flags)
/** @ingroup socket */
#define sendmsg(s,message,flags) lwip_sendmsg(s,message,flags)
/** @ingroup socket */
#define sendto(s,dataptr,size,flags,to,tolen) lwip_sendto(s,dataptr,size,flags,to,tolen)
/** @ingroup socket */
#define socket(domain,type,protocol) lwip_socket(domain,type,protocol)
/** @ingroup socket */
#define select(maxfdp1,readset,writeset,exceptset,timeout) lwip_select(maxfdp1,readset,writeset,exceptset,timeout)
/** @ingroup socket */
#define ioctlsocket(s,cmd,argp) lwip_ioctl(s,cmd,argp)

TCP Programming
Implement environment
1. transplant Freertos

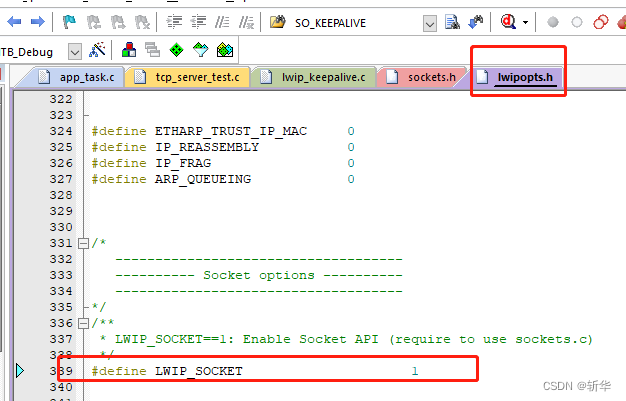

2. transplant LWIP, Turn on LWIP_SOCKET

#include "tcp_server_test.h"
#include "lwip/opt.h"
#include <lwip/sockets.h>
#include "lwip/sys.h"
#include "lwip/api.h"
#include "string.h"

#if LWIP_SOCKET // Need to open Scoket Can be used

#define RECV_DATA (1024UL)
#define LOCAL_PORT (6133UL)
#define BACKLOG (5UL)/* Maximum number of monitors */

#define LWIP_TCP_DEBUG_ENABLE 1

#if LWIP_TCP_DEBUG_ENABLE
   #define LWIP_TCP_DEBUG printf
#else
  #define LWIP_TCP_DEBUG(...)
#endif


static void tcp_server_thread(void *arg)
{

  int sockfd = -1,connected; /*socket Handle and the handle after the connection is established */
  struct sockaddr_in server_addr,client_addr;
  socklen_t sin_size;
  int recv_data_len;
  uint8_t recv_data[RECV_DATA];

  LWIP_TCP_DEBUG("tcp server port %d\n\n",LOCAL_PORT);

again:

  // establish scoket The descriptor  AF_INET  Use ipv4 Address
  sockfd = socket(AF_INET, SOCK_STREAM, 0);
  if (sockfd < 0)
  {

      LWIP_TCP_DEBUG("Socket error\n");
	  close(sockfd);
	  vTaskDelay(100);
      goto again;
  }
  //
  server_addr.sin_family = AF_INET; 				// This property indicates the reception of native or other machine transmissions
  server_addr.sin_addr.s_addr = htonl(INADDR_ANY);	// This machine IP
  server_addr.sin_port = htons(LOCAL_PORT);			// Port number
  memset(&(server_addr.sin_zero), 0, sizeof(server_addr.sin_zero));

  if (bind(sockfd, (struct sockaddr *)&server_addr, sizeof(struct sockaddr)) == -1)
  {

      LWIP_TCP_DEBUG("Unable to bind\n");
	  close(sockfd);
	  vTaskDelay(100);
      goto again;
  }

  // Set the maximum number of listeners
  if (listen(sockfd, BACKLOG) == -1)
  {

      LWIP_TCP_DEBUG("Listen error\n");
	  close(sockfd);
	  vTaskDelay(100);
      goto again;
  }

  while(1)
  {

    sin_size = sizeof(struct sockaddr_in);

	// Block here until a message is received , The parameters are socket Handle , Received address information and size
    connected = accept(sockfd, (struct sockaddr *)&client_addr, &sin_size);

    LWIP_TCP_DEBUG("new client connected from (%s, %d)\n", inet_ntoa(client_addr.sin_addr), ntohs(client_addr.sin_port));

    int tcp_nodelay = 1;//don't delay send to coalesce packets
    setsockopt(connected,IPPROTO_TCP,TCP_NODELAY,(void *) &tcp_nodelay,sizeof(int));

    while(1)
    {

      recv_data_len = recv(connected, recv_data, RECV_DATA, 0);

      if (recv_data_len <= 0)
	  {

		   break;
	  }


      LWIP_TCP_DEBUG("recv %d len data\n",recv_data_len);
	  // send content
      write(connected,recv_data,recv_data_len);
    }

    if (connected >= 0)
	{

		 close(connected);
	}

    connected = -1;
  }

  if (sockfd >= 0)
  {

	 close(sockfd);
  }

}
#endif

void tcp_server_init(void)
{

#if LWIP_SOCKET
  sys_thread_new("tcpecho_thread", tcp_server_thread, NULL, 512, 4);
#endif
}

Verified as follows
