Use ECs and OSS to set up personal network disk

2022-07-27 01:53:00 【Palm nine】

Use ECS and OSS Set up personal network disk
experiment ： Use open source network disk tools cloudreve Set up personal network disk
One 、 Environmental preparation
Select ECS on Alibaba cloud computing platform ECS, Create an instance

Insert picture description here
Insert picture description here

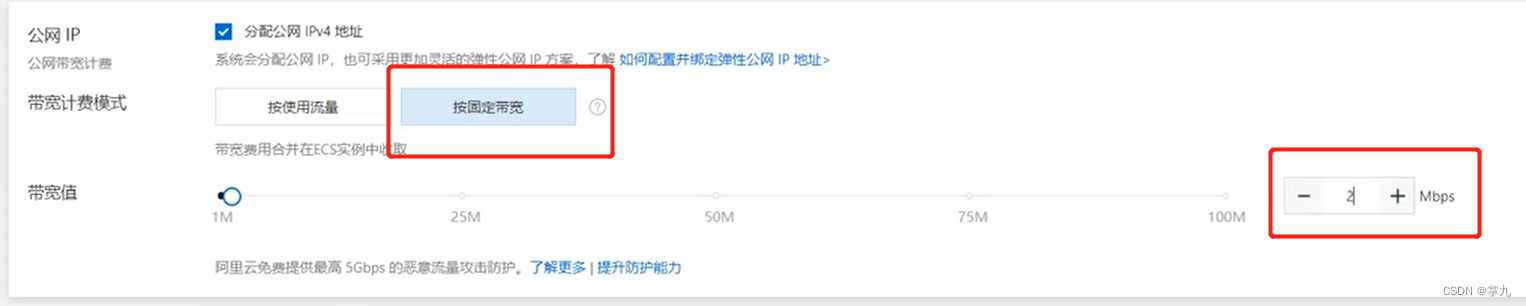

You can change the following options

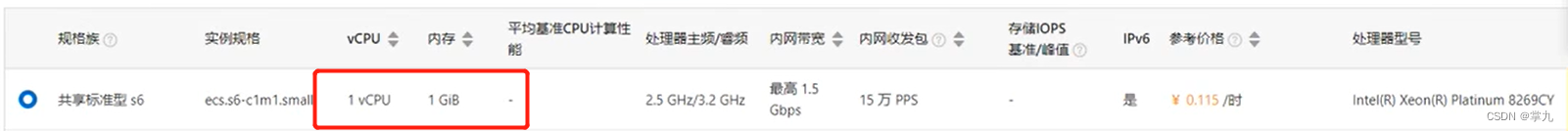

One core one G Enough can be used. ：
Insert picture description here

Insert picture description here
Insert picture description here
Insert picture description here

Others are not changed

Insert picture description here
Insert picture description here

Two 、 Service installation

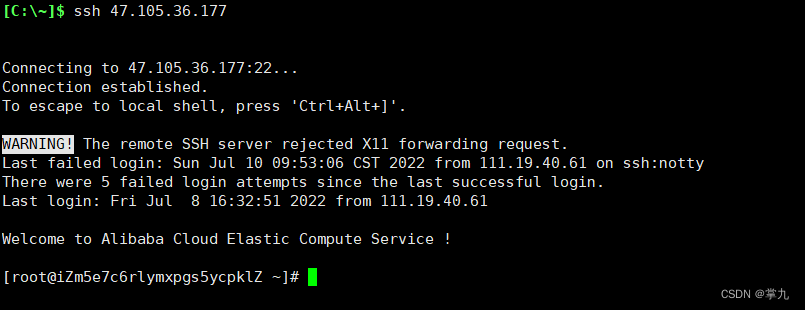

Remote connection —— You can use VNC, It can also be used. Xshell( This experiment uses Xshell Connect )
Insert picture description here
Insert picture description here
Insert picture description here
install cloudreve

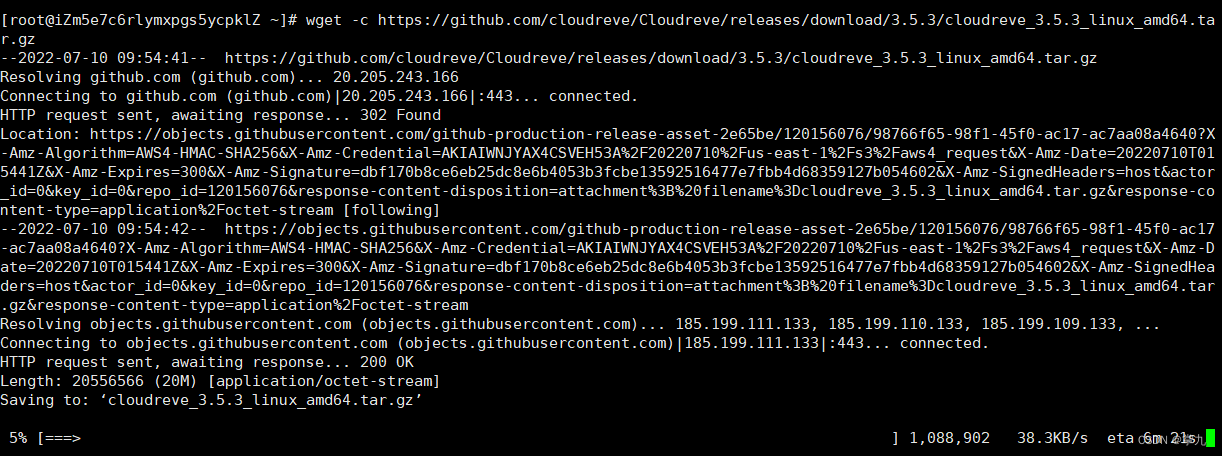

wget -c https://github.com/cloudreve/Cloudreve/releases/download/3.5.3/cloudreve_3.5.3_linux_amd64.tar.gz
Insert picture description here
Insert picture description here
decompression ：
Insert picture description here
Insert picture description here
3、 ... and 、 Open ports 5212

go back to ECS Console
Insert picture description here

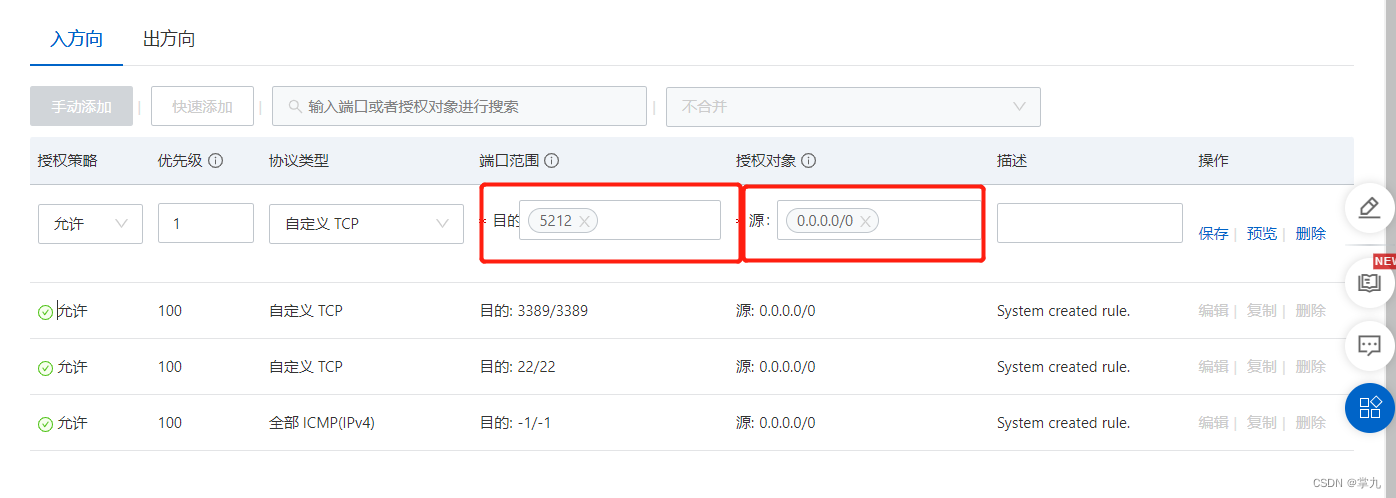

Click Add manually
Insert picture description here
Click save
Insert picture description here
Insert picture description here

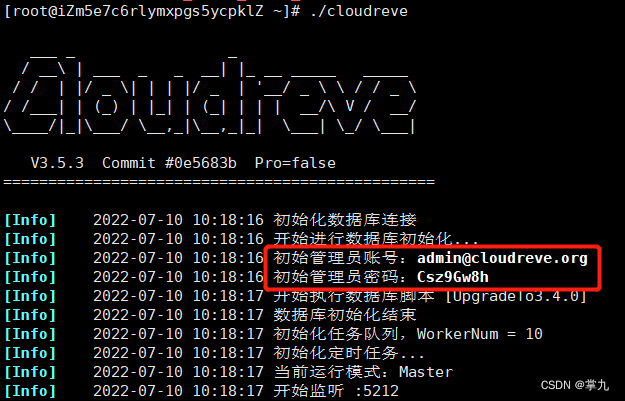

Account number and password ：
Insert picture description here
Insert picture description here
Insert picture description here

Four 、 Object storage OSS

Insert picture description here
Insert picture description here

Other defaults are ok
Insert picture description here

Sign in https://ram.console.aliyun.com establish RAM account number , And authorize

Insert picture description here
Insert picture description here
Insert picture description here
Add permissions
Insert picture description here
Insert picture description here

Insert picture description here

5、 ... and 、 install ossfs mount OSS
Download a software ：wget -c https://github.com/aliyun/ossfs/releases/download/v1.80.5/ossfs_1.80.5_centos7.0_x86_64.rpm
install ：# yum localinstall ossfs_1.80.5_centos7.0_x86_64.rpm
Insert picture description here
Insert picture description here

Configure account access information ：echo BucketName:yourAccessKeyId:yourAccessKeySecret > /etc/passwd-ossfs
[[email protected]mxpgs5ycpklZ ~]# echo zhangjiu:LTAI5tQ9SzYGghBwEJmefFJ5:BMHvLs6AfXlZnY0S0WO1EoJRXEeeW9 > /etc/passwd-ossfs
[[email protected] ~]# chmod 640 /etc/passwd-ossfs

Open the download CSV file
Insert picture description here
Insert picture description here
Modify the configuration command
echo zhangjiu:LTAI5tQ9SzYGghBwEJmefFJ5:BMHvLs6AfXlZnY0S0WO1EoJRXEeeW9 > /etc/passwd-ossfs
Insert picture description here
Modify the permissions
[[email protected] ~]# chmod 640 /etc/passwd-ossfs

mount OSS：
Create mount point
Insert picture description here
mount
Format ：ossfs BucketName mountfolder -o url=Endpoint

Insert picture description here
Insert picture description here

Permanently mount : vim /etc/init.d/ossfs
#!/bin/bash

ossfs Automount Aliyun OSS Bucket in the specified direcotry.

chkconfig: 2345 90 10

description: Activates/Deactivates ossfs configured to start at boot time.

ossfs BucketName mountfolder -o url=Endpoint -o allow_other
Insert picture description here
Modify the permissions
Insert picture description here

Put it into the background to run
Insert picture description here

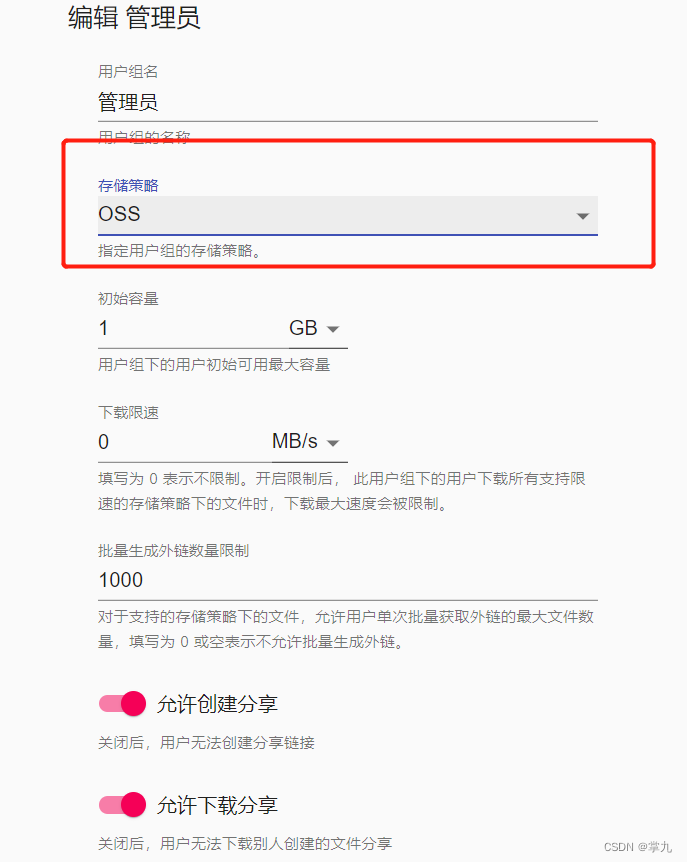

6、 ... and 、 Add storage policy

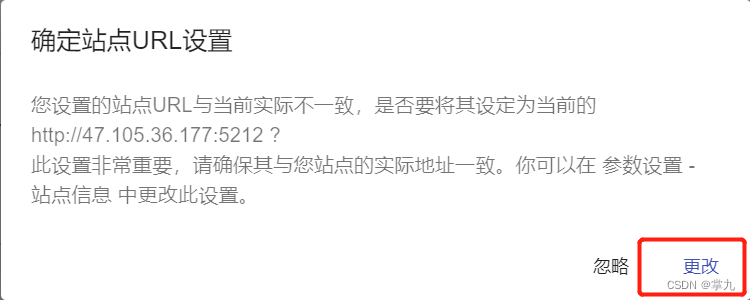

Log back in
Insert picture description here
Insert picture description here

Insert picture description here
Insert picture description here
Insert picture description here
Insert picture description here
stay bucket Create a directory on dir1
Insert picture description here
go back to cloudreve
Insert picture description here
Just take the next step
Insert picture description here Insert picture description here
Insert picture description here

7、 ... and 、 test

Insert picture description here

Insert picture description here

Insert picture description here
Insert picture description here
Successful experiment
