V-Ray 5 acescg workflow settings

First step ：

Method 1 ： Manual settings

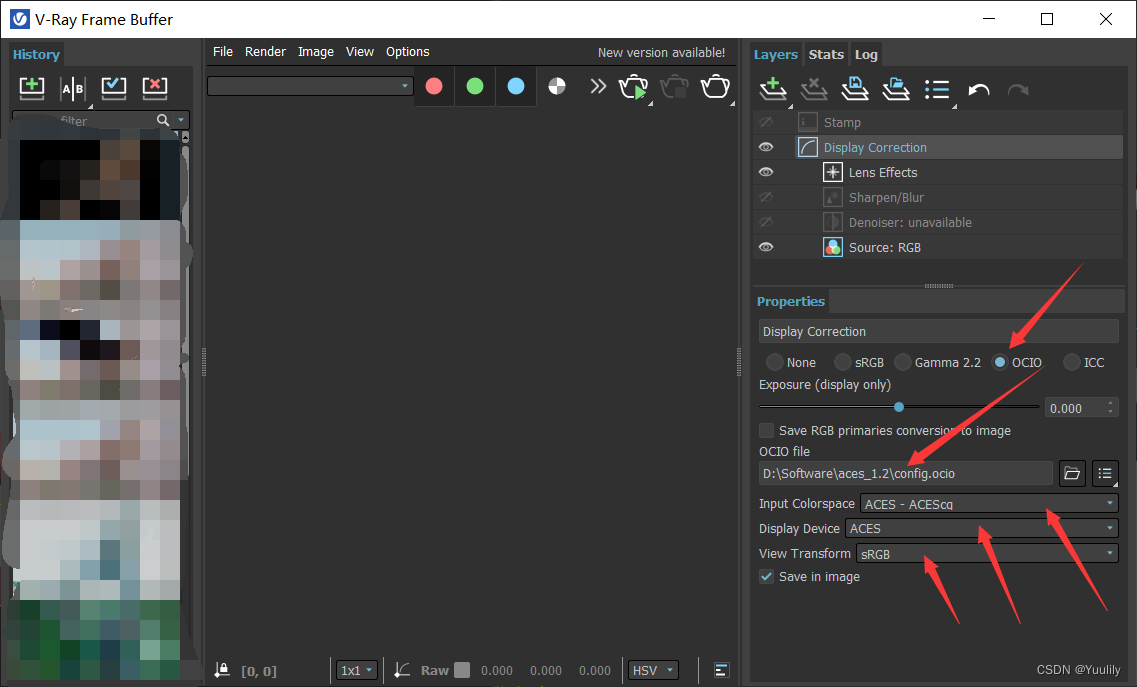

open VFB panel “Display Correction”— choice “OCIO”— Load the file （ Find... According to the path OCIO The configuration file config.ocio）

Check the following settings ：

Enter the color space ：ACES—ACEScg
Display device ：ACES
View conversion ：SRGB
Check ： Save image （save in image）

Method 2 ： Set environment variables to load automatically
“ This computer ” Right click Properties —“ Advanced system setup ”—“ senior ”—“ environment variable ”— System variable Click “ newly build ”— Variable name input OCIO — Click on “ browse files ”（ Find the download OCIO The configuration file config.ocio）— Click on “ determine ”

The second step

1： Go to render settings （setting）— Color management （color management）—Rendering RGB primaries（ choice ACEScg）

2： Or check ： Automatic conversion RGB Primary color to VR Bitmap texture （auto RGB primaries for VRayBitmap Texture）
【 Be careful ： The mapping needs to be suffixed to be effective 】

The third step

Change all material maps to V-ray Bitmap , And modify the color space transfer function and RGB Color space

The first way ：

Maps are converted in four categories ：

‍‍‍‍‍‍‍‍HDRI Mapping ： Color space transfer function — nothing RGB Color space —SRGB

Grayscale and other data type maps ： Color space transfer function — nothing RGB Color space —RAW

VR Color mapping ： choice ACEScg（ modify RGB Primary color is enough ）

Other Map ： Color space transfer function —SRGB RGB Color space —SRGB‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍

summary ：
The second way ：

According to different mapping types , Add the corresponding suffix , such V-ray Can automatically identify ;
