PXE efficient batch network installation



Catalog

One 、 Configure network card

  Two 、 To configure DHCP

3、 ... and 、 To configure tftp

Four 、 Configure boot file vmlinuz and initrd.img

  5、 ... and 、 Configure boot file pxelinux.0

6、 ... and 、 Configure the Startup menu file

  7、 ... and 、 Get ready kickstart​ edit

  8、 ... and 、 verification

---

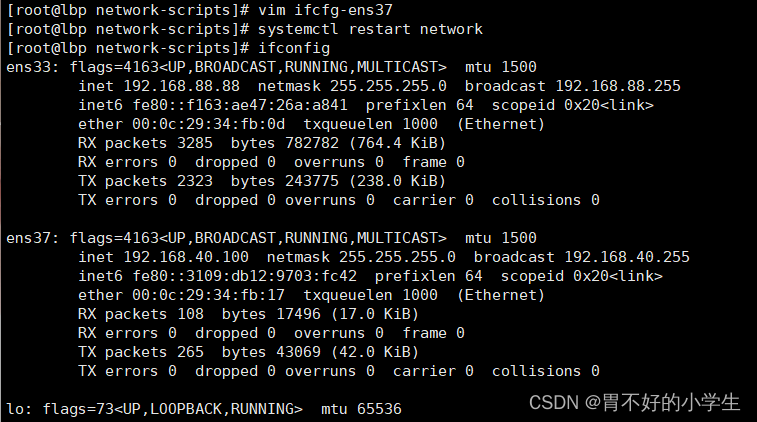

One 、 Configure network card

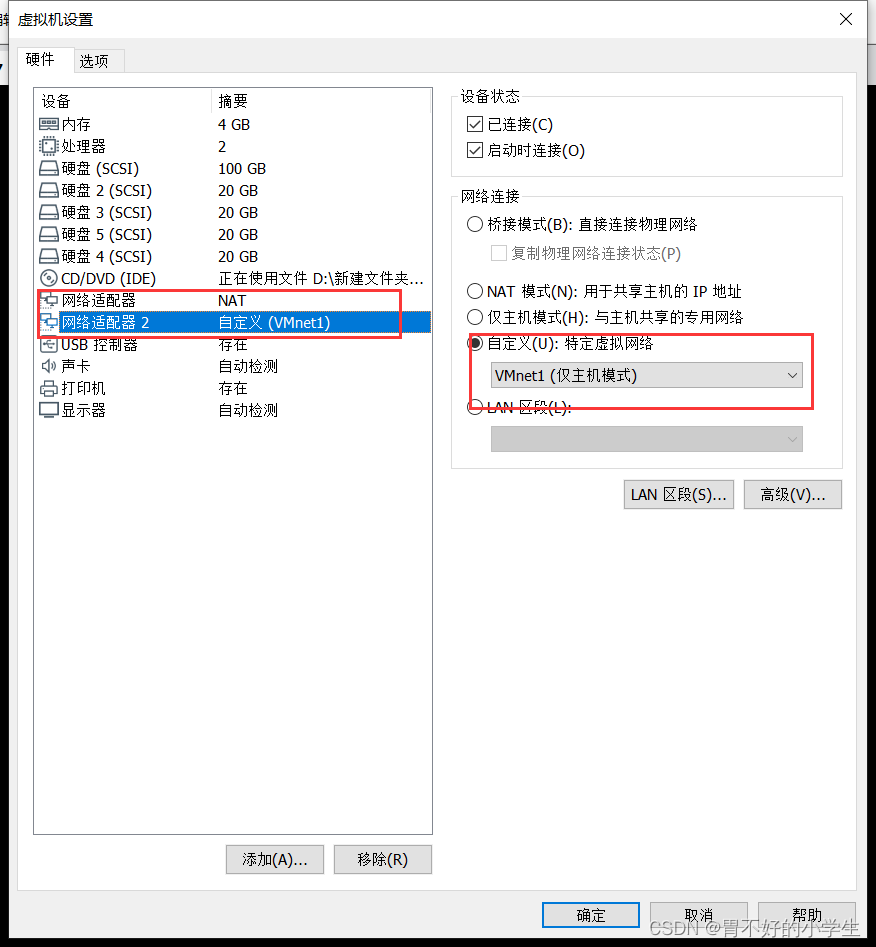

First, we need to prepare two network cards



  Two 、 To configure DHCP

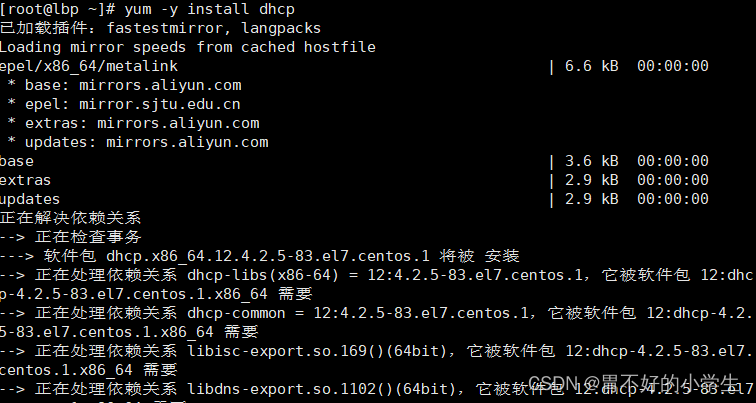

install dhcp







3、 ... and 、 To configure tftp

Installation tools

    yum -y install tftp-server

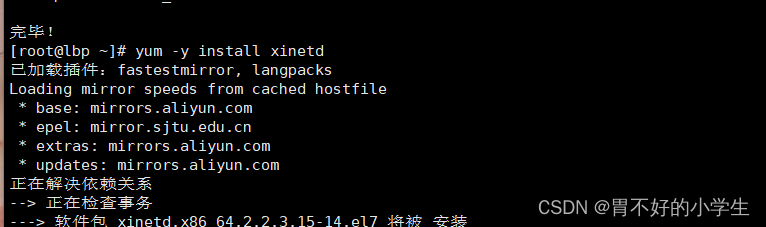

    yum -y install xinetd





Four 、 Configure boot file vmlinuz and initrd.img

be used for PXE Network installed Linux kernel 、 Driver files can be downloaded from CentOS 7 System CD / Image acquisition , Respectively vmlinuz and initrd.img, Located in the CD Directory images/pxeboot Next , Copy it to /var/lib/tftpbooot/


    mount /dev/cdrom /mnt
    cp /mnt/images/pxeboot/initrd.img vmlinuz  /var/lib/tftpboot/



 Restart the service
systemctl start xinetd
systemctl enable  xinetd
systemctl start tftp
systemctl enable tftp

  5、 ... and 、 Configure boot file pxelinux.0

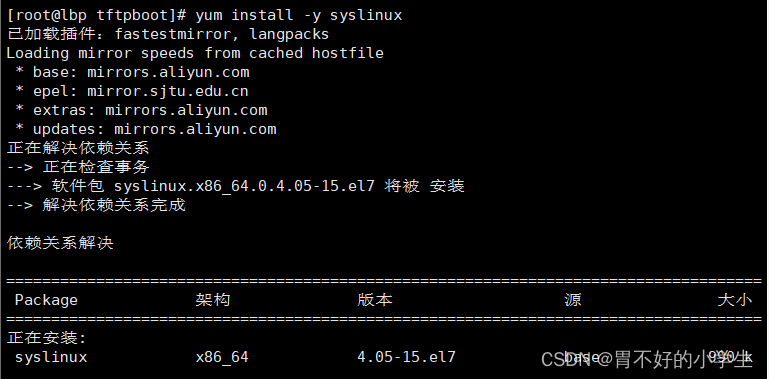

  Find the location of the file and copy

6、 ... and 、 Configure the Startup menu file

Because the pxelinux.0 This document decides to /var/lib/tftpboot/pxelinux.cfg/default file , So all we have to do is /var/lib/tftpboot/ Manually create





  7、 ... and 、 Get ready kickstart

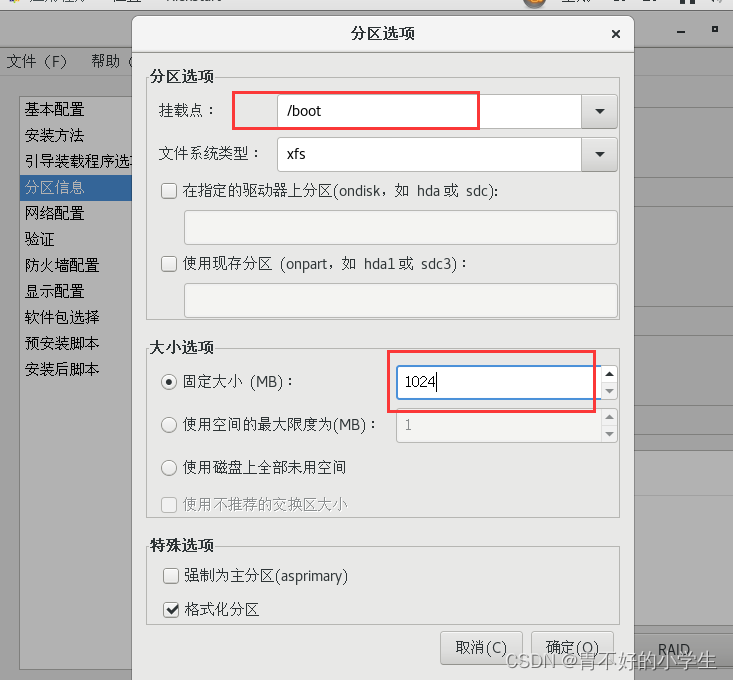

  Follow the steps to configure in the virtual machine

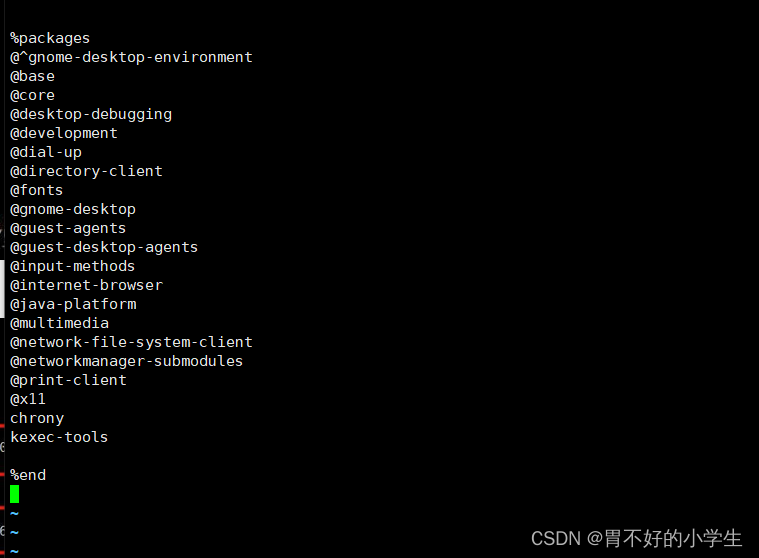

  modify ks.cfg file





  modify /var/lib/tftpboot/pxelinux.cfg/default file , Add... At the end ftp route

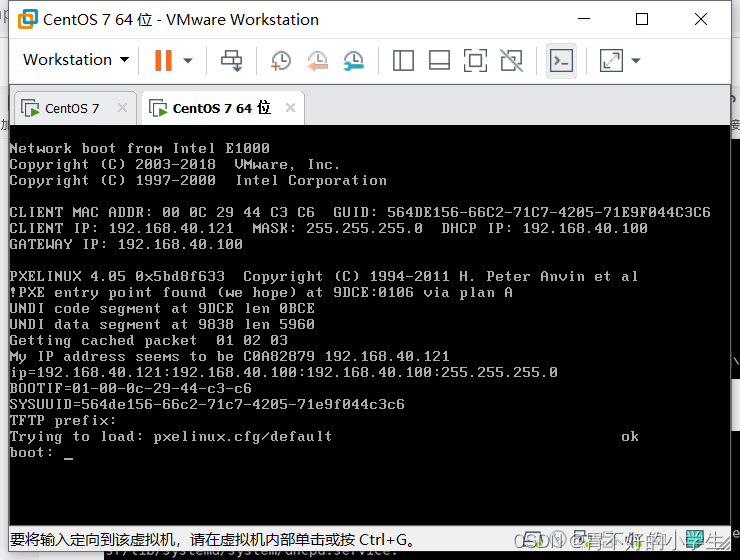

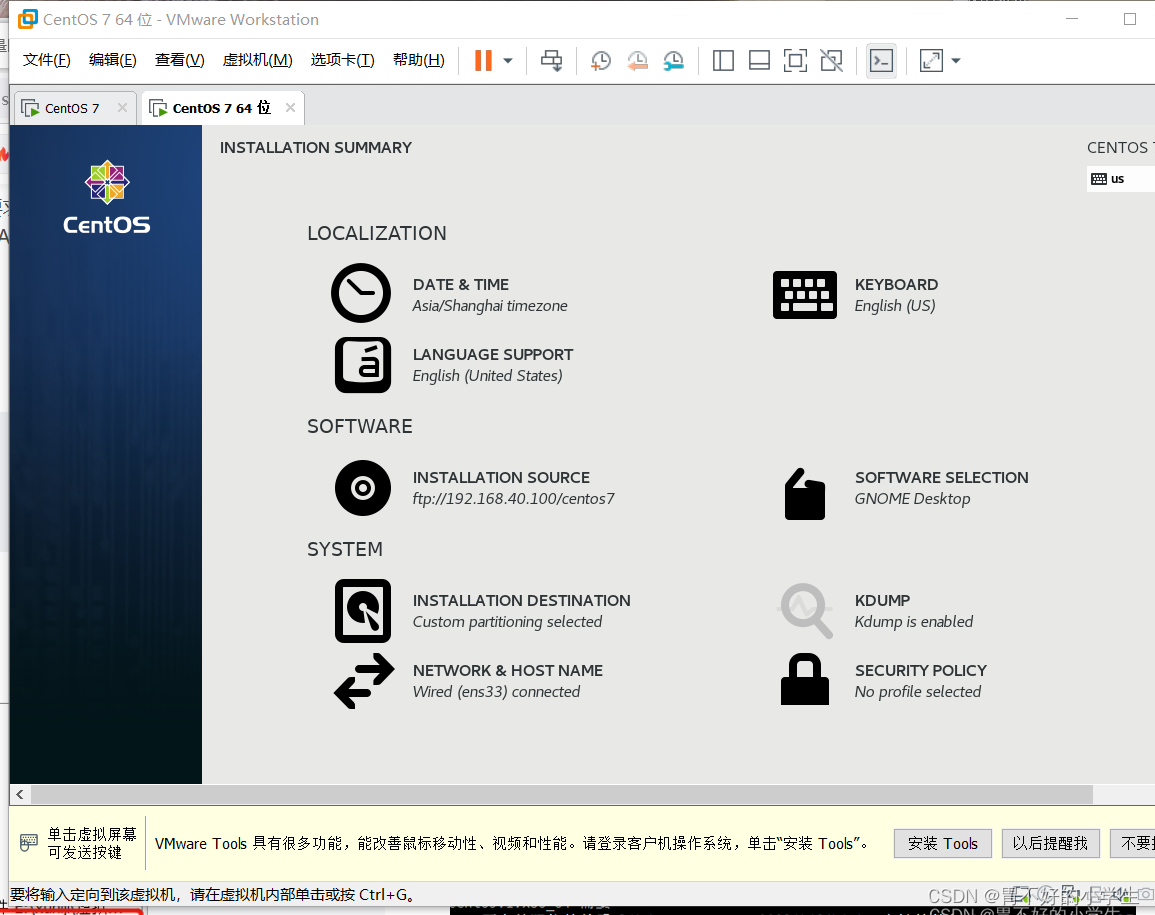

  8、 ... and 、 verification

Make sure dhcp,tftp,xinetd When the service is turned on

Let's create a new virtual machine , Open it directly without configuring the system CD Set its network card to VMnet1
