Web keyboard input method application development guide (2) -- keyboard events

Introduce

In the last article , I gave a brief introduction to Web Key technical points related to keyboard and input method application . Starting with this article, we delve into various topics , See what is worth noting in the development . Here, start with the input related events supported by the browser （ Key 、 Input, etc ） Start .

keydown/keyup/keypress  event

keydown[1] and keyup Events usually occur in pairs （ There are exceptions. ）, they

Basically

The user is pressing （ Release ） When a key , The first event triggered by the browser . There are two more points to note here ：

• Whether the user is using the input method or not ,keydown Events always trigger , Even if there are no characters in the input control . For example, I am spelling with input method , And it hasn't been submitted yet .

• On some special platforms or browsers （ such as Android Chrome perhaps Mac Firefox wait ）,keydown The event is not always triggered first , Some input method related events （ Such as compostionstart） It will trigger earlier . This has an impact on some business logic that depends on the sequence of events , And because the platform is related , Related to it bug Not easy to find .

keypress event [7] Has been abandoned by standards , It is not recommended to continue to use . It represents the key event that actually generates the character value , such as ALT、CTRL Such function keys will not trigger this event . But even if it produces character output , This event does not necessarily trigger , This is related to the implementation of the browser , The key logic suggests not relying on this event .

keyCode  attribute

In a key event ,key、code and keyCode These three attributes can be used to identify which key was pressed .key and code The property is a string , and keyCode It's an integer . In some older applications , We'll see keyCode Widely used . such as keyCode=65 For letters a Pressed ,keyCode=18 yes Alt key , and keyCode=32 It means space bar . But official documents [2] This attribute is deprecated , Because it has been Web The standard is gradually abandoned , Various browser manufacturers will gradually no longer support .keyCode Values vary by platform and browser , Pay special attention to , For specific values, please refer to MDN Official documents of .

about keyCode There are also some special cases , For example, when using input method , Pressing a key corresponds to a character that is not on the keyboard （ For example, Korean ）, In fact, this button also has keyCode, Its value is usually large （ For example, Korean characters are basically 4000 above , Exactly

keypress

The event keyCode）, This information can be used as a reference for judging the current input language . It's different for Chinese and Japanese , When spelling Chinese characters , Each time you press a key, it will return to a

229

Of keyCode value , With this value, you can filter out the keydown event .

in general , Use keyCode Always think about browsers 、 Language and platform compatibility , also keyCode The value of is hard to remember , Bring difficulty to development and debugging , Therefore, it is not recommended to use... For new applications . So how to get the exact key value ？ The answer is

Use key and code attribute

.

key  attribute

Simply speaking ,key attribute [3] Tell you what happens to your keys

value

, This property name is slightly confusing （ It's called “ key ”, the truth is that “ value ”）. For example, on an English keyboard , You press “A” key , That corresponds to key event in key The value of the property is “a”.

It should be noted that key The value of is

The final

Output value , That is, it also considers SHIFT And other function keys 、 Systematic locale And the keyboard layout Etc . such as , If you press yes

SHIFT+A

Combine , that key The attribute value of is uppercase “

A

"; In Korean input method , Press the button on the right CTRL key , It is actually Korean input Hanja key（ Used to input Chinese characters ）, Corresponding key The property value of is “

HanjaMode

”（ instead of CTRL In itself ）; In Japanese 106/109 On the keyboard , Press special Kana/ Roman conversion key , Will produce “

KanaMode

” Of key Property value .

Be careful , The resulting key If the value is a printable character （ Such as the letter 、 Numbers 、 Symbols etc. ）, Then we will go further

input

Other events , Enter characters into a text control . If it's just a function key （ such as Hanja Key） There won't be

input

The event occurred . therefore , Sometimes when we intercept user input

input

Events do not necessarily come in time , Not every keystroke produces actual input .

In some input method scenarios , Helpful key Attributes may appear in

keypress

Incident . For example, when using Chinese input method to input some full angle characters （ Chinese

￥

,

【

,

》

wait ）, stay keydown and keyup Incident ,key Attributes may just be “

Process

”, Indicates that this key has been processed by the input method , And in the keypress In the event key Attribute can get accurate Chinese full angle characters . In this case , Developers should also pay attention to the differences of platforms , According to my experience , stay

Ubuntu Of Firefox

Browser ,keypress Events cannot occur , It can be thought of as a bug. But in the appeal scenario , Usually there is

input

The event occurred , Processing that can be used for input , But not necessarily a good time .

If the platform and browser do not recognize the keys of a keyboard , Then the key press event will still occur , It's just key The value of the property is “

Unidentified

”. There are three factors to keep in mind when handling key press events ：

Keyboard layout 、 Operating system and browser

. There's a special kind of key be called Dead Key[5], In some European languages accent Character time , You need to press the accent symbol once first

`

, Press the letter key again （ For example, in French

à=`+a

）, The accent symbols here will produce “

Dead

” Of key value , and a Keyed key Attribute is the final character

à

.

code  attribute

occasionally , We may not care what the output of a key is , It just cares about which key on the current keyboard is pressed , This is actually like getting a key

Scan Code

.Scan Code There are different representations on different platforms , It is also related to the external keyboard （ For example, English 101 keyboard , Japanese 106 keyboard , Korean 103 Keyboard and so on. ）. Corresponds to the browser platform , did not scan code The concept of , But through code attribute [4] Express similar functions .

according to W3C The standards of the organization [6] Definition ,code The attribute contains the user's

Physical bond

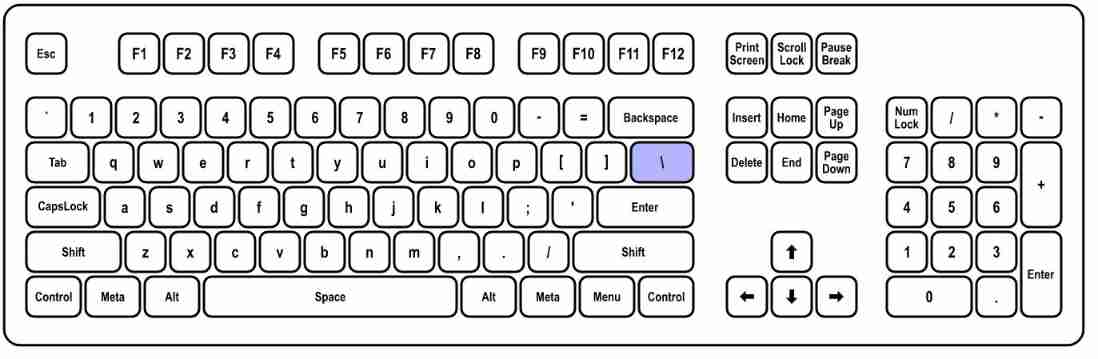

Information about . Since it's a physical bond , It depends on the type of keyboard , For example, the following figure is a typical English 101- Keyboard layout .

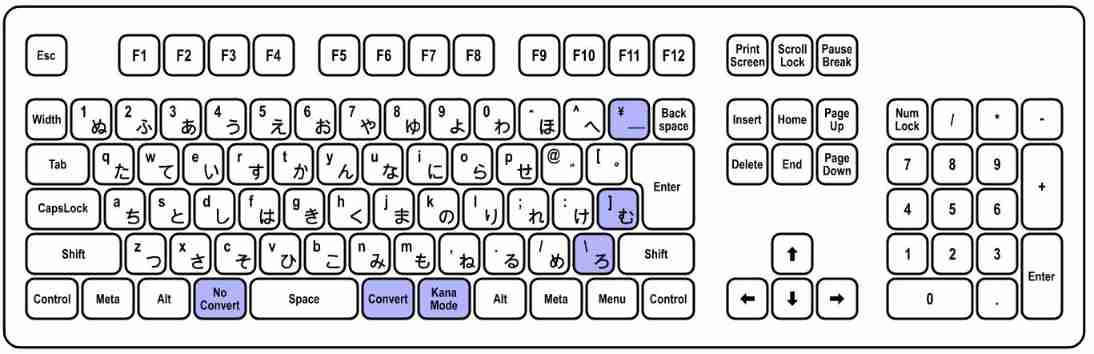

There is also a typical Japanese 106 Keyboard layout , You can see that there are more function keys related to Japanese input .

Whatever the keyboard layout , The types of the above keys can always be divided into several categories . In alphanumeric form （Alphanumeric） Area as an example , Common alphanumeric keys can be called

The writing system （Writing System） key

, And like ALT、SHIFT and KanaMode This is

function （Functional） key

. But whatever type of key , Have a unique name or ID, This is code The value of the property . Like in the picture below

“KeyA” It's letters A Key generated by the key code Property value

, No matter what keyboard layout you use , This code Value doesn't change , Because it represents the position of the key , Instead of producing any output .

Another thing to note , The purple key in the figure is

whatever

Keyboard layout has keys , The green key is only

given

The layout of the keyboard . Like the enter button

On the left

Of “BackSlash” key , It doesn't exist on the English keyboard . Through this code attribute , We can not only know which key is pressed , You can also learn some

The current keyboard layout of the client

Information about . For example, you receive a value of “KanaMode” Of code attribute , The keyboard layout must be Japanese , Because it is impossible for other types of keyboards to generate this property value .

Other attributes

There are also some commonly used properties in key events , For example, related to key combinations

altKey

、

ctrlKey

and

shiftKey

, They indicate when a key is pressed , Whether a function key is pressed and held at the same time . This is useful when dealing with some shortcut related logic . For example, dealing with ALT+F The combination of , Can monitor keydown event , If it is

F

The key is pressed , Also check its altKey attribute , If

true

, The key combination will take effect .

location Property indicates the area where the key is located , For example, for ALT Key to say , If it's on the left ALT, The value is

1

; If it's on the right , Then for

2

. If the key in the keypad area is involved , The value is

3

May also be . This attribute is also useful in some cases , such as Windows Korean input method , Dexter CTRL Key is as

HanjaMode

 key The use of , In addition to code Attribute differentiation ,location It's fine too . In some European language keyboard layouts , Dexter ALT The key is

AltGraph

key , In judging keyCode At the same time , adopt location It can also be compared with the one on the left ALT Distinguish .

repeat Indicates whether a key has been pressed all the time , Triggered when a key is pressed and held . Long press according to how long , Each system platform may differ , Only the platform thinks that long press triggers , This attribute is

true

.

summary

This article introduces the knowledge and precautions for keyboard events in the browser , The specific performance of each event and attribute depends on the specific development practice , If the standard is written, it does not mean that every platform and browser has been correctly implemented , Check documents frequently during development , But we should not be superstitious about standards . Start with the next article , Let's look at the events related to the input method .
