Use of Azkaban in task scheduler

Azkaban summary

Azkaban By Linkedin Open source batch workflow task scheduler . Used to run a set of work and processes in a specific sequence within a workflow .

Azkaban It defines one KV file (properties) Format to establish dependencies between tasks , And provide an easy to use web User interface to maintain and track your workflow .

Official website : https://azkaban.github.io/

install Azkaban

download

wget https://github.com/azkaban/azkaban/archive/refs/tags/3.73.0.tar.gz

tar -zxvf 3.73.0.tar.gz

mv azkaban-3.73.0  azkaban-src

install Git

yum ‐y install git
yum ‐y install gcc‐c++

[[email protected] program]# git version
git version 1.8.3.1

modify azkaban-src In the catalog build.gradle file , modify allprojects Node configuration , Specify the warehouse address as Alibaba cloud warehouse

allprojects {

    apply plugin: 'jacoco'
    repositories {

       maven {

    	  	url 'https://maven.aliyun.com/repository/public/'
   	 }
    mavenLocal()
    mavenCentral()
    }
}

Start compilation 、 Install and skip the test phase

 cd azkaban/

./gradlew  build installDist -x test

Finally, the compilation is successful

BUILD SUCCESSFUL in 4m 52s
82 actionable tasks: 76 executed, 6 from cache

The following files are obtained after compilation

# azkaban-web-server Page display service
[[email protected] azkaban-src]# ls azkaban-web-server/build/distributions/
azkaban-web-server-0.1.0-SNAPSHOT.tar.gz  azkaban-web-server-0.1.0-SNAPSHOT.zip

# azkaban-solo-server
[[email protected] azkaban-src]# ls azkaban-solo-server/build/distributions/
azkaban-solo-server-0.1.0-SNAPSHOT.tar.gz  azkaban-solo-server-0.1.0-SNAPSHOT.zip

# azkaban-exec-server Mission execution services
[[email protected] azkaban-src]# ls azkaban-exec-server/build/distributions/
azkaban-exec-server-0.1.0-SNAPSHOT.tar.gz  azkaban-exec-server-0.1.0-SNAPSHOT.zip

# two server Patterns need C Program
[[email protected] azkaban-src]# ls az-exec-util/src/main/c
execute-as-user.c

#  Database script
[[email protected] azkaban-src]# ll azkaban-db/build/install/azkaban-db/
 Total usage  112
-rw-r--r-- 1 root root 12022 3 month   12 13:33 create-all-sql-0.1.0-SNAPSHOT.sql

Single service mode

Azkaban The single service mode of uses a single node mode to start the service , Just start the installation package , All data is saved in H2 In the memory .

Get ready

azkaban-solo-server-0.1.0-SNAPSHOT.tar.gz

decompression

decompression azkaban-solo-server-0.1.0-SNAPSHOT.tar.gz

tar -zxvf  azkaban-solo-server/build/distributions/azkaban-solo-server-0.1.0-SNAPSHOT.tar.gz -C ../azkaban

[[email protected] azkaban]# ls
azkaban-solo-server-0.1.0-SNAPSHOT

install

modify vim azkaban-solo-server-0.1.0-SNAPSHOT/conf/azkaban.properties file , Guarantee and Linxu The server time zone is consistent

#default.timezone.id=America/Los_Angeles

default.timezone.id=Asia/Shanghai

modify vim azkaban-solo-server-0.1.0-SNAPSHOT/plugins/jobtypes/commonprivate.properties file

# set execute-as-user
execute.as.user=false

# Azkaban High memory requirements , Turn off memory checking
memCheck.enabled=false

start-up solo-server

 cd azkaban-solo-server-0.1.0-SNAPSHOT/

 bin/start-solo.sh

[[email protected] azkaban-solo-server-0.1.0-SNAPSHOT]# jps
22563 AzkabanSingleServer

visit Web

Browser access ：IP：8081
land , User name and password ：azkaban

Use

establish Job Description file vim test.job

type=command
command=echo "hello world"

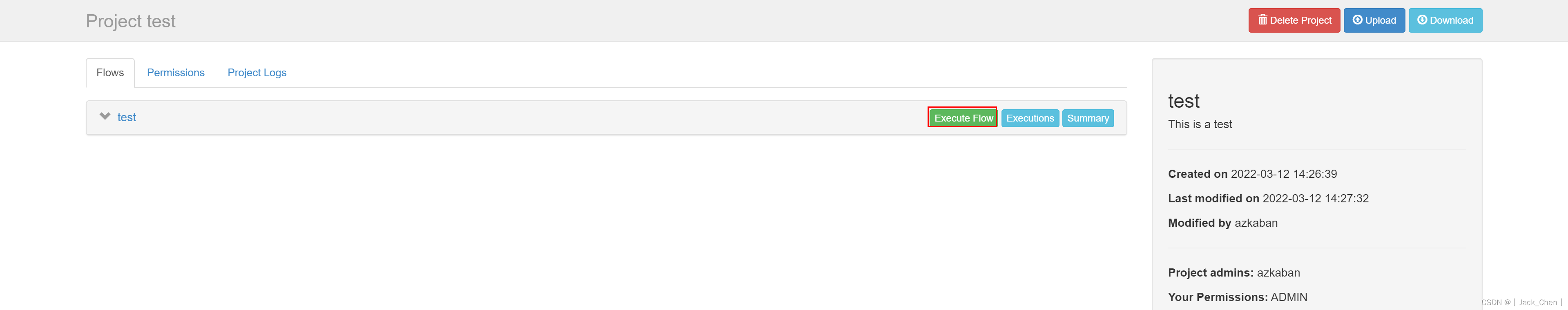

Create a project

take test.jobjob Resource files are packaged into test.zipzip file , And upload

Start execution job

Two server modes

Get ready

azkaban-web-server-0.1.0-SNAPSHOT.tar.gz

azkaban-exec-server-0.1.0-SNAPSHOT.tar.gz

create-all-sql-0.1.0-SNAPSHOT.sql

execute-as-user.c

Initialize database

CREATE DATABASE azkaban;


CREATE USER 'azkaban'@'%' IDENTIFIED BY 'azkaban';

GRANT all privileges ON azkaban.* to 'azkaban'@'%' identified by 'azkaban' WITH GRANT OPTION;

flush privileges;

use azkaban;

source /usr/local/program/azkaban-src/azkaban-db/build/install/azkaban-db/create-all-sql-0.1.0-SNAPSHOT.sql

decompression

tar -zxvf  azkaban-web-server/build/distributions/azkaban-web-server-0.1.0-SNAPSHOT.tar.gz   -C ../azkaban


tar -zxvf  azkaban-exec-server/build/distributions/azkaban-exec-server-0.1.0-SNAPSHOT.tar.gz  -C ../azkaban

[[email protected] azkaban]# ls
azkaban-exec-server-0.1.0-SNAPSHOT  azkaban-solo-server-0.1.0-SNAPSHOT  azkaban-web-server-0.1.0-SNAPSHOT

install SSL Safety certification

install SSL Safety certification , Allow to use https Mode of access azkaban Of web service

[[email protected] azkaban]# keytool -keystore keystore -alias keyalias -genkey -keyalg RSA
 Enter the keystore password :
 Enter the new password again :
 What is your first and last name ?
  [Unknown]:
 What is the name of your organizational unit ?
  [Unknown]:
 What is the name of your organization ?
  [Unknown]:
 What is the name of your city or area ?
  [Unknown]:
 Your province / City / What is the name of the Autonomous Region ?
  [Unknown]:
 The unit's two letter country / What is the area code ?
  [Unknown]:
CN=Unknown, OU=Unknown, O=Unknown, L=Unknown, ST=Unknown, C=Unknown Whether it is right ?
  [ no ]:  y

 Input  <keyalias>  Key password for
        ( If it's the same password as the keystore ,  Press enter ):

Warning:
JKS  The keystore uses a private format . It is recommended to use  "keytool -importkeystore -srckeystore keystore -destkeystore keystore -deststoretype pkcs12"  Migrate to industry standard format  PKCS12.
[[email protected] azkaban]# ls
azkaban-exec-server-0.1.0-SNAPSHOT  azkaban-solo-server-0.1.0-SNAPSHOT  azkaban-web-server-0.1.0-SNAPSHOT  keystore

install Azkaban Web Server

install azkaban web server, Get into cd azkaban-web-server-0.1.0-SNAPSHOT/conf edit vim azkaban.properties

#default.timezone.id=America/Los_Angeles
default.timezone.id=Asia/Shanghai

#jetty.use.ssl=false
jetty.use.ssl=true

# ssl To configure
jetty.ssl.port=8443
jetty.keystore=/usr/local/program/azkaban/keystore
jetty.password=azkaban
jetty.keypassword=azkaban
jetty.truststore=/usr/local/program/azkaban/keystore
jetty.trustpassword=azkaban

# Azkaban mysql settings by default. Users should configure their own username and password.
database.type=mysql
mysql.port=3306
mysql.host=localhost
mysql.database=azkaban
mysql.user=azkaban
mysql.password=azkaban
mysql.numconnections=100

azkaban.executorselector.filters=StaticRemainingFlowSize,MinimumFreeMemory,CpuStatus
#azkaban.executorselector.filters=StaticRemainingFlowSize,MinimumFreeMemory,CpuStatus

azkaban.activeexecutor.refresh.milisecinterval=10000
azkaban.queueprocessing.enabled=true
azkaban.activeexecutor.refresh.flowinterval=10
azkaban.executorinfo.refresh.maxThreads=10

install Azkaban Executor Server

install azkaban executor server, Get into cd azkaban-exec-server-0.1.0-SNAPSHOT/conf edit vim azkaban.properties

#default.timezone.id=America/Los_Angeles
default.timezone.id=Asia/Shanghai

#jetty.use.ssl=false
jetty.use.ssl=true

# ssl To configure
jetty.ssl.port=8443
jetty.keystore=/usr/local/program/azkaban/keystore
jetty.password=azkaban
jetty.keypassword=azkaban
jetty.truststore=/usr/local/program/azkaban/keystore
jetty.trustpassword=azkaban

# Where the Azkaban web server is located
#azkaban.webserver.url=http://localhost:8081
azkaban.webserver.url=http://localhost:8443

# Azkaban mysql settings by default. Users should configure their own username and password.
database.type=mysql
mysql.port=3306
mysql.host=localhost
mysql.database=azkaban
mysql.user=azkaban
mysql.password=azkaban
mysql.numconnections=100

Add the plug-in

Will be compiled C file execute-as-user.c copy to azkaban-exec-server-0.1.0-SNAPSHOT/plugins/jobtypes Catalog

cp az-exec-util/src/main/c/execute-as-user.c /usr/local/program/azkaban/azkaban-exec-server-0.1.0-SNAPSHOT/plugins/jobtypes

Generate execute-as-user

cd azkaban-exec-server-0.1.0-SNAPSHOT/plugins/jobtypes

[[email protected] jobtypes]# yum -y install gcc-c++

[[email protected] jobtypes]# gcc execute-as-user.c -o execute-as-user
[[email protected] jobtypes]# ls
commonprivate.properties  execute-as-user  execute-as-user.c

[[email protected] jobtypes]# chown root execute‐as‐user

[[email protected] jobtypes]# chmod 6050 execute-as-user

[[email protected] jobtypes]# ll
 Total usage  24
-rw-rw-r-- 1 root root    44 5 month   31 2019 commonprivate.properties
---Sr-s--- 1 root root 13536 3 month   12 15:33 execute-as-user
-rw-r--r-- 1 root root  3976 3 month   12 15:30 execute-as-user.c

Modify the configuration file

vim commonprivate.properties

# set execute-as-user
execute.as.user=false
#  Memory detection is off
memCheck.enabled=false
#  Specify the plug-in storage directory
azkaban.native.lib=/usr/local/program/azkaban/azkaban-exec-server-0.1.0-SNAPSHOT/plugins/jobtypes

Start the service

start-up azkaban exec server

cd azkaban-exec-server-0.1.0-SNAPSHOT

bin/start-exec.sh


[[email protected] azkaban-src]# jps
24655 AzkabanExecutorServer


#  When azkaban-exec-server-0.1.0-SNAPSHOT Appear under directory executor.port file , Indicating successful startup
[[email protected] azkaban-exec-server-0.1.0-SNAPSHOT]# ls
bin  conf  currentpid  executions  executor.port  executorServerLog__2022-03-12+15:57:50.out  lib  logs  plugins  projects  temp

Activate exec-server

[[email protected] azkaban-exec-server-0.1.0-SNAPSHOT]# curl -G "node01:$(<./executor.port)/executor?action=activate" && echo
{
    "status":"success"}

start-up azkaban-web-server

cd azkaban-web-server-0.1.0-SNAPSHOT/

bin/start-web.sh

[[email protected] azkaban-src]# jps
11146 AzkabanWebServer

visit Web

Browser access IP:8443

Be careful ： Release port or Turn off firewall

systemctl stop firewalld.service

Use tests

take Single service mode Job Upload resources for testing

Task submission and execution

Command type

1. A single Job Use

1. establish  Job  Description file

2. take job Resource files are packaged into zip file

3. Create project and upload zip Compressed package

4. Start workflow flow, perform job

establish Job Description file vim test.job

type=command
command=echo "hello world"

2. many Job Use

1. Create multiple dependencies job describe

2. Will all job Type a resource file to zip In bag

3. Create project and upload zip Compressed package

4. Start workflow flow, perform job

establish Job Description file vim test1.job

type=command
command=echo "test1 hello world"

establish Job Description file vim test2.job

type=command
command=echo "test2 hello world"
dependencies=test1

After uploading, the dependency is displayed during execution

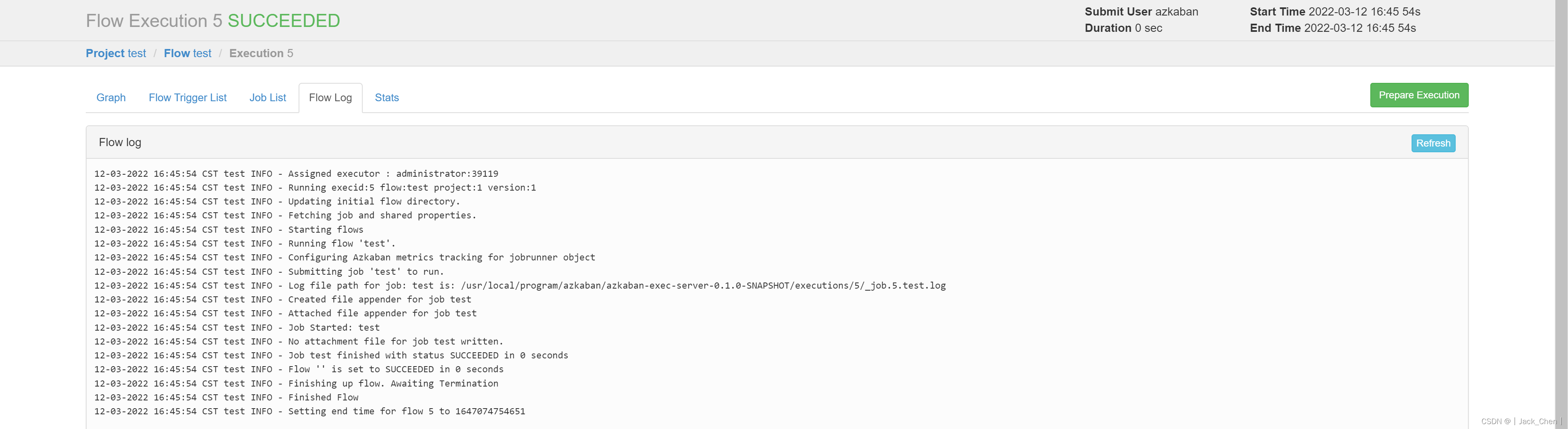

Execution process and results

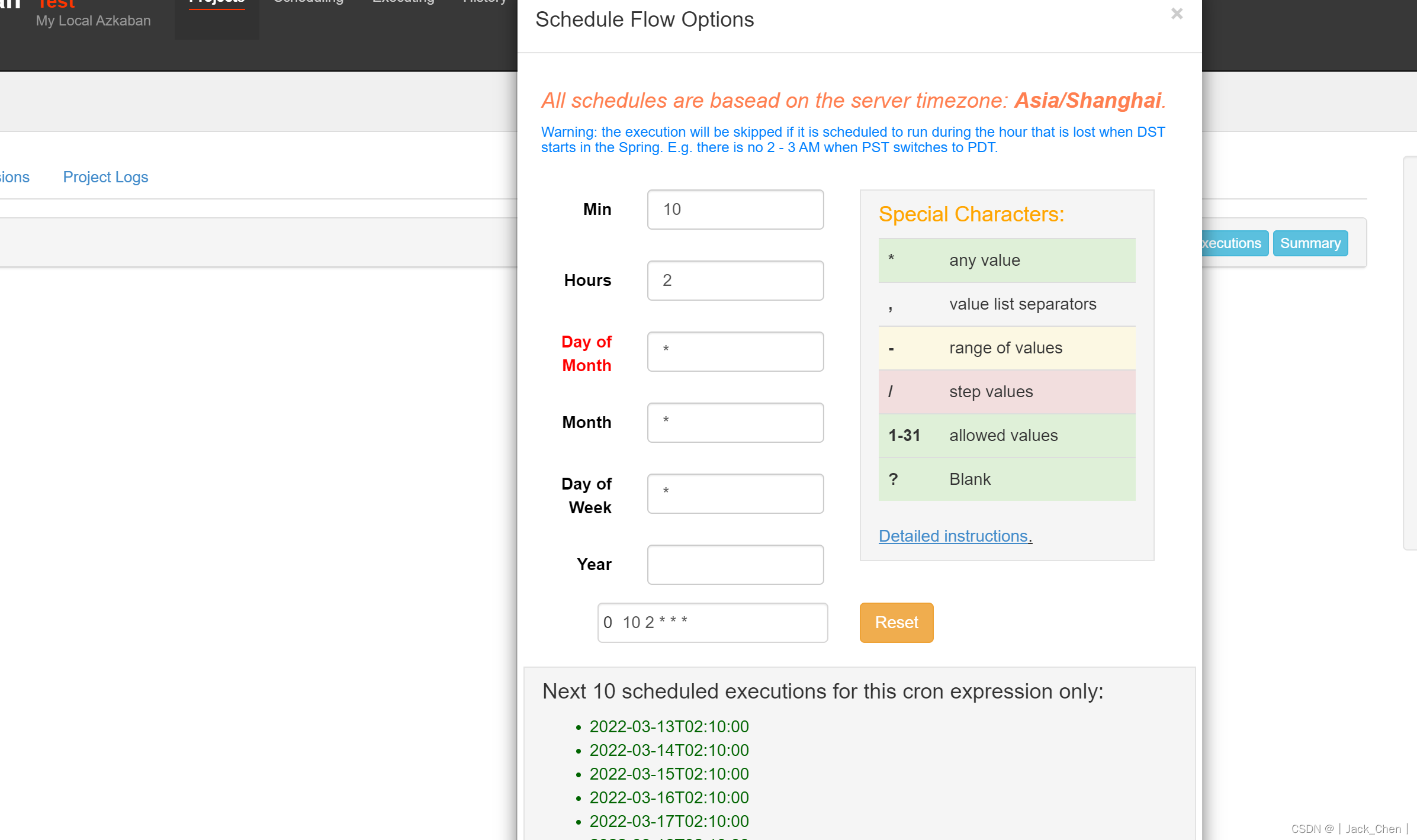

Timing task

Azkaban Of scheduler This function can realize the regular scheduling of job tasks

HDFS Operational tasks

1. establish job Description file

2. take job Resource files are packaged into zip file

3. establish project And upload job Compressed package

4. Start execution of the job

vim hdfs.job

type=command
command=/usr/local/program/hadoop/bin/hdfs dfs -mkdir /azkaban

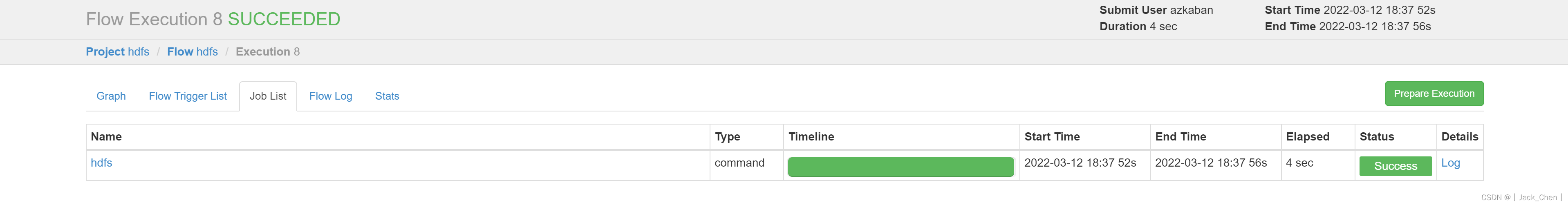

View after execution HDFS

[[email protected] hadoop]# hdfs dfs -ls /
Found 6 items
drwxr-xr-x   - root supergroup          0 2022-03-12 18:37 /azkaban

MapReduce Mission

1. download /usr/local/program/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-3.3.2.jar file

2. establish job Description file vim mr.job

type=command
command=/usr/local/program/hadoop/bin/hadoop jar hadoop-mapreduce-examples-3.3.2.jar pi 3 5

3. Will all job Resource file ( vim mr.job、hadoop-mapreduce-examples-3.3.2.jar) Call one zip In the compressed package

4. Create project and upload zip package , start-up job

Hive Script task

1. Get ready Hive Script ： hive.sql

create database if not exists dbazkaban;
use dbazkaban;
create table if not exists tbazkaban(id string,name string) row format
delimited fields terminated by '\t';

2. establish job Description file hive.job

type=command
command=/usr/local/program/hive/bin/hive -f 'hive.sql'

3. Will all job Type a resource file to zip In bag

4. Create project and upload zip package , start-up job
