Add anti debugging function to game or code (application level)

Preface ：

thank ： Yidao cloud College tiger The teacher guides ：

Commissioning is divided into ： Open a debug process and debug an existing process .

DebugByCreate Called when true CreateProcess() Function to open a debug process , When DebugByCreate Called when false DebugActiveProcess(dwPID) Function to debug an existing program .

One 、 call CreateProcess() Function to open a debug process ：

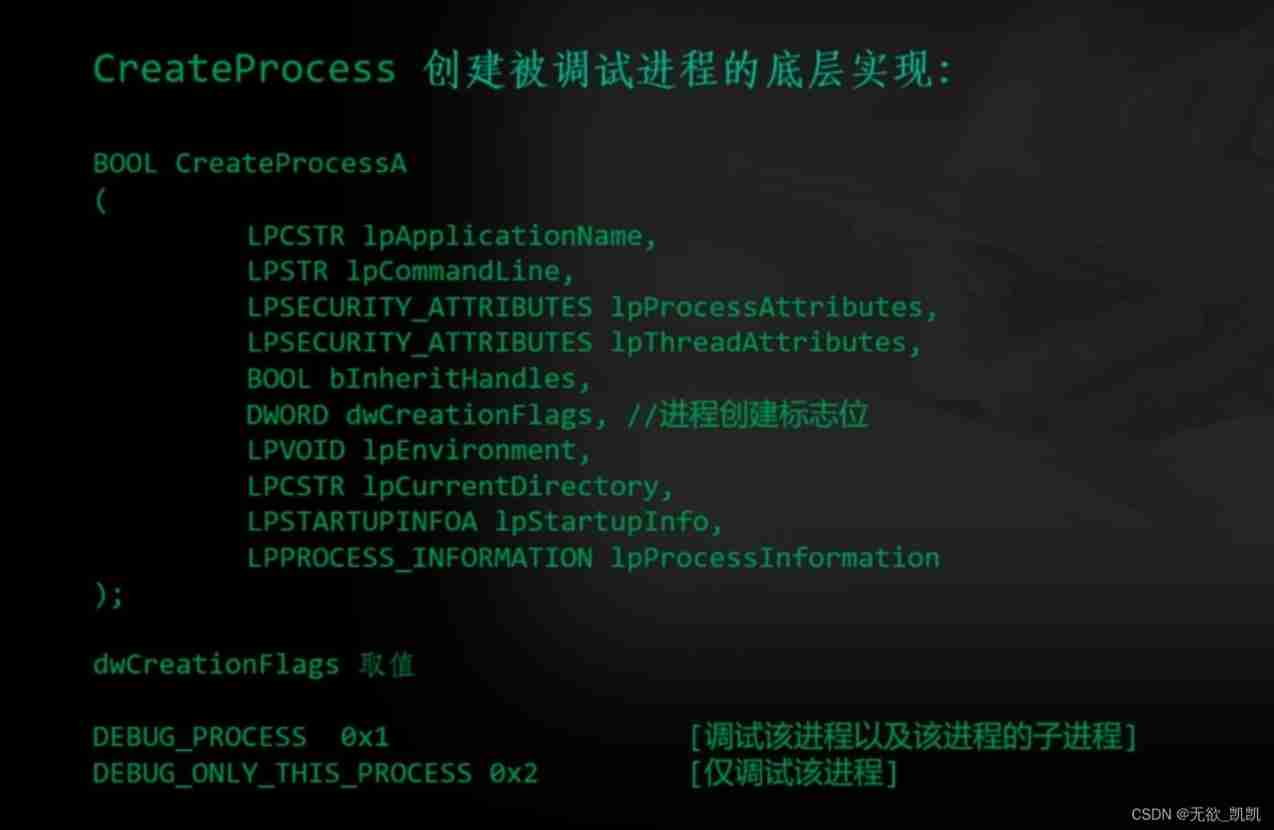

call CreateProcess() The function actually calls at the bottom ：

Two 、 call DebugActiveProcess(dwPID) Function to debug an existing program

  summary ：

A process is debugged , In kernel state EPROCESS Structural DebugProt It must not be for 0, In user mode PEB Structural BeinDebuged It must not be for 0.

NT TP Equal drive anti debugging principle ：

  Use open mode to debug ：

        Driver de debugging can be performed in NTCreateProcess() Set callback function at , If it is found that the process of creating debugging is the process to be protected, the function will return failure .

When debugging an existing process

         Drive de debugging can take over NtOpenProcess When the function finds that it is the process it wants to protect, it directly returns failure , You can also break every subsequent step to realize the complexity of skipping anti debugging .

Because to establish a debugging relationship, you must put DebugPort And DEBUG_OBJECT Association , Then you can put DebugPort Is set to 0, It can also realize de debugging .

Implement de debugging at the user level

One 、 Setting the main thread as hidden debugging destroys the debugging channel

Use windows Unpublished function implementation this function is located in ntdll Implementation code ：

typedef NTSTATUS(NTAPI* zwsetImformationThreadPtr)(DWORD, DWORD, DWORD, DWORD); // The function prototype

auto hNtDll=LoadLibrary("ntdll.dll"); // Load support module

if(hNtDll)

{

zwsetImformationThreadPtr  zwsetImformationThread;                                        zwsetImformationThread=(zwsetImformationThreadPtr)GetProcAddress(hNtDll,"zwsetImformationThread")

zwsetImformationThread((DWORD)GetCurrentThread(),0x11,0x0,0x0);// The first parameter is passed into the current thread , Second, the parameters 0X11 This means that the current thread is set to hide debugging

}

Implementation logic ：

Debugger debugging program , The next breakpoint is actually written at the breakpoint int3, Then the process will break down and be handled by the debugger , We can use this function to make the current thread in non debug mode . When the debugger drops a breakpoint, it will still write at the breakpoint int3, But because we have set the current thread to no debug mode , So when the program gets here, it will crash , Realize the common function of de debugging .

Implement debugging and detection in the user layer

One 、 adopt BeinDebuged Check if it has been debugged                                                                                                     Through the user mode PEB Structural BeinDebuged It must not be for 0. We only test PEB Structural BeinDebuged Is it 0 It can detect whether the current program is debugged .                                                                        Get by assembly PEB structure ：                                                                                                           because TEB The structure address is stored in FS In the segment register .                                                                                          typedef struct _TEB { PVOID Reserved1[12]; PPEB ProcessEnvironmentBlock; PVOID Reserved2[399]; BYTE Reserved3[1952]; PVOID TlsSlots[64]; BYTE Reserved4[8]; PVOID Reserved5[26]; PVOID ReservedForOle; PVOID Reserved6[4]; PVOID TlsExpansionSlots; } TEB, *PTEB;  TEB Prototypes of structures .

You can see TEB Structure offset 48 This is just PEB Structure pointer ,48 The hexadecimal of is 0X30 So we can write the following assembly to achieve the acquisition PEB structure

PPEB _peb;

_asm                                                                                                                                                  { mov eax,fs:[0x30]     // obtain PEB Pointer address                                                                                             mov _peb,eax          // Pass the address to the variable _peb                                                                                    }

And then determine _peb->BeingDebugged  Whether bit 0 Debugging and detection can be realized .

adopt API Function to obtain BeingDebugged Value ：

CheckRemoteDebuggerPresent（）：

IsDebuggerPresent();

Detect through the above two functions , The specific use of the function will not be introduced .

Two 、 Check whether it is debugged through kernel information

typedef NTSTATUS(NTAPI* NtQueryInformationProcessPtr)(HANDLE, DWORD, PVOID,ULONG, PULONG);

Use this function , This function is unpublished by Microsoft You need to import .

auto hNtdll = LoadLibrary(L"ntdll.dll");                                                                  NtQueryInformationProcess = (NtQueryInformationProcessPtr)GetProcAddress(hNtdll, "NtQueryInformationProcess");

Then the first parameter of this function needs to be passed in the current thread handle , The second parameter is the three values we need to know ：

 0x07 : take debugport value .   debugport !=0 Is being debugged                                                                 0x01E： take debugobject value     debugobject !=0 Is being debugged                                                          0x01F: take debugflages value ,debugflages=0 Is being debugged

test method ：

、DWORD debug_port = 0;
    NtQueryInformationProcess(proce, 0x07, &debug_port, sizeof(debug_port), 0x0);
    if (debug_port)return TRUE;
    HANDLE debug_object = 0;
    NtQueryInformationProcess(proce, 0x01E, &debug_object, sizeof(debug_object), 0x0);
    if (debug_object)return TRUE;
    BOOL debug_flages = 1;
    NtQueryInformationProcess(proce, 0x01F, &debug_flages, sizeof(debug_flages), 0x0);
    if (!debug_flages)return TRUE;
    return FALSE;
