Aruba learning notes 06 wireless control AC basic configuration (CLI)

2022-07-24 09:06:00 【51CTO】

Aruba Learning notes 06- Wireless control AC Basic configuration （CLI）_CLI Sign in 、 Controller foundation 、 The network configuration

Lord To learn Source of material : http://www.cnblogs.com/yaoyaojcy/ And Huawei official website

Boot configuration


        When the wireless controller just started , There is no configuration , Initialization configuration is required to manage .

 Through the wireless controller console The port is connected to the wireless controller , Start the wireless controller , Enter the following initial configuration interface to complete the initial configuration ：

Enter System name [Aruba7200]: Aruba-master

Enter VLAN 1 interface IP address [172.16.0.254]: 172.18.x.x      ----- Set up AC  ip Address

Enter VLAN 1 interface subnet mask [255.255.255.0]: 255.255.255.0    ----- Set subnet mask

Enter IP Default gateway [none]:

Enter Switch Role, (master|local) [master]: master     ----- Set up AC role , master perhaps local

Enter Country code (ISO-3166), <ctrl-I> for supported list: CN       ----- Set the country code    China

You have chosen Country code GB for United Kingdom (yes|no)?: yes

Enter Time Zone [PST-8:0]: GMT-0:0      ----- Set time zone

Enter Time in GMT [14:27:05]: 14:27:05

Enter Date (MM/DD/YYYY) [2/20/2016]: 1/15/2018

Enter Password for admin login (up to 32 chars): admin     ----- Set the administrator user name and password

Re-type Password for admin login: admin

Enter Password for enable mode (up to 15 chars): enable     ----- Set whether to enable enable password

Re-type Password for enable mode: ******

Do you wish to shutdown all the ports (yes|no)? [no]: yes

Current choices are:     Display the current selection or configuration

System name: Aruba_master

VLAN 1 interface IP address: 172.18.x.x

VLAN 1 interface subnet mask: 255.255.255.0

IP Default gateway: none

Switch Role: master

Time Zone: GMT-0:0

Ports shutdown: no

If you accept the changes the switch will restart!

Type <ctrl-P> to go back and change answer for any question

Do you wish to accept the changes (yes|no)yes

Creating configuration... Done.

System will now restart!

 After the initialization configuration is complete , The device will restart

 After restart, enter the following configuration interface , Log in with the user name and password just initialized .

(Aruba_master)

User: admin

Password: *****

(Aruba-master) >enable

Password:******

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.

1. Administrator login (admin/saic_admin)：

1.1 Cli land

Baud Rate： 9600
Data Bits ：8
Parity ：None
Stop Bits： 1
Flow Control： None


       1 User: admin

Password: *****

(Aruba7200) >en

Password:******

(Aruba7200) #configure termail

Enter Configuration commands, one per line. End with CNTL/Z








1.2 Management account password modification

#mgmt-user <username> <role>


       1 (Aruba7200) (config) #mgmt-user admin root

Password:*****

Re-Type password:*****





(Aruba7200) (config) #

enable Password change ：


       (Aruba7200) (config) #enable secret

Password:******

Re-Type password:******

1.
2.
3.

1.3 Web land

If AC To enable the web Login rights , You can go through ： https://<Controller’s IP address> land AC

2. Basic configuration of controller

2.1 The controller returns to factory settings

write erase Just delete the configuration file
write erase all The profile will be deleted 、 Controller internal database and license, Reset the controller to the factory state .

important ：
Back up the controller before restoring factory settings License.


       1 (Aruba7200) #write erase

All the configuration will be deleted. Press 'y' to proceed :

Write Erase successful

(Aruba7200) #write erase all

Switch will be factory defaulted. All the configuration and databases will be deleted. Press 'y' to proceed :

(Aruba7200) #

(Aruba7200) #

(Aruba7200) #reload

Do you really want to reset the system(y/n): y

System will now restart!














2.2 Check the controller serial number and ArubaOS Mirror image

show inventory

Aruba Learning notes 06- Wireless control AC Basic configuration （CLI）_CLI Sign in 、 Controller foundation 、 The network configuration _02

show boot

Aruba Learning notes 06- Wireless control AC Basic configuration （CLI）_CLI Sign in 、 Controller foundation 、 The network configuration _03

2.3 Controller upgrade os

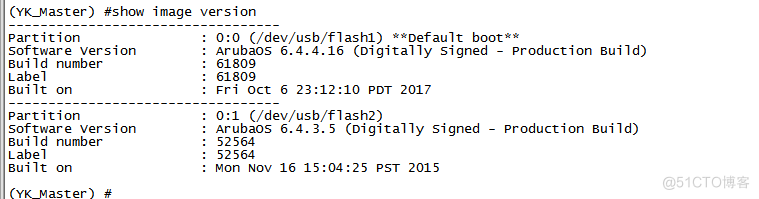

2.3.1 View the current controller version ：

Aruba Learning notes 06- Wireless control AC Basic configuration （CLI）_CLI Sign in 、 Controller foundation 、 The network configuration _04

System flash There are two partition To hold OS image file , It can store two different versions OS.
The currently running version is in **Default boot** Mark . When upgrading, you need to select partition, After the upgrade is completed, restart the controller automatically with the latest upgraded partition start-up .

Upgrade support ftp and tftp, It is recommended to use tftp.

2.3.2 Upload a new version OS File to controller


       1 (YK_Master) #copy tftp: 172.18.x.x ArubaOS_6xx_6.4.5.1_32786 system: partition 1

Copying file:.................................................................................................................................................

File copied successfully.

Saving file to flash:

.....................................................................................................................................................................................................

The system will boot from partition 1 during the next reboot.








2.3.3 Restart controller


       1 (YK_Master) #reload（ notes ： After the controller restarts, it will run with a new version ）

1.

2.4 license license Import

Can pass web Interface add
You can add... From the command line


       (Aruba650) # license add xkPyoagm-ums1pGzf-hoVpMq2L-ckPetlSp-ZED6PCqq-jTU

 The limit for Access Points has been constrained to the platform limit [64]

1.
2.

Aruba Learning notes 06- Wireless control AC Basic configuration （CLI）_CLI Sign in 、 Controller foundation 、 The network configuration _05

Be careful ： Flags If the position shows ER, It means that you need to restart , The license can take effect .

2.5 Configure backup and recovery

stay AC Backup configuration files on
use TFTP The server backs up the configuration file

2.5.1 see file

Aruba Learning notes 06- Wireless control AC Basic configuration （CLI）_CLI Sign in 、 Controller foundation 、 The network configuration _06

2.5.2 stay AC Backup configuration files on

① Configure backup


       1 (YK_Master) #copy running-config flash: default.cfg_writemem_2017-12-29_10-07-11 ## Back up the current configuration file

(YK_Master) #copy startup-config flash: default.cfg_writemem_2017-12-29_10-07-11_01 ## Back up the saved configuration file

(YK_Master) #copy flash: default.cfg flash: default.cfg_writemem_2017-12-29_10-07-11_03.cfg ## Back up the default load file





② Backup recovery


       1 (YK_Master) # copy flash: default.cfg_writemem_2017-12-29_10-07-11_03.cfg flash: default.cfg ## Restore configuration

1.

③ Restart controller
3. use TFTP The server backs up the configuration file
① Upload files


       1 (YK_Master) # copy flash: default.cfg_writemem_2017-12-29_10-07-11_03.cfg tftp: 172.18.x.x config.tx

1.

② Download the file


       1 (YK_Master) # copy tftp: 172.18.x.x config.txt flash:default.cfg_writemem_2017-12-29_10-07-11_03.cfg ## from TFTP Download to flash

(YK_Master) # copy flash:default.cfg_writemem_2017-12-29_10-07-11_03.cfg flash: default.cfg ## Cover the original default.cfg




③ Restart controller


       1 (YK_Master) # reload

1.

3. The network configuration

1. The network configuration VLAN 、IP address


       1 (YK_Master) # configure terminal

(YK_Master) (config) #vlan 10    ## establish VLAN

(YK_Master) (config) #interface vlan 10

(YK_Master) (config-subif)#ip address 172.18.x.x 255.255.255.0

(YK_Master) (config-subif)#description Wlan-User-10   ##VLAN describe

(YK_Master) (config-subif)#operstate up   ## permanent enable, Even if it's time to VLAN No port up.

(YK_Master) (config-subif)#ip helper-address 172.18.50.20  ## To configure DHCP relay

(YK_Master) (config-subif)#exit










2. port port To configure

2.1 trunk Pattern


       1 (YK_Master) (config) #interface gigabitethernet 1/4

(YK_Master) (config-if)#description link-core

(YK_Master) (config-if)#switchport mode trunk

(YK_Master) (config-if)#switchport trunk allowed vlan 1,10

(YK_Master) (config-if)#switchport trunk native vlan 1

(YK_Master) (config-if)#speed 1000

(YK_Master) (config-if)#duplex full

(YK_Master) (config-if)#no shutdown

(YK_Master) (config-if)#exit











2.2 access Pattern


       1 (YK_Master) (config) #interface range gigabitethernet 1/5-7  ## Define a set of ports

(YK_Master) (config-if)#description link-AP

(YK_Master) (config-range) # switchport mode access

(YK_Master) (config-range) #switchport access vlan 10

(YK_Master) (config-range) #no shutdown

(YK_Master) (config-range) #exit








3. IP route Routing settings

3.1 Configure static routing


       1 (YK_Master) #configure terminal

(YK_Master) (config) #ip route 172.18.100.0 255.255.255.0 172.18.2.254 10  ## Last 10 Is metric , When multiple static routes of the same target network , The smaller the value , Priority and higher




3.2 Configure the default route


       1 (YK_Master) #configure terminal

(YK_Master) (config) # ip default-gateway 172.18.0.0




4. IP dhcp


       1 (YK_Master) # configure terminal

(YK_Master) (config) #service dhcp     ## Turn on DHCP

(YK_Master) (config) #ip dhcp excluded-address 172.18.70.200 172.18.70.254 ##   Configure exclusion address

(YK_Master) (config) #ip dhcp pool user-vlan-10    ## Set up the address pool

(YK_Master) (config) #network 172.18.70.0 255.255.255.0     ## Related to VLAN

(YK_Master) (config) #default-router 172.18.70.1      ## Default gateway

(YK_Master) (config) #dns-server 172.18.50.20 255.255.255.0    ##DNS The server

(YK_Master) (config-dhcp)#option 43 ip 172.18.70.250      ##option43

(YK_Master) (config-dhcp)#option 60 text ArubaAP      ##option60

(YK_Master) (config) #lease 0 8 0       ##  Lease time   God | Hours | branch












To configure option problem ：

In by AC+Fit AP In the network composed of ,AC Through and with Fit AP The establishment of a CAPWAP Tunnel control and management AP, In establishment CAPWAP Before the tunnel ,AP The first thing to discover is AC.

if AC And AP There is a two-layer network , In the process of going online ,AP Will send Discovery Request Automatic discovery of broadcast messages AC, And then through AC Responsive Discovery Response Select a message to be associated AC establish CAPWAP Tunnel .

But when AC And AP When there is a three-layer network ,AP Cannot be found by broadcast AC, Need to pass through DHCP Configuration on the server DHCP Carried in the response message Option 43 Information discovery AC：

①AP adopt DHCP Server obtain IP Address and Option 43 attribute .
②AP adopt Option 43 Get the information in AC The address of
③AP By getting AC IP Address , towards AC Send unicast discovery request .
④ Receiving the discovery request message AC Will check that AP Whether you have access to this machine , If yes, respond and find the response .
⑤AP and AC Information exchange , establish CAPWAP Tunnel .

5. VLAN pool Set up

VLAN-Name The function is used to realize the sharing of the same configuration between different controllers , namely SSID Not directly with VLAN-ID mapping , But with VLAN-Name mapping ,VLAN-Name And then connect with the VLAN-ID mapping , It can greatly simplify the system configuration .

To configure VLAN-Name ： (YK_Master) (config) #vlan-name <name> [pool] [hash|even]

stay vlan-name and vlan-id Mapping between ： (YK_Master)(config) #vlan <name> <id>

see VLAN The mapping relationship ： (YK_Master)) #show vlan mapping
