Deploy grafana to realize graphical monitoring

2022-06-28 22:10:00 【Hejing_ zhang】

Grafana Is an open source measurement analysis and visualization tool , By analyzing the collected data 、 Inquire about , And then it's visually displayed , And can realize the alarm .

1. Use grafana Connect prometheus

Select the version you want to download

https://grafana.com/grafana/download/5.4.3?edition=oss

systemctl start grafana-server
systemctl enable grafana-server
netstat -ntulp | grep 3000

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-IziBGTN8-1644918977560)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215172032423.png)]$

2. Browser access http://ip:3000

Use default account admin password admin

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-VPKYbU2U-1644918977561)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215172127161.png)]$

3. Add data sources

hold prometheus The collected data is added to as a data source grafana

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-UHVN3GzW-1644918977562)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215172332050.png)]$

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-LJKw2ebv-1644918977563)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215172404847.png)]$

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-G5GRp2U3-1644918977563)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215172730134.png)]$

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-S2pAeJ46-1644918977564)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215172823997.png)]$

4. Add a graphical display for the data source

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-2iNPQs5b-1644918977564)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215172940325.png)]$

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-aUpRck92-1644918977565)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215173007139.png)]$

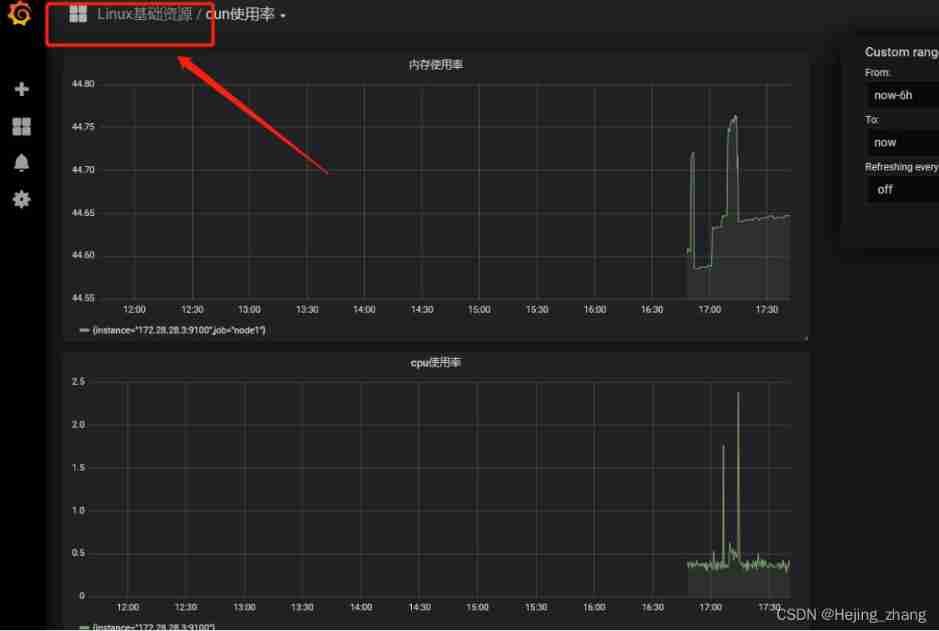

fill CPU Utilization rate promQL sentence , After a while, you can see that the chart has data

100 - avg(irate(node_cpu_seconds_total{mode="idle"}[5m])) by(instance)*100

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-xoWB6z0p-1644918977565)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215173243605.png)]$

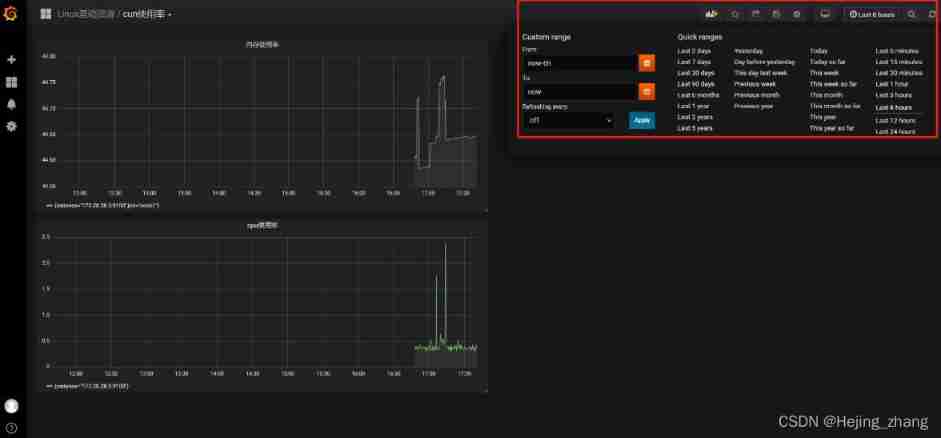

The time range can be viewed on the right in the figure below

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-Cc1dsAR8-1644918977566)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215174259063.png)]$

5. Import official dashboard

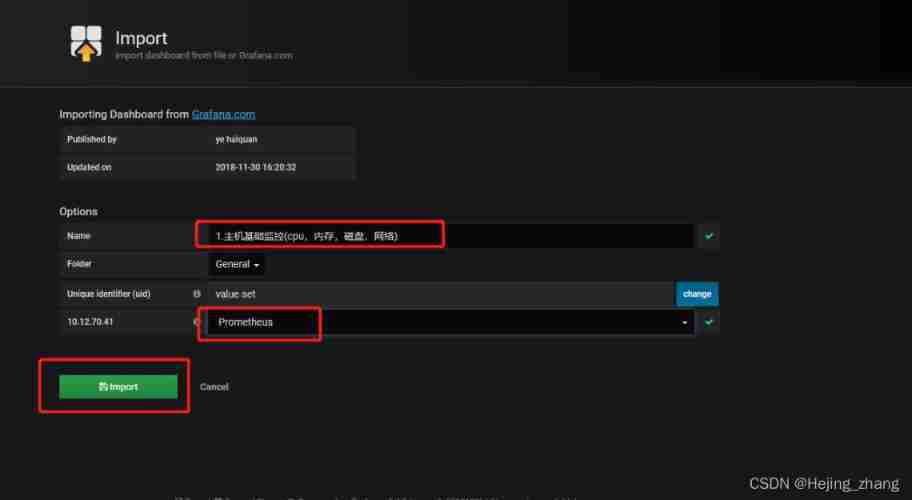

Import online

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-5wtMssE8-1644918977566)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215174430304.png)]$

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-sMg1FMBB-1644918977566)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215174447734.png)]$

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-xeV3nJse-1644918977567)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215174511834.png)]$

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-hDd0sxR2-1644918977567)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215174556574.png)]$

Hi Tech pictures on stage

$[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-kmMqQJvF-1644918977568)(C:\Users\hejing\AppData\Roaming\Typora\typora-user-images\image-20220215174705625.png)]$
