Preface

• Combo box （ComboBox） Used to display a set of optional values , For example, in serial communication Port mouth , Baud rate , You can select one of the known options through combo boxes
• Demonstrate hardware and software environment Windows11 x64 ; CANoe 11 SP2 x64


---

Combo box （ComboBox）

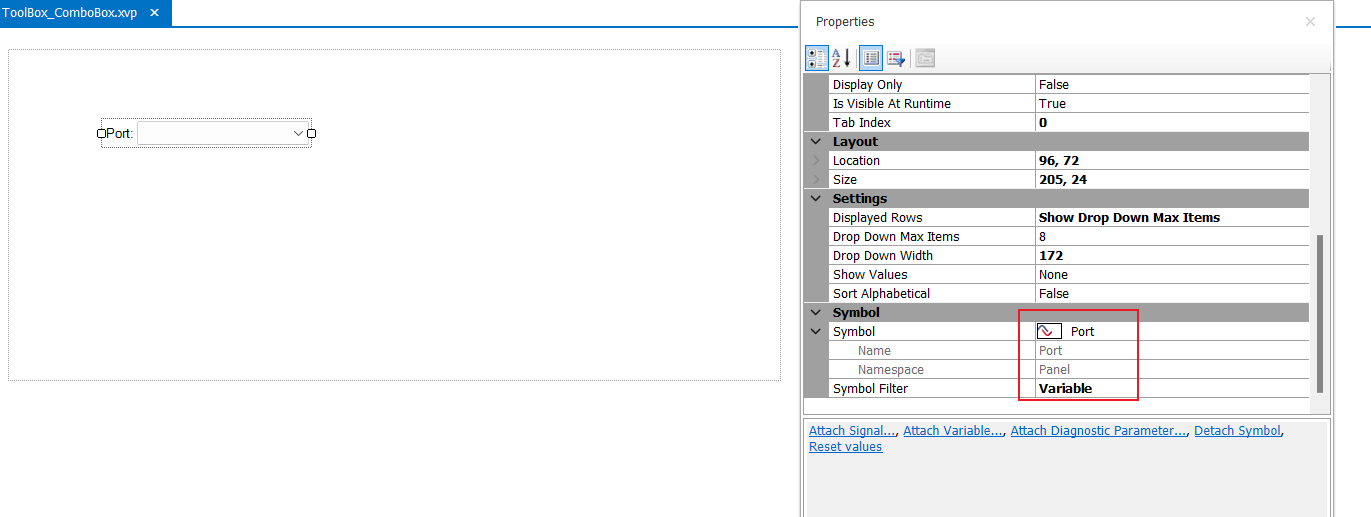

1️⃣ Combo box （ComboBox） Need to bind first symbol To set other properties , And they need symbol Set up value table Talent , because Combo box （ComboBox） It cannot be input by itself , You can only display and select from the drop-down .

---

2️⃣ System variables created Port Attribute configuration Value Table

---

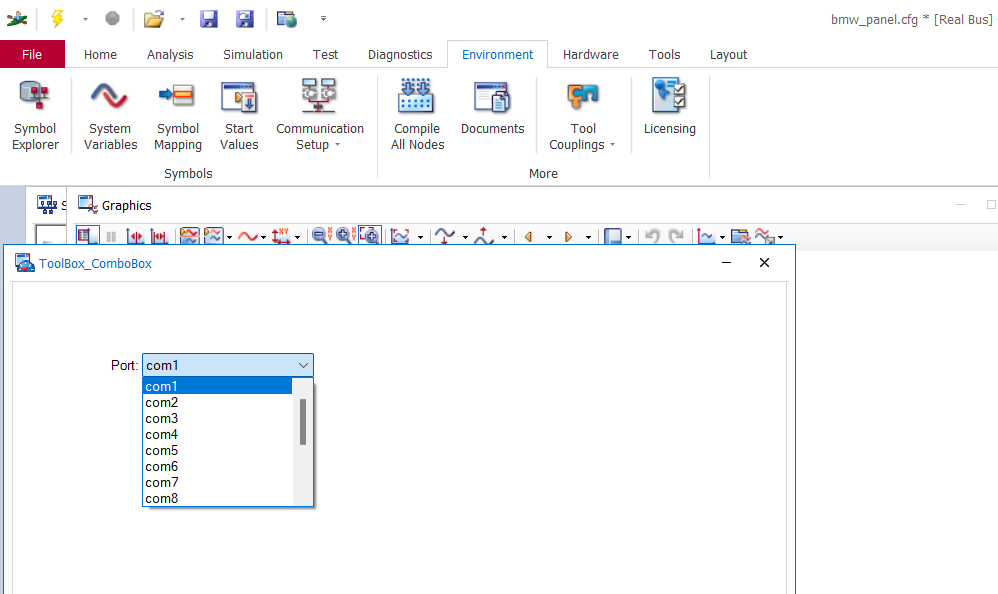

3️⃣ The binding symbol after , We are canoe Environment , You can see the set value .

---

Main property settings

Drop down list style

• There are three options ：Drop Down List ,Simple list ,Flat Drop Down List Choose the default Drop Down List Just fine , The other two are not good-looking


---

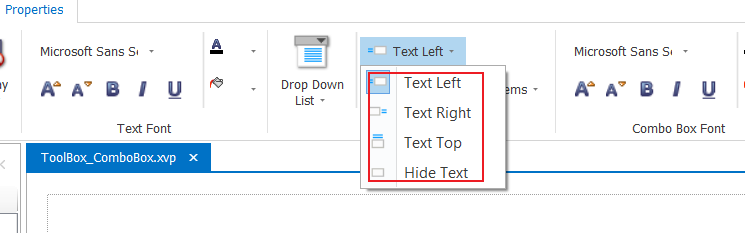

Text location

• The position of the text relative to the control , There's nothing to say , Mainly speaking Hide Text,

• Sometimes multiple combo boxes , We want to treat it better , We can put the combo box itself Text to hide fall , And then use static text Control

---

When expanding , Number of visible options

• Set to 8 , Only display 8 individual , Show all by default

---

Font and color settings in the combo box

• Here's the picture , On the left is the setting of text font and color ; On the right is the setting ComboBox The control of




summary

• It needs to be used in the demonstration demo engineering , You can follow the official account online disk below to get it by yourself , Thank you for reading .
