51 single chip microcomputer learning notes 7 -- Ultrasonic Ranging

1. ultrasonic

Bats and some marine animals can use high-frequency sound for echolocation or information exchange . They can send out ultrasonic waves from the throat through the mouth or nasal cavity , Use the folded sound wave to orient , And determine the position of nearby objects 、 Size and whether it is moving . Ultrasound is a frequency higher than 20000 Hertz sound wave , It has good directionality , Strong penetration , It is easy to obtain more concentrated sound energy , Spread far in the water , It can be used for ranging 、 velocity measurement 、 cleaning 、 welding 、 Gravel 、 Sterilization, disinfection, etc . In medicine 、 military 、 Industry 、 There are many applications in agriculture . Ultrasound is named because its lower frequency limit is greater than the upper limit of human hearing . Scientists call the number of vibrations per second the frequency of sound , It's in Hertz (Hz). The frequency of sound waves that we human ears can hear is 20Hz-20000Hz. therefore , We put the frequency higher than 20000 Hertz sound waves are called “ ultrasonic ”. The ultrasonic frequency commonly used in medical diagnosis is 1 Megahertz -30 Megahertz . Theoretical research shows that , With the same amplitude , The vibration energy of a body is proportional to the vibration frequency , When ultrasonic wave propagates in medium , The frequency of medium particle vibration is very high , So the energy is very large . In the dry winter in northern China , If the ultrasonic wave is introduced into the water tank , The violent vibration will break the water in the tank into many small droplets , Then use a small fan to blow the fog drops into the room , Can increase indoor air humidity , This is the principle of ultrasonic humidifier . Such as pharyngitis 、 Tracheitis and other diseases , It is difficult to use the blood flow to make the medicine reach the diseased area , Using the principle of humidifier , Atomize the liquid medicine , Let the patient inhale , It can improve the curative effect . Using the huge energy of ultrasonic wave can also make the stones in human body vibrate violently and break , So as to alleviate the pain , To achieve the goal of healing . Ultrasound is widely used in medicine , It can sterilize the articles .

2. Ultrasonic module

2.1 Module parameters

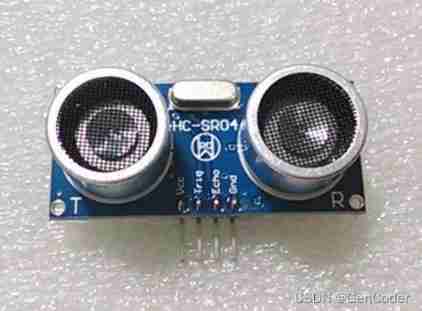

The commonly used ultrasonic module in ultrasonic experiment is 4 Needlelike SR04, Also have 5 Ultrasonic module of needle

Main technical parameters
1： Use voltage ：DC—5V
2： Quiescent current ： Less than 2mA
3： Level output ： high 5V
4： Level output ： At the end of 0V
5： Sensing angle ： No more than 15 degree
6： Detection distance ：2cm - 450cm
7: High precision Can be up to 0.2cm
8: Wiring way （ Above, from left to right ）：VCC、Trig（ Control terminal ）、Echo（ The receiver ）、 GND

2.2 Module schematic diagram

2.3 Ultrasonic potential difference ranging

The interface between ultrasonic sensor and single chip microcomputer system constitutes the hardware system of distance detection , Under the control of the system software , A trigger pulse sent by the single chip microcomputer to the potential difference ultrasonic sensor , The potential difference ultrasonic sensor will generate a short pulse after being triggered by this pulse 40 kHz Pulse electrical signal , this 40 kHz After the pulse electrical signal is processed by the excitation transducer , To convert energy into mechanical vibration , Its vibration frequency is about 20 kHz above , Thus, ultrasonic wave is formed , The signal is tapered " Radiant port " Place the ultrasonic signal in the air at about... Per second 1 130 At a speed of feet .

When the emitted ultrasonic signal encounters an obstacle , Immediately reflected back . The receiver receives the reflected ultrasonic signal , Through its internal transformation , Turn ultrasonic waves into weak electrical oscillations , And amplify the signal , The required pulse signal can be obtained , This pulse signal is returned to the single chip microcomputer , Indicates that the echo is detected , This pulse width corresponds to the time required for the burst echo to return to the sensor , The timing is shown in the figure .

2.4 Module features

HC-SR04 The ultrasonic ranging module has the advantages of accurate ranging distance , Energy and harmony SRF05,SRF02 And so on , Measuring distance 2cm ~ 450cm （ Actually measured ：6cm ~ 330cm）.
working principle
1） use IO Trigger ranging , Give at least 10us High level signal .
2） Automatic module sending 8 individual 40KHz The square wave , Automatically detects if a signal is returned .
3） Return with signal , Through the module IO Output high level , The duration of high level is the time from emission to return of ultrasonic wave . Just provide one 10uS The above pulse trigger signal , The module will emit 8 individual 40kHz Cycle level and detect echo . Once the echo signal is detected, the echo signal is output . The pulse width of the echo signal is proportional to the distance measured . Thus, the distance can be calculated by the time interval between the transmitted signal and the received echo signal .
The formula ：

uS/58= centimeter
or uS/148= Inch
or distance = High level time * The speed of sound （340M/S） /2

The recommended measurement period is 60ms above , To prevent the influence of the transmitted signal on the echo signal .

1、 This module is not suitable for live connection , To make a live connection , Let's start with the module GND Connect the end first , Otherwise, the normal operation of the module will be affected .
2、 When ranging , The area of the object to be measured is not less than 05 Square meters and the plane shall be flat as far as possible , Otherwise, the measurement results will be affected .

3. Ultrasonic ranging programming

According to the ultrasonic sequence diagram , send out 10us Trigger trigger signal , And record the time interval of the echo signal

unsigned int RunOnce()
{

	unsigned int time;

	//10us High level sends trigger signal
	Trig = 0;
	Trig = 1;
	Delay10us();
	Trig = 0;

	// Wait for the high level signal to be received
	while(!Echo);

	//T0 clear 0 Recount （ High level duration ）
	TH0 = 0;
	TL0 = 0;
	TR0 = 1;

	// Wait for the end of high-level signal reception
	while(Echo);

	// close T0 Count
	TR0 = 0;

	// The assignment time is high , Company us
	time = TH0*256 + TL0;	// TH0<<8 | TL0
	TH0 = 0;
	TL0 = 0;

	return time;
}

10us Time delay timer for 0 To complete （ Timer 0 For configuration details, see Timer interrupt ）

//  Time delay 10us
void Delay10us()
{

	TMOD |= 0x01;	//16 Bit timer / Counter ,TH0、TH1 All use
	TH0 = 0xFF;
	TL0 = 0xF6;
	TR0 = 1;		//TR0 by 1 Time allowed T0 Start counting

	while(!TF0);	// When T0 Exit on overflow while

	TF0 = 0;		//TF0 Set up 0
}

Convert the time interval of ultrasonic echo signal into distance

float GetDistance(unsigned int time)
{

	float distance;
	distance = (float)time * 0.017;  //cm

	return distance;
}

stay main Function to make function calls , complete demo as follows

#include<reg52.h>
#include<intrins.h>

sbit Trig = P0^0;
sbit Echo = P0^1;

// Millisecond delay function
void delay_ms(unsigned int t)
{

    unsigned char i, j, z;

	for(z = t;z>0;z--)
	{

		_nop_();
		i = 2;
		j = 199;
		do
		{

			while (--j);
		} while (--i);
	}
}

//  Time delay 10us
void Delay10us()
{

	TMOD |= 0x01;	//16 Bit timer / Counter ,TH0、TH1 All use
	TH0 = 0xFF;
	TL0 = 0xF6;
	TR0 = 1;		//TR0 by 1 Time allowed T0 Start counting

	while(!TF0);	// When T0 Exit on overflow while

	TF0 = 0;		//TF0 Set up 0
}

float GetDistance(unsigned int time)
{

	float distance;
	distance = (float)time * 0.017;  //cm

	return distance;
}

unsigned int RunOnce()
{

	unsigned int time;

	//10us High level sends trigger signal
	Trig = 0;
	Trig = 1;
	Delay10us();
	Trig = 0;

	// Wait for the high level signal to be received
	while(!Echo);

	//T0 clear 0 Recount （ High level duration ）
	TH0 = 0;
	TL0 = 0;
	TR0 = 1;

	// Wait for the end of high-level signal reception
	while(Echo);

	// close T0 Count
	TR0 = 0;

	// The assignment time is high , Company us
	time = TH0*256 + TL0;	// TH0<<8 | TL0
	TH0 = 0;
	TL0 = 0;

	return time;
}

void main()
{

	unsigned int time = 0;
	float distance;

	while(1)
	{

		time = RunOnce();  // When calculating ultrasonic ranging   Time when the sensor receives high level
		distance = GetDistance(time);

	}
}

3.1 ultrasonic + Running water lamp

Use the running water lamp to light up a number “ Show ” Ultrasonic distance

#include<reg52.h>
#include<intrins.h>

sbit Trig = P0^0;
sbit Echo = P0^1;

// Millisecond delay function
void delay_ms(unsigned int t)
{

    unsigned char i, j, z;

	for(z = t;z>0;z--)
	{

		_nop_();
		i = 2;
		j = 199;
		do
		{

			while (--j);
		} while (--i);
	}
}

//  Time delay 10us
void Delay10us()
{

	TMOD |= 0x01;	//16 Bit timer / Counter ,TH0、TH1 All use
	TH0 = 0xFF;
	TL0 = 0xF6;
	TR0 = 1;		//TR0 by 1 Time allowed T0 Start counting

	while(!TF0);	// When T0 Exit on overflow while

	TF0 = 0;		//TF0 Set up 0
}

float GetDistance(unsigned int time)
{

	float distance;
	distance = (float)time * 0.017;

	return distance;
}

unsigned int RunOnce()
{

	unsigned int time;

	//10us High level sends trigger signal
	Trig = 0;
	Trig = 1;
	Delay10us();
	Trig = 0;

	// Wait for the high level signal to be received
	while(!Echo);

	//T0 clear 0 Recount （ High level duration ）
	TH0 = 0;
	TL0 = 0;
	TR0 = 1;

	// Wait for the end of high-level signal reception
	while(Echo);

	// close T0 Count
	TR0 = 0;

	// The assignment time is high , Company us
	time = TH0*256 + TL0;	// TH0<<8 | TL0
	TH0 = 0;
	TL0 = 0;

	return time;
}

void RunLED(unsigned int LEDnum)
{

	unsigned int RunNum = LEDnum;
	switch(RunNum){

		case 0:
				P1 = 0x00;
				delay_ms(20);
				P1 = 0xff;
				delay_ms(20);
				break;
		case 1:	P1 = 0xfe;
				break;
		case 2:	P1 = 0xfc;
				break;
		case 3:	P1 = 0xf8;
				break;
		case 4:	P1 = 0xf0;
				break;
		case 5:	P1 = 0xe0;
				break;
		case 6:	P1 = 0xc0;
				break;
		case 7:	P1 = 0x80;
				break;
		case 8:	P1 = 0x00;
				break;
		default:
				P1 = 0x00;
				break;
	}
}

void main()
{

	unsigned int time = 0;
	float distance;

	while(1)
	{

		time = RunOnce();
		distance = GetDistance(time);
		RunLED((int)(distance/10));
	}
}

3.2 ultrasonic + Buzzer

Make the buzzer call out different frequencies according to different ultrasonic intervals

#include<reg52.h>
#include<intrins.h>

#define ON 0
#define OFF 1

sbit Trig = P0^0;
sbit Echo = P0^1;

// Millisecond delay function
void delay_ms(unsigned int t)
{

    unsigned char i, j, z;

	for(z = t;z>0;z--)
	{

		_nop_();
		i = 2;
		j = 199;
		do
		{

			while (--j);
		} while (--i);
	}
}

//  Time delay 10us
void Delay10us()
{

	TMOD |= 0x01;	//16 Bit timer / Counter ,TH0、TH1 All use
	TH0 = 0xFF;
	TL0 = 0xF6;
	TR0 = 1;		//TR0 by 1 Time allowed T0 Start counting

	while(!TF0);	// When T0 Exit on overflow while

	TF0 = 0;		//TF0 Set up 0
}

float GetDistance(unsigned int time)
{

	float distance;
	distance = (float)time * 0.017;

	return distance;
}

unsigned int RunOnce()
{

	unsigned int time;

	//10us High level sends trigger signal
	Trig = 0;
	Trig = 1;
	Delay10us();
	Trig = 0;

	// Wait for the high level signal to be received
	while(!Echo);

	//T0 clear 0 Recount （ High level duration ）
	TH0 = 0;
	TL0 = 0;
	TR0 = 1;

	// Wait for the end of high-level signal reception
	while(Echo);

	// close T0 Count
	TR0 = 0;

	// The assignment time is high , Company us
	time = TH0*256 + TL0;	// TH0<<8 | TL0
	TH0 = 0;
	TL0 = 0;

	return time;
}

void main()
{

	unsigned int time = 0;
	float distance;

	while(1)
	{

		time = RunOnce();
		distance = GetDistance(time);

		if(distance <= 10.0){

			BUZZER = ON;
			delay_ms(50);
			BUZZER = OFF;
			delay_ms(50);
		}
		else if((10.0 < distance) && (distance <= 20.0)){

			BUZZER = ON;
			delay_ms(100);
			BUZZER = OFF;
			delay_ms(100);
		}
		else if((20.0 < distance) && (distance <= 50.0)){

			BUZZER = ON;
			delay_ms(160);
			BUZZER = OFF;
			delay_ms(160);
		}
	}
}
