Source code analysis of object wait notify notifyAll

Java in Object Class Wait Notify NotifyAll Source code is as follows ：

/** *  Thread waiting  * @param var1  millisecond  * @param var3  nanosecond  */
    public final void wait(long var1, int var3) throws InterruptedException {

        if (var1 < 0L) {

            throw new IllegalArgumentException("timeout value is negative");
        } else if (var3 >= 0 && var3 <= 999999) {

            // nanosecond >0, Millisecond direct ++
            if (var3 > 0) {

                ++var1;
            }
            // call native Method
            this.wait(var1);
        } else {

            throw new IllegalArgumentException("nanosecond timeout value out of range");
        }
    }

    /** * native Method thread waits  */
    public final native void wait(long var1) throws InterruptedException;
    /** * native Method a single thread wakes up  */
    public final native void notify();
    /** * native Method wakes up all threads in the waiting pool  */
    public final native void notifyAll();

Conditions before parsing the source code ：

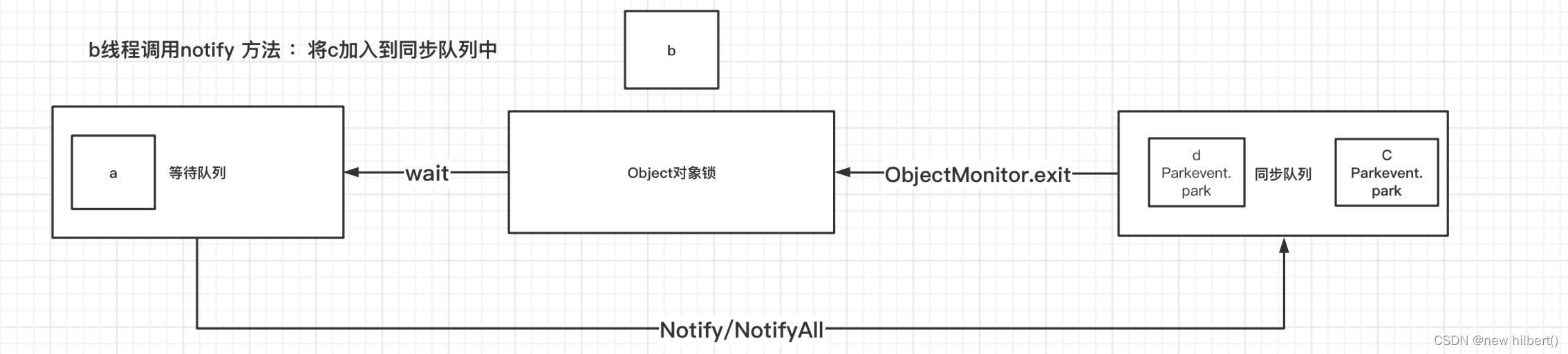

Object lock ObjectMonitor There are two kinds of queues: waiting queue and synchronization queue

wait Method ：

Thread waiting , Give up the object lock , Join the wait queue , Then enter park, Wait for other threads to release the lock unpark

synchronized (a) {
    a.wait();
}

Equivalent to

moniter.enter // Get object lock
{
    1. Determine if the lock exists
    2. Judge the interrupt state
    3. establish node  Join in   Waiting in line
    4.moniter.exit( According to different strategies , Get the header node thread from the synchronization queue a, Then execute the thread a Of event.unpark  Wake up mechanism )
    5. This thread executes event.park  Wait for another thread to wake up
    6. Judge whether the wake-up is interrupted , Do you need to throw an exception
}
moniter.exit // Release the lock , Wake up the next object in the synchronization queue

1. CHECK_OWNER Determine if the lock exists , Throw the exception if it doesn't exist . No addition Synchronize Words , Will throw out IllegalMonitorStateException

#define CHECK_OWNER()
 do {
    if (THREAD != _owner) {
      if (THREAD->is_lock_owned((address) _owner)) {
        _owner = THREAD ;  /* Convert from basiclock addr to Thread addr */
        _recursions = 0;
        OwnerIsThread = 1 ;
      } else {
        TEVENT (Throw IMSX) ;
        THROW(vmSymbols::java_lang_IllegalMonitorStateException());
      }
    }
  } while (false)

2. call is_interrupted() Determine and clear thread interrupt status , If the interrupt status is true, Throw an interrupt exception and end

// call is_interrupted() Determine and clear thread interrupt status , If the interrupt status is true, Throw an interrupt exception and end
   if (interruptible && Thread::is_interrupted(Self, true) && !HAS_PENDING_EXCEPTION) {
     ...
     TEVENT (Wait - Throw IEX) ;
     THROW(vmSymbols::java_lang_InterruptedException());
     return ;
   }

3. Use spin lock to create a node Put in queue

   Thread::SpinAcquire (&_WaitSetLock, "WaitSet - add")
   AddWaiter (&node)
   Thread::SpinRelease (&_WaitSetLock)

4. Exit monitor exit (Self)

    intptr_t save = _recursions; //  Record the number of old recursions
   _waiters++;                  // waiters  Self increasing
   _recursions = 0;             //  Set up  recursion level to be 1
   exit (Self) ;                //  Exit monitor

5. utilize parkEvent.park Method block wait signal reminder

if (millis <= 0) {
            //  call park() Method to block threads
            Self->_ParkEvent->park () ;
         } else {
            //  call park() Method blocks the thread during the timeout
            ret = Self->_ParkEvent->park (millis) ;
         }

6. Determine whether to interrupt , By parkEvent.unpark Wake up and judge interrupt Sponsored , still notify Sponsored

if (!WasNotified) {
     if (interruptible && Thread::is_interrupted(Self, true) && !HAS_PENDING_EXCEPTION) {
       TEVENT (Wait - throw IEX from epilog) ;
       THROW(vmSymbols::java_lang_InterruptedException());
     }
   }

wait The essence is to call ObjectMonitor Of wait Method

void ObjectMonitor::wait(jlong millis, bool interruptible, TRAPS) {
   Thread * const Self = THREAD ;
   assert(Self->is_Java_thread(), "Must be Java thread!");
   JavaThread *jt = (JavaThread *)THREAD;

   DeferredInitialize () ;

   // Throw IMSX or IEX.
   CHECK_OWNER();

   // call is_interrupted() Determine and clear thread interrupt status , If the interrupt status is true, Throw an interrupt exception and end
   if (interruptible && Thread::is_interrupted(Self, true) && !HAS_PENDING_EXCEPTION) {
     //post monitor waited event
     // Note that this is the past tense , It's over
     if (JvmtiExport::should_post_monitor_waited()) {
        // Be careful ： Pass the parameters here 'false', This is because the thread is interrupted , The wait will not time out
        JvmtiExport::post_monitor_waited(jt, this, false);
     }
     TEVENT (Wait - Throw IEX) ;
     THROW(vmSymbols::java_lang_InterruptedException());
     return ;
   }
   TEVENT (Wait) ;

   assert (Self->_Stalled == 0, "invariant") ;
   Self->_Stalled = intptr_t(this) ;
   jt->set_current_waiting_monitor(this);

   // create a node to be put into the queue
   // Critically, after we reset() the event but prior to park(), we must check
   // for a pending interrupt.

   // Create a node Put in queue
   // The key is , stay reset() after , But in park() Before , You must check for pending interrupts
   ObjectWaiter node(Self);
   node.TState = ObjectWaiter::TS_WAIT ;
   Self->_ParkEvent->reset() ;
   OrderAccess::fence();

   // In this case, the waiting queue is a circular two-way linked list , But it can also be a priority queue or any data structure .
   //_WaitSetLock Protect the waiting queue .
   // Usually , The wait queue can only be used by the monitor *except* Owner access , But in park() It is also possible to return due to interrupt timeout .
   // The competition is very small , So use a spin lock instead of a heavyweight blocking lock .
   Thread::SpinAcquire (&_WaitSetLock, "WaitSet - add") ;
   AddWaiter (&node) ;
   Thread::SpinRelease (&_WaitSetLock) ;

   if ((SyncFlags & 4) == 0) {
      _Responsible = NULL ;
   }
   intptr_t save = _recursions; //  Record the number of old recursions
   _waiters++;                  // waiters  Self increasing
   _recursions = 0;             //  Set up  recursion level to be 1
   exit (Self) ;                //  Exit monitor
   guarantee (_owner != Self, "invariant") ;

   // Once on top exit() Deleted... In the call ObjectMonitor The ownership of the ,
   // Another thread can enter ObjectMonitor, perform notify() and exit() Object monitor .
   // If another thread exit() Call to select this thread as a successor , And this thread is publishing MONITOR_CONTENDED_EXIT Occurs when unpark() call ,
   // Then we use RawMonitors Operational event risk handling , And use unpark().
   // To avoid this problem , We re released the event , Even if the original unpark(),
   // It won't do any harm , Because a successor has been chosen for this monitor .
   if (node._notified != 0 && _succ == Self) {
      node._event->unpark();
   }

   // The thread is on the WaitSet list - now park() it.
   // On MP systems it's conceivable that a brief spin before we park
   // could be profitable.
   //
   // TODO-FIXME: change the following logic to a loop of the form
   //   while (!timeout && !interrupted && _notified == 0) park()

   int ret = OS_OK ;
   int WasNotified = 0 ;
   { // State transition wrappers
     OSThread* osthread = Self->osthread();
     OSThreadWaitState osts(osthread, true);
     {
       ThreadBlockInVM tbivm(jt);
       // Thread is in thread_blocked state and oop access is unsafe.
       // Thread is blocked , also oop Access is not secure
       jt->set_suspend_equivalent();

       if (interruptible && (Thread::is_interrupted(THREAD, false) || HAS_PENDING_EXCEPTION)) {
           // Intentionally empty  Empty processing
       } else
       if (node._notified == 0) {
         if (millis <= 0) {
            //  call park() Method to block threads
            Self->_ParkEvent->park () ;
         } else {
            //  call park() Method blocks the thread during the timeout
            ret = Self->_ParkEvent->park (millis) ;
         }
       }

       // were we externally suspended while we were waiting?
       if (ExitSuspendEquivalent (jt)) {
          // TODO-FIXME: add -- if succ == Self then succ = null.
          jt->java_suspend_self();
       }

     } // Exit thread safepoint: transition _thread_blocked -> _thread_in_vm

     // When the thread is not waiting on the queue , Use double check locking to avoid getting _WaitSetLock
     if (node.TState == ObjectWaiter::TS_WAIT) {
         Thread::SpinAcquire (&_WaitSetLock, "WaitSet - unlink") ;
         if (node.TState == ObjectWaiter::TS_WAIT) {
            DequeueSpecificWaiter (&node) ;       // unlink from WaitSet
            assert(node._notified == 0, "invariant");
            node.TState = ObjectWaiter::TS_RUN ;
         }
         Thread::SpinRelease (&_WaitSetLock) ;
     }

     // From the perspective of this thread ,Node's TState It is stable. ,
     // No other thread can modify... Asynchronously TState
     guarantee (node.TState != ObjectWaiter::TS_WAIT, "invariant") ;
     OrderAccess::loadload() ;
     if (_succ == Self) _succ = NULL ;
     WasNotified = node._notified ;

     // Reentry phase -- reacquire the monitor.
     // re-enter contended( competition ) monitor after object.wait().
     // retain OBJECT_WAIT state until re-enter successfully completes
     // Thread state is thread_in_vm and oop access is again safe,
     // although the raw address of the object may have changed.
     // (Don't cache naked oops over safepoints, of course).

     // post monitor waited event.
     // Note that this is the past tense , It's over
     if (JvmtiExport::should_post_monitor_waited()) {
       JvmtiExport::post_monitor_waited(jt, this, ret == OS_TIMEOUT);
     }
     OrderAccess::fence() ;

     assert (Self->_Stalled != 0, "invariant") ;
     Self->_Stalled = 0 ;

     assert (_owner != Self, "invariant") ;
     ObjectWaiter::TStates v = node.TState ;
     if (v == ObjectWaiter::TS_RUN) {
         enter (Self) ;
     } else {
         guarantee (v == ObjectWaiter::TS_ENTER || v == ObjectWaiter::TS_CXQ, "invariant") ;
         ReenterI (Self, &node) ;
         node.wait_reenter_end(this);
     }

     // Self has reacquired the lock.
     // Lifecycle - the node representing Self must not appear on any queues.
     // Node is about to go out-of-scope, but even if it were immortal( For a long time ) we wouldn't
     // want residual( Residual ) elements associated with this thread left on any lists.
     guarantee (node.TState == ObjectWaiter::TS_RUN, "invariant") ;
     assert    (_owner == Self, "invariant") ;
     assert    (_succ != Self , "invariant") ;
   } // OSThreadWaitState()

   jt->set_current_waiting_monitor(NULL);

   guarantee (_recursions == 0, "invariant") ;
   _recursions = save;     // restore the old recursion count
   _waiters--;             // decrement the number of waiters

   // Verify a few postconditions
   assert (_owner == Self       , "invariant") ;
   assert (_succ  != Self       , "invariant") ;
   assert (((oop)(object()))->mark() == markOopDesc::encode(this), "invariant") ;

   if (SyncFlags & 32) {
      OrderAccess::fence() ;
   }

   // Check whether there is any notice notify happen
   //  from park() Method returned , Determine whether it is because the interrupt returns , Call again
   // thread::is_interrupted(Self, true) Determine and clear thread interrupt status
   //  If the interrupt status is true, Throw an interrupt exception and end .
   if (!WasNotified) {
     // no, it could be timeout or Thread.interrupt() or both
     // check for interrupt event, otherwise it is timeout
     if (interruptible && Thread::is_interrupted(Self, true) && !HAS_PENDING_EXCEPTION) {
       TEVENT (Wait - throw IEX from epilog) ;
       THROW(vmSymbols::java_lang_InterruptedException());
     }
   }
   // Be careful ： False wakeups will be considered timeout ; Monitor notifications take precedence over thread interrupts .
}

notify Method ： Get the first node from the waiting queue , Then join the synchronization queue , It has no function of releasing the lock itself , yes Synchroinzed Self provided （ important ）

synchronized (a) {
    a.notify();
}

amount to

moniter.enter // Get object lock
{
    1. Determine if the lock exists
    2. Get the first node from the waiting queue
    3. According to policy Add policy to cxq  perhaps entryList  Synchronous queue
}
moniter.exit // Release the lock , Wake up the next object in the synchronization queue

1. CHECK_OWNER Determine if the lock exists , Throw the exception if it doesn't exist . No addition Synchronize Words , Will throw out IllegalMonitorStateException

#define CHECK_OWNER()
 do {
    if (THREAD != _owner) {
      if (THREAD->is_lock_owned((address) _owner)) {
        _owner = THREAD ;  /* Convert from basiclock addr to Thread addr */
        _recursions = 0;
        OwnerIsThread = 1 ;
      } else {
        TEVENT (Throw IMSX) ;
        THROW(vmSymbols::java_lang_IllegalMonitorStateException());
      }
    }
  } while (false)

2. Take the first node from the waiting queue

   ObjectWaiter * iterator = DequeueWaiter() ;

3. According to the different policy, Add the node waiting for the column to the synchronization queue

  if (Policy == 0) {       // prepend( prepend ) to EntryList
         if (List == NULL) {
             iterator->_next = iterator->_prev = NULL ;
             _EntryList = iterator ;
         } else {
             List->_prev = iterator ;
             iterator->_next = List ;
             iterator->_prev = NULL ;
             _EntryList = iterator ;
        }
     }......

Notify The essence is to call ObjectMonitor Of notify Method

void ObjectMonitor::notify(TRAPS) {
  CHECK_OWNER();
  if (_WaitSet == NULL) {
     TEVENT (Empty-Notify) ;
     return ;
  }
  DTRACE_MONITOR_PROBE(notify, this, object(), THREAD);

  int Policy = Knob_MoveNotifyee ;

  Thread::SpinAcquire (&_WaitSetLock, "WaitSet - notify") ;
  ObjectWaiter * iterator = DequeueWaiter() ;
  if (iterator != NULL) {
     TEVENT (Notify1 - Transfer) ;
     guarantee (iterator->TState == ObjectWaiter::TS_WAIT, "invariant") ;
     guarantee (iterator->_notified == 0, "invariant") ;
     if (Policy != 4) {
        iterator->TState = ObjectWaiter::TS_ENTER ;
     }
     iterator->_notified = 1 ;

     ObjectWaiter * List = _EntryList ;
     if (List != NULL) {
        assert (List->_prev == NULL, "invariant") ;
        assert (List->TState == ObjectWaiter::TS_ENTER, "invariant") ;
        assert (List != iterator, "invariant") ;
     }

     if (Policy == 0) {       // prepend( prepend ) to EntryList
         if (List == NULL) {
             iterator->_next = iterator->_prev = NULL ;
             _EntryList = iterator ;
         } else {
             List->_prev = iterator ;
             iterator->_next = List ;
             iterator->_prev = NULL ;
             _EntryList = iterator ;
        }
     } else
     if (Policy == 1) {      // append( Really add ) to EntryList
         if (List == NULL) {
             iterator->_next = iterator->_prev = NULL ;
             _EntryList = iterator ;
         } else {
            // consider ： Get... Now EntryList Of tail You need to traverse the entire list
            // take tail The access is converted to CDLL Instead of using the current DLL, So that the access time is fixed .
            ObjectWaiter * Tail ;
            for (Tail = List ; Tail->_next != NULL ; Tail = Tail->_next) ;
            assert (Tail != NULL && Tail->_next == NULL, "invariant") ;
            Tail->_next = iterator ;
            iterator->_prev = Tail ;
            iterator->_next = NULL ;
        }
     } else
     if (Policy == 2) {      // prepend to cxq
         // prepend( prepend ) to cxq
         if (List == NULL) {
             iterator->_next = iterator->_prev = NULL ;
             _EntryList = iterator ;
         } else {
            iterator->TState = ObjectWaiter::TS_CXQ ;
            for (;;) {
                ObjectWaiter * Front = _cxq ;
                iterator->_next = Front ;
                if (Atomic::cmpxchg_ptr (iterator, &_cxq, Front) == Front) {
                    break ;
                }
            }
         }
     } else
     if (Policy == 3) {      // append( Really add ) to cxq
        iterator->TState = ObjectWaiter::TS_CXQ ;
        for (;;) {
            ObjectWaiter * Tail ;
            Tail = _cxq ;
            if (Tail == NULL) {
                iterator->_next = NULL ;
                if (Atomic::cmpxchg_ptr (iterator, &_cxq, NULL) == NULL) {
                   break ;
                }
            } else {
                while (Tail->_next != NULL) Tail = Tail->_next ;
                Tail->_next = iterator ;
                iterator->_prev = Tail ;
                iterator->_next = NULL ;
                break ;
            }
        }
     } else {
        ParkEvent * ev = iterator->_event ;
        iterator->TState = ObjectWaiter::TS_RUN ;
        OrderAccess::fence() ;
        ev->unpark() ;
     }

     if (Policy < 4) {
       iterator->wait_reenter_begin(this);
     }

     // _WaitSetLock protects the wait queue, not the EntryList.  We could
     // move the add-to-EntryList operation, above, outside the critical section
     // protected by _WaitSetLock.  In practice that's not useful.  With the
     // exception of  wait() timeouts and interrupts the monitor owner
     // is the only thread that grabs _WaitSetLock.  There's almost no contention
     // on _WaitSetLock so it's not profitable to reduce the length of the
     // critical section.
  }
  Thread::SpinRelease (&_WaitSetLock) ;
  if (iterator != NULL && ObjectMonitor::_sync_Notifications != NULL) {
     ObjectMonitor::_sync_Notifications->inc() ;
  }
}

notifyAll Method ： Follow Notify The method is similar to , Just use for loop Will wait for all nodes of the queue , Join the synchronization queue , It has no function of releasing the lock itself , yes Synchroinzed Self provided

void ObjectMonitor::notifyAll(TRAPS) {
  CHECK_OWNER();
  ObjectWaiter* iterator;
  if (_WaitSet == NULL) {
      TEVENT (Empty-NotifyAll) ;
      return ;
  }
  DTRACE_MONITOR_PROBE(notifyAll, this, object(), THREAD);

  int Policy = Knob_MoveNotifyee ;
  int Tally = 0 ;
  Thread::SpinAcquire (&_WaitSetLock, "WaitSet - notifyall") ;

  for (;;) {
     iterator = DequeueWaiter () ;
     if (iterator == NULL) break ;
     TEVENT (NotifyAll - Transfer1) ;
     ++Tally ;

     // Disposition - what might we do with iterator ?
     // a.  add it directly to the EntryList - either tail or head.
     // b.  push it onto the front of the _cxq.
     // For now we use (a).

     guarantee (iterator->TState == ObjectWaiter::TS_WAIT, "invariant") ;
     guarantee (iterator->_notified == 0, "invariant") ;
     iterator->_notified = 1 ;
     if (Policy != 4) {
        iterator->TState = ObjectWaiter::TS_ENTER ;
     }

     ObjectWaiter * List = _EntryList ;
     if (List != NULL) {
        assert (List->_prev == NULL, "invariant") ;
        assert (List->TState == ObjectWaiter::TS_ENTER, "invariant") ;
        assert (List != iterator, "invariant") ;
     }

     if (Policy == 0) {       // prepend to EntryList
         if (List == NULL) {
             iterator->_next = iterator->_prev = NULL ;
             _EntryList = iterator ;
         } else {
             List->_prev = iterator ;
             iterator->_next = List ;
             iterator->_prev = NULL ;
             _EntryList = iterator ;
        }
     } else
     if (Policy == 1) {      // append to EntryList
         if (List == NULL) {
             iterator->_next = iterator->_prev = NULL ;
             _EntryList = iterator ;
         } else {
            // CONSIDER:  finding the tail currently requires a linear-time walk of
            // the EntryList.  We can make tail access constant-time by converting to
            // a CDLL instead of using our current DLL.
            ObjectWaiter * Tail ;
            for (Tail = List ; Tail->_next != NULL ; Tail = Tail->_next) ;
            assert (Tail != NULL && Tail->_next == NULL, "invariant") ;
            Tail->_next = iterator ;
            iterator->_prev = Tail ;
            iterator->_next = NULL ;
        }
     } else
     if (Policy == 2) {      // prepend to cxq
         // prepend to cxq
         iterator->TState = ObjectWaiter::TS_CXQ ;
         for (;;) {
             ObjectWaiter * Front = _cxq ;
             iterator->_next = Front ;
             if (Atomic::cmpxchg_ptr (iterator, &_cxq, Front) == Front) {
                 break ;
             }
         }
     } else
     if (Policy == 3) {      // append to cxq
        iterator->TState = ObjectWaiter::TS_CXQ ;
        for (;;) {
            ObjectWaiter * Tail ;
            Tail = _cxq ;
            if (Tail == NULL) {
                iterator->_next = NULL ;
                if (Atomic::cmpxchg_ptr (iterator, &_cxq, NULL) == NULL) {
                   break ;
                }
            } else {
                while (Tail->_next != NULL) Tail = Tail->_next ;
                Tail->_next = iterator ;
                iterator->_prev = Tail ;
                iterator->_next = NULL ;
                break ;
            }
        }
     } else {
        ParkEvent * ev = iterator->_event ;
        iterator->TState = ObjectWaiter::TS_RUN ;
        OrderAccess::fence() ;
        ev->unpark() ;
     }

     if (Policy < 4) {
       iterator->wait_reenter_begin(this);
     }

     // _WaitSetLock protects the wait queue, not the EntryList.  We could
     // move the add-to-EntryList operation, above, outside the critical section
     // protected by _WaitSetLock.  In practice that's not useful.  With the
     // exception of  wait() timeouts and interrupts the monitor owner
     // is the only thread that grabs _WaitSetLock.  There's almost no contention
     // on _WaitSetLock so it's not profitable to reduce the length of the
     // critical section.
  }

  Thread::SpinRelease (&_WaitSetLock) ;

  if (Tally != 0 && ObjectMonitor::_sync_Notifications != NULL) {
     ObjectMonitor::_sync_Notifications->inc(Tally) ;
  }
}

problem 1：wait In the previous link ParkEvent.park Blocking waiting to wake up , however notify The essence is to add the nodes in the waiting queue to the synchronization queue nodes , But there are many nodes in the synchronization queue , Who will use it , Where was it called ParkEvent.unpark The wake-up thread continues to go down ？

problem 2：wait Method just exits the object lock . How does it give object locks to other threads , Because the transfer of this object lock only occurs in wait and notify In these two threads , There is no third party to coordinate , How object locks flow .

In fact, the essence is a problem ： How object locks are transferred ？

Key points ：wait The method itself called once ObjectMonitor.exit Method ,Synchronized The keyword itself has once ObjectMonitor.exit Method .

void ATTR ObjectMonitor::exit(TRAPS) {
	......
	// according to QMode  Policy from synchronization queue   Take out node
	if (QMode == 2 && _cxq != NULL) {
          // QMode == 2 : cxq has precedence over EntryList.
          // Try to directly wake a successor from the cxq.
          // If successful, the successor will need to unlink itself from cxq.
          w = _cxq ;
          assert (w != NULL, "invariant") ;
          assert (w->TState == ObjectWaiter::TS_CXQ, "Invariant") ;
          ExitEpilog (Self, w) ;
          return ;
      }

      if (QMode == 3 && _cxq != NULL) {
          // Aggressively drain cxq into EntryList at the first opportunity.
          // This policy ensure that recently-run threads live at the head of EntryList.
          // Drain _cxq into EntryList - bulk transfer.
          // First, detach _cxq.
          // The following loop is tantamount to: w = swap (&cxq, NULL)
          w = _cxq ;
          for (;;) {
             assert (w != NULL, "Invariant") ;
             ObjectWaiter * u = (ObjectWaiter *) Atomic::cmpxchg_ptr (NULL, &_cxq, w) ;
             if (u == w) break ;
             w = u ;
          }
          assert (w != NULL              , "invariant") ;

          ObjectWaiter * q = NULL ;
          ObjectWaiter * p ;
          for (p = w ; p != NULL ; p = p->_next) {
              guarantee (p->TState == ObjectWaiter::TS_CXQ, "Invariant") ;
              p->TState = ObjectWaiter::TS_ENTER ;
              p->_prev = q ;
              q = p ;
          }

          // Append the RATs to the EntryList
          // TODO: organize EntryList as a CDLL so we can locate the tail in constant-time.
          ObjectWaiter * Tail ;
          for (Tail = _EntryList ; Tail != NULL && Tail->_next != NULL ; Tail = Tail->_next) ;
          if (Tail == NULL) {
              _EntryList = w ;
          } else {
              Tail->_next = w ;
              w->_prev = Tail ;
          }

          // Fall thru into code that tries to wake a successor from EntryList
      }
	......
 	  w = _EntryList  ;
      if (w != NULL) {
          guarantee (w->TState == ObjectWaiter::TS_ENTER, "invariant") ;
          ExitEpilog (Self, w) ;
          return ;
      }
   }
}

The key point is to get the corresponding node and execute ExitEpilog Method , Wake up this is wait The node of

void ObjectMonitor::ExitEpilog (Thread * Self, ObjectWaiter * Wakee) {
{
   assert (_owner == Self, "invariant") ;

   ParkEvent * Trigger = Wakee->_event ;
	.... // Here is the corresponding wait  Method used ParkEvent.park
   Trigger->unpark() ; //unpark Wake up the wait Threads
    .....

   if (ObjectMonitor::_sync_Parks != NULL) {
      ObjectMonitor::_sync_Parks->inc() ;
   }
}

wait Method process

Notify Method process
