Use of observer mode and status mode in actual work

One . Scenario requirements

       Suppose the company now has a marketing campaign , User participation required , Complete a series of tasks , Finally, you can get some rewards in return .
       Now you need to design and implement the task model . It is necessary to focus on the flow change of status and the notification after status change .

Two . Preliminary analysis , Code writing

       Since it is a task , It must have its state , For example, initialization , complete , Overdue, etc . We can define an enumeration class for the task state .
       Then everyone should do their own task , It must also have its own current task status , In other words, different user behaviors will trigger different task states . So we also define an enumeration class for the user's behavior state .
Then we mainly write the state change function here .

The code is as follows :

Two enumeration classes defined by

@AllArgsConstructor
@Getter
enum TaskStatus{

    INIT(" initialization "),
    ONGOING(" Have in hand "),
    PAUSED(" Suspended "),
    FINISHED(" Completed "),
    EXPIRED(" Has expired ");
    private final String message;
}

@AllArgsConstructor
@Getter
enum ActionType{

    START(1," Start "),
    STOP(2," Pause "),
    ACHIEVE(3," complete "),
    EXPIRED(4," Be overdue ");
    private final int code;
    private final String message;
}

Status change function

public class Task {

    // Mission id
    private Long taskId;
    // The default status of tasks is initialization
    private TaskStatus taskStatus=TaskStatus.INIT;
    // External services on which the activity depends
    private ActivityService activityService;
    // Task manager
    private TaskManager taskManager;

    // Use conditional branches to update tasks
    public void updateStatus(ActionType actionType){

        // Task initialization status
        if(taskStatus == TaskStatus.INIT ){

            if(actionType == ActionType.START){

                taskStatus = TaskStatus.ONGOING;
            }
        // The task is in progress
        }else if(taskStatus ==  TaskStatus.ONGOING){

            if(actionType ==  ActionType.ACHIEVE){

                taskStatus = TaskStatus.FINISHED;
                // Notify the external service after the task is completed , You can give rewards
                activityService.notifyFinish();
                taskManager.release(taskId);
            }else if(actionType == ActionType.STOP){

                taskStatus = TaskStatus.PAUSED;
            }else if(actionType == ActionType.EXPIRED){

                taskStatus = TaskStatus.EXPIRED;
            }
        // The mission is suspended
        }else if(taskStatus == TaskStatus.PAUSED){

            if(actionType == ActionType.START){

                taskStatus = TaskStatus.ONGOING;
            }else if(actionType == ActionType.EXPIRED){

                taskStatus = TaskStatus.EXPIRED;
            }
        }


    }




}

In the above implementation , There are two important functions

1. Receive different behaviors , Then update the status of the current task
2. When the task is done , Notify the activity to which the task belongs and the task manager

indeed , The above code implements the most basic functions , But there are still many problems .

1. Not elegant enough , The above code uses many conditional statements , It's bloated , And it's not scalable , It's also very difficult to maintain , When there is a new status , We need to add if-else sentence , Against the principle of opening and closing .
2. The task class is not cohesive enough , It perceives specific models of other domains or modules in the notification implementation , Such as specific external services and task managers , The coupling of such code is too high , Not conducive to expansion

So how to optimize it ?

• These two problems can be optimized through design patterns , First of all, the flow control of status can use The state pattern , secondly , The notification after the task is completed can use Observer mode

3、 ... and . Use design patterns for optimization

1. The state pattern

According to the definition of state mode :
We put TaskState The enumeration class is extended to multiple state classes , And have the ability to complete the circulation of the State

// Task state abstract interface
public interface TaskStatus {


    // Default empty implementation , For subclasses to call or override
    default void update(Task task,ActionType actionType) {

        //do nothing
    }

}

// Initial state of the task
class TaskInit implements TaskStatus {

    @Override
    public void update(Task task, ActionType actionType) {

        if  (actionType == ActionType.START) {

            task.setTaskStatus(new TaskOngoing());
        }
    }
}

// Task progress status
class TaskOngoing implements TaskStatus {

    private ActivityService activityService;
    private TaskManager taskManager;
    private Long taskId;

    @Override
    public void update(Task task, ActionType actionType) {

        if (actionType == ActionType.ACHIEVE) {

            task.setTaskStatus(new TaskFinished());
            //  notice
            activityService.notifyFinish(taskId);
            taskManager.release(taskId);
        } else if (actionType == ActionType.STOP) {

            task.setTaskStatus(new TaskPaused());
        } else if (actionType == ActionType.EXPIRED) {

            task.setTaskStatus(new TaskExpired());
        }
    }
}

// The task is suspended
class TaskPaused implements TaskStatus {

    @Override
    public void update(Task task, ActionType actionType) {

        if (actionType == ActionType.START) {

            task.setTaskStatus(new TaskOngoing());
        } else if (actionType == ActionType.EXPIRED) {

            task.setTaskStatus(new TaskExpired());
        }
    }
}

//  Task completion status
class TaskFinished implements TaskStatus  {


}
//  Task expiration status
class TaskExpired implements TaskStatus {


}

@Data
public class Task {


    public Task(Long taskId, TaskStatus taskStatus) {

        this.taskId = taskId;
        this.taskStatus = taskStatus;
    }

    private Long taskId;
    // The task defaults to the initial state
    private TaskStatus taskStatus=new TaskInit();

    public void update(ActionType actionType){

        taskStatus.update(this,actionType);
    }

    // Test call
    public static void main(String[] args) {

        Task task = new Task(2343L, new TaskOngoing());
        task.update(ActionType.ACHIEVE);
    }

}
@AllArgsConstructor
@Getter
enum ActionType{

    START(1," Start "),
    STOP(2," Pause "),
    ACHIEVE(3," complete "),
    EXPIRED(4," Be overdue ");
    private final int code;
    private final String message;
}

       You can see , The coupling degree of task classes processed by state mode is reduced , Comply with opening and closing principle , The advantage of state mode is that it conforms to the principle of single responsibility , Clear state responsibilities , It's good for program expansion , But the cost of this design is that the number of state classes increases , Because the more complex the state flow logic is , The more actions you need to handle , The more conducive to the application of state mode . besides , The state class itself does not support the open close principle well enough , If the state flow logic changes frequently , Then it may be prudent to use .

Now? , According to Observer mode To optimize the notification when the task is completed :

2. Observer mode .

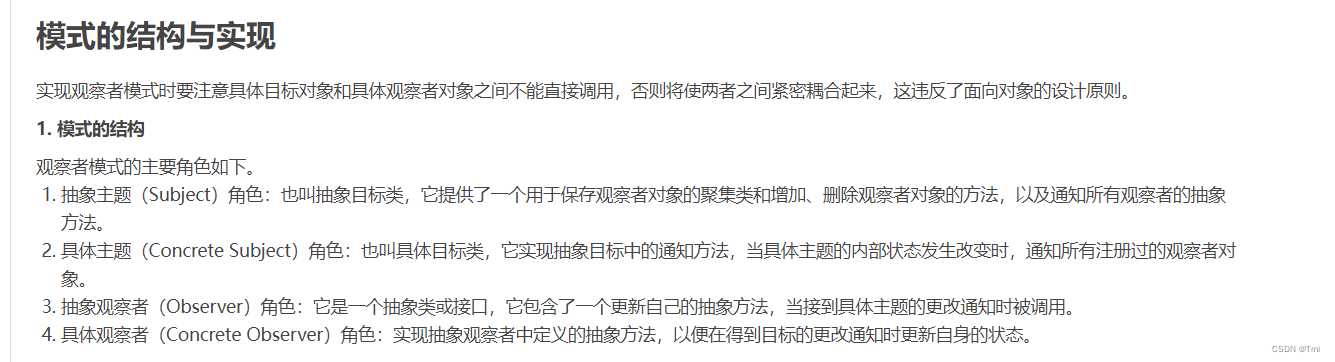

    When we use observer mode , Notified , The object of action is the observer . Generate news , The subject of the notice is
    So in this scenario , Notified Task Manager , External services are concrete observers , When the task status changes to end, you need to issue a notification , So the task status is the specific topic .

First design the abstract observer and the concrete observer

// Abstract observer
public interface Observer {

    void response(Long taskId);
}
// External service observers
class ActivityServiceObserver implements Observer {

    private ActivityService activityService;
    @Override
    public void response(Long taskId) {

        activityService.notifyFinish(taskId);
    }
};

// Task management observer
class TaskManagerObserver implements Observer {

    private TaskManager taskManager;
    @Override
    public void response(Long taskId) {

        taskManager.release(taskId);
    }
};

Define abstract topics and concrete topics , Here, the task progress status is taken as a specific topic .
At the same time, when the initial status of the task flows , Define the desired observer , And it optimizes the notification in the task status into a general notification method .

// Abstract themes
abstract class Subject {

    private  List<Observer> observers = new ArrayList<>();
    // Add observers
    public void addObserver(Observer observer){

        observers.add(observer);
    }
    // Delete observer
    public void deleteObserver(Observer observer){

        observers.remove(observer);
    }
    // Notify observer
    public void  notifyAll(Long taskId){

        observers.forEach(observer -> observer.response(taskId));
    }
}

/ Initial state of the task
class TaskInit implements TaskStatus {

    @Override
    public void update(Task task, ActionType actionType) {

        if  (actionType == ActionType.START) {

            TaskOngoing taskOngoing = new TaskOngoing();
            task.setTaskStatus(taskOngoing);
            // During task initialization , Put the observers of the required notifications into the collection
            taskOngoing.addObserver(new ActivityServiceObserver());
            taskOngoing.addObserver(new TaskManagerObserver());
        }
    }
}

// Task progress status , It is also a specific theme
class TaskOngoing extends Subject implements TaskStatus {

    private ActivityService activityService;
    private TaskManager taskManager;
    private Long taskId;

    @Override
    public void update(Task task, ActionType actionType) {

        if (actionType == ActionType.ACHIEVE) {

            task.setTaskStatus(new TaskFinished());
            // Notification using observer mode
            notifyAll(taskId);
        } else if (actionType == ActionType.STOP) {

            task.setTaskStatus(new TaskPaused());
        } else if (actionType == ActionType.EXPIRED) {

            task.setTaskStatus(new TaskExpired());
        }
    }
}

       Through the observer model , Let the task state be loosely coupled with the notifier （ In fact, the observer model has not been completely decoupled , If you want to do further decoupling, you can consider learning and using publishing - A subscription model , I won't go into details here ）.
       thus , We have successfully designed high cohesion using state patterns 、 High scalability 、 The entire state machine implementation of a single responsibility task , And achieve loose coupling 、 Notification method of task status change in accordance with the principle of dependency inversion .
       Actually , The only thing about design patterns is Find the change , Packaging changes
