Redis official visualization tool, with high appearance value and powerful functions!

source ：https://blog.csdn.net/weixin_46902396/article/details/120807629/

RedisInsight Is an intuitive and efficient Redis GUI Management tools , It can be to Redis Of memory 、 The number of connections 、 The hit rate and uptime are monitored , And can be used on the interface CLI And connected Redis Interact （RedisInsight Built in right Redis Module support ）.

Official Portal ：https://docs.redis.com/latest/ri/

RedisInsight Features provided ：

Unique support Redis Cluster Of GUI Tools ; Can be based on Browser Interface to search 、 View and edit data ; Support based on SSL/TLS The connection of , At the same time, you can also perform memory analysis on the interface ;

RedisInsight Installation and use

1. Physical installation

1） download RedisInsight software package ：https://redis.com/redis-enterprise/redis-insight/#insight-form

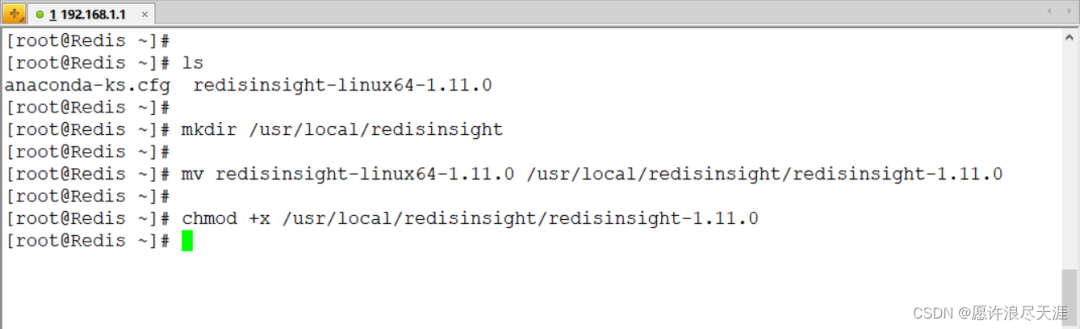

[[email protected] ~]# ls
anaconda-ks.cfg  redisinsight-linux64-1.11.0
[[email protected] ~]# mkdir /usr/local/redisinsight
[[email protected] ~]# mv redisinsight-linux64-1.11.0 /usr/local/redisinsight/redisinsight-1.11.0
[[email protected] ~]# chmod +x /usr/local/redisinsight/redisinsight-1.11.0

2） To configure RedisInsight Environment variables of

[[email protected] ~]# echo "export REDISINSIGHT_HOST=192.168.1.1" >> ~/.bash_profile
[[email protected] ~]# echo "export REDISINSIGHT_HOST_DIR=/usr/local/redisinsight/.redisinsight" >> ~/.bash_profile
[[email protected] ~]# source ~/.bash_profile

annotation ：

• REDISINSIGHT_PORT： To configure RedisInsight Listening port of （default：8001）

• REDISINSIGHT_HOST： To configure RedisInsight Of IP Address （default：0.0.0.0）

• LOG_DIR： To configure RedisInsight Log storage path （default：REDISINSIGHT_HOST_DIR）

• REDISINSIGHT_HOST_DIR： To configure RedisInsight Data storage path of （default：~/.redisinsight）

3） start-up RedisInsight service

[[email protected] ~]# nohup /usr/local/redisinsight/redisinsight-linux64-1.4.0 &  //  Background operation
[[email protected] ~]# ps aux | grep redis            //  Check to see if the process exists

2. Kubernetes install

1） establish RedisInsight Of yaml file ：

[[email protected] ~]# vim redisinsight.yaml
apiVersion: v1
kind: Service
metadata:
  name: redisinsight-service
spec:
  type: NodePort
  ports:
  - port: 80
    targetPort: 8001
    nodePort: 31888
  selector:
    app: redisinsight
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: redisinsight
  labels:
    app: redisinsight
spec:
  replicas: 1
  selector:
    matchLabels:
      app: redisinsight
  template:
    metadata:
      labels:
        app: redisinsight
    spec:
      containers:
      - name: redisinsight
        image: redislabs/redisinsight:1.7.0
        imagePullPolicy: IfNotPresent
        volumeMounts:
        - name: db
          mountPath: /db
        ports:
        - containerPort: 8001
          protocol: TCP
      volumes:
      - name: db
        emptyDir: {}

2） start-up RedisInsight

[[email protected] ~]# kubectl apply -f redisinsight.yaml

3. RedisInsight Basic use

install Redis（ Installed to skip directly ）

[[email protected] ~]# wget https://download.redis.io/releases/redis-6.2.6.tar.gz
[[email protected] ~]# tar zxf redis-6.2.6.tar.gz
[[email protected] ~]# cd redis-6.2.6
[[email protected] redis-6.2.6]# make PREFIX=/usr/local/redis install
[[email protected] redis-6.2.6]# sed -i '/^bind 127.0.0.1/s/127.0.0.1/192.168.1.1/g' redis.conf  #  Modify monitor  IP
[[email protected] redis-6.2.6]# sed -i '/protected-mode/s/yes/no/g' redis.conf      #  Turn off protection mode
[[email protected] redis-6.2.6]# sed -i '/daemonize/s/no/yes/g' redis.conf        #  Turn on background operation
[[email protected] redis-6.2.6]# sed -i '/requirepass/s/foobared/123123/g' redis.conf     #  Configure a password
[[email protected] redis-6.2.6]# sed -i '/requirepass 123123/s/^#//g' redis.conf      #  Put the password before  #  Delete
[[email protected] redis-6.2.6]# cp redis.conf /usr/local/redis/
[[email protected] redis-6.2.6]# /usr/local/redis/bin/redis-server /usr/local/redis/redis.conf   #  start-up  Redis

1） configured IP And port , To visit RedisInsight Management interface of ：

2） You can see it here Redis All kinds of information ：

3） meanwhile RedisInsight You can also operate on the interface ：

4） You can also check on the interface Redis Analyze the memory used ：
