Character shader exercise

Follow the train of thought of Zhuang Tong Dota Character material

1.1 Handle the map

The map inside has the problem of upside down or left-right reverse , So you need to first process the image into the same position as the color map and normal map , And then the others RampTexture To put WrapMode Set to Clamp Pattern .

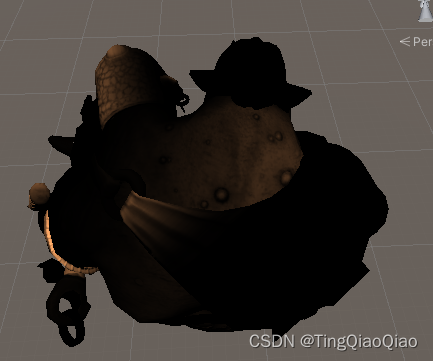

Untreated black spots will appear

After processing RampTexture It will show normal effect

1.2 View design documents , Analyze the lighting model and mapping effect

Because considering that the color reflected by diffuse reflection and specular reflection of metal and non-metal is different , So first calculate the different colors produced by specular reflection and specular reflection , Later, multiply the color into the calculated lighting model .

 float3 diffuseColor = lerp(var_MainTexture,float3(0.0,0.0,0.0), var_Metellic);
 float3 specularColor = lerp(var_MainTexture, float3(0.4, 0.4, 0.4), var_TintMaskTexture) * var_SpecIntTexture;

1.3 Illumination model

1.3.1 Diffuse reflection

// Diffuse reflection of main light source
float halfLambert =ldotn * 0.5 + 0.5;
float3 lambertColor = tex2D(_DiffuseColor,float2(halfLambert,0.5));
float3 lightDiffuseColor = _LightColor * lambertColor * diffuseColor * _LightDiffuseStrength;

// Ambient light diffuse
float maskUp = max(0,nDirWS.g);
float maskDown = max(0, -nDirWS.g) ;
float maskMiddle = 1 - maskUp - maskDown;
float3 ambiendDiffuseColor =( maskUp * _AmbientDiffuseColor_Up + maskDown * _AmbientDiffuseColor_Down + _AmbientDiffuseColor_Middle * maskMiddle ) * diffuseColor * _AmbientDiffuseStrength;

  Diffuse reflection of main light source



Diffuse reflection of ambient light

 1.3.2 Specular reflection

// Main light source specular
float Phong = pow(max(0, lrdotv), var_SpecPowTexture * _LightSpecularPow);
float specular = Phong * halfLambert;
float FresnelSpecular = lerp(var_FresnelSpecular,0.0, var_Metellic);
//float specular_Fresnel = tex2D(_FresnelSpecular, float2(specular, 0.5));// It doesn't seem to be able to sample like that , There is a very magical effect
float specular_Fresnel = max(specular, FresnelSpecular) * _LightSpecularStrength;
float3 lightSpecularColor = _LightColor * specular_Fresnel * specularColor;

// Ambient light specular
float reflect = max(var_Metellic, FresnelSpecular) * var_SpecIntTexture;
float3 envSpecularColor = reflect * specularColor * var_CubeMap * _EnvSpecularStength;

  Specular reflection of the main light source

  Specular reflection of ambient light

  If you use ramptexture Use highlights as samples , It will produce an effect similar to that the whole is metal

  Because Fresnel effect usually appears only with some smooth materials , So we should use the metal range mask to control the Fresnel ramptexture Conduct lerp once

var_FresnelRim No, lerp once

  After processing

 1.3.3 Contour light and self illumination

// Contour light
float FresnelRim = lerp(var_FresnelRim, 0.0, var_Metellic);
float3 rimLight = var_RimIntTexture * FresnelRim * max(0, nDirWS.g) * _RimStrength * _RimColor;

// Spontaneous light
float3 emission = diffuseColor * var_EmissionTexture * _EmissionStrength;

  1.3.4 Mix lighting and output

1.4 Code

notes ： Because it is more intuitive and can not think about the conversion between parameters , So I didn't synthesize multiple maps into one map , You can see that each map is sampled once , Then all parameter types are used uniformly float, Some can be used half perhaps fixed To replace .

Shader "Unlit/Body Shader"
{
    Properties{
        // Open attribute control
        [Header(Texture)]
        _MainTexture(" Main map ",2D) = "white"{}
        _OpacityTexture(" Transparency maps ",2D) = "white"{}
        _NormalTexture(" Normal map ",2D) = "bump"{}
        _SpecIntTexture(" Highlight intensity map ",2D) = "white"{}
        _RimIntTexture(" Edge light intensity map ",2D) = "white"{}
        _TintMaskTexture(" Dye mask map ",2D) = "white"{}
        _SpecPowTexture(" Highlight power map ",2D) = "white"{}
        _CubeMap(" Environmental ball ",cube) = "_skybox"{}
        _DiffuseColor(" Diffuse color map ",2D) = "grey"{}
        _FresnelRim(" Fresnel edge light map ",2D) = "white"{}
        _FresnelSpecular(" Fresnel highlight map ",2D) = "white"{}
        _Metellic(" Metal range mask ",2D) = "grey"{}
        _EmissionTexture(" irradiance map ",2D) = "white"{}
        [Header(Slider)]
        _Cutoff(" Transparency map threshold ",Range(0,1)) = 0.5
        _LightDiffuseStrength(" Diffuse reflection intensity of main light ",Range(0,5)) = 2
        _LightSpecularStrength(" Highlight reflection intensity of main light ", Range(0,5)) = 2
        _LightSpecularPow(" Highlight power of main light ", Range(0,10)) = 5
        _AmbientDiffuseStrength(" Ambient diffuse intensity ",Range(0,1)) = 0.8
        _EnvSpecularStength(" Specular intensity of ambient light ",Range(1,10)) = 5
        _RimStrength(" Edge light intensity ",Range(0,5)) = 2
        _EmissionStrength(" Self luminous intensity ",Range(0,5)) = 2
        [Header(Color)]
        _LightColor(" The color of the light ", color) = (1.0,1.0,1.0,1.0)
        _AmbientDiffuseColor_Up(" Ambient light diffuses the upper light ",color) = (1.0,1.0,1.0,1.0)
        _AmbientDiffuseColor_Middle(" Ambient diffuse mid light ",color) = (1.0,1.0,1.0,1.0)
        _AmbientDiffuseColor_Down(" Ambient diffuse lower light ",color) = (1.0,1.0,1.0,1.0)
        _RimColor(" Edge light color ",color) = (1.0,1.0,0.0,1.0)
    }
    SubShader{
        Tags {
            "RenderType" = "Opaque"
        }
        Pass {
            Name "FORWARD"
            Tags {
                "LightMode" = "ForwardBase"
            }
            Cull Off
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #include "AutoLight.cginc"
            #include "UnityCG.cginc"
            #include "Lighting.cginc"
            #pragma multi_compile_fwdbase_fullshadows
            #pragma target 3.0
            // Defining attributes
            uniform sampler2D _MainTexture;
            uniform sampler2D _OpacityTexture;
            uniform float _Cutoff;
            uniform sampler2D _NormalTexture;
            uniform float _LightDiffuseStrength;
            uniform sampler2D _SpecIntTexture;
            uniform sampler2D _RimIntTexture;
            uniform sampler2D _TintMaskTexture;
            uniform sampler2D _SpecPowTexture;
            uniform samplerCUBE _CubeMap;
            uniform sampler2D _FresnelRim;
            uniform sampler2D _FresnelSpecular;
            uniform sampler2D _Metellic;
            uniform sampler2D _DiffuseColor;
            uniform float3 _LightColor;
            uniform float3  _AmbientDiffuseColor_Up;
            uniform float3  _AmbientDiffuseColor_Middle;
            uniform float3  _AmbientDiffuseColor_Down;
            uniform float  _AmbientDiffuseStrength;
            uniform float _LightSpecularPow;
            uniform float _LightSpecularStrength;
            uniform float _EnvSpecularStength;
            uniform float3 _RimColor;
            uniform float _RimStrength;
            uniform sampler2D _EmissionTexture;
            uniform float _EmissionStrength;

            // Input structure
            struct VertexInput {
                float4 vertex : POSITION;
                float3 normal : NORMAL;
                float4 tangent : TANGENT;
                float2 uv0 : TEXCOORD0;
            };
            // Output structure
            struct VertexOutput {
                float4 pos : SV_POSITION;
                float3 posWS : TEXCOORD0;
                float2 uv0 : TEXCOORD1;
                float3 nDirWS : TEXCOORD2;
                float3 tDirWS : TEXCOORD3;
                float3 bDirWS : TEXCOORD4;
                LIGHTING_COORDS(5, 6)
            };
            // Pixels shader
            VertexOutput vert(VertexInput v) {
                VertexOutput o = (VertexOutput)0;
                o.pos = UnityObjectToClipPos(v.vertex);
                o.posWS = mul(unity_ObjectToWorld, v.vertex);
                o.uv0 = v.uv0;
                o.nDirWS = UnityObjectToWorldNormal(v.normal);
                o.tDirWS = normalize(mul(unity_ObjectToWorld, float4(v.tangent.xyz, 0.0)).xyz);
                o.bDirWS = normalize(cross(o.nDirWS, o.tDirWS) * v.tangent.w);
                TRANSFER_VERTEX_TO_FRAGMENT(o)
                return o;
            }
            // The vertices shader
            float4 frag(VertexOutput i) : COLOR {
                // Vector preparation
                float3 nDirTS = UnpackNormal(tex2D(_NormalTexture,i.uv0)).rgb;  // Get normal information
                float3x3 TBN = float3x3(i.tDirWS,i.bDirWS,i.nDirWS);
                float3 nDirWS = normalize(mul(nDirTS, TBN));
                float3 lDirWS = _WorldSpaceLightPos0.xyz;
                float3 lrDirWS = reflect(lDirWS,nDirWS);
                float3 vDirWS = normalize(_WorldSpaceCameraPos.xyz - i.posWS.xyz);
                float3 vrDirWS = normalize(reflect(-vDirWS, nDirWS));

                // Intermediate quantity preparation
                float ldotn = dot(lDirWS,nDirWS);   // The dot multiplier required by half Lambert
                float lrdotv = dot(lrDirWS, vDirWS);    //Phong Required dot multiplication
                float ndotv = (nDirWS,vDirWS);      // Point multiplier required by contour light

                // Texture sampling
                float3 var_MainTexture = tex2D(_MainTexture, i.uv0); // Sample color texture
                float var_OpacityTexture = tex2D(_OpacityTexture, i.uv0);// Transparent map sampling
                float var_SpecIntTexture = tex2D(_SpecIntTexture, i.uv0);    // Sample highlight texture , As a highlight, you need to increase the intensity
                float var_RimIntTexture = tex2D(_RimIntTexture, i.uv0); // Edge light texture , As a mask, judge where to highlight
                float var_TintMaskTexture = tex2D(_TintMaskTexture, i.uv0); // Dye mask texture , As
                float var_SpecPowTexture = tex2D(_SpecPowTexture, i.uv0);   // Sampling highlight power , Use it as a template to control the roughness
                float var_FresnelRim = tex2D(_FresnelRim, i.uv0);   // Fresnel edge light ramptexture
                float var_FresnelSpecular = tex2D(_FresnelSpecular, i.uv0);     // Fresnel highlights ramptexture
                float3 var_CubeMap = texCUBElod(_CubeMap, float4(vrDirWS, lerp(7.0, 0.0, var_SpecIntTexture))).rgb;
                float var_Metellic = tex2D(_Metellic, i.uv0);
                float var_EmissionTexture = tex2D(_EmissionTexture, i.uv0);

                //  shadow
                float shadow = LIGHT_ATTENUATION(i);

                // Illumination model
                 // Because the colors of specular reflection and diffuse reflection are different , In specular reflection, the metal will show its true color , Nonmetals will appear black and white ; In diffuse reflection, metal diffuse reflection is less , Darker map
                float3 diffuseColor = lerp(var_MainTexture,float3(0.0,0.0,0.0), var_Metellic); // use lerp Interpolation , If matellic by 0 The place will reflect its primary color , If it is 1 The reaction is black ,matellic=0.5 Ooh, other decimals are interpolated to calculate the weight of their offset
                float3 specularColor = lerp(var_MainTexture, float3(0.4, 0.4, 0.4), var_TintMaskTexture) * var_SpecIntTexture;  // Interpolation calculation is carried out through the metal reflective mask , And multiply it by the map with highlights , So as to imitate its reflection color under the light source

                // Diffuse reflection of main light source
                float halfLambert =ldotn * 0.5 + 0.5;   // Half Lambert effect is much better than Lambert effect , Lambert effect is a little terrible
                float3 lambertColor = tex2D(_DiffuseColor,float2(halfLambert,0.5));
                float3 lightDiffuseColor = _LightColor * lambertColor * diffuseColor * _LightDiffuseStrength;

                // Ambient light diffuse
                float maskUp = max(0,nDirWS.g);
                float maskDown = max(0, -nDirWS.g) ;
                float maskMiddle = 1 - maskUp - maskDown;
                float3 ambiendDiffuseColor =( maskUp * _AmbientDiffuseColor_Up + maskDown * _AmbientDiffuseColor_Down + _AmbientDiffuseColor_Middle * maskMiddle ) * diffuseColor * _AmbientDiffuseStrength;

                // Main light source specular
                float Phong = pow(max(0, lrdotv), var_SpecPowTexture * _LightSpecularPow);
                float specular = Phong * halfLambert;
                float FresnelSpecular = lerp(var_FresnelSpecular,0.0, var_Metellic);
                //float specular_Fresnel = tex2D(_FresnelSpecular, float2(specular, 0.5));// It doesn't seem to be able to sample like that , There is a very magical effect
                float specular_Fresnel = max(specular, FresnelSpecular) * _LightSpecularStrength;
                float3 lightSpecularColor = _LightColor * specular_Fresnel * specularColor;

                // Ambient light specular
                float reflect = max(var_Metellic, FresnelSpecular) * var_SpecIntTexture;
                float3 envSpecularColor = reflect * specularColor * var_CubeMap * _EnvSpecularStength;

                // Contour light
                float FresnelRim = lerp(var_FresnelRim, 0.0, var_Metellic);
                float3 rimLight = var_RimIntTexture * FresnelRim * max(0, nDirWS.g) * _RimStrength * _RimColor;

                // Spontaneous light
                float3 emission = diffuseColor * var_EmissionTexture * _EmissionStrength;

                // Mixed light source
                float3 finalColor = (lightDiffuseColor + lightSpecularColor) * shadow + envSpecularColor + envSpecularColor + rimLight + emission;

                // Transparent shear
                clip(var_OpacityTexture - _Cutoff);

                   return fixed4(finalColor,1);

            }
                            ENDCG
                        }
    }
        FallBack "Legacy Shaders/Transparent/Cutout/VertexLit"
}
