Cluster chat server: how to solve the problem of cross server communication | redis publish subscribe

Cross server communication problems

There are two clients logging in on different servers , Both online , But the servers have their own _userConnMap There is no login information of another client , These two clients want to chat , The message will be stored as an offline message , You must wait for two clients to communicate on the same server .

Communication design between cluster servers

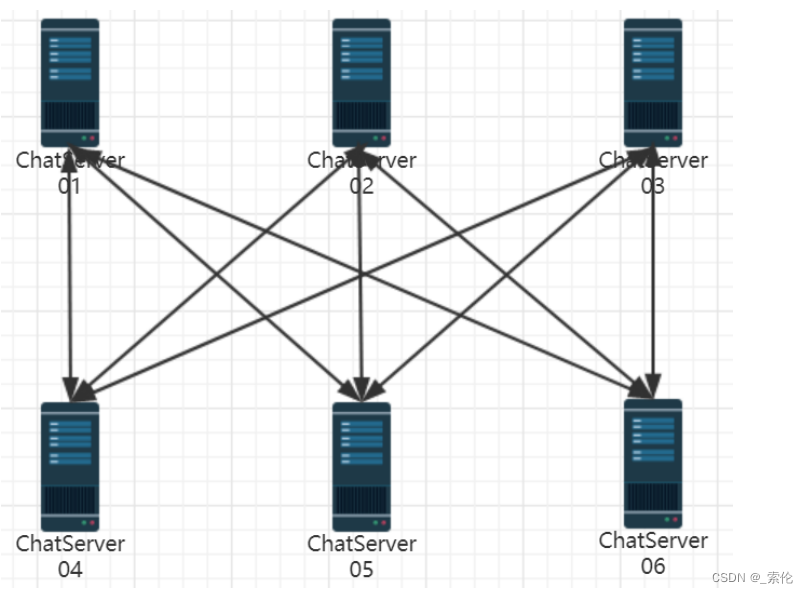

1. Directly establish TCP Connect

The above design , Let each ChatServer The servers are directly established with each other TCP Connect to communicate , It is equivalent to broadcasting between server networks . This design makes the coupling between servers too high , Not conducive to system expansion , And it will occupy a lot of socket resources , There is a lot of bandwidth pressure between servers , It can not save resources and provide services to more clients , So it's definitely not a good design .

2. Introduce middleware message queue

Communication between servers deployed in the cluster , The best way is to introduce middleware message queue , Decouple the servers , Make the whole system loose coupling , Improve the responsiveness of the server , Save server bandwidth resources , As shown in the figure below ：

In a clustered distributed environment , The commonly used middleware message queues are ActiveMQ、RabbitMQ、Kafka etc. , They are message queues with wide application scenarios and good performance , Between cluster servers , Message communication between distributed services . Limited to our project, the business type is not very complex , There is no high requirement for the amount of concurrent requests , Therefore, our middleware message queue selection is - Based on the release - Subscription mode redis.

Example

Example ：ChatServer1 stay redis Subscribe to and client1 Related events ,ChatServer2 stay redis Subscribe to and client2 Related events , So if client1 Want to give client2 Send a message , It will be released , After the message queue is received , Will give you ChatServer2 notify, Forward the message to client2.

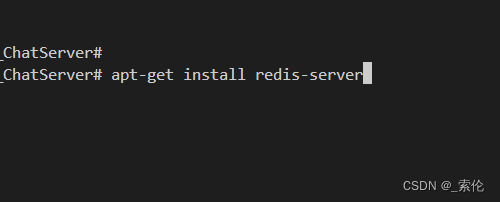

redis Installation

redis Release - Subscription usage

redis Stored data is stored in the form of key value pairs , Example ：

Publish subscribe

After the client logs in to different servers , It needs to be in the message queue as a user id Subscription channel channel, In this way, channels can be used to realize cross server communication .

command ：

subscribe + id
publish + id + message

Other commands will respond , and subscribe It will block , Wait for the message .

redis Programming flow

redis.hpp

#ifndef REDIS_H
#define REDIS_H

#include <hiredis/hiredis.h>
#include <thread>
#include <functional>
using namespace std;

class Redis
{

public:
    Redis();
    ~Redis();

    //  Connect redis The server
    bool connect();

    //  towards redis Designated channel channel Release the news
    bool publish(int channel, string message);

    //  towards redis Designated channel subscribe Subscribe to news
    bool subscribe(int channel);

    //  towards redis Designated channel unsubscribe Unsubscribe from messages
    bool unsubscribe(int channel);

    //  Receive messages from the subscription channel in a separate thread
    void observer_channel_message();

    //  Initialize the callback object that reports the channel message to the business layer
    void init_notify_handler(function<void(int, string)> fn);

private:
    // hiredis Synchronize context objects , be responsible for publish news
    redisContext* _publish_context;

    // hiredis Synchronize context objects , be responsible for subscribe news
    redisContext* _subscribe_context;

    //  Callback operation , Received subscription message , to service Layer reporting
    function<void(int, string)> _notify_message_handler;

};

#endif

redis.cpp

#include "redis.hpp"
#include <iostream>
using namespace std;

Redis::Redis()
    : _publish_context(nullptr), _subscribe_context(nullptr)
{

}

Redis::~Redis()
{

    if (_publish_context != nullptr)
    {

        redisFree(_publish_context);
    }

    if (_subscribe_context != nullptr)
    {

        redisFree(_subscribe_context);
    }
}

bool Redis::connect()
{

    //  be responsible for publish Context connection for publishing messages
    _publish_context = redisConnect("127.0.0.1", 6379);
    if (nullptr == _publish_context)
    {

        cerr << "connect redis failed!" << endl;
        return false;
    }

    //  be responsible for subscribe Context connection of subscription message
    _subscribe_context = redisConnect("127.0.0.1", 6379);
    if (nullptr == _subscribe_context)
    {

        cerr << "connect redis failed!" << endl;
        return false;
    }

    //  Listen for events on the channel in a separate thread , There are messages to be reported to the business layer
    thread t([&]() {

        observer_channel_message();
    });
    t.detach();

    cout << "connect redis-server success!" << endl;
    return true;
}

//  towards redis designated channel Release the news
bool Redis::publish(int channel, string message)
{

    redisReply* reply = (redisReply*)redisCommand(_publish_context, "PUBLISH %d %s", channel, message.c_str());
    if (nullptr == reply)
    {

        cerr << "publish command failed!" << endl;
        return false;
    }
    freeReplyObject(reply);
    return true;
}

//  towards redis Designated channel subscribe Subscribe to news
bool Redis::subscribe(int channel)
{

    // SUBSCRIBE The command itself will cause the thread to block and wait for messages in the channel , Only subscription channels are used here , Do not receive channel messages
    //  The reception of channel messages is dedicated to observer_channel_message Function in a separate thread
    //  Only responsible for sending commands , Non blocking collection redis server The response message , Otherwise notifyMsg Threads preempt response resources
    if (REDIS_ERR == redisAppendCommand(this->_subscribe_context, "SUBSCRIBE %d", channel))
    {

        cerr << "subscribe command failed!" << endl;
        return false;
    }

    // redisBufferWrite The buffer can be sent circularly , Until the buffer data is sent （done Be set to 1）
    int done = 0;
    while (!done)
    {

        if (REDIS_ERR == redisBufferWrite(this->_subscribe_context, &done))
        {

            cerr << "subscribe command failed!" << endl;
            return false;
        }
    }

    return true;
}

//  towards redis Designated channel unsubscribe Unsubscribe from messages
bool Redis::unsubscribe(int channel)
{

    if (REDIS_ERR == redisAppendCommand(this->_subscribe_context, "SUBSCRIBE %d", channel))
    {

        cerr << "unsubscribe command failed!" << endl;
        return false;
    }

    // redisBufferWrite The buffer can be sent circularly , Until the buffer data is sent （done Be set to 1）
    int done = 0;
    while (!done)
    {

        if (REDIS_ERR == redisBufferWrite(this->_subscribe_context, &done))
        {

            cerr << "unsubscribe command failed!" << endl;
            return false;
        }
    }

    return true;
}

//  Receive messages from the subscription channel in a separate thread
void Redis::observer_channel_message()
{

    redisReply* reply = nullptr;
    while (REDIS_OK == redisGetReply(this->_subscribe_context, (void**)&reply))
    {

        //  The message received by the subscription is an array with three elements
        if (reply != nullptr && reply->element[2] != nullptr && reply->element[2]->str != nullptr)
        {

            //  Report the messages on the channel to the business layer
            _notify_message_handler(atoi(reply->element[1]->str), reply->element[2]->str);
        }

        freeReplyObject(reply);
    }

    cerr << ">>>>>>>>>>>> observer_channel_message quit <<<<<<<<<<<<" << endl;
}

void Redis::init_notify_handler(function<void(int, string)> fn)
{

    this->_notify_message_handler = fn;
}
