Onenet Internet of things platform - mqtts product equipment connected to the platform

MQTT.fx Make device access ：MQTT client 1.7.1 download

One 、 Generate token

Use MQTT.fx Make device access , Generate token Need to use product ID、 Equipment name And equipment key

1、 In the product overview product ID

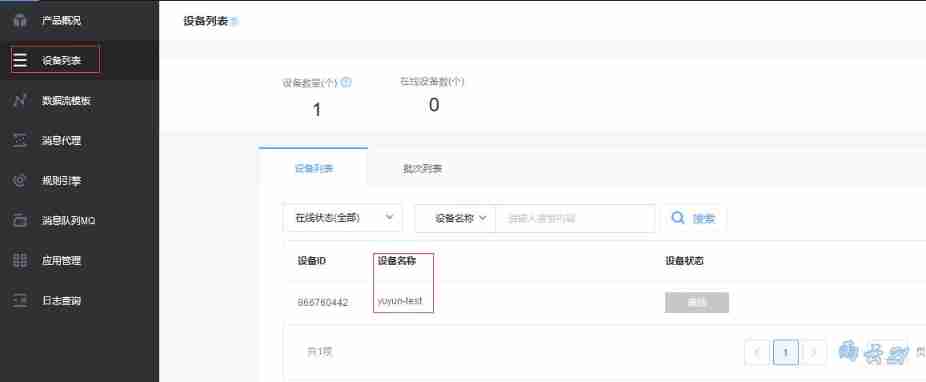

2、 In the device list Equipment name

3、 In the equipment details key

4、 Generate token

Generate... Based on this information token, Generate token Of java The code is as follows ：

import javax.crypto.Mac;
import javax.crypto.spec.SecretKeySpec;
import java.io.UnsupportedEncodingException;
import java.net.URLEncoder;
import java.security.InvalidKeyException;
import java.security.NoSuchAlgorithmException;
import java.util.Base64;

public class TokenUtils {


    public static String assembleToken(String version, String resourceName, String expirationTime,
                                       String signatureMethod, String accessKey)
            throws UnsupportedEncodingException, NoSuchAlgorithmException, InvalidKeyException {

        StringBuilder sb = new StringBuilder();
        String res = URLEncoder.encode(resourceName, "UTF-8");
        String sig = URLEncoder.encode(generatorSignature(version, resourceName, expirationTime
                , accessKey, signatureMethod), "UTF-8");
        sb.append("version=")
                .append(version)
                .append("&res=")
                .append(res)
                .append("&et=")
                .append(expirationTime)
                .append("&method=")
                .append(signatureMethod)
                .append("&sign=")
                .append(sig);
        return sb.toString();
    }

    public static String generatorSignature(String version, String resourceName, String expirationTime,
                                            String accessKey, String signatureMethod) throws NoSuchAlgorithmException,
            InvalidKeyException {

        String encryptText = expirationTime + "\n" + signatureMethod + "\n" + resourceName + "\n" + version;
        String signature;
        byte[] bytes = HmacEncrypt(encryptText, accessKey, signatureMethod);
        signature = Base64.getEncoder().encodeToString(bytes);
        return signature;
    }

    public static byte[] HmacEncrypt(String data, String key, String signatureMethod)
            throws NoSuchAlgorithmException, InvalidKeyException {

        // Construct a key according to the given byte array , The second parameter specifies the name of a key algorithm
        SecretKeySpec signinKey = null;
        signinKey = new SecretKeySpec(Base64.getDecoder().decode(key),
                "Hmac" + signatureMethod.toUpperCase());

        // Generate a specified  Mac  Algorithm   Of  Mac  object
        Mac mac = null;
        mac = Mac.getInstance("Hmac" + signatureMethod.toUpperCase());

        // Initialize with the given key  Mac  object
        mac.init(signinKey);

        // complete  Mac  operation
        return mac.doFinal(data.getBytes());
    }

    public enum SignatureMethod {

        SHA1, MD5, SHA256;
    }

    public static void main(String[] args) throws UnsupportedEncodingException, NoSuchAlgorithmException, InvalidKeyException {

        //  Parameter group version number , Currently only supported "2018-10-31"
        String version = "2018-10-31";
        //  product id
        String productId = "480701";
        //  Equipment name
        String deviceName = "yuyun-test";
        //  equipment key
        String accessKey = "jZLOJzdXrR091nb6+V5KersX2U0JkNlCrR/0ezhzKyA=";

        String resourceName = String.format("products/%s/devices/%s", productId, deviceName);
        String expirationTime = System.currentTimeMillis() / 1000 + 100 * 24 * 60 * 60 + "";
        String signatureMethod = SignatureMethod.SHA1.name().toLowerCase();
        String token = assembleToken(version, resourceName, expirationTime, signatureMethod, accessKey);
        System.out.println("Authorization:" + token);
    }
}

Generated after run token：

version=2018-10-31&res=products%2F480701%2Fdevices%2Fyuyun-test&et=1648354863&method=sha1&sign=Nyg9dc6wLOfp4WdProtID68jlL0%3D

Two 、MQTT.fx Client configuration

Open client

1、 Configuration parameters

Broker Address	Broker Port	Client ID	User Name	Password	explain
183.230.40.16 mqttstls.heclouds.com	8883	Equipment name	product ID	The previous generation token	Encryption interface
183.230.40.96 mqtts.heclouds.com	1883	Equipment name	product ID	The previous generation token	Unencrypted interface

Pictured ：

2、SSL/TLS Encryption Settings

If the connection address is ：183.230.40.16:8883 or mqttstls.heclouds.com:8883, It needs to be done SSL/TLS Encryption Settings

Download the certificate ： Certificate address Official document certificate location

choice CA certificate file, Import the extracted Certificate

3、 ... and 、 Device to connect

Click the profile selection arrow , Select the configuration MQTTS Device access

Click on Connect, Make device access , There is a green ball in the upper right corner , Successful connection

here onenet The device in the platform console is “ On-line ” state

So the connection is successful
