Restcloud ETL WebService data synchronization to local



There are many business systems in the enterprise that can only provide WebService Interfaces such as SAP etc. , Some more SaaS The system only provides WebService Interfaces such as Workday etc. , For the data of these systems, we can use ETL Call the tool and put XML The data in is parsed and stored in the database or synchronized to other local business systems , Use RestCloud ETL The tool can synchronize the above data in two simple steps without coding , Now let's look at the implementation process .

Log in first RestCloud ETL platform



Use ETL call WebService The interface pulls data to the local database in real time
Open an application or create a new application , Then enter the process list



Use ETL call WebService The interface pulls data to the local database in real time
Create a WebService Synchronization task



Use ETL call WebService The interface pulls data to the local database in real time
Pull one from the left WebSerivce Node and library table output node , We select the target node mysql data source .

Use ETL call WebService The interface pulls data to the local database in real time
Input WebService Of WSDL Address and specify that we want to read XML The data field returned in , Here we will get a on the public network WebService The interface service address is as follows ：

http://ws.webxml.com.cn/WebServices/WeatherWS.asmx, Pay attention to this WebService There are several methods that we need in the node Header Medium SoapAction Specify which method to call .

Use ETL call WebService The interface pulls data to the local database in real time
The above is this WebSerivce Service description document for , We call one of his methods to get the region and encoded data, and then transfer it to mysql For storage .

​

Use ETL call WebService The interface pulls data to the local database in real time
Enter the parameters of XML have access to SoapUI Tools to parse and then copy in , So our WebService The node is configured .

hinder MySql Nodes are easier , You can build the table in advance , Also can be ETL Tasks automatically create tables , We choose here by ETL The tool automatically creates tables and outputs data to mysql.

​

Use ETL call WebService The interface pulls data to the local database in real time

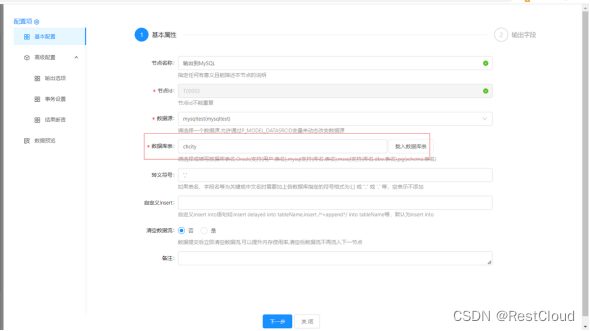

Enter a nonexistent table here , The system will automatically create this table

​

Use ETL call WebService The interface pulls data to the local database in real time
Then configure the fields to receive data in this table , The system will create database tables according to this configuration field .

​

Use ETL call WebService The interface pulls data to the local database in real time

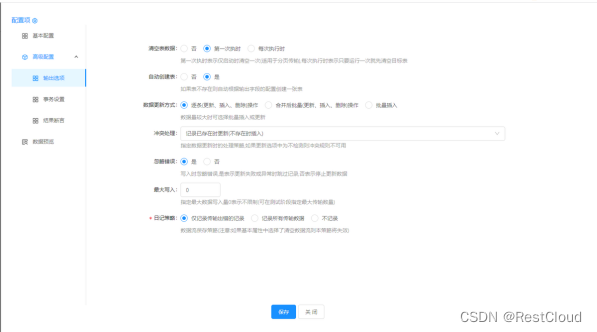

In the output option, we choose to empty the target table on the first execution , Build a watch automatically , Update one by one , Save the process after configuration , You can start debugging and running , Now let's run it and see the effect .

​

  Use ETL call WebService The interface pulls data to the local database in real time

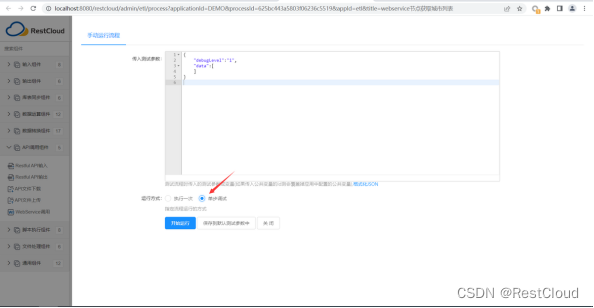

Click on the run , Select single step debugging , You can see the pulled area data , And will be saved to mysql in

​

  Use ETL call WebService The interface pulls data to the local database in real time
In the debugging interface, we can see that... Is pulled 79 Data , Click next to save to mysql in

​

  Use ETL call WebService The interface pulls data to the local database in real time
The task running result shows success 79 Bar data to mysql in , We can go mysql Preview in the table whether to pull the area data to mysql It's in .

​

Use ETL call WebService The interface pulls data to the local database in real time
open mysql The client can see WebSerivce The data in has been successfully pulled to the local mysql It's in , If there is no problem with debugging, we can arrange a scheduled task for him , Timing synchronization webservice The data in can be sent locally .

​
Use ETL call WebService The interface pulls data to the local database in real time

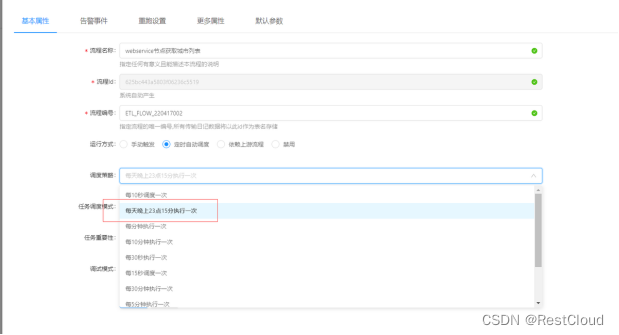

You can choose to synchronize once every night or other synchronization time, and you can customize the synchronization frequency

Above we go through RestCloud ETL A simple two-step configuration realizes WebService Interface data pull synchronization task , It's very simple .

​
