[advanced C language] - analyze the storage of micro data in memory [2] (floating point storage)

Floating point storage in memory

3.1 A chestnut

How are floating-point numbers stored in memory ？ We can do it in float.h View the data range under the header file .

Examples of floating point storage

#include<stdio.h>

int main()
{

	int n = 9;
	float* pFloat = (float*)&n;
	printf("n The value of is :%d\n", n);//9
	printf("*pFloat The value of is :%f\n", *pFloat);//0.000000

	*pFloat = 9.0;
	printf("num The value of is :%d\n", n);//1091567616
	printf("*pFloat The value of is :%f\n", *pFloat);//9.000000
	return 0;
}

The output is quite different from what we thought , Why is that ？ Let's explore how

3.2 Floating point storage rules

num and *pFloat In memory, a number is clearly used , Why is there such a big difference between the interpretation results of floating-point numbers and integers ？
To understand this result , Be sure to understand the representation of floating-point numbers in the computer .
Detailed interpretation ：

According to international standards IEEE( Institute of electrical and Electronic Engineering )754, Any binary floating point number V It can be expressed in the following form

• (-1)^S * M * 2^E
• (-1)^S The sign bit , When S=0,V Is a positive number ; When S=1,V It's a negative number .
  -M Represents a significant number , Greater than or equal to 1, Less than 2.
  -2^E The exponent of .

Take another chestnut

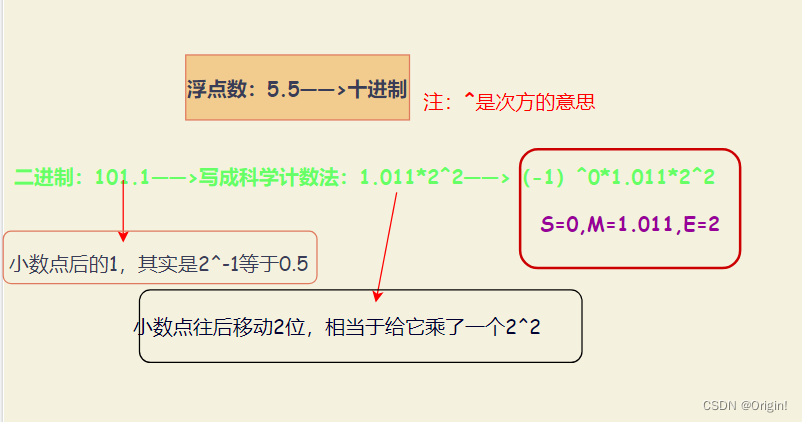

Decimal 5.5, Written as binary is 101.1, amount to 1.01 * 2².(101.1, After the decimal point 1, It's actually 2^-1 be equal to 0.5)
that , According to the above V The equation of , We can draw S=0,M=1.01,E=2.

IEEE 754 Regulations ： about 32 Floating point number of bits , The highest 1 Bits are sign bits S, The next 8 Bits are exponents E, The rest 23 Bits are significant numbers M.

For floating-point numbers of bits , The highest 1 Bits are sign bits S, The next 11 Bits are exponents E, The rest 52 Bits are significant numbers M.

But , For significant numbers M And the index E, How is it stored ？IEEE 754 There are some special provisions ：

As I said before ,1<=M<2, in other words ,M Must be 1.xxx In the form of , among xxx Represents the fractional part . Keep it in the computer M when , since M Must be 1.xxx In the form of , So by default, the first digit of this number is always 1, So it can be discarded , Save only the back xxx The fractional part . For example preservation 1.01 when , Save only 01, Wait until you read , Put the first 1 Add . The purpose of this , It's saving 1 Significant digits , With 32 For example, a floating-point number , Leave to M Only 23 position , Will come first 1 After giving up , It's equivalent to being able to save 24 Significant digits , The accuracy is also improved .

As for the index E, The situation is more complicated ：

First ,E As an unsigned integer (unsigned int) That means , If E by 8 position , it Of take value Fan Surrounded by 0~ 255; If E by 11 position , The value range is 0~ 2047. however , We know , In scientific counting E There may be negative numbers .
According to scientific counting E There may be negative numbers , therefore IEEE 754 Regulations , In memory E The real value of must be added with a real number , about 8 Bit E, The middle number is 127; about 11 Bit E, The middle number is 1023. such as ：2^10 Of E yes 10, So save it as 32 When floating-point numbers are in place , Must be saved as 10+127=137, namely 10001001.

Another chestnut （E Negative case ）

Example ：5.5（ Positive numbers ）

 Example ：5.5
int main()
{

	float a = 5.5f;
	//101.1——>1.011*2^2
	//S=0,M=1.011,E=2
	// What is really stored is  S=0,M=011,E=2+127
	// Suppose it is now a memory area ：
	//0 10000001 01100000000000000000000
	// Convert hexadecimal ：4 Binary is one 16 Base number

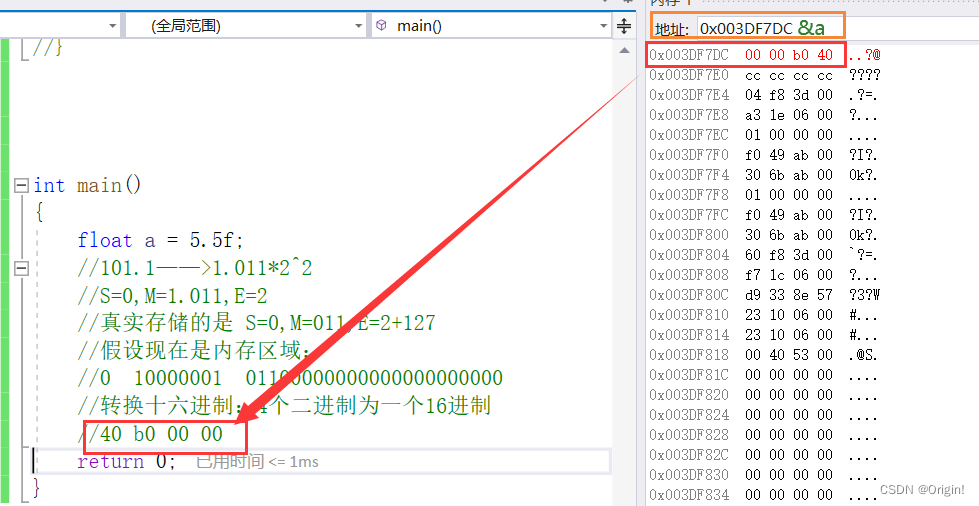

	//40 b0 00 00
   return 0;
}

explain ： Floating point numbers are also stored in memory at the size end ！ Now it is clear how floating-point numbers are stored in memory . Of course, if you are interested , You can test it privately double~

What I mentioned earlier is how to save it , Next is , Index E Taking it out of memory can also be divided into 3 In this case ：

E Not all for 0 Or not all 1

E For all 1

At this time , The exponent of a floating point number E be equal to 1 subtract 127 perhaps (1023) That's the true value , Significant figures M No more first 1, It's reduced to 0.xxx Decimals of . This is to show that ±0, And close to 0 A very small number of .

// When E added 127 perhaps 1023 Then put it into memory ,
// The result is all 0, Explain the real E A very small
//
// such as ：
E= -127
-127+127=0// Value stored in memory

** E For all 1**

At this time , If the significant number M All for 0, Indication ± infinity （ It depends on the sign bit s）;

All right. , That's all for the floating-point rule ~

Explain the previous topic ：

int main()
{

	int n = 9;
	float* pFloat = (float*)&n;
	printf("n The value of is :%d\n", n);//9
	printf("*pFloat The value of is :%f\n", *pFloat);//0.000000

	*pFloat = 9.0;
	printf("num The value of is :%d\n", n);//1091567616
	printf("*pFloat The value of is :%f\n", *pFloat);//9.000000
	return 0;
}

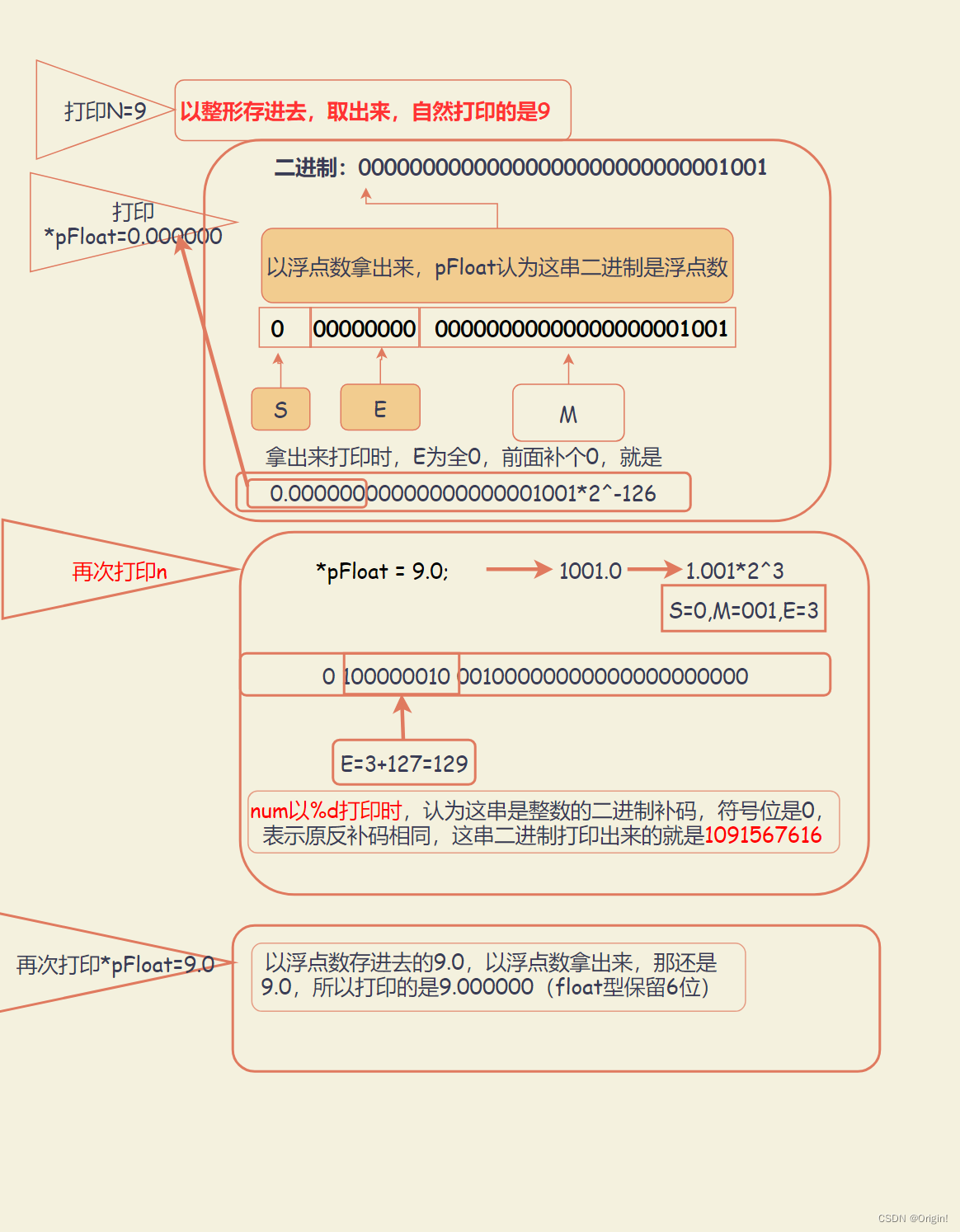

below , Let's go back to the first question ： Why? 0x00000009 Restore to floating point number , became 0.000000 ？

All right. , My friend is cute , That's all for storing floating-point numbers ~ If you don't understand how to be fat , It is suggested to watch it several times ~
