Mongodb's principle, basic use, clustering and partitioned clustering

One 、MongoDB Core concept of

• Concept
  MongoDB It's a document database , Storage is similar json Of Bosn file .
  json And Bosn difference

  • The same thing
    The format is the same .
  • Difference
    json Cannot define data type .Bosn You can define specific data types .

• MongoDB Compared with traditional database

  SQL The term / Concept	MongoDB The term / Concept	interpretative statement
  database	database	database
  table	collection	Database table \ aggregate
  row	document	That's ok \ file
  colum	field	Data field \ Domain
  index	index	Indexes
  table joins		Table joins \MongoDB No table connection
  primary key	primary key	Primary key \MongoDB Automatically put _id Field set primary key

Two 、MongoDB Application scenarios of

• scene
  It is mainly used in micro service system .

• Microservices + Database way
  Pictured ：


• defects
  If the client obtains both product information and order information , Two microservice queries will be issued at the same time to obtain data .
  1、 If one of the microservices goes down , Unable to query data
  2、 If the client queries a large amount of data , This will cause performance problems in the system .

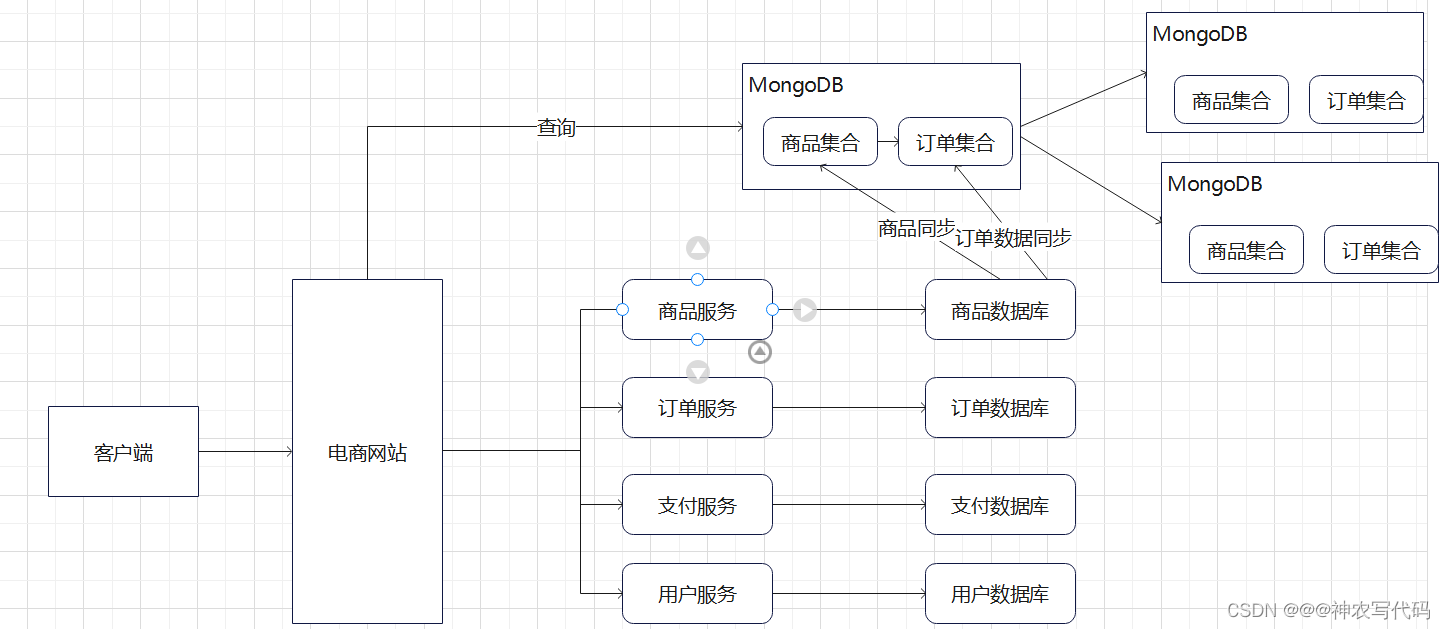

• programme
  Use MongoDB; Pictured ：


3、 ... and 、MongoDB Project implementation

• Conditions
  • Demo Microservices
  • MongoDB
    link ：https://pan.baidu.com/s/15WGk6KzjpLUnuIqWNN8YjA
    Extraction code ：gevi
  • MongoDB Compass
    link ：https://pan.baidu.com/s/14PQmbyKiRAkE9ePzo2LXjg
    Extraction code ：cul2
• step

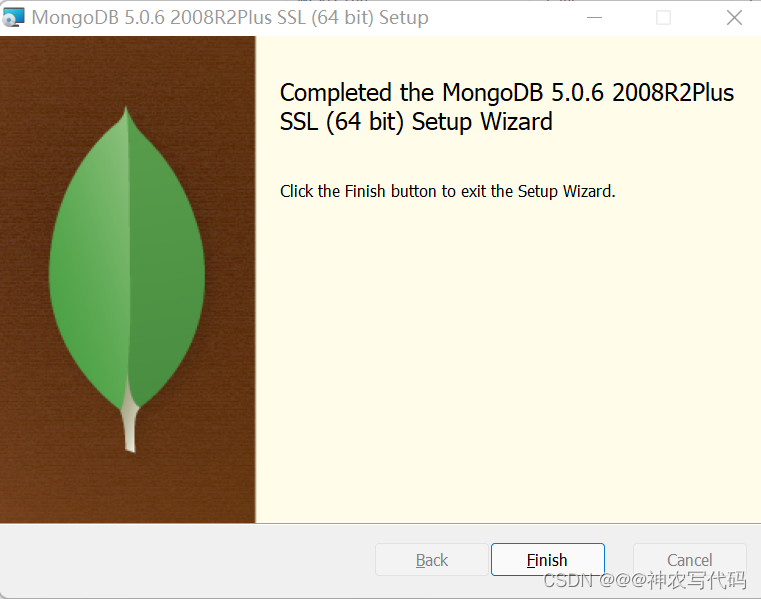

  • install MongoDB




  • function Mongodb

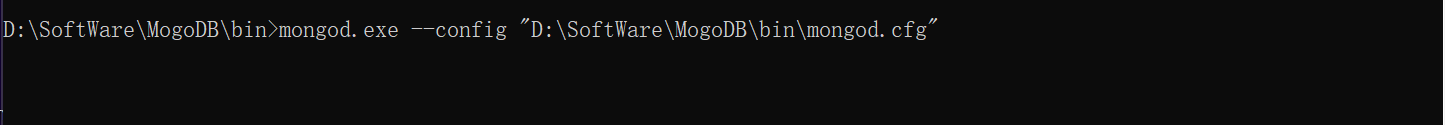

      D:\SoftWare\MogoDB\bin>mongod.exe --config "D:\SoftWare\MogoDB\bin\mongod.cfg"


    The operation result is as shown in the figure ：


  • MongoDB Compass Installation free
    Go directly to the root directory , function MongoDBCompass.exe that will do .
    Click on Connect, Pictured ：


  • install Nuget package

     MongoDB.Driver


  • Project implementation

    • newly build Person Classes and IPersonServer Interface class
      PersonServer Implementation class

          using MongoDB.Driver;
          namespace MongoDB.Demo.Server
          {
              public class PersonServer : IPersonServer
              {
                  private readonly IMongoCollection<Person> mongoCollection;
                  public PersonServer()
                  {
                      var client = new MongoClient("mongodb://localhost:27017");
                      mongoCollection = client.GetDatabase("PersonDB").GetCollection<Person>("person");
                  }
                  /// <summary>
                  ///  Add data
                  /// </summary>
                  /// <param name="per"></param>
                  public void Create(Person per)
                  {
                      mongoCollection.InsertOne(per);
                  }
              }
          }



      IPersonServer Interface class

          namespace MongoDB.Demo.Server
          {
              public interface IPersonServer
              {
                  void Create(Person per);
              }
          }


    • Create a new instance class Person

          using MongoDB.Bson;
          using MongoDB.Bson.Serialization.Attributes;
          using System;
          namespace MongoDB.Demo
          {
              public class Person
              {
                  // Set up self growth ID
                  [BsonId]
                  [BsonRepresentation(BsonType.ObjectId)]
                  public string Id { get; set; }
                  public string Name { get; set; }
                  public string Sex { get; set; }
                  public int Age { get; set; }
                  public string CreateById { get; set; }
                  public DateTime CreateByTime { get;set;}
              }
          }


    • In the project Startup Class registration

        public void ConfigureServices(IServiceCollection services)
          {

              services.AddControllers();
              services.AddSwaggerGen(c =>
              {
                  c.SwaggerDoc("v1", new OpenApiInfo { Title = "MongoDB.Demo", Version = "v1" });
              });
              services.AddTransient<IPersonServer, PersonServer>();
          }


    • Call in controller

          using Microsoft.AspNetCore.Http;
          using Microsoft.AspNetCore.Mvc;
          using MongoDB.Demo.Server;
          namespace MongoDB.Demo.Controllers
          {
              [Route("api/[controller]")]
              [ApiController]
              public class HomeController : ControllerBase
              {
                 private readonly IPersonServer personServer;
                  public HomeController(IPersonServer _personServer)
                  {
                      personServer = _personServer;
                  }
                  /// <summary>
                  ///  Add data to MongoDB
                  /// </summary>
                  /// <param name="per"></param>
                  /// <returns></returns>
                  [HttpPost]
                  public IActionResult Post(Person per)
                  {
                      personServer.Create(per);
                      return Ok(per);
                  }
              }
          }


Four 、MongoDB Operating principle

• principle
  All modules are hierarchical ,MongoDB There are five official types of modules ： Core module 、 Configuration module 、 Event module 、HTTP modular 、mail modular 、stream modular , The relationship between them is shown in the figure ：


  Here 5 Of the modules , The configuration module and the core module are related to MongoDB The framework is closely related to . And the event module is HTTP Module and mail Foundation of the module .HTTP Module and mail Modular “ status ” similar , They all pay more attention to the application level .

• WiredTiger Architecture design

  • principle

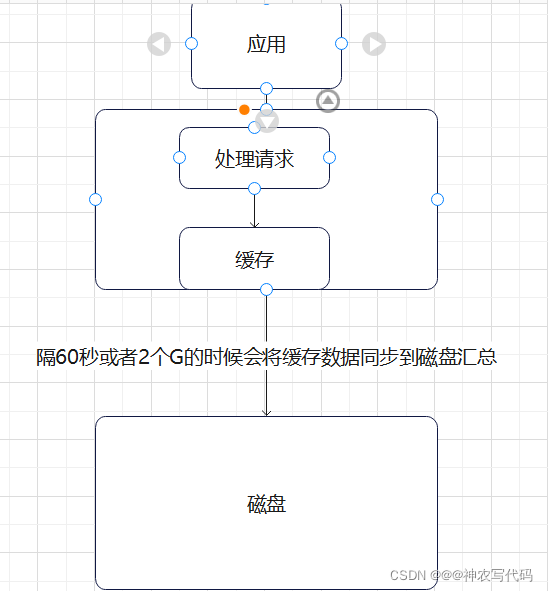

    When MongoDB Receive data and convert it into Bosn File and send a request to WiredTiger engine ,WiredTiger Receive and process the request and store the data in the cache , Separate the data in the cache 60s Or the data arrives 2G Synchronize to disk when .
    Mainly did two things ：
    1、 Save data to cache
    Save data to cache ？
    Reduce IO operation , Lifting performance .
    2、 Synchronize cache to disk
    Why 60s perhaps 2G Synchronize data when ？
    When concurrency is high , Prevent the performance of cache processing data from being greater than that of disk , The cause of synchronization is the loss of data .

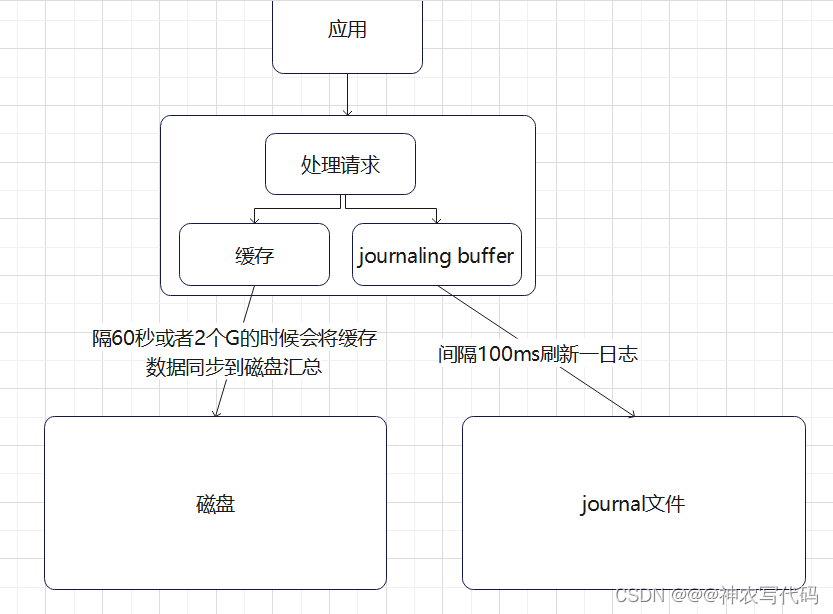

• WiredTiger Principle of preventing data loss
  Use double write architecture
  Pictured ：


  Add a buffer . Equivalent to the role of message queue .
  When the upstream and downstream performance is inconsistent, you can use buffers .【RabbitMQ,kafka etc. 】

• WiredTiger Index structure of
  Pictured ：


  MongoDB Data is cached and stored on disk through B+tree The data structure of ,Root Nodes and Internal Is to store index data 【 It's like a table of contents in a Book 】, and leaf Nodes are used to store data 【 Equivalent to pages in a Book 】.

5、 ... and 、MongoDB Of CURD operation

• Premise

  using MongoDB.Driver;
            namespace MongoDB.Demo.Server
            {
                public class PersonServer : IPersonServer
                {
                    private readonly IMongoCollection<Person> mongoCollection;
                    public PersonServer()
                    {
                        var client = new MongoClient("mongodb://localhost:27017");
                        mongoCollection = client.GetDatabase("PersonDB").GetCollection<Person>("person");
                    }
                }
            }


• Add data

  /// <summary>
  ///  Add data
  /// </summary>
  /// <param name="per"></param>
  public void Create(Person per)
  {
     mongoCollection.InsertOne(per);
  }


• Query data

  /// <summary>
  ///  Get collection data
  /// </summary>
  /// <returns></returns>
  public IEnumerable<Person> GetList()
  {
    return   mongoCollection.Find(p => true).ToList();
  }


• Paging query

    /// <summary>
    ///  Paging query
    /// </summary>
    /// <param name="pagesize"> Row number </param>
    /// <param name="index"> the number of pages </param>
    /// <returns></returns>
    public IEnumerable<Person> GetDataByPage(int pagesize,int index)
    {
       return mongoCollection.Find(p => true).Skip((index - 1) * pagesize).Limit(pagesize).ToList();
    }


• Sort

    /// <summary>
    ///  Get collection data and sort
    /// </summary>
    /// <returns></returns>
    public IEnumerable<Person> GetList()
    {
       return   mongoCollection.Find(p => true).SortBy(per => per.CreateByTime).ToList();
    }


• Modifying data

    /// <summary>
    ///  Modify the data and add new fields
    /// </summary>
    /// <param name="id"></param>
    /// <param name="per"></param>
    public void Update(string id, Person per)
    {
        var update = Builders<Person>.Update;
        // update.AddToSet("modifybyid","admin");// New fields    This field must be present in the entity    Otherwise, an error will be reported when querying
        //mongoCollection.UpdateOne((p) => p.Id == id, update.AddToSet("modifybyid", "admin"));
        // Modify fields
         mongoCollection.UpdateOne((p) => p.Id == id, update.Set("Name", per.Name));
    }


• Delete data

  /// <summary>
  ///  Delete data
  /// </summary>
  /// <param name="id"></param>
  public void delete(string id)
  {
      mongoCollection.DeleteOne((p) => p.Id == id);
  }


• Create index

        /// <summary>
        ///  Create index
        /// </summary>
        /// <returns></returns>
        public string CreateIndex()
        {
            var indexKeys = Builders<Person>.IndexKeys;
            return _products.Indexes.CreateOne(indexKeys.Descending(" Field name "));
        }


6、 ... and 、MongoDB Copy sets for

• Concept
  MongoDB A copy set is just a copy of one data . Pictured ：


• effect
  When one MongoDB After downtime , And others MongoDB Examples can be provided to use . Guarantee MongoDB High availability .

• MongoDB Master slave node architecture diagram


  • Master node ：primary
    Be responsible for reading and writing data .
  • From the node ：secondary The suggestion is at least 3 Nodes
    • When the primary node goes down , The client can read data from the node , Guarantee MongoDB High availability .
    • Realize the separation of reading and writing data .

• Realization

  • Conditions
    • MongoDB 3 Nodes
    • MongoDB Of Demo project
  • MongoDB Configuration steps
    • Create three new node profiles , Create a new node data file storage folder and log folder
      • 27018 The configuration file will replication open , And define the cluster name

           # mongod.conf

            # for documentation of all options, see:
            #   http://docs.mongodb.org/manual/reference/configuration-options/

            # Where and how to store data.
            storage:
              dbPath: D:\SoftWare\MogoDB\ReplicaSet-data\data-27018
              journal:
                enabled: true
            #  engine:
            #  wiredTiger:

            # where to write logging data.
            systemLog:
              destination: file
              logAppend: true
              path:  D:\SoftWare\MogoDB\ReplicaSet-log\mongodb-27018.log

            # network interfaces
            net:
              port: 27018
              bindIp: 127.0.0.1


            #processManagement:

            #security:

            #operationProfiling:

            replication:
               replSetName: rs0
            #sharding:

            ## Enterprise-Only Options:

            #auditLog:

            #snmp:




      • 27019 The configuration file will replication open , And define the cluster name

            # mongod.conf

            # for documentation of all options, see:
            #   http://docs.mongodb.org/manual/reference/configuration-options/

            # Where and how to store data.
            storage:
              dbPath: D:\SoftWare\MogoDB\ReplicaSet-data\data-27019
              journal:
                enabled: true
            #  engine:
            #  wiredTiger:

            # where to write logging data.
            systemLog:
              destination: file
              logAppend: true
              path:  D:\SoftWare\MogoDB\ReplicaSet-log\mongodb-27019.log

            # network interfaces
            net:
              port: 27019
              bindIp: 127.0.0.1


            #processManagement:

            #security:

            #operationProfiling:

            replication:
               replSetName: rs0
            #sharding:

            ## Enterprise-Only Options:

            #auditLog:

            #snmp:



      • 27020 The configuration file will replication open , And define the cluster name

            # mongod.conf

            # for documentation of all options, see:
            #   http://docs.mongodb.org/manual/reference/configuration-options/

            # Where and how to store data.
            storage:
              dbPath: D:\SoftWare\MogoDB\ReplicaSet-data\data-27020
              journal:
                enabled: true
            #  engine:
            #  wiredTiger:

            # where to write logging data.
            systemLog:
              destination: file
              logAppend: true
              path:  D:\SoftWare\MogoDB\ReplicaSet-log\mongodb-27020.log

            # network interfaces
            net:
              port: 27020
              bindIp: 127.0.0.1


            #processManagement:

            #security:

            #operationProfiling:

            replication:
               replSetName: rs0
            #sharding:

            ## Enterprise-Only Options:

            #auditLog:

            #snmp:


    • Operation example （3）

        mongod.exe -f D:\SoftWare\MogoDB\bin\ReplicaSet\mongod-27018.cfg
        mongod.exe -f D:\SoftWare\MogoDB\bin\ReplicaSet\mongod-27019.cfg
        mongod.exe -f D:\SoftWare\MogoDB\bin\ReplicaSet\mongod-27020.cfg

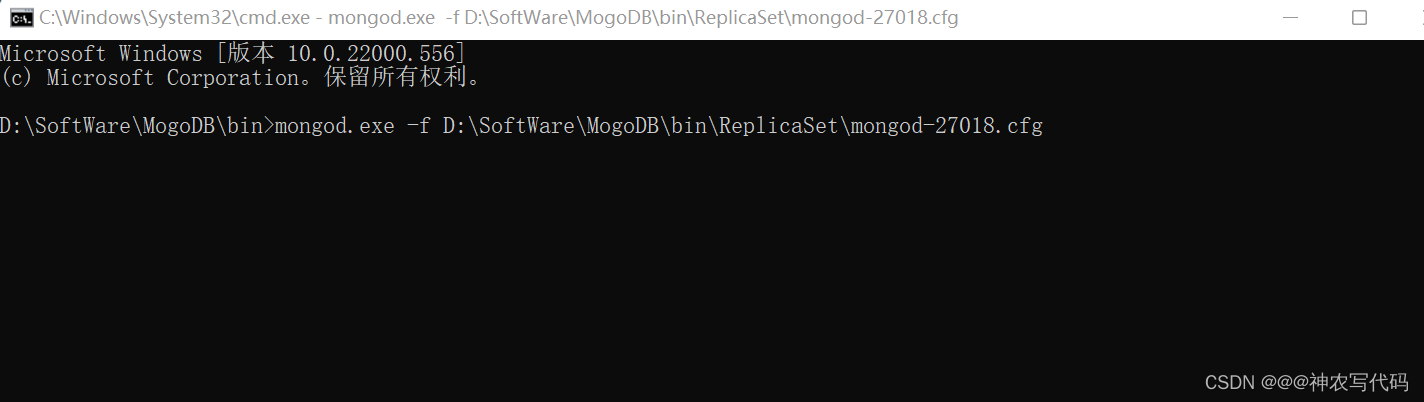

       The operation result is as shown in the figure ：
      ![ Insert picture description here ](https://img-blog.csdnimg.cn/dd00e1a161df4f8ca0a51a21efe51a5c.png?x-oss-process=image/watermark,type_d3F5LXplbmhlaQ,shadow_50,text_Q1NETiBAQEDnpZ7lhpzlhpnku6PnoIE=,size_20,color_FFFFFF,t_70,g_se,x_16#pic_center)


- Set up 27018 Establish the connection and set it as the master node , And add slave nodes
# Establishing a connection stay bin Under the table of contents mongo.exe --host 127.0.0.1 --port 27018 # Use the command to set the master node rs.initiate()
Pictured ：
Add other nodes to Member in
rs.add("127.0.0.1:27019") rs.add("127.0.0.1:27020")
Pictured ：


- View status command
rs.status()
Log files ：
"members" : [ { "_id" : 0, "name" : "127.0.0.1:27018", "health" : 1, "state" : 1, "stateStr" : "PRIMARY", "uptime" : 308, "optime" : { "ts" : Timestamp(1649306184, 3), "t" : NumberLong(1) }, "optimeDate" : ISODate("2022-04-07T04:36:24Z"), "lastAppliedWallTime" : ISODate("2022-04-07T04:36:24.437Z"), "lastDurableWallTime" : ISODate("2022-04-07T04:36:24.437Z"), "syncSourceHost" : "", "syncSourceId" : -1, "infoMessage" : "", "electionTime" : Timestamp(1649306012, 2), "electionDate" : ISODate("2022-04-07T04:33:32Z"), "configVersion" : 5, "configTerm" : 1, "self" : true, "lastHeartbeatMessage" : "" }, { "_id" : 1, "name" : "127.0.0.1:27019", "health" : 1, "state" : 2, "stateStr" : "SECONDARY", "uptime" : 137, "optime" : { "ts" : Timestamp(1649306184, 3), "t" : NumberLong(1) }, "optimeDurable" : { "ts" : Timestamp(1649306184, 3), "t" : NumberLong(1) }, "optimeDate" : ISODate("2022-04-07T04:36:24Z"), "optimeDurableDate" : ISODate("2022-04-07T04:36:24Z"), "lastAppliedWallTime" : ISODate("2022-04-07T04:36:24.437Z"), "lastDurableWallTime" : ISODate("2022-04-07T04:36:24.437Z"), "lastHeartbeat" : ISODate("2022-04-07T04:36:30.077Z"), "lastHeartbeatRecv" : ISODate("2022-04-07T04:36:29.665Z"), "pingMs" : NumberLong(0), "lastHeartbeatMessage" : "", "syncSourceHost" : "127.0.0.1:27018", "syncSourceId" : 0, "infoMessage" : "", "configVersion" : 5, "configTerm" : 1 }, { "_id" : 2, "name" : "127.0.0.1:27020", "health" : 1, "state" : 2, "stateStr" : "SECONDARY", "uptime" : 129, "optime" : { "ts" : Timestamp(1649306184, 3), "t" : NumberLong(1) }, "optimeDurable" : { "ts" : Timestamp(1649306184, 3), "t" : NumberLong(1) }, "optimeDate" : ISODate("2022-04-07T04:36:24Z"), "optimeDurableDate" : ISODate("2022-04-07T04:36:24Z"), "lastAppliedWallTime" : ISODate("2022-04-07T04:36:24.437Z"), "lastDurableWallTime" : ISODate("2022-04-07T04:36:24.437Z"), "lastHeartbeat" : ISODate("2022-04-07T04:36:30.077Z"), "lastHeartbeatRecv" : ISODate("2022-04-07T04:36:30.169Z"), "pingMs" : NumberLong(0), "lastHeartbeatMessage" : "", "syncSourceHost" : "127.0.0.1:27019", "syncSourceId" : 1, "infoMessage" : "", "configVersion" : 5, "configTerm" : 1 } ],

• Project to connect MongoDB colony
  • Establish connection code

       // Data can only be read from the master node
       var client = new MongoClient("mongodb://localhost:27018,localhost:27019,localhost:27020");
       // Data can be read from the node
       var client = new MongoClient("mongodb://localhost:27018,localhost:27019,localhost:27020/?readPreference=secondaryPreferred");
       // perhaps
       var client = new MongoClient("mongodb://localhost:27018,localhost:27019,localhost:27020");
       client.WithReadPreference(ReadPreference.PrimaryPreferred);
       //Primary： Default parameters   Read data only from the master node
       // PrimaryPreferred: Most of the data is read from the master node , Only when the master node is not available Secondary Read data on
       //Secondary： Only from Secondary Read data operation on node , The problem is Secondary The data of the node will be better than Primary The data of the node is old , If no slave node is available , The read request will throw an exception .
       //SecondaryPreferred： Priority from Secondary Read data on node ,Secondary Read data from the master when the node is not available .
       //Nearest： Whether it's the master node ,Secondary node , Read data from the number of nodes with the lowest network delay .


    according to MongoDB Default writing of , All data reading and writing are performed from the master node , The slave node only performs data replication tasks .
• How the slave node becomes the master node after the master node goes down

  • Conditions

    • Heartbeat
    • Vote （ vote ）
      Pictured ：


    When the primary node goes down , The slave node will vote for itself first , Then go to other nodes to solicit votes , Who has the most votes , Who is the master node .
    If the number of votes from the node is the same , There will be a heartbeat detection mechanism inside , Hold the election again 、 vote .
    Voting rules ： More than half of the votes can become the master node ;【 The optimal number of nodes is odd 】

    • The advantage of odd number of nodes
      Improve the high availability of the cluster
    • The principles of the election
      1、 Odd nodes
      2、 More than half of the votes

7、 ... and 、MongoDB The fragmentation cluster of

• Concept
  MongoDB Internal split data , Separate storage .

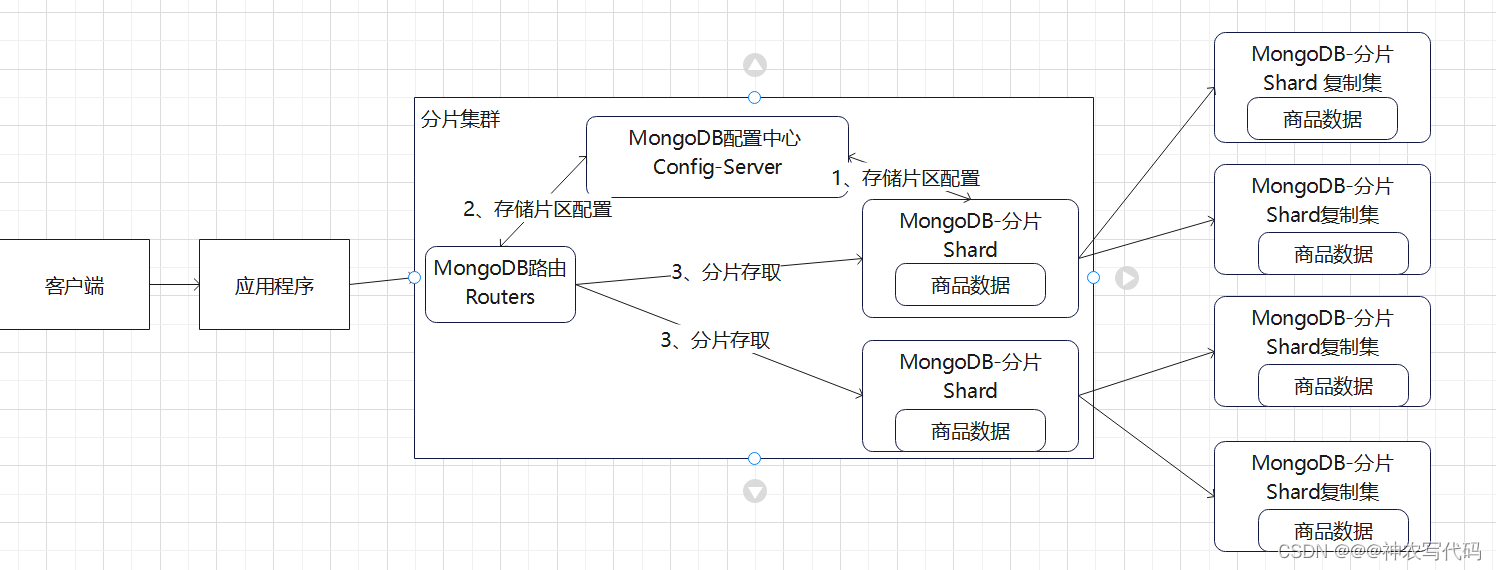

  Pictured ：


  Core characters ：

  • Split roles shard
  • Routing role Routers
  • Configure roles config It is equivalent to the registration center in microservices

• to ground

  • Conditions
    • MongoDB （ in total 10 An example ）
    • Demo project
  • step
    • Build a fragmented copy set （6 An example ）
      • mongod-27021.cfg The configuration file

             # mongod.conf

            # for documentation of all options, see:
            #   http://docs.mongodb.org/manual/reference/configuration-options/

            # Where and how to store data.
            storage:
              dbPath: D:\SoftWare\MogoDB\shards-data\shard-27021
              journal:
                enabled: true
            #  engine:
            #  wiredTiger:

            # where to write logging data.
            systemLog:
              destination: file
              logAppend: true
              path:  D:\SoftWare\MogoDB\shards-log\mongodb-27021.log

            # network interfaces
            net:
              port: 27021
              bindIp: 127.0.0.1


            #processManagement:

            #security:

            #operationProfiling:

            replication:

               replSetName: sharding1
            sharding:
              # Partition cluster name   The role of the current instance （configsvr： Configuration center instance ,shardsvr： Slice instance ）
              clusterRole: shardsvr
            ## Enterprise-Only Options:

            #auditLog:

            #snmp:



      • mongod-27022.cfg The configuration file

             # mongod.conf

            # for documentation of all options, see:
            #   http://docs.mongodb.org/manual/reference/configuration-options/

            # Where and how to store data.
            storage:
              dbPath: D:\SoftWare\MogoDB\shards-data\shard-27022
              journal:
                enabled: true
            #  engine:
            #  wiredTiger:

            # where to write logging data.
            systemLog:
              destination: file
              logAppend: true
              path:  D:\SoftWare\MogoDB\shards-log\mongodb-27022.log

            # network interfaces
            net:
              port: 27022
              bindIp: 127.0.0.1


            #processManagement:

            #security:

            #operationProfiling:

            replication:
               replSetName: sharding1
            sharding:
              # Partition cluster name   The role of the current instance （configsvr： Configuration center instance ,shardsvr： Slice instance ）
              clusterRole: shardsvr
            #sharding:

            ## Enterprise-Only Options:

            #auditLog:

            #snmp:



      • mongod-27023.cfg The configuration file

        # mongod.conf

        # for documentation of all options, see:
        #   http://docs.mongodb.org/manual/reference/configuration-options/

        # Where and how to store data.
        storage:
          dbPath: D:\SoftWare\MogoDB\shards-data\shard-27023
          journal:
            enabled: true
        #  engine:
        #  wiredTiger:

        # where to write logging data.
        systemLog:
          destination: file
          logAppend: true
          path:  D:\SoftWare\MogoDB\shards-log\mongodb-27023.log

        # network interfaces
        net:
          port: 27023
          bindIp: 127.0.0.1


        #processManagement:

        #security:

        #operationProfiling:

        replication:
           replSetName: sharding1
        sharding:
          # Partition cluster name   The role of the current instance （configsvr： Configuration center instance ,shardsvr： Slice instance ）
          clusterRole: shardsvr

        ## Enterprise-Only Options:

        #auditLog:

        #snmp:



      • remarks
        Of three configuration files replSetName: sharding1 The name must be consistent , Represents a set of partitioned copies .
        Of ten profiles clusterRole：shardsvr The name must be consistent , Represents a group of clusters .
      • Start the service , And assign master and slave nodes

         # stay MongoDB Of bin Execute under directory
         # Start the service
         mongod.exe -f D:\SoftWare\MogoDB\bin\shards\mongod-27021.cfg
         mongod.exe -f D:\SoftWare\MogoDB\bin\shards\mongod-27022.cfg
         mongod.exe -f D:\SoftWare\MogoDB\bin\shards\mongod-27023.cfg
         # Connect 27021, Assign master-slave nodes
         mongo.exe --host 127.0.0.1 --port 27021
         # initialization  27021  Master node
         rs.initiate()
         # Add child nodes
         rs.add("127.0.0.1:27022")
         rs.add("127.0.0.1:27023")
         # View node status
         rs.status()


      • mongod-27024.cfg The configuration file

            # mongod.conf

            # for documentation of all options, see:
            #   http://docs.mongodb.org/manual/reference/configuration-options/

            # Where and how to store data.
            storage:
              dbPath: D:\SoftWare\MogoDB\shards-data\shard-27024
              journal:
                enabled: true
            #  engine:
            #  wiredTiger:

            # where to write logging data.
            systemLog:
              destination: file
              logAppend: true
              path:  D:\SoftWare\MogoDB\shards-log\mongodb-27024.log

            # network interfaces
            net:
              port: 27024
              bindIp: 127.0.0.1


            #processManagement:

            #security:

            #operationProfiling:

            replication:
               replSetName: sharding2
            sharding:
              # Partition cluster name   The role of the current instance （configsvr： Configuration center instance ,shardsvr： Slice instance ）
              clusterRole: shardsvr

            ## Enterprise-Only Options:

            #auditLog:

            #snmp:



      • mongod-27025.cfg The configuration file

            # mongod.conf

            # for documentation of all options, see:
            #   http://docs.mongodb.org/manual/reference/configuration-options/

            # Where and how to store data.
            storage:
              dbPath: D:\SoftWare\MogoDB\shards-data\shard-27025
              journal:
                enabled: true
            #  engine:
            #  wiredTiger:

            # where to write logging data.
            systemLog:
              destination: file
              logAppend: true
              path:  D:\SoftWare\MogoDB\shards-log\mongodb-27025.log

            # network interfaces
            net:
              port: 27025
              bindIp: 127.0.0.1


            #processManagement:

            #security:

            #operationProfiling:

            replication:
               replSetName: sharding2
            sharding:
              # Partition cluster name   The role of the current instance （configsvr： Configuration center instance ,shardsvr： Slice instance ）
              clusterRole: shardsvr

            ## Enterprise-Only Options:

            #auditLog:

            #snmp:



      • mongod-27026.cfg The configuration file

            # mongod.conf

            # for documentation of all options, see:
            #   http://docs.mongodb.org/manual/reference/configuration-options/

            # Where and how to store data.
            storage:
              dbPath: D:\SoftWare\MogoDB\shards-data\shard-27026
              journal:
                enabled: true
            #  engine:
            #  wiredTiger:

            # where to write logging data.
            systemLog:
              destination: file
              logAppend: true
              path:  D:\SoftWare\MogoDB\shards-log\mongodb-27026.log

            # network interfaces
            net:
              port: 27026
              bindIp: 127.0.0.1


            #processManagement:

            #security:

            #operationProfiling:

            replication:
               replSetName: sharding2
            sharding:
              # Partition cluster name   The role of the current instance （configsvr： Configuration center instance ,shardsvr： Slice instance ）
              clusterRole: shardsvr

            ## Enterprise-Only Options:

            #auditLog:

            #snmp:



      • remarks
        Of three configuration files replSetName: sharding2 The name must be consistent , Represents a set of partitioned copies .
        Of ten profiles clusterRole：shardsvr The name must be consistent , Represents a group of clusters .
      • Start the service , And assign master and slave nodes

         # stay MongoDB Of bin Execute under directory
         # Start the service
         mongod.exe -f D:\SoftWare\MogoDB\bin\shards\mongod-27024.cfg
         mongod.exe -f D:\SoftWare\MogoDB\bin\shards\mongod-27025.cfg
         mongod.exe -f D:\SoftWare\MogoDB\bin\shards\mongod-27026.cfg
         # Connect 27024, Assign master-slave nodes
         mongo.exe --host 127.0.0.1 --port 27024
         # initialization  27024  Master node
         rs.initiate()
         # Add child nodes
         rs.add("127.0.0.1:27025")
         rs.add("127.0.0.1:27026")
         # View node status
         rs.status()


    • Set up configuration center
      • mongod-27010.cfg The configuration file

            # mongod.conf

            # for documentation of all options, see:
            #   http://docs.mongodb.org/manual/reference/configuration-options/

            # Where and how to store data.
            storage:
              dbPath: D:\SoftWare\MogoDB\shards-data\ConfigServer\configserver-27010
              journal:
                enabled: true
            #  engine:
            #  wiredTiger:

            # where to write logging data.
            systemLog:
              destination: file
              logAppend: true
              path:  D:\SoftWare\MogoDB\shards-log\ConfigServer\configserver-27010.log

            # network interfaces
            net:
              port: 27010
              bindIp: 127.0.0.1


            #processManagement:

            #security:

            #operationProfiling:

            replication:
               # Cluster name , If it's not a machine in the same cluster , Please do not duplicate the configuration
               replSetName: confset
            sharding:
              # Partition cluster name   The role of the current instance （configsvr： Configuration center instance ,shardsvr： Slice instance ）
              clusterRole: shardsvr

            ## Enterprise-Only Options:

            #auditLog:

            #snmp:



      • mongod-27011.cfg The configuration file

            # mongod.conf

            # for documentation of all options, see:
            #   http://docs.mongodb.org/manual/reference/configuration-options/

            # Where and how to store data.
            storage:
              dbPath: D:\SoftWare\MogoDB\shards-data\ConfigServer\configserver-27011
              journal:
                enabled: true
            #  engine:
            #  wiredTiger:

            # where to write logging data.
            systemLog:
              destination: file
              logAppend: true
              path:  D:\SoftWare\MogoDB\shards-log\ConfigServer\configserver-27011.log

            # network interfaces
            net:
              port: 27011
              bindIp: 127.0.0.1


            #processManagement:

            #security:

            #operationProfiling:

            replication:
               # Cluster name , If it's not a machine in the same cluster , Please do not duplicate the configuration
               replSetName: confset
            sharding:
              # Partition cluster name   The role of the current instance （configsvr： Configuration center instance ,shardsvr： Slice instance ）
              clusterRole: shardsvr

            ## Enterprise-Only Options:

            #auditLog:

            #snmp:



      • mongod-27012.cfg The configuration file

            # mongod.conf

            # for documentation of all options, see:
            #   http://docs.mongodb.org/manual/reference/configuration-options/

            # Where and how to store data.
            storage:
              dbPath: D:\SoftWare\MogoDB\shards-data\ConfigServer\configserver-27012
              journal:
                enabled: true
            #  engine:
            #  wiredTiger:

            # where to write logging data.
            systemLog:
              destination: file
              logAppend: true
              path:  D:\SoftWare\MogoDB\shards-log\ConfigServer\configserver-27012.log

            # network interfaces
            net:
              port: 27012
              bindIp: 127.0.0.1


            #processManagement:

            #security:

            #operationProfiling:

            replication:
               # Cluster name , If it's not a machine in the same cluster , Please do not duplicate the configuration
               replSetName: confset
            sharding:
              # Partition cluster name   The role of the current instance （configsvr： Configuration center instance ,shardsvr： Slice instance ）
              clusterRole: shardsvr

            ## Enterprise-Only Options:

            #auditLog:

            #snmp:



      • remarks
        Of three configuration files replSetName: confset The name must be consistent , Represents a set of configuration center clusters .
        Of ten profiles clusterRole：shardsvr The name must be consistent , It represents a group of fragment clusters .
      • Start the service , And assign group master-slave nodes

          # stay MongoDB Of bin Execute under directory
          # Start the service
          mongod.exe -f D:\SoftWare\MogoDB\bin\shards\mongod-27010.cfg
          mongod.exe -f D:\SoftWare\MogoDB\bin\shards\mongod-27011.cfg
          mongod.exe -f D:\SoftWare\MogoDB\bin\shards\mongod-27012.cfg
          # Connect 27010, Assign master-slave nodes
          mongo.exe --host 127.0.0.1 --port 27010
          # initialization  27021  Master node
          rs.initiate()
          # Add child nodes
          rs.add("127.0.0.1:27011")
          rs.add("127.0.0.1:27012")
          # View node status
          rs.status()


    • Set up routes （1 An example ）
      • mongod-27000.cfg

         # mongod.conf

        # for documentation of all options, see:
        #   http://docs.mongodb.org/manual/reference/configuration-options/

        # Where and how to store data.
        #storage:
          #dbPath: D:\SoftWare\MogoDB\ReplicaSet-data\data-27021
          #journal:
            #enabled: true
        #  engine:
        #  wiredTiger:

        # where to write logging data.
        systemLog:
          destination: file
          logAppend: true
          path:  D:\SoftWare\MogoDB\shards-log\Router\Router-27000.log

        # network interfaces
        net:
          port: 27000
          bindIp: 127.0.0.1


        #processManagement:

        #security:

        #operationProfiling:

        #replication:
           #replSetName: rs0
        sharding:
          configDB: confset/127.0.0.1:27011,127.0.0.1:27010,127.0.0.1:27012
        ## Enterprise-Only Options:

        #auditLog:

        #snmp:



      • remarks
      • Start the service / Connection service , And register

         # stay  bin  Start the service in the directory
         mongos.exe -f D:\SoftWare\MogoDB\bin\shards\Router\mongod-27000.cfg
         # Establishing a connection
         mongo.exe --host 127.0.0.1 --port 27000
         # Register replication set 【6 An example   127.0.0.1:27021\27022\27023\27024\27025\27026】 To configure the service
         # Batch register with replica set name     In the configuration file replSetName: sharding1
         sh.addShard("sharding1/127.0.0.1:27021,127.0.0.1:27022,127.0.0.1:27023")
         # Check the status
         sh.status()
         sh.addShard("sharding2/127.0.0.1:27024,127.0.0.1:27025,127.0.0.1:27026")
         # Check the status
         sh.status()


      • Demo Project to connect MongoDB colony

          # Multiple routes    Load balancing is built in
          var client = new MongoClient("mongodb://127.0.0.1:27000,,,,,,");


      • Data fragmentation rules
        Divide the data equally according to the slice key .
        • Fragmentation rule
          • Range fragmentation
          • HASH Fragmentation
            Use the route to set the slice key .

        # Start routing service , Once the connection is established , Use command
        # grammar
        sh.shardCollection(" Database name . Collection name ",{" Patch key ":" Slice type 【hashed, The default is range slicing 】"})
        # If enter is executed like this, an error will be reported , Setting the fragmentation rule does not allow you to create a database with code , You need to create a database in the route , The order is as follows
        sh.enableSharding(" Database name ")
        sh.shardCollection(" Database name . Collection name ",{" Patch key ":" Slice type 【hashed/（1 perhaps -1）, The default is range slicing （1 In ascending order -1 For the descending order ）】"})
        # A set can only consist of one fragment key
