wallys/new product/WiFi6 MiniPCIe Module 2T2R 2×2.4GHz 2x5GHz MT7915 MT7975

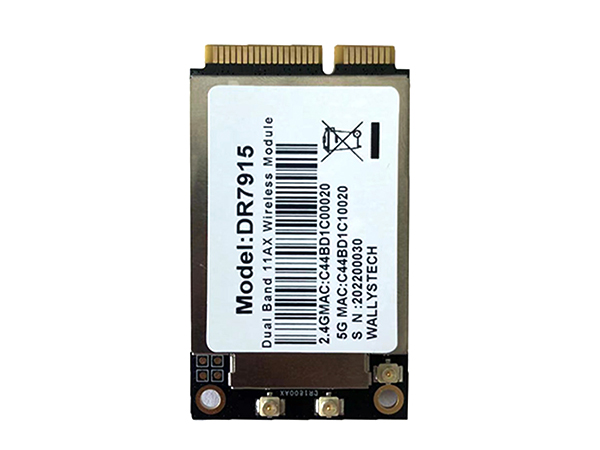

WiFi6 MiniPCIe Module 2T2R2×2.4GHz 2x5GHz MT7915 MT7975 MT7915/MT7975/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ4028/IPQ8072/IPQ8072A/IPQ8074/IPQ8074A/IQCN6024/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344 /AX200NGWWallys Communications (SuZhou) Co., Ltd., http://www.wallystech.com,which is a professional supplier specializing in product design, manufacturing and offering superior OEM/ODM/JDM services in wireless communications. As a specialized manufacturer and exporter for these products in China,We sincerely hope to establish business relations with your esteemed corporation. BY:Wallys Communications (Suzhou ) Co., LTDEMAIL:​[email protected]://www.wallystech.com/Network_Card/DR7915-wifi6-MT7915-MT7975-2T2R-support-OpenWRT-802.11AX-supporting-MiniPCIe-Module.htmlhttps://www.youtube.com/watch?v=yUoTXPFjNmkIntroductionDR7915 is a WiFi6 Mini PCIe Module 2T2R based on Mediatek MT7915DAN which is a WiFi Mini PCIe single chip which supports 1800 Mbps PHY rate with PCIe2.1. It fully complies with IEEE 802.11ax/ac and IEEE 802.11 ac/a/b/g/n standards, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance.Optimized RF architecture and base band algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high efficient offload engine and hardware data processing accelerators which completely offloads Wi-Fi task of the host processor. MT7915DAN is designed to support standard based features in the areas of security, quality of service and international regulations, giving end users the greatest performance any time and in any circumstance.MT7915DAN is designed to support high data throughput over WiFi. The host interface PCIe are integrated to provide stable bandwidth between the host platform and MT7915DAN.Features2T2R in 2.4G+2T2R in 5G with support of up to 573+1201Mbps PHY rateSupports 20, 40, 80 channelsHE MCS0-11 BW20/40/80MHz with Nss=1~2Short Guard IntervalSpace-time block code (STBC)Low Density Partiy check (LDPC)Support digital pre-distortion to enhance PA performanceSmoothing (channel estimation) extension to MIMO caseDFS radar detectionEmbedded ARM Cortex R4 processor for full host CPU offloadEmbedded 32-bit RISC microprocessorSupport STBC, LDPC, TX Beamformer and RX BeamformeeDecoded BW20/40/80 up to 4×2 MU materix feedbackGreenfield, mixed mode, legacy modes supportHighly integrated RF with 40nm low power processNoise mitigation:Supports background scan function for fast channel switchingSupports spectrum analysis for non-Wi-Fi signalsIntelligent power savingWFA WMM, WMM PS (QoS)Integrate high efficiency internal 4G/5G PAsIntelligent Calibration (iCal) reduces the production timeIntegrate high efficiency internal 4G/5G PAsApplicationLet's have a look at the screenshots by using Wallys #DR4019 router board plus DR7915 DBDC Wlan module combo.When the DR7915 is inserted into the DR40X9 board, there are 4 radios that can work at the same time, and it can be used as a soft routerAs we can see, by using this combo,there will be 4 radios working at the same time,and you can configure each radio into AP or STA mode as you wish.DR7915 can work on OpenWrt 21.02 version OS directly, no need to install the driver to support this MTK chipset.We guess it would be a smart option as well to select #DR7915 for applications which require Multi-radios,soft router, Mesh,bonding etc...
