Section 5: zynq interrupt

ZYNQ interrupt

1 Interrupt type

ARM Processor support 7 An abnormal situation ： Reset 、 Undefined instruction 、 Instruction prefetching terminated 、 Data termination 、 Interrupt request （IRQ） And quick interrupt request （FIQ）.

Reset （RESET）： But when the reset pin of the processor is valid , The system has reset abnormal interrupt , Program jumps to reset exception interrupt handler for execution . Reset abnormal interrupt is usually used in the following two cases , First, when the system is powered on and reset ; The second is to jump to the reset interrupt vector ;

Data access aborted （data abort）： If the destination address of the data access instruction does not exist , Or the address does not allow the current instruction to access , The processor generates a data access abort exception interrupt ;

Fast interrupt request （FIQ）： When the external fast interrupt request pin of the processor is valid , and CPSR The register of F When the control bit is cleared , The processor generates an external interrupt request （FIQ） Abnormal interruption ;

External interrupt request （IRQ）： When the external interrupt request pin of the processor is valid , and CPSR The register of I When the control bit is cleared , The processor generates an external interrupt request （IRQ） Abnormal interruption . The peripherals in the system usually request the processor service through this abnormal interrupt ;

Prefetch instruction aborted （prefech abort）： If the address of the processor prefetch instruction does not exist , Or the address does not allow the current instruction to access , When the prefetched instruction is executed , The processor generates an instruction prefetch abort exception interrupt ;

Software interrupt （software interrupt SWI）： This is a user-defined interrupt instruction , It can be used for program call privilege operation instructions in user mode . In real-time operating systems （RTOS） The system function call can be realized through this mechanism ;

Undefined instructions （undefined instructin）： When ARM When the processor or coprocessor in the system thinks that the current instruction is undefined , An undefined instruction exception interrupt is generated , Floating point vector operation can be simulated through this abnormal interrupt mechanism .

2 Interrupt architecture

Zynq There are two cortex-a9 The processor and GIC pl390 Interrupt controller , The interrupt architecture is shown in the figure 1 Shown . Interrupt types mainly include private interrupts 、 Software interrupts and shared interrupts , In its architecture, the general interrupt controller is used to manage interrupts .

Every CPU There is a set of private peripheral interrupts （PPI）,PPI Including global timer 、 Private watchdog timer 、 Private timer and from PL Of FIQ/IRQ.

Software interrupt （SGI） Connect to one of CPU Or all of it CPU, By writing ICDSGIR Register generation SGI.

Sharing interrupted （SPI） It's through PS and PL Internal variety I/O And memory controller . chart 2 The interrupt source is given , They are connected to one of them CPU Or all of it CPU.

General interrupt controller （GIC） Is the core resource , Used to manage from PS perhaps PL The interrupt , These interrupts are sent to CPU.

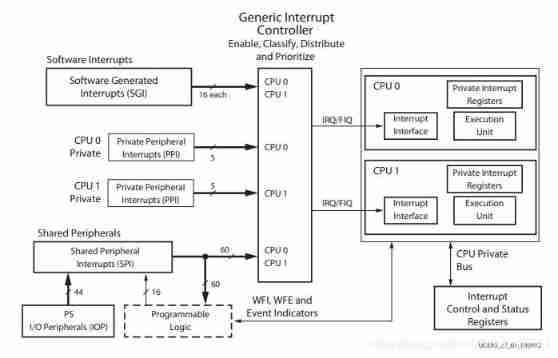

chart 1 Interrupt architecture

GIC Used to classify hundreds of interrupt sources in the system 、 President, etc , It is the core component of system interrupt processing , Its position in the whole system is shown in the figure 1 Shown .GIC Between the interrupt source and CPU Between , Be responsible for controlling the interrupt trigger signal 、 classification 、 code 、 Priority setting and other operations , Finally, the interrupt signal is sent to CPU. Send in CPU Each interrupt signal of has a unique ID code ,CPU By inquiring ID Coding can determine the location of the interrupt source , The internal structure is shown in the figure 2 Shown .

chart 2 Interrupt controller framework

interrupt ID surface ：

Software interrupt SGI The interrupt ID Distribution as shown in the table 1 Shown .

surface 1 SGI interrupt ID

CPU Private peripheral interrupt PPI The interrupt ID Distribution as shown in the table 2 Shown .

surface 2 PPI interrupt ID

Shared peripheral interrupt SPI The interrupt ID Distribution as shown in the table 3 Shown

3 Timer interrupt usage instance

Zynq The following features of the private timer on the ：

1,32 Bit counter , When it reaches zero , Create an interrupt ;

2,8 Bit prescaler , It can better control the interrupt cycle ;

3, Configurable one-time or automatic reload mode ;

4,2 The second time interval can be calculated by ： The time interval =[( Prescaler value +1)( Load values +1)]/ The timer frequency . All private timers and Watchdog Timers always work at CPU Frequency 1/2（CPU_3x2x）.

The steps to configure the private timer are as follows ：

First of all ,GIC Initialization of interrupt controller

1. Connect to hardware , Map the corresponding interrupt to GIC Interrupt request ;
2. find GIC interrupt , fill GIC Interrupt register base address and some related information ;
3. Find the timer interrupt source , Fill in timer interrupt register base address and some related information ;
4. Map timer interrupt to interrupt service function of timer interrupt ;
5. Time can GIC interrupt ;
6. Mapping between interrupt vector table and interrupt vector table ;

second , Initialization of timer peripherals ：

1. Find the timer peripheral , Fill in timer peripheral register base address and some related information ;
2. Timer peripheral self-test ;
3. Load timer timing time ;
4. Enable automatic reload function ;
5. Timer peripheral interrupt ;
6. Start timer ;
7. Write timer interrupt service function ;

initialization GIC Source code ：

void Init_GIC_Timer(void)

{

      XScuGic_Config *IntcConfig;

      //1,GIC The initialization

      //connect to hardware

      Xil_ExceptionInit();

      Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_IRQ_INT,

                                      (Xil_ExceptionHandler)XScuGic_InterruptHandler,

                                      (void *)&Intc);

      //find device

      IntcConfig = XScuGic_LookupConfig(INTC_DEVICE_ID);

      //config XScuGic data

      XScuGic_CfgInitialize(&Intc, IntcConfig,IntcConfig->CpuBaseAddress);

      //GIC connect to handler

      XScuGic_Connect(&Intc, TIMER_IRPT_INTR,(Xil_ExceptionHandler)TimerIntrHandler,(void*)&Timer);

      //enable xscugic

      XScuGic_Enable(&Intc,TIMER_IRPT_INTR);



      //enable exception

      Xil_ExceptionEnable();

      Xil_ExceptionEnableMask(XIL_EXCEPTION_IRQ);

}

Timer peripheral initialization source code ：

void Init_Timer(void)

{

      XScuTimer_Config *TMRConfigPtr;

    //2, Private timer initialization

      //find device

      TMRConfigPtr = XScuTimer_LookupConfig(TIMER_DEVICE_ID);

      //config XScuTimer data

     XScuTimer_CfgInitialize(&Timer,TMRConfigPtr,TMRConfigPtr->BaseAddr);

      //self test

      XScuTimer_SelfTest(&Timer);

      //loader value

      XScuTimer_LoadTimer(&Timer,TIMER_LOAD_VALUE);

      //enable auto reload

      XScuTimer_EnableAutoReload(&Timer);

      //enable interrupt

      XScuTimer_EnableInterrupt(&Timer);

      //start timer

      XScuTimer_Start(&Timer);

}

Timer interrupt service function source code ：

void TimerIntrHandler(void *CallBackRef)

{

      staticint sec = 0;

      XScuTimer* TimerInstancePtr = (XScuTimer*)CallBackRef;

      XScuTimer_ClearInterruptStatus(TimerInstancePtr);

      sec++;

      printf("%d Second\n\r",sec);

}
