Bert Chinese classification model training + reasoning + deployment

---

0. bert brief introduction

• BERT（Bidirectional Encoder Representation from Transformers） yes google-research stay 2018 year 10 A pre training model proposed in May , stay 11 Species difference NLP Created in the test SOTA performance , Become NLP Milestone model achievements in the history of development .
• This article starts with practice , Lead you to Bert Chinese text classification model training and reasoning tutorial .

---

1. bert structure

1. bert Chinese classification model training

bert Training is mainly divided into two stages ： Pre training stage and Fine-tuning Stage .

What is pre training ？
BERT It's a pre training model , So what is pre training ？ Give a simple introduction with examples
Suppose there is already A Training set , First use A Pre train the network , stay A Learn network parameters on task , Then save it for later use , When a new task comes B, Adopt the same network structure , Network parameters can be loaded during initialization A Learn good parameters , Other high-level parameters are initialized randomly , After use B Task training data to train the network , When the loaded parameters remain unchanged , be called "frozen", When the loaded parameters follow B The training of the task is constantly changing , be called “fine-tuning”, That is, better adjust the parameters to make them more suitable for the current B Mission
advantage ： When tasks B When there is less training data , It's hard to train the network well , But I got it A Training parameters , Than just using B The training parameters are better

Preliminary training
The pre training phase and Word2Vec,ELMo And so on , It's based on some pre training tasks on a large data set . Pre training requires huge computing resources ,google Official pre training a language model , Need to be in 4 To 16 individual Cloud TPU Four days of training , Fortunately, ,google Many pre training models are officially open source , Including Chinese pre training model . majority NLP Researchers never need to pre - train their own models from scratch .

fine-tuning
Fine-tuning The phase is used for some downstream tasks , Fine tune on the basis of the pre training model , For example, text classification , Part of speech tagging , Q & a system, etc ,BERT Fine tuning can be done on different tasks without restructuring .

---

1 download bert Project code

https://github.com/google-research/bert

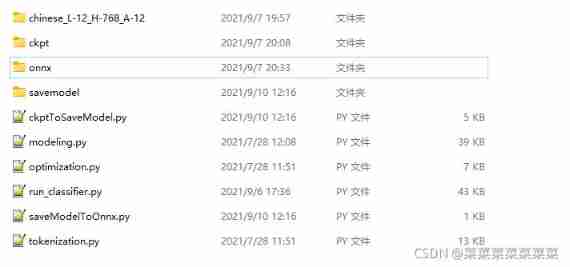

The code structure

• Preliminary training
  In open source code , The entrance to pre training is at run_pretraining.py.
• fine-tuning
  The fine-tuning entry is for different tasks run_classifier.py and run_squad.py.
  among run_classifier.py Training for text classification task .
  and run_squad.py Training for reading comprehension tasks .


---

2 Download the Chinese pre training model

For Chinese ,google A small parameter is published BERT Pre training model .

• Model download address

https://github.com/google-research/bert/blob/master/multilingual.md

• Go to download page , choice ：BERT-Base, Chinese Download .

• When the download is complete , Unzip to and run_classifier.py Same level directory .

• Model file description

  bert_model.ckpt： Stored model variables
  vocab.txt： Dictionary for Chinese text ,
  bert_config.json： yes bert During the training , Some configuration parameters that can be adjusted .

---

3 Make Chinese training data set

Train the classification model of Chinese text data , It is necessary to write a program to process the training data , Make it pass in as required bert Model training , and BERT In the code processor Class is responsible for processing the input data of the model .

Take the classification task as an example , Introduce how to modify processor Class to run on its own data set fine-tune. stay run_classsifier.py We can see in the document ,google For some public datasets, some processor, Such as XnliProcessor,MnliProcessor,MrpcProcessor and ColaProcessor. This gives us a good example , Guide us how to write for our own data sets processor.

class kedataProcessor(DataProcessor):
  """Processor for the XNLI data set."""

  def get_train_examples(self, data_dir):
      return self._create_examples(

          self._read_tsv(os.path.join(data_dir, "train.tsv")), "train")

  def get_dev_examples(self, data_dir):
      return self._create_examples(
          self._read_tsv(os.path.join(data_dir, "dev.tsv")), "dev")

  def get_test_examples(self, data_dir):
      return self._create_examples(
          self._read_tsv(os.path.join(data_dir, "test.tsv")), "test")

  def get_labels(self):
      #  The category returned here is the specific category of your classification
      labelf = open(FLAGS.data_dir+'\label.csv', 'r', newline='', encoding = 'gb2312')
      labeldata = csv.reader(labelf, delimiter="\t")
      labelList=[]
      for line in labeldata:
          label=line[1]
          labelList.append(label)

      return labelList

  def _create_examples(self, lines, set_type):
      """Creates examples for the training and dev sets."""
      examples = []
      for (i, line) in enumerate(lines):
          guid = "%s-%s" % (set_type, i)
          text_a = tokenization.convert_to_unicode(line[1])
          label = tokenization.convert_to_unicode(line[0])
          # print('guid:',guid," text:",text_a,' label:',label)
          examples.append(
              InputExample(guid=guid, text_a=text_a, text_b=None, label=label))

      return examples

Self defined processor You need to inherit DataProcessor, And reload to get label Of get_labels And get a single input get_train_examples,get_dev_examples and get_test_examples function . They will be respectively in main Functional FLAGS.do_train、FLAGS.do_eval and FLAGS.do_predict The stage is called .
The contents of these three functions are almost the same , The only difference is that you need to specify the address of each read file .

With get_train_examples For example , The function needs to return a InputExample Class composition list.InputExample Class is a very simple class , Only initialization functions , The parameters that need to be passed in guid Is used to distinguish each example Of , May, in accordance with the train-%d’%(i) The way to define .text_a It's a string ,text_b Is another string . After subsequent input processing (BERT Code already contains , You don't have to do it yourself ) text_a and text_b To combine into [CLS] text_a [SEP] text_b [SEP] In the form of . Last parameter label It is also in the form of string ,label The content of should be guaranteed to appear in get_labels Function return list in .

For example , Suppose we want to deal with a model that can judge sentence similarity , Now in data_dir There is a path named train.csv The input file of , If we now input the file in the following format csv form ：

 sure 	 Um. , Yes , yes .
 Job search status _ Found a job 	 Uh , I have a job thank you .
 Neutral 	 Oh , Tell me .
 Ask for the post address 	 Well, that , Then you are working , Is it arranged nearby , I think there are many of you
 sure 	 Can you hear me .
 Neutral 	 ah , You said you said .
 Intelligent assistant 	 Of users are temporarily unable to answer your call , SMS notification please hang up and leave a voice message , Please press once for manual help , Please press zero
 I didn't hear anything clearly 	 What are you doing ？
 Busy 	 Oh , I'm on my way to the interview .
 no 	 Um. , We don't have it now , Excuse me? .

label.csv

0	 dial the wrong number 	226
1	 I called 	127
2	 Refuse to call 	177
3	 Phone number acquisition 	19
4	 Ask yourself if you hear me 	55
5	 Non owner 	285
6	 no 	4477
7	 welfare _ other 	15
8	 welfare _ Accommodation 	47
9	 welfare _ Five social insurance and one housing fund 	83
10	 Position _ Age requirements 	58

modify processor Dictionaries
Modified to complete processor after , Need to be in the original main Functional processor In the dictionary , Add modified processor class , You can specify to call this... In the running parameters processor.

processors = {
      "cola": ColaProcessor,
      "mnli": MnliProcessor,
      "mrpc": MrpcProcessor,
      "xnli": XnliProcessor,
      "kedata": kedataProcessor,
  }

function run_classifier.py
And then you can run it directly run_classsifier.py Train the model . Some parameters need to be specified at runtime , A relatively complete operating parameter is as follows ：

BERT_BASE_DIR=/path/to/bert/chinese_L-12_H-768_A-12 # Global variables   Download pre training bert Address
MY_DATASET=/path/to/kedata # Global variables   Data set address

python run_classifier.py \
  --task_name=kedata \ # Add... Yourself processor stay processors In the dictionary key name
  --do_train=true \
  --do_eval=true \
  --dopredict=true \
  --data_dir=$MY_DATASET \
  --vocab_file=$BERT_BASE_DIR/vocab.txt \
  --bert_config_file=$BERT_BASE_DIR/bert_config.json \
  --init_checkpoint=$BERT_BASE_DIR/bert_model.ckpt \
  --max_seq_length=128 \ # Model parameters
  --train_batch_size=32 \
  --learning_rate=5e-5 \
  --num_train_epochs=2.0 \
  --output_dir=/tmp/selfsim_output/ # Model output path

2. bert Model reasoning

1.tensorflow Reasoning

• problem ：
  use Estimater.predict Always re model load Again , This kind of engineering business is useless .
• Solution ：

1. Use python The generator , Let the program “ mistook ” There are many sequences that need to be predicted , This structure yield The form can be ;
2. utilize tf.data.Dataset.from_generator, Load the generator , Declare the data structure and type ;
3. utilize class Class instance variables self The overall situation , adopt self.inputs The data “ Feed to ” Generator internal , This ensures that the data “ everfount ”;
4. Procedural requirements close The mechanism of , To ensure that the generator stops working .

from tokenization import FullTokenizer, validate_case_matches_checkpoint
from modeling import BertConfig
from run_classifier import model_fn_builder
import tensorflow as tf
from tensorflow.python.estimator.estimator import Estimator
from tensorflow.python.estimator.run_config import RunConfig
from run_classifier import FLAGS,InputExample,convert_single_example
import csv
import os
import numpy as np


class model(object):
    def __init__(self, labelfile,vocabfile,bert_config_file,init_checkpoint,ckptdir,max_seq_length):
        self.label = self.loadLabel(labelfile)
        self.closed = False
        self.first_run = True
        self.bert_config_file=bert_config_file
        self.ckptdir=ckptdir

        self.tokenizer = FullTokenizer(
            vocab_file=vocabfile,
            do_lower_case=True)
        self.init_checkpoint = init_checkpoint
        self.seq_length = max_seq_length
        self.text = None
        self.num_examples = None
        self.predictions = None
        self.estimator = self.get_estimator()

    def loadLabel(sel, labelfile):
        labelf = open(labelfile, 'r', newline='', encoding='gbk')
        labeldata = csv.reader(labelf, delimiter="\t")
        labelList = []
        for line in labeldata:
            label = line[1]
            labelList.append(label)
        return labelList

    def get_estimator(self):
        validate_case_matches_checkpoint(True, self.init_checkpoint)
        bert_config = BertConfig.from_json_file(self.bert_config_file)  #  load bert Custom configuration
        if FLAGS.max_seq_length > bert_config.max_position_embeddings:  #  Verify the accuracy of the configuration information
            raise ValueError(
                "Cannot use sequence length %d because the BERT pre_model "
                "was only trained up to sequence length %d" %
                (self.seq_length, bert_config.max_position_embeddings))
        run_config = RunConfig(
            model_dir=self.ckptdir,
            save_checkpoints_steps=FLAGS.save_checkpoints_steps,
            session_config=None
        )

        model_fn = model_fn_builder(  #  Estimator function , Provide Estimator The use of model_fn, For internal use EstimatorSpec Built
            bert_config=bert_config,
            num_labels=len(self.label),
            init_checkpoint=self.init_checkpoint,
            learning_rate=FLAGS.learning_rate,
            num_train_steps=0,
            num_warmup_steps=0,
            use_tpu=FLAGS.use_tpu,
            use_one_hot_embeddings=FLAGS.use_tpu)
        estimator = Estimator(  #  Instantiate estimator
            model_fn=model_fn,
            config=run_config,
            warm_start_from=self.init_checkpoint  #  Add preheating
        )
        return estimator

    def get_feature(self, index, text):
        example = InputExample(f"text_{index}", text, None, self.label[0])
        feature = convert_single_example(index, example, self.label, self.seq_length, self.tokenizer)
        return feature.input_ids, feature.input_mask, feature.segment_ids, feature.label_id

    def create_generator(self):
        """ Build generator """
        while not self.closed:
            self.num_examples = len(self.text)
            features = (self.get_feature(*f) for f in enumerate(self.text))

            yield dict(zip(("input_ids", "input_mask", "segment_ids", "label_ids"), zip(*features)))

    def input_fn_builder(self):
        """ Used to forecast. Create forecast data separately , Not based on file data """
        dataset = tf.data.Dataset.from_generator(
            self.create_generator,
            output_types={'input_ids': tf.int32,
                          'input_mask': tf.int32,
                          'segment_ids': tf.int32,
                          'label_ids': tf.int32},
            output_shapes={
                'label_ids': (None),
                'input_ids': (None, None),
                'input_mask': (None, None),
                'segment_ids': (None, None)}
        )
        return dataset

    def predict(self, text):
        self.text = text
        if self.first_run:
            self.predictions = self.estimator.predict(
                input_fn=self.input_fn_builder, yield_single_examples=True)
            self.first_run = False

        probabilities = next(self.predictions)
        #  Get maximum index
        index = np.argmax(probabilities["probabilities"])
        label = self.label[index]
        # return [self.label[i] for i in probabilities["probabilities"].argmax(axis=1)]

        return label

    def close(self):
        self.closed = True
pythonfile=os.path.realpath(os.path.realpath(__file__))
pardir=os.path.abspath(os.path.join(pythonfile,os.path.pardir))
labelfile=os.path.join(pardir,'ckpt/label.csv')
init_checkpoint=os.path.join(pardir,'chinese_L-12_H-768_A-12/bert_model.ckpt')
vocabfile=os.path.join(pardir,'chinese_L-12_H-768_A-12/vocab.txt')
bert_config_file=os.path.join(pardir,'chinese_L-12_H-768_A-12/bert_config.json')
ckptdir=os.path.join(pardir,'ckpt/')
max_seq_length=128
def getModel():
    bert = model(labelfile,vocabfile,bert_config_file,init_checkpoint,ckptdir,max_seq_length)
    bert.predict([""])
    return bert

if __name__=="__main__":
    bert=getModel()
    for i in range(1000):
        label=bert.predict([" dial the wrong number "])

2. onnxruntime Reasoning

ONNX Runtime It is a high-performance machine learning model reasoning engine . It is associated with PyTorch、TensorFlow And many other support ONNX Standard frameworks and tools are compatible .ONNX Runtime An open and extensible architecture is designed , Through the use of built-in graphics optimization and cross CPU、GPU And various hardware acceleration functions of edge devices , You can easily optimize and speed up reasoning .ONNX Runtime It can be easily inserted into your technology stack , Because it can be in Linux、Windows、Mac and Android To work on , And for Python、c#、c++、C and Java Provides convenient api.

To speed up bert Reasoning time of , Deploy to server , Edible onnxruntime Reasoning speeds up .

1. checkpoint Format conversion to saveModel Format

from tokenization import FullTokenizer, validate_case_matches_checkpoint
from modeling import BertConfig
from run_classifier import model_fn_builder
import tensorflow as tf
from tensorflow.python.estimator.estimator import Estimator
from tensorflow.python.estimator.run_config import RunConfig
from run_classifier import FLAGS
import csv

class Fast(object):
    def __init__(self, labelfile,vocabfile,bert_config_file,init_checkpoint,ckptdir):
        self.label = self.loadLabel(labelfile)
        self.closed = False
        self.first_run = True
        self.bert_config_file=bert_config_file
        self.ckptdir=ckptdir

        self.tokenizer = FullTokenizer(
            vocab_file=vocabfile,
            do_lower_case=True)
        self.init_checkpoint = init_checkpoint
        # self.seq_length = FLAGS.max_seq_length
        self.seq_length = 128
        self.text = None
        self.num_examples = None
        self.predictions = None
        self.estimator = self.get_estimator()

    def loadLabel(sel, labelfile):
        labelf = open(labelfile, 'r', newline='', encoding='gbk')
        labeldata = csv.reader(labelf, delimiter="\t")
        labelList = []
        # for i in range(60):
        #    labelList.append(i)
        for line in labeldata:
            label = line[1]
            labelList.append(label)
        return labelList

    def get_estimator(self):
        validate_case_matches_checkpoint(True, self.init_checkpoint)
        print("FLAGS.bert_config_file:",FLAGS.bert_config_file)
        bert_config = BertConfig.from_json_file(self.bert_config_file)  #  load bert Custom configuration
        if FLAGS.max_seq_length > bert_config.max_position_embeddings:  #  Verify the accuracy of the configuration information
            raise ValueError(
                "Cannot use sequence length %d because the BERT pre_model "
                "was only trained up to sequence length %d" %
                (self.seq_length, bert_config.max_position_embeddings))
        print("FLAGS.save_checkpoints_steps:",FLAGS.save_checkpoints_steps)
        run_config = RunConfig(
            model_dir=self.ckptdir,
            save_checkpoints_steps=FLAGS.save_checkpoints_steps,
            session_config=None
        )

        model_fn = model_fn_builder(  #  Estimator function , Provide Estimator The use of model_fn, For internal use EstimatorSpec Built
            bert_config=bert_config,
            num_labels=len(self.label),
            init_checkpoint=self.init_checkpoint,
            learning_rate=FLAGS.learning_rate,
            num_train_steps=0,
            num_warmup_steps=0,
            use_tpu=FLAGS.use_tpu,
            use_one_hot_embeddings=FLAGS.use_tpu)
        print("model_fn:",model_fn)
        estimator = Estimator(  #  Instantiate estimator
            model_fn=model_fn,
            config=run_config,
            warm_start_from=self.init_checkpoint  #  Add preheating
        )
        print("estimator.params:",estimator.params)
        print("estimator:",estimator)
        return estimator

    def serving_input_fn(self):
        receiver_tensors = {
            'input_ids': tf.compat.v1.placeholder(dtype=tf.int64, shape=[None, self.seq_length], name='input_ids'),
            'input_mask': tf.compat.v1.placeholder(dtype=tf.int64, shape=[None, self.seq_length], name='input_mask'),
            'segment_ids': tf.compat.v1.placeholder(dtype=tf.int64, shape=[None, self.seq_length], name='segment_ids'),
            'label_ids': tf.compat.v1.placeholder(dtype=tf.int64, shape=[None], name="label_ids")
        }

        return tf.estimator.export.ServingInputReceiver(features= receiver_tensors ,receiver_tensors=receiver_tensors)
    def transModel(self):

        self.estimator.export_saved_model('./savemodel',self.serving_input_fn)



labelfile='./ckpt/label.csv'
init_checkpoint='./chinese_L-12_H-768_A-12/bert_model.ckpt'
vocabfile='./chinese_L-12_H-768_A-12/vocab.txt'
bert_config_file='./chinese_L-12_H-768_A-12/bert_config.json'
ckptdir='./ckpt/'
model = Fast(labelfile,vocabfile,bert_config_file,init_checkpoint,ckptdir)
model.transModel()

2. saveModel Format conversion to onnx Format

import os

pbdir="1631247382"
onnxname="model.onnx"
cmdstr="python -m tf2onnx.convert --saved-model ./savemodel/{pbdir} --output ./onnx/{onnxname}".format(pbdir=pbdir,onnxname=onnxname)

os.system(cmdstr)

3. Use onnxruntime Reasoning onnx Format model

import onnxruntime as ort
from tokenization import FullTokenizer
from run_classifier import convert_single_example
from run_classifier import InputExample
import time
import numpy as np
import csv

import os

class model(object):
    def __init__(self, vocab_file,labelfile,modelfile,max_seq_length):
        self.closed = False
        self.first_run = True
        self.tokenizer = FullTokenizer(
            vocab_file=vocab_file,
            do_lower_case=True)
        self.seq_length = max_seq_length
        self.label = self.loadLabel(labelfile)

        so = ort.SessionOptions()

        #so.execution_mode = ort.ExecutionMode.ORT_SEQUENTIAL
        # so.execution_mode = ort.ExecutionMode.ORT_PARALLEL

        so.graph_optimization_level = ort.GraphOptimizationLevel.ORT_ENABLE_ALL

        #self.model = ort.InferenceSession(modelfile,sess_options=so,providers=['CPUExecutionProvider'])
        self.model = ort.InferenceSession(modelfile,sess_options=so,providers=['CUDAExecutionProvider'])
        #self.model.set_providers(['CUDAExecutionProvider'], [{'device_id': device_id,"gpu_mem_limit" :  3  *  1024  *  1024  *  1024}])
        # self.model.set_providers(['CUDAExecutionProvider'], [{'device_id': device_id }])


    def loadLabel(sel,labelfile):
        labelf = open(labelfile, 'r', newline='',encoding='gbk')
        labeldata = csv.reader(labelf, delimiter="\t")
        labelList = []
        #for i in range(60):
        #    labelList.append(i)
        for line in labeldata:
           label = line[1]
           labelList.append(label)
        return labelList

    def get_feature(self, index, text):
        example = InputExample(f"text_{index}", text, None, self.label[0])
        feature = convert_single_example(index, example, self.label, self.seq_length, self.tokenizer)
        return feature.input_ids, feature.input_mask, feature.segment_ids, feature.label_id


    def predict(self, text):
        dataList=[]
        input_ids_L=[]
        input_mask_L=[]
        segment_ids_L=[]
        label_ids_L=[]
        for i in range(len(text)):
            input_ids,input_mask,segment_ids,label_ids=self.get_feature(i,text[i])
            input_ids_L.append(input_ids)
            input_mask_L.append(input_mask)
            segment_ids_L.append(segment_ids)
            label_ids_L.append(label_ids)

        data = {
            "input_ids:0": np.array(input_ids_L, dtype=np.int64),
            "input_mask:0": np.array(input_mask_L, dtype=np.int64),
            "label_ids:0": np.array(label_ids_L, dtype=np.int64),
            "segment_ids:0": np.array(segment_ids_L, dtype=np.int64)
        }
        dataList.append(data)
        result = self.model.run(output_names=["loss/Softmax:0"], input_feed=data)
        label_l=[]
        for i in range(len(text)):
            #  Get maximum index
            maxProbabilities=max(result[0][i])

            index=np.argmax(result[0][i])

            label=self.label[index]
            item={"label":label,"score":maxProbabilities}
            label_l.append(label)

        return label_l


pythonfile=os.path.realpath(os.path.realpath(__file__))
pardir=os.path.abspath(os.path.join(pythonfile,os.path.pardir))
datadir=os.path.join(pardir,'zhaopin')

labelfile=os.path.join(datadir,'label.csv')
modelfile=os.path.join(datadir,'model.onnx')
vocabfile=os.path.join(pardir,'vocab.txt')
max_seq_length=128


def getModel():
    bert = model(vocabfile,labelfile,modelfile ,max_seq_length)
    return bert

if __name__=="__main__":
    bert=getModel()
    for i in range(1000):
        time1=time.time()
        bert.predict([" I've already called "])
